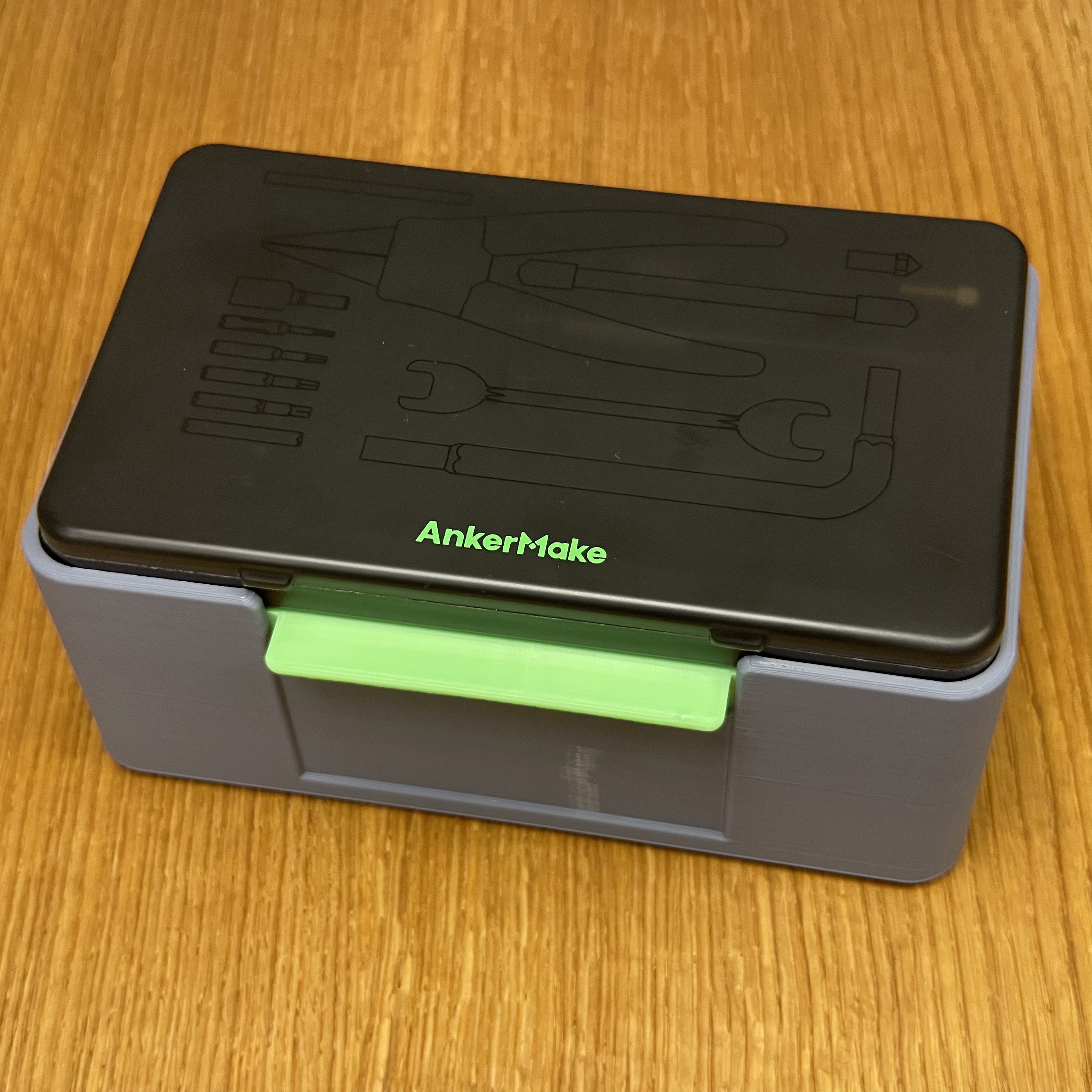

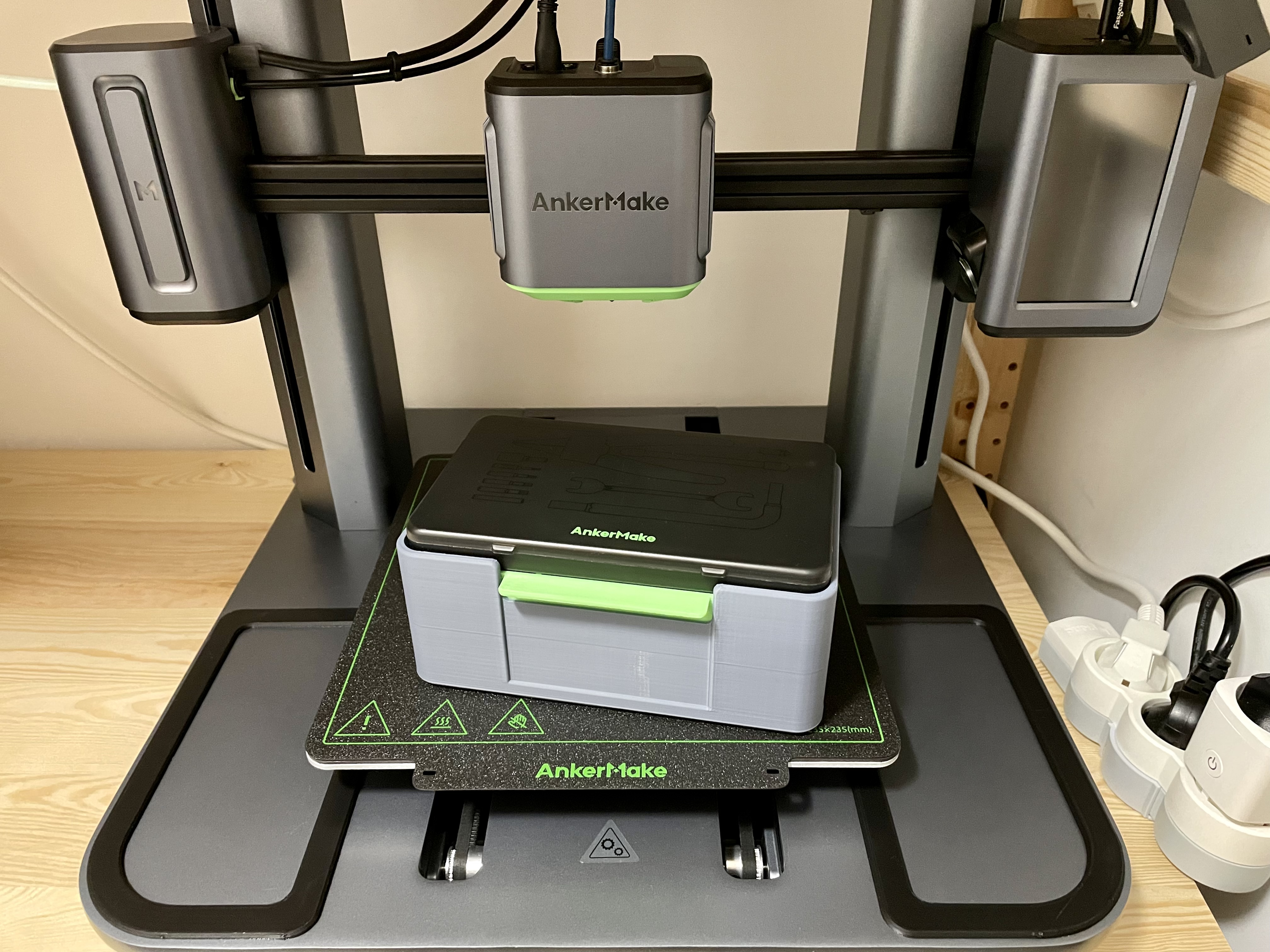

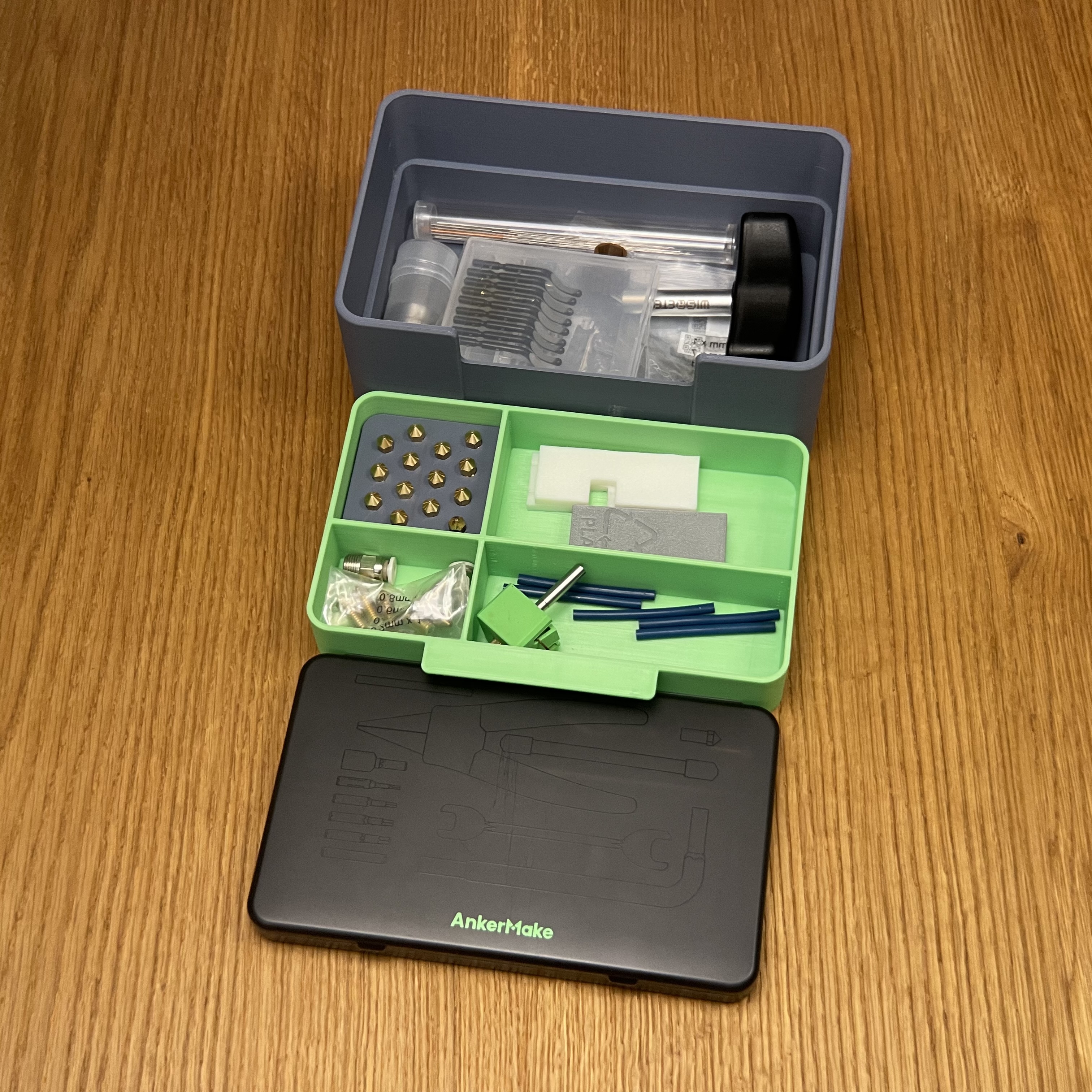

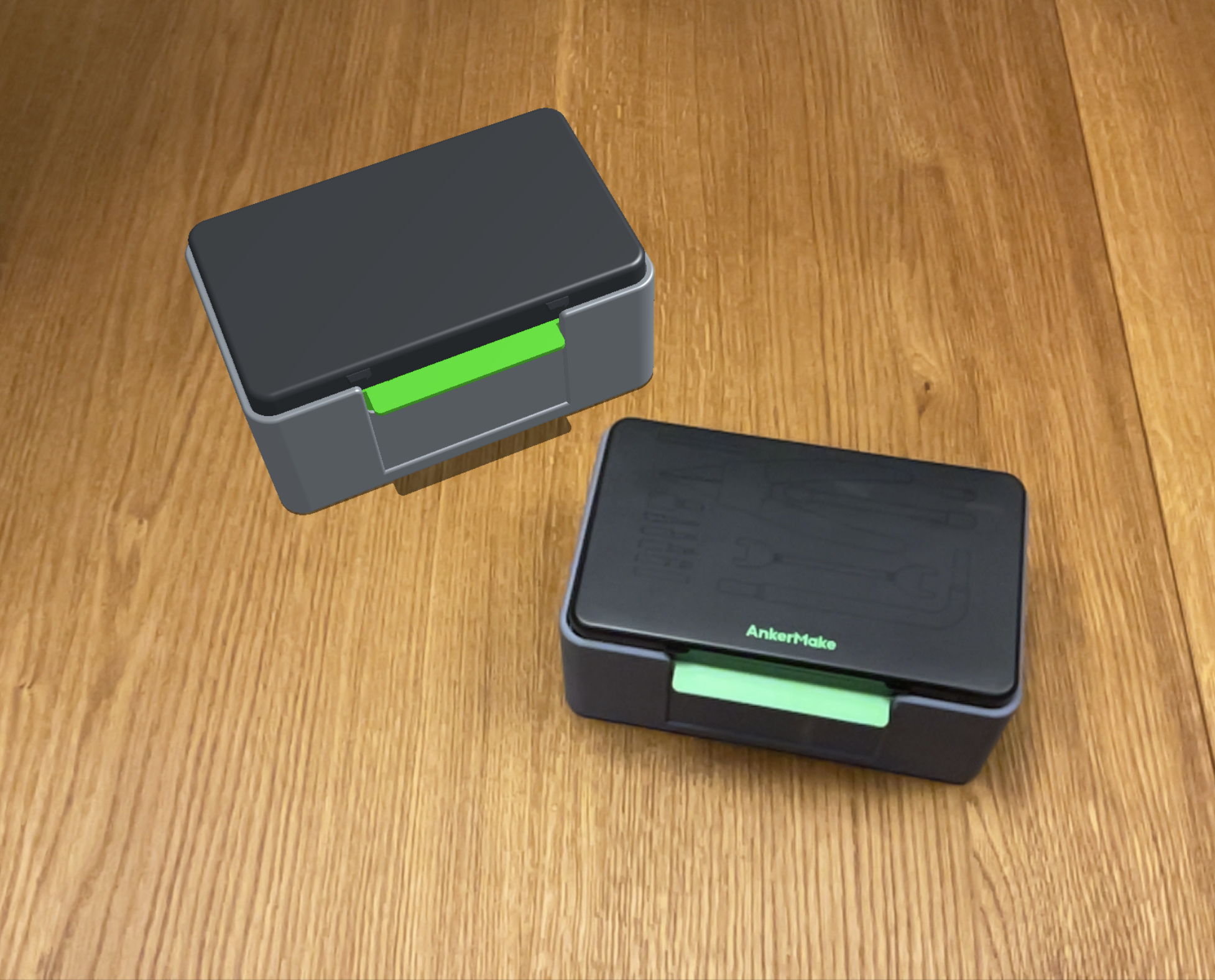

AnkerMake M5 toolbox and storage. Top part is the actual AnkerMake original toolset.

Suggested printer settings:

• perimeters (walls): at least 3 with 0.4 nozzle
• layer height: 0.2
• top/bottom layers: 4-5
• infill: at least 15%
• ironing: it makes the print a few hours (!) longer
• supports: needed for upper part (green)

Filament colors:

• look for ‘peak green’, ‘grey’ and ‘black’ flavors

v230217 - ready for prime time:

• corrected bottom fillet with 60deg chamfer. This way bottom edges should be easier to print (plain fillet has 0/90deg start)
• corrected upper top surface to better fit topbox

v230301

• fillets inside bins
• more nozzle inlays, now with chamfers to fit the bin - choose your preferred  size
• M logo

v230311 extras

• big bottom part for extended storage
• upper bin without dividers (empty)
• upper bin for long tools
