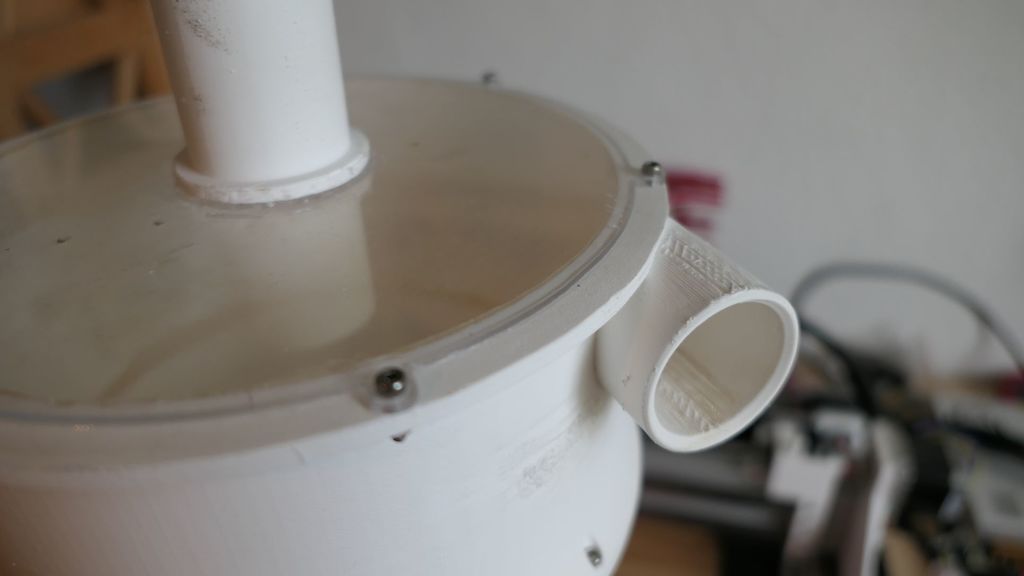

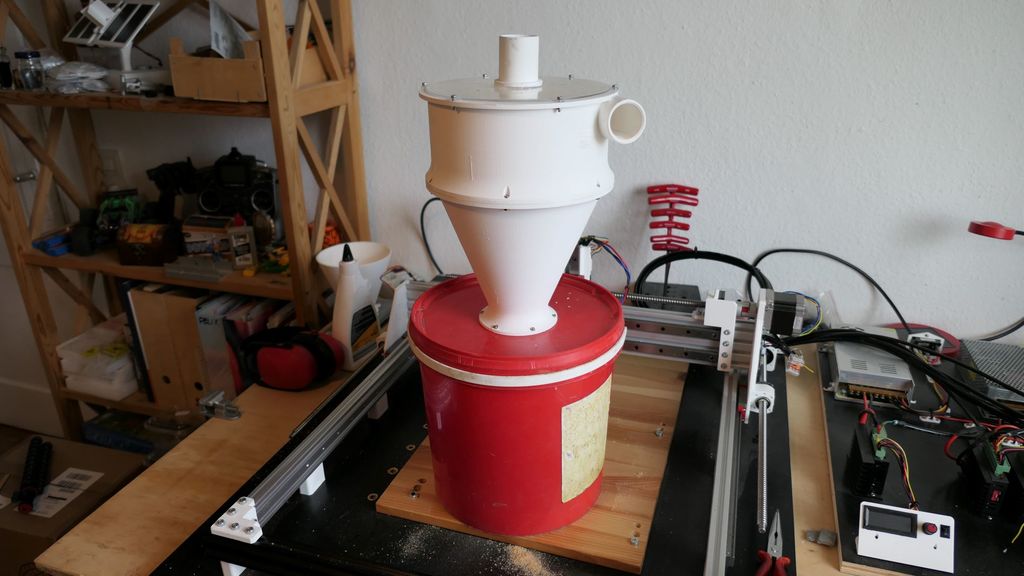

I made this cyclone separator. It consists of five parts, four of which were 3D printed. The last, the top piece, was made out of acrylic on my CNC router so I could see inside but it can also be 3d printed.

In my test it worked relatively well. It filters out most particles, even when tested with fine wood dust. It was designed with parameters so after opening the Fusion 360 file you can easily change the various dimensions.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0.2mm

Infill:

10%

Filament: PLA

Category: Machine Tools
