Modelo 3D Cableclip for 4mm cables por Shaxo no Printables

Descrição

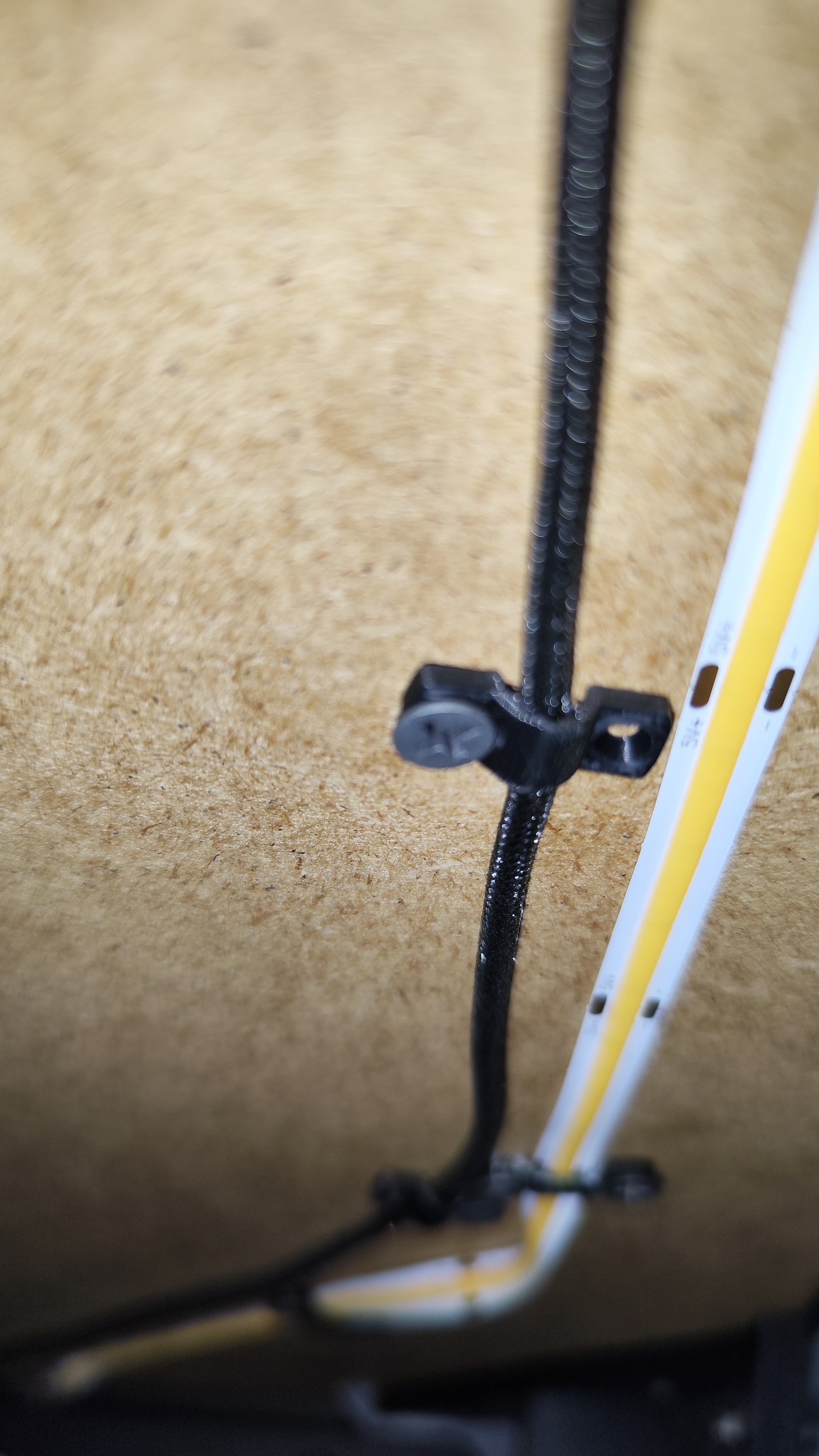

I started building my own Slack Lack, but i used a Blink Mini as surveillance cam. It requires a permanent power suppliance via USB, so i had to guide it out of the enclosure.
Since i have'nt designed anything yet, that fixed a real world problem, i made it on my own.
The first versions had sharp edges, were'nt that thick and broke while screwing in. So i improved it a bit, by adding roundings.
1pc prints in around 6mins with 50mm/s speed.

Usually one screw can hold the cable in place, so you could just break the other screwhole apart easily.

Ich habe mir einen Slack Lack gebaut, in dem ich eine Blink Mini zur Überwachung verbaut habe. Diese benötigt aber eine permanente Energieversorgung per USB Kabel, also musste ich dieses Kabel aus dem Gehäuse herausführen.
Da ich bisher noch nichts entworfen habe, das reale Anwendung findet, wollte ich hiermit starten.
Die ersten Versionen hatten scharfe Kanten und waren sehr dünn, sodass sie beim festschrauben durchbrachen. Ich habe ein paar Rundungen eingebaut, damit es nicht sofort durchbricht.
1 Stück lässt sich bei 50mm/s innerhalb von 6 Minuten drucken.

Normalerweise hält eine Schraube das Kabel am Platz. Wenn man möchte kann man das andere Schraubloch einfach abbrechen. Mich hats allerdings nicht gestört.

Printables

Cableclip for 4mm cables

Publicado em 14 de fev de 2023

7
Curtidas
32
Downloads
Categoria Other Printer Parts & Upgrades
Tags
cable usb cablemanagement cableholder cableclip cableguide blink kabel kabelhalterung kabelhalter kabelfuehrung
Licença Creative Commons — Attribution — Share Alike
Arquivos (1)
Kabelclip USB 4mm.stl 136.7 KB
