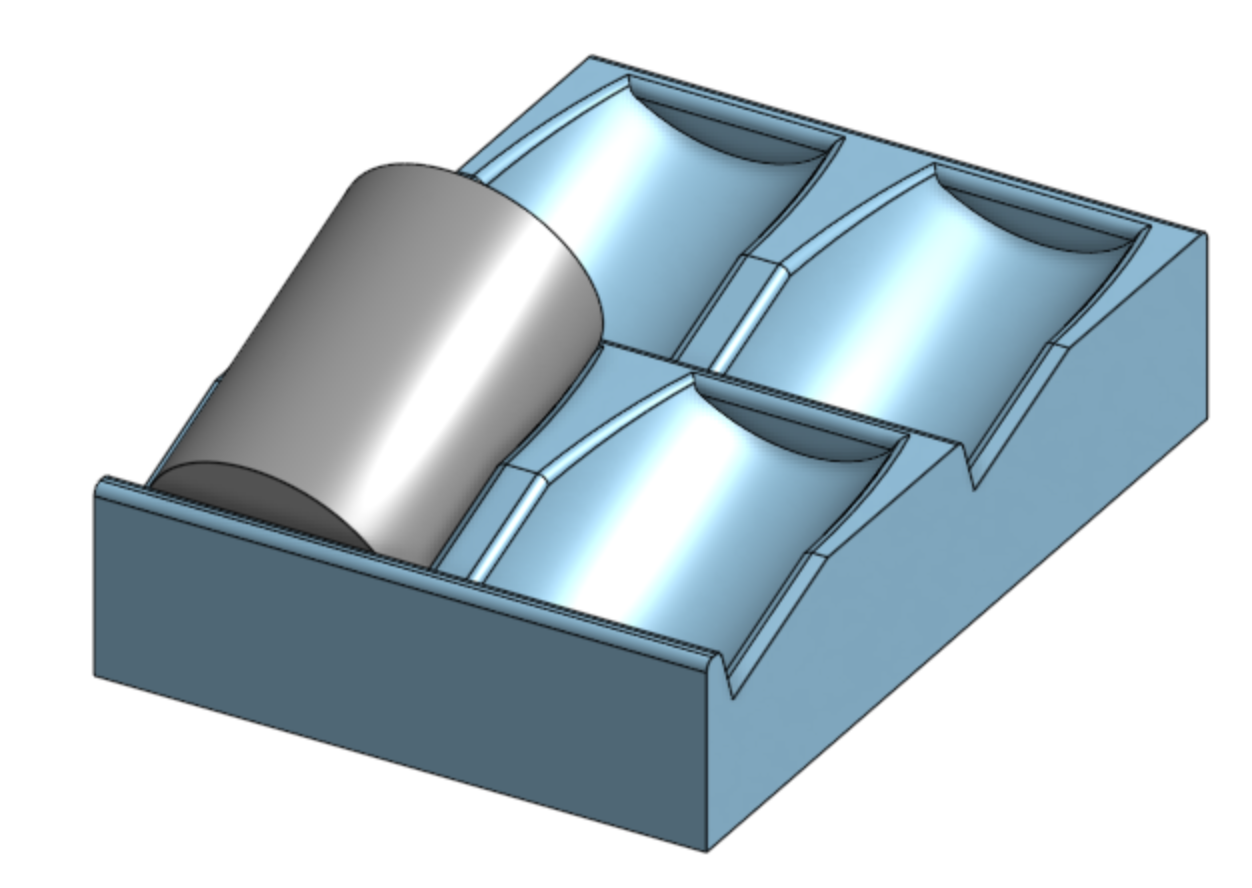

A modular design spice rack that neatly nests and displays your spice jars!

Made to fit 50mm diameter, 72mm tall spice jars.

I have created 3 configurations:

• 2 x 2
• 1 x 2 (vertical)
• 2 x 1 (horizontal)

Print your desired configurations to fit your drawer/bench space and as many jars as you have!

The design holds the jars on a tilt so they are easy to identify and to put in/take out.

Will require a drawer with at least 75mm available height.

The design is optimised to use a minimal amount filament, the 2x2 configuration comes out at just over 100g when printed with 2 perimeters. The design is adequately sturdy even with the steep overhanging sections and thin walls. The ribs act as support during printing and provide further strength to the overall design.

Printing Parameters:

• 0.2mm layer height
• 2 perimeters to optimise material usage
• Infill percentage doesn't matter, leave at default 20%
• No supports - I have designed this to print without supports. The ribs provide structure to the design and also act as suitable support material. I have printed these fine without additional supports, but you could print with supports if desired.
