A friend needed a funnel adapted to fit a 5mm irrigation drip hose. His use case was to fill an inaccessible trap on a laundry room water drain.

They have a floor drain in the laundry room. The drip system has clogged due to mineral buildup. Therefore, they took some drip line, ran it down the drain and pour water into the drain to keep the trap full... so the sewer gas doesn’t come into the room. But, they needed a way to get about a cup of water into the 5mm tube. Hence this remix of irrigation adapter and the hydroponic funnel.

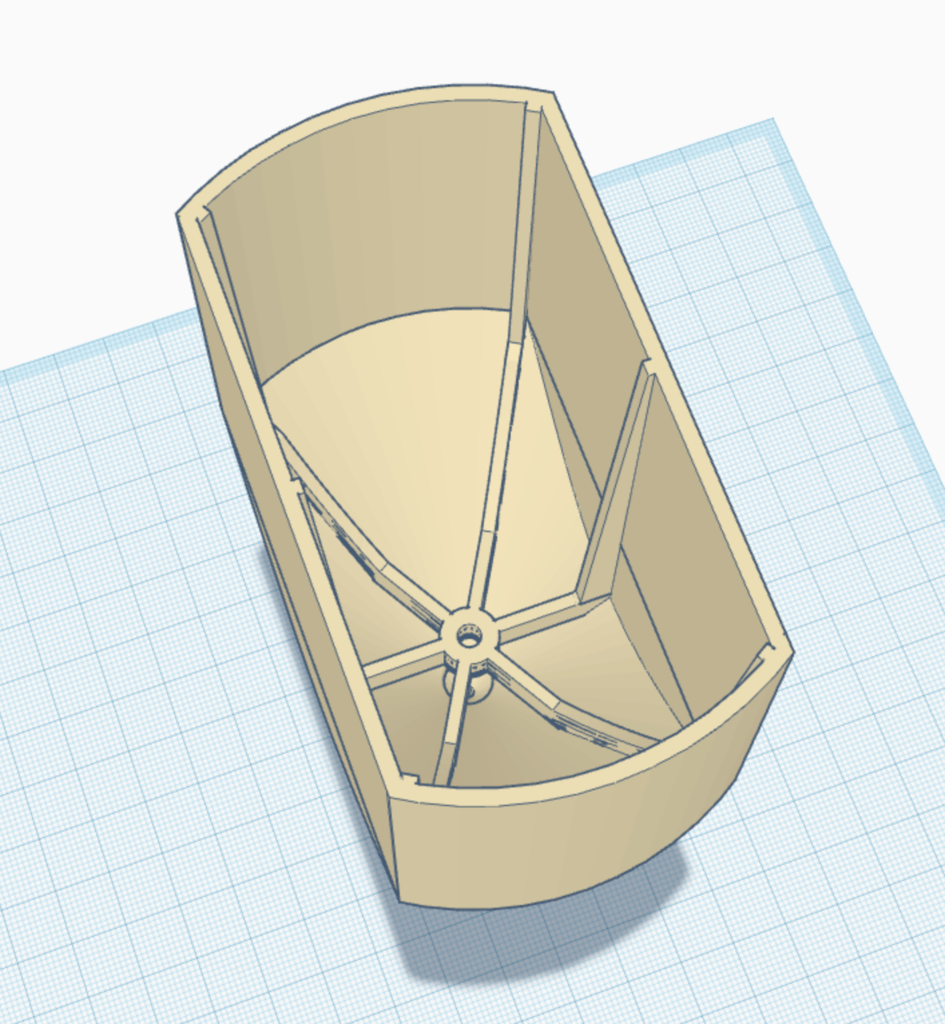

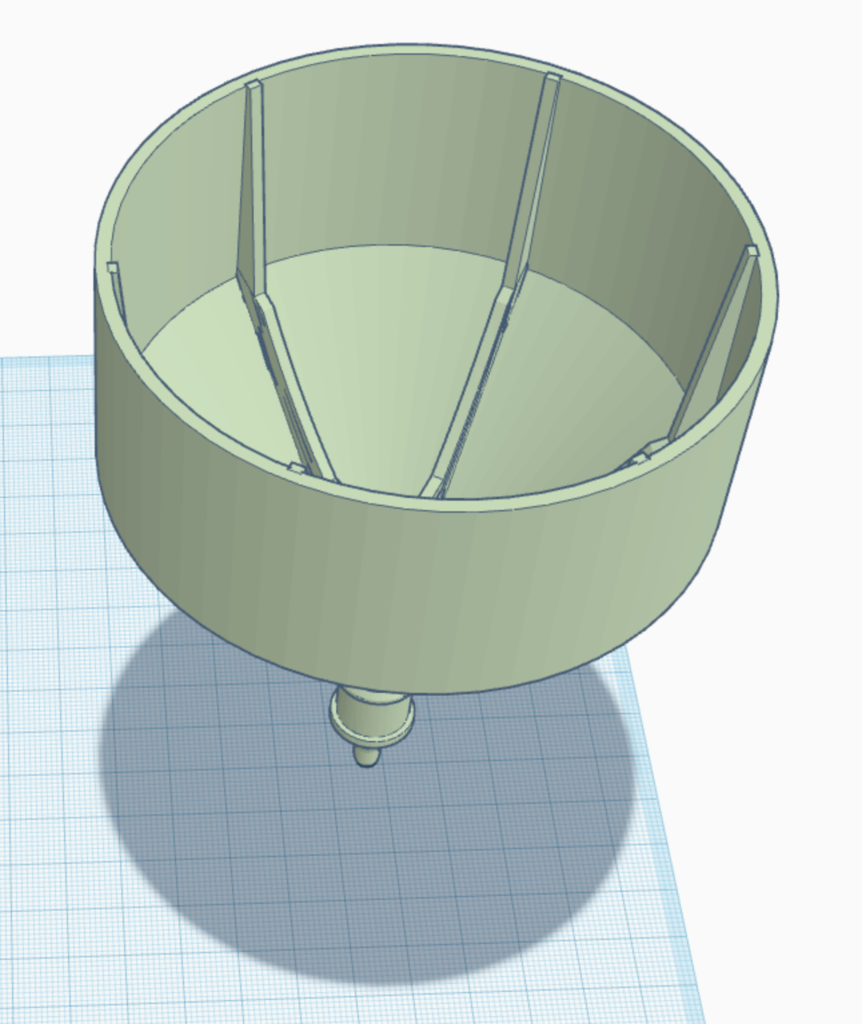

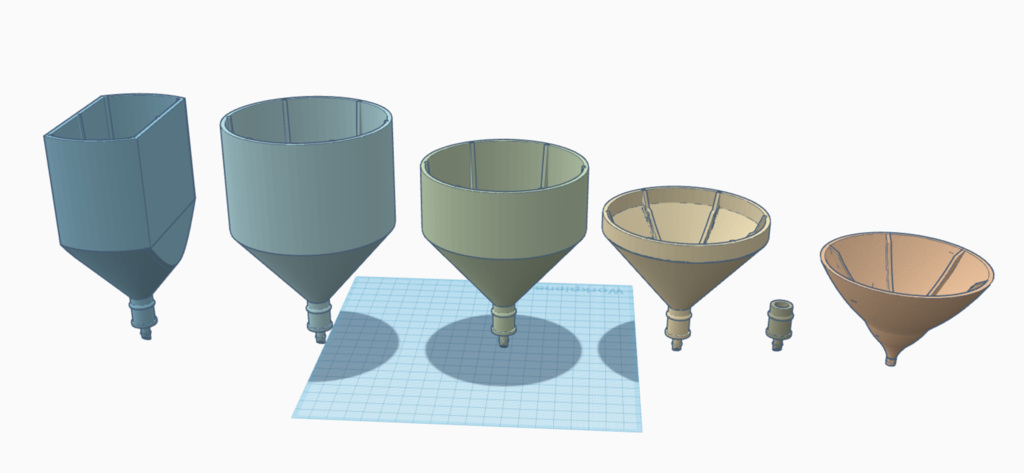

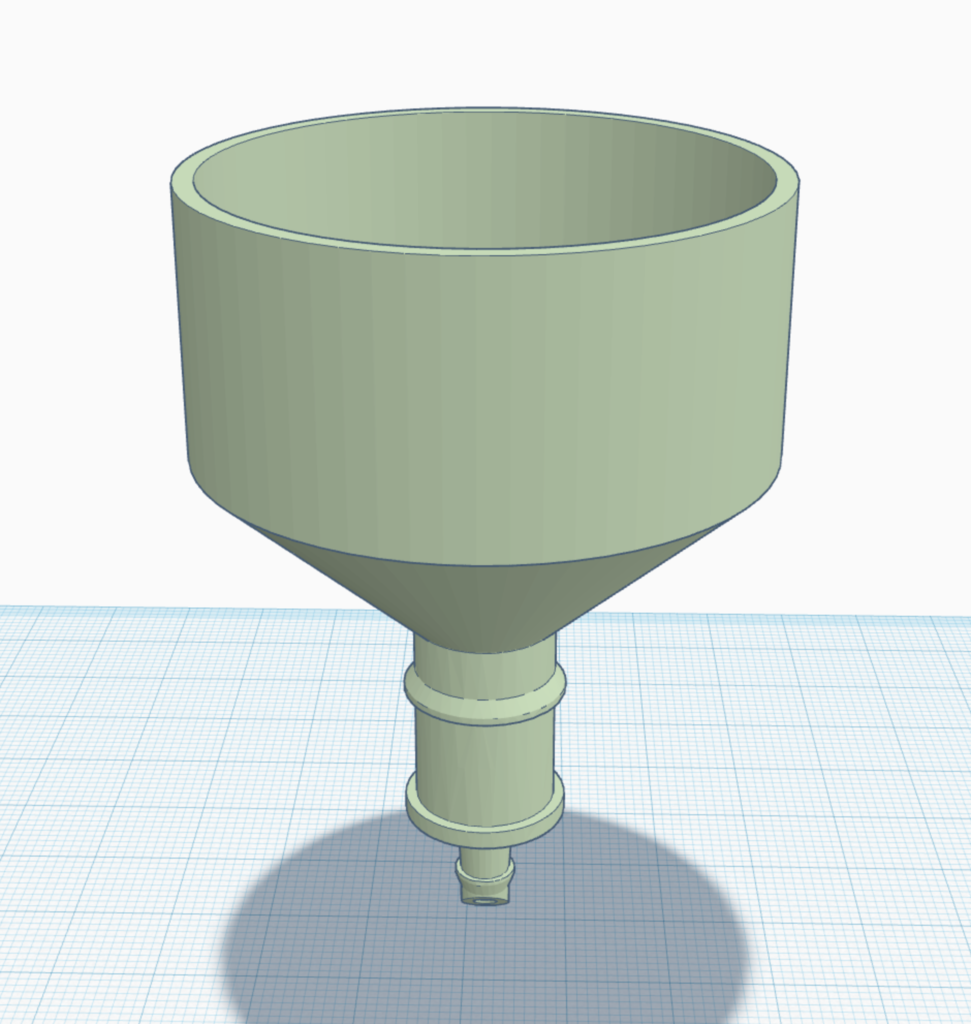

I have a couple versions posted, due to design iterations to meet my friend's needs. They all do the same job, just different form factors.

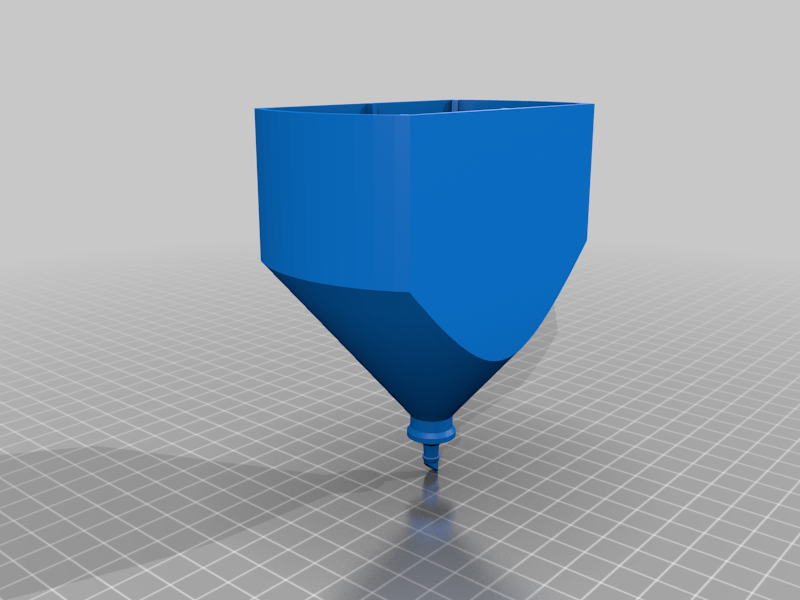

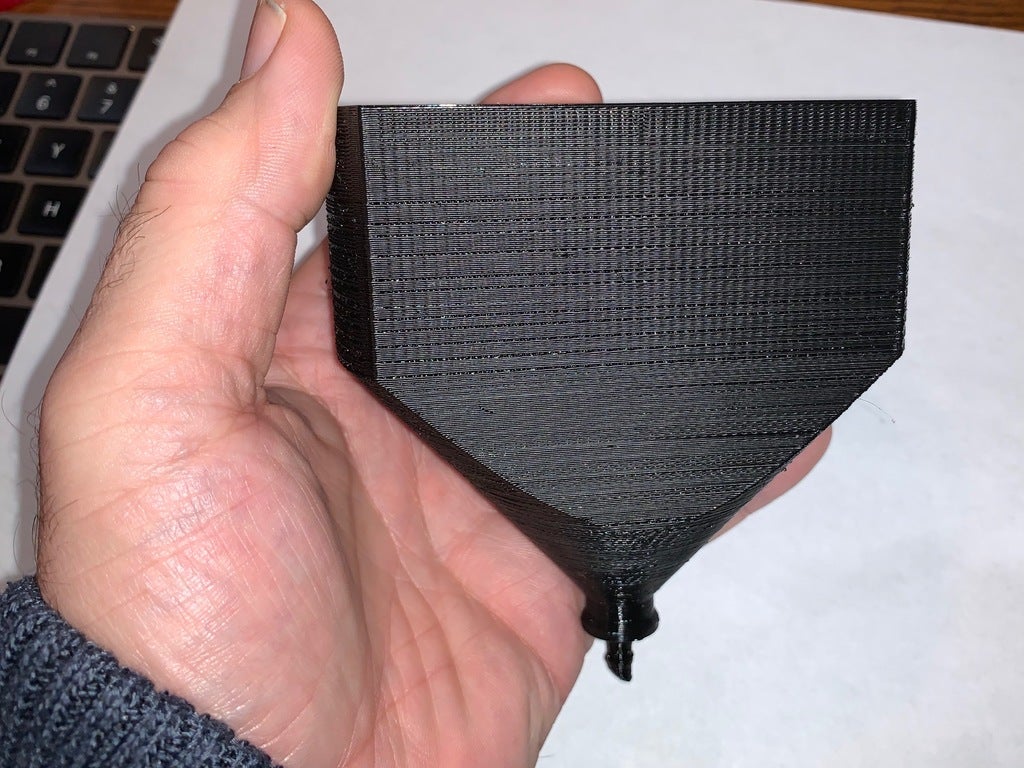

Number 4 is the final design (they all work) and holds 1.25 cups of water (10 ounces).

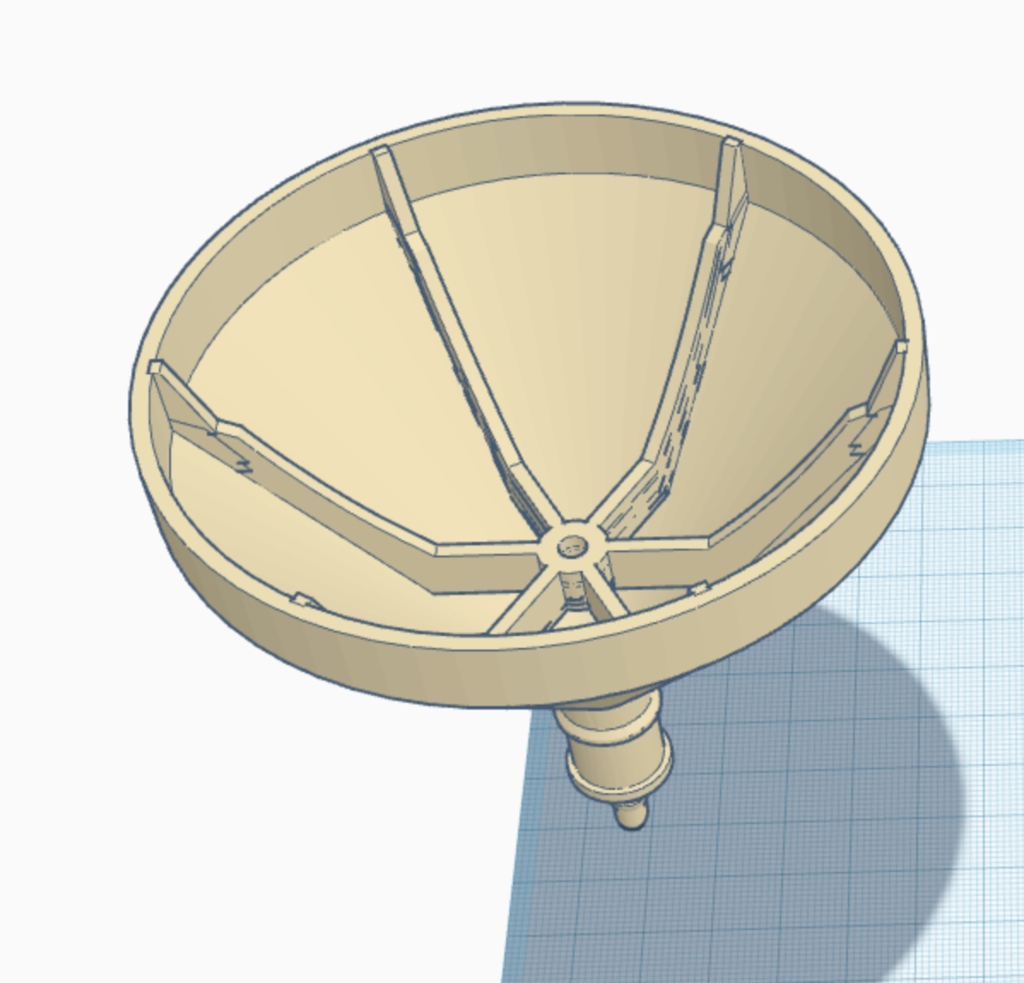

TinkerCAD sources:

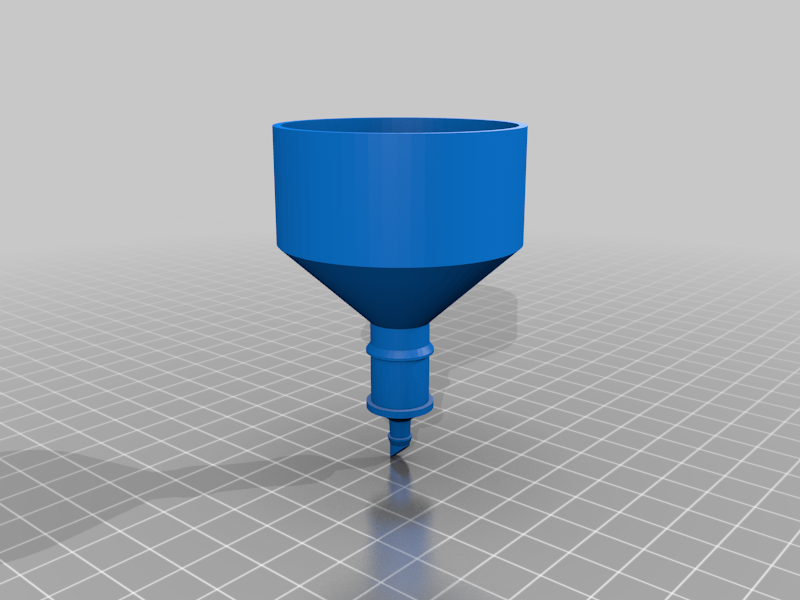

Funnel #2
[https://www.tinkercad.com/things/e4Q9gWAiNaa](https://www.tinkercad.com/things/e4Q9gWAiNaa)

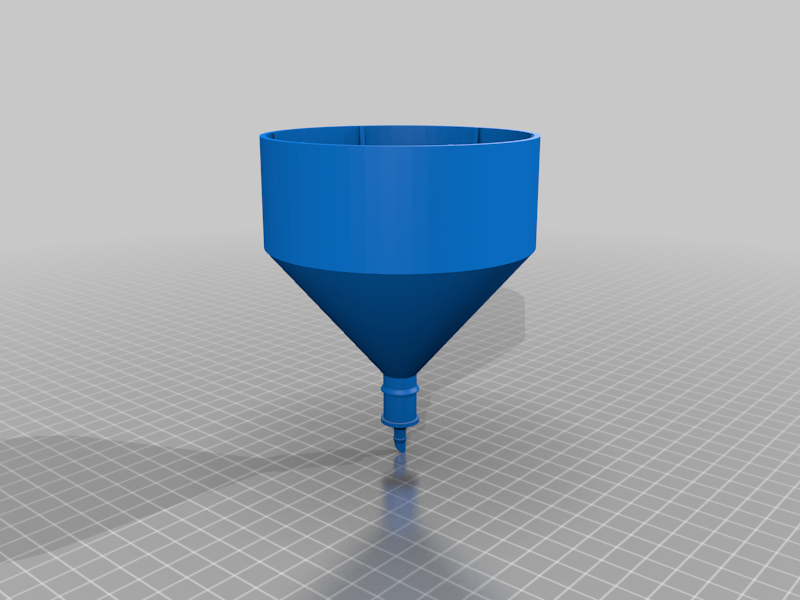

Funnel #3
[https://www.tinkercad.com/things/khYv4ZyC25w](https://www.tinkercad.com/things/khYv4ZyC25w)

Funnel #4
[https://www.tinkercad.com/things/b69lMEI8uzj](https://www.tinkercad.com/things/b69lMEI8uzj)

Print instructions

Unassociated tags: drip funnel, drip hose connector, drip hose funnel

Category: Household Summary

A friend needed a funnel adapted to fit a 5mm irrigation drip hose. His use case was to fill an inaccessible trap on a laundry room water drain.

They have a floor drain in the laundry room. The drip system has clogged due to mineral buildup. Therefore, they took some drip line, ran it down the drain and pour water into the drain to keep the trap full... so the sewer gas doesn’t come into the room. But, they needed a way to get about a cup of water into the 5mm tube. Hence this remix of irrigation adapter and the hydroponic funnel.

I have a couple versions posted, due to design iterations to meet my friend's needs. They all do the same job, just different form factors.

Number 4 is the final design (they all work) and holds 1.25 cups of water (10 ounces).

TinkerCAD sources:
Funnel #2
[https://www.tinkercad.com/things/e4Q9gWAiNaa](https://www.tinkercad.com/things/e4Q9gWAiNaa)

Funnel #3
[https://www.tinkercad.com/things/khYv4ZyC25w](https://www.tinkercad.com/things/khYv4ZyC25w)

Funnel #4
[https://www.tinkercad.com/things/b69lMEI8uzj](https://www.tinkercad.com/things/b69lMEI8uzj)

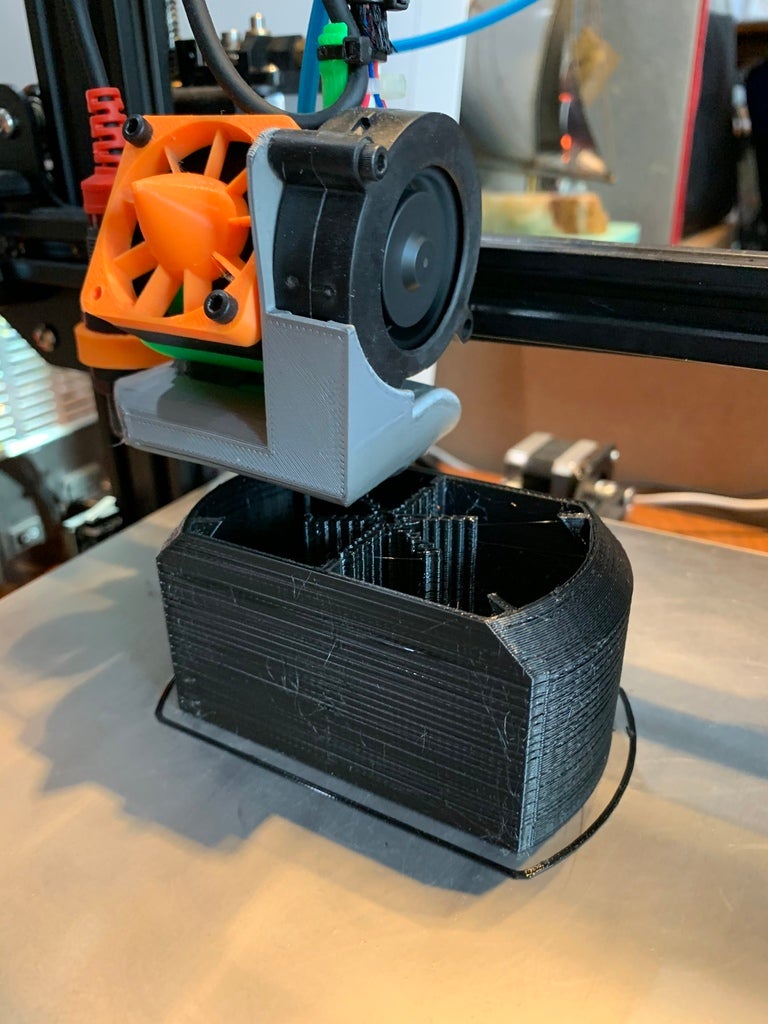

Print Settings

Printer Brand: Prusa

Printer: i3 MK2.5

Rafts: No

Supports: Yes

Resolution: .2

Infill: 25%

Filament: Any PETG, or Nylon, or ABS Any
Notes:

PLA is too brittle in that the tip can more easily snap off.
