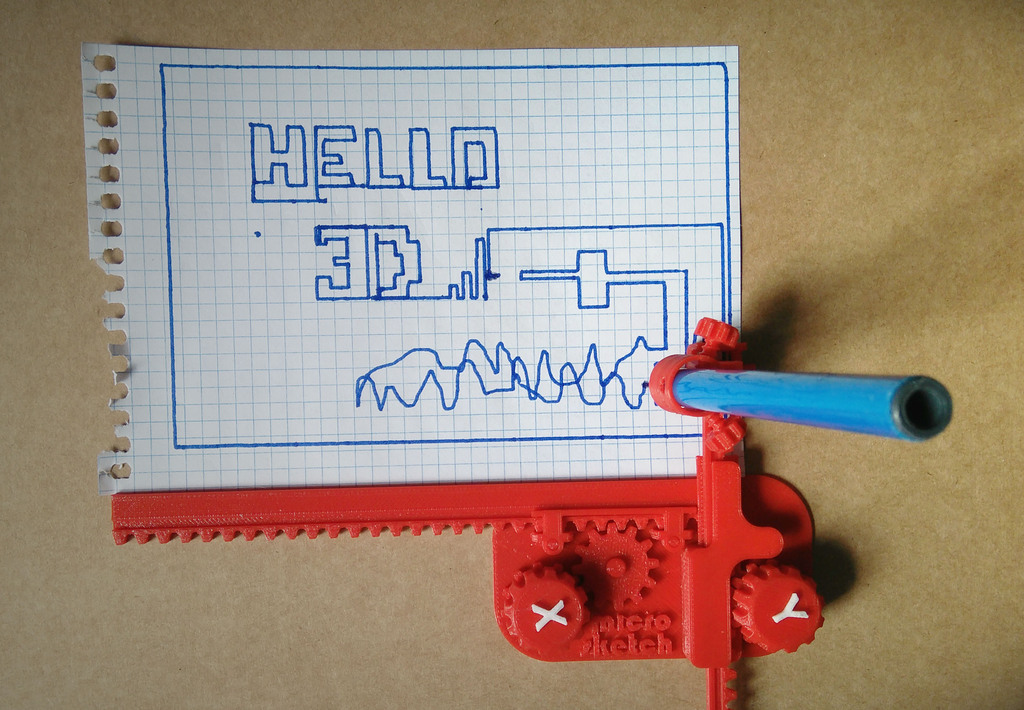

This is my printable version of the classicetch-a-sketch /telesketch. A kind of plotter-toy.

You can draw what you imagine rotating the X-Y knobs.

It works great with a marker or a pen.

The drawing area it's 15x10cms aprox.

The X-axis acts moving the complete paper, inspired in the Prusa Y-axis (moving all bed)

It has many parts and can print mostly without supports (i hate supports)

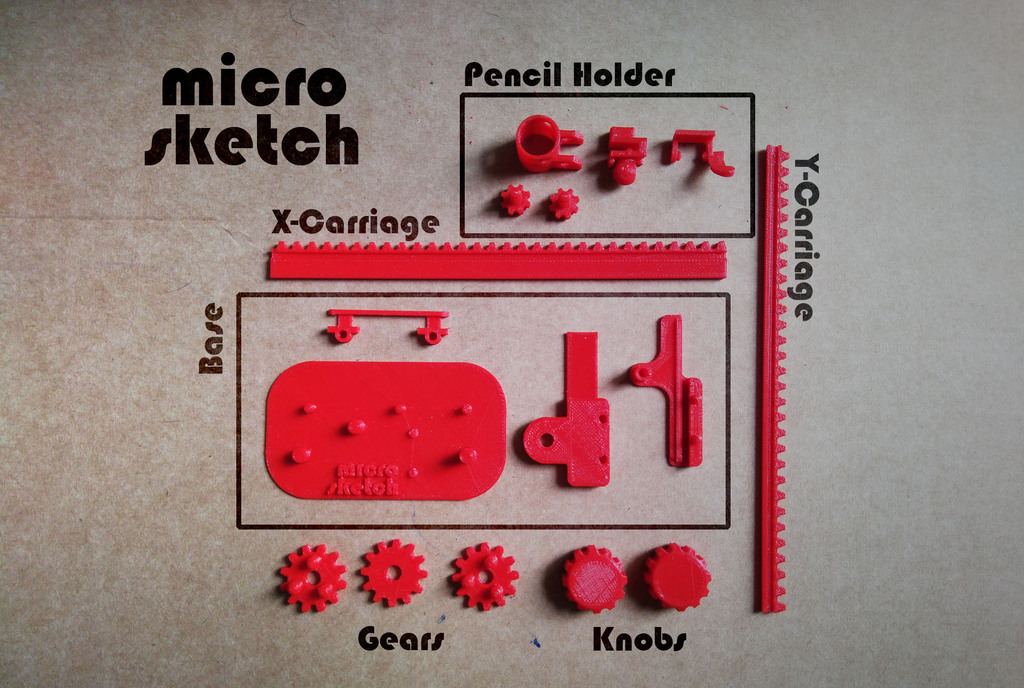

I've arrange the parts in 6 files according to impression parameters and print order.

Included aPDF with assemblig instructions and some tips.

Included aZIP file with al the STL files for each part.

Also included the 123D Design files.

See the Print Settings.

And last: Sorry if my english it's not good, i'm from spain and have a bad grammar writting in english.

UPDATE!! TheZIP file 'all_parts_separated_update.zip now contains the STL's with all the pieces 'merged' (old files may cause problems with some slicing software').

Redownload if you have problems with separated parts in the STL's

UPDATE 18-Sept-2016: Youtube video ScienceMadeFunner published a great video ( [https://www.youtube.com/watch?v=JM1SavDy5Rc](https://www.youtube.com/watch?v=JM1SavDy5Rc) ) printing, assembling and playing with MicroSketch. Check it out!

Video en Español: [https://www.youtube.com/watch?v=nwQ4KaJzf6A](https://www.youtube.com/watch?v=nwQ4KaJzf6A) (The3DMates)

Check thisremix made by PowerScissor : [https://www.thingiverse.com/thing:2696231](https://www.thingiverse.com/thing:2696231)

Have fun!!

Print Settings

Printer:

BQ Prusa i3 Hephestos

Rafts:

Notes:

Tested with PLA

Only use Rafts if you really have problems of adhesion. I've printed without rafts and it works

Important:Adjust the 'flow' on your print software to ensure all parts fit with a minimal sanding.

Recomended something like'flow calibrator' [http://www.thingiverse.com/thing:1662342](http://www.thingiverse.com/thing:1662342)

Print settings by file

Part 1: Base parts

Supports:NO

Infill 50% or more

Resolution: 0.2

Part 2: Carriage Covers

Supports:NO

Infill 50% or more

Resolution: 0.2 it's ok, 0.1 it's great!!

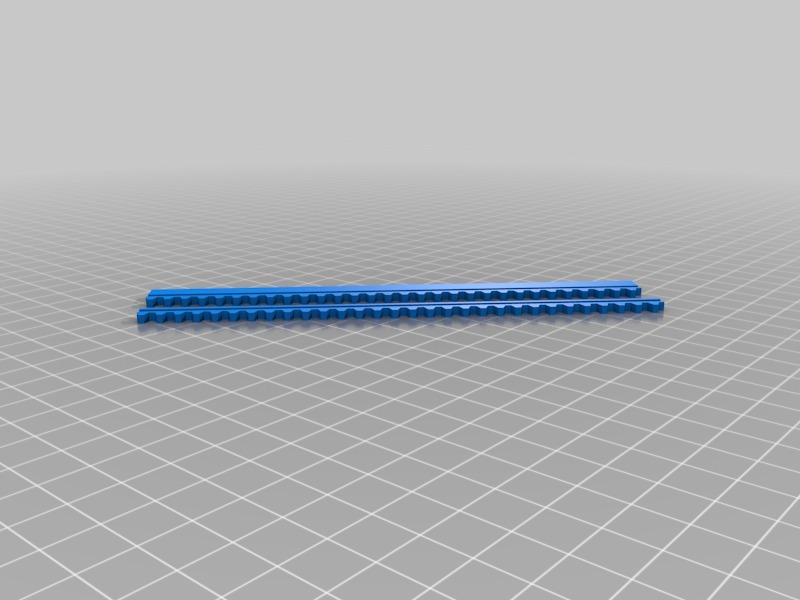

Part 3: CarriageXY

Supports:NO

Infill: Doesn't matter (tested with 20%)

Resolution: 0.2

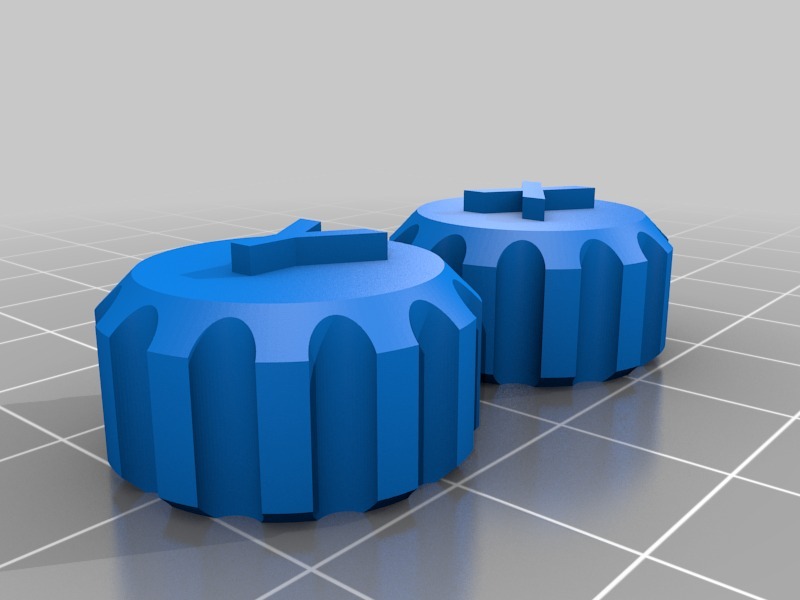

Part 4: Knobs (or alternative knobs labelled)

Supports:NO

Infill: Doesn't matter (tested with 20%)

Resolution: 0.2

Part 5: Pen Holder

Supports:Yes

Infill: 50% or more

Resolution: 0.2 it's ok, 0.1 it's great!!

Part 6: Screws

Supports:NO

Infill: 75% or more (tested with 100%)

Resolution: 0.1 it's great, tested with 0.2 and it works but not recomended

Category: Mechanical Toys
