Hi!
This is aWii Nunchuk-style controller that i made forArduino/Raspberry projects.
Suitable for most PS2-like joysticks and 12mms switch buttons.
You'll need 3 M3 screws (two for joystick and one for the case).

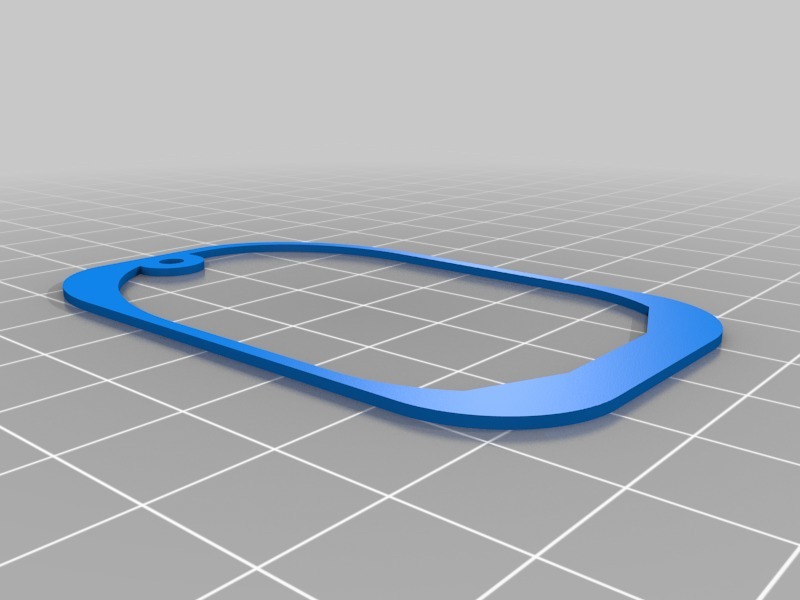

'spacer.stl' not needed but looks nice in combination with some colors
Also, i uploaded a video showing the controller in action: [https://youtu.be/qHTFjGCErSI](https://youtu.be/qHTFjGCErSI)
See more info below.
Hope you find it useful.
Have fun!
Print Settings
Printer:
ANET E10 + Creality CR-10
Resolution:
0.2
Infill:
20%
Notes:
You can use supports for bottom part to avoid overhangs inside the controller. But you really don't needed as the overhangs are inside and once closed you can't see them.
Proof of concept
Fast prototypes..taking measurements
Bottom part
First working prototype
Nice color combo
Another nice color combo
Wiring and electronics ======================Soldering stuff
Daisy-chain the ground wires
Joystick wiring
Lets's try some Arduino stuff!!!!
Male pins for protoboard
It works!!!!
