Modelo 3D Vesa laptop mount. por electron no Printables

Descrição

My own try of custom VESA laptop holder/mount. Printed with PETG they may be a bit hard to slide in at first, but they hold on really good.

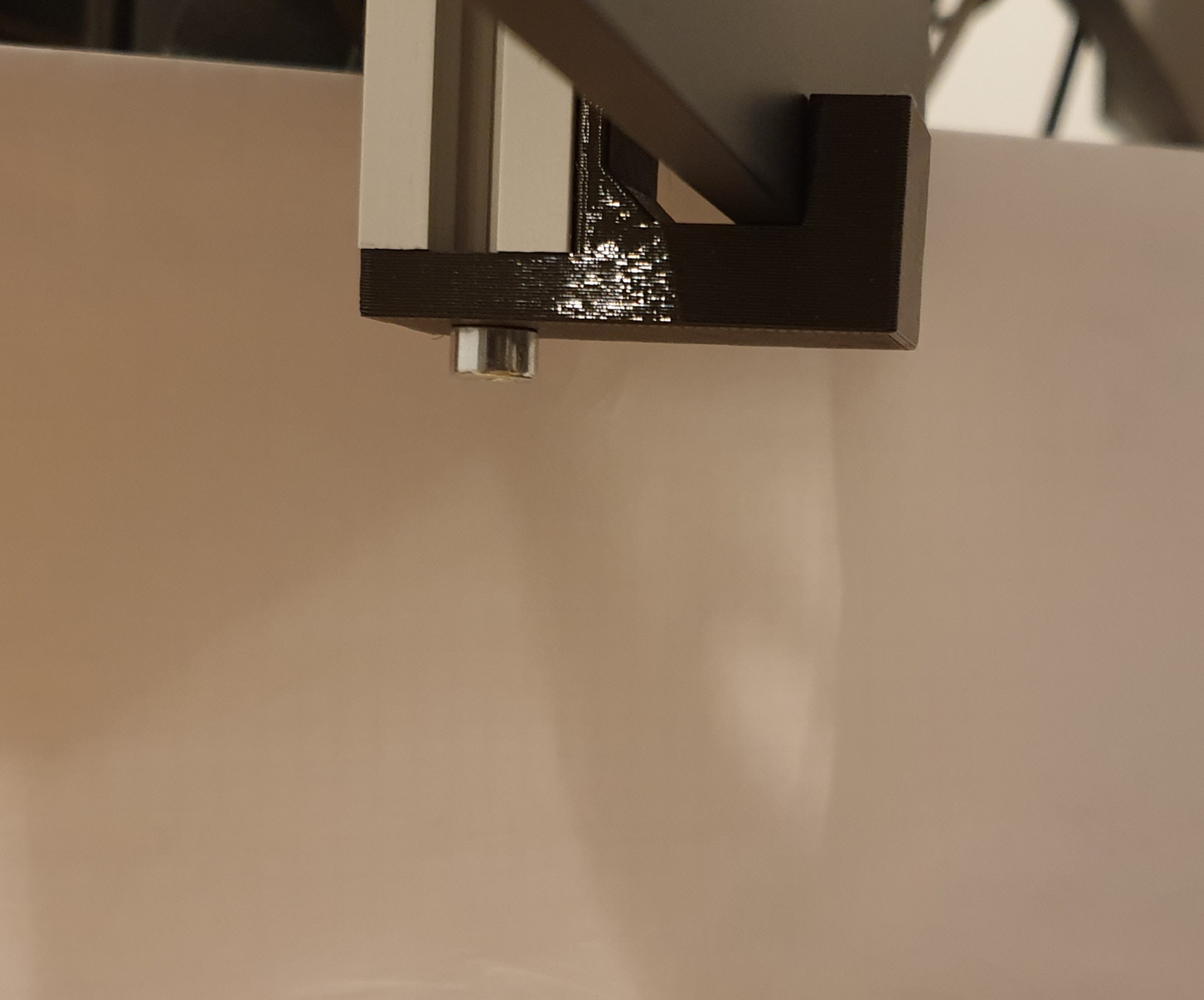

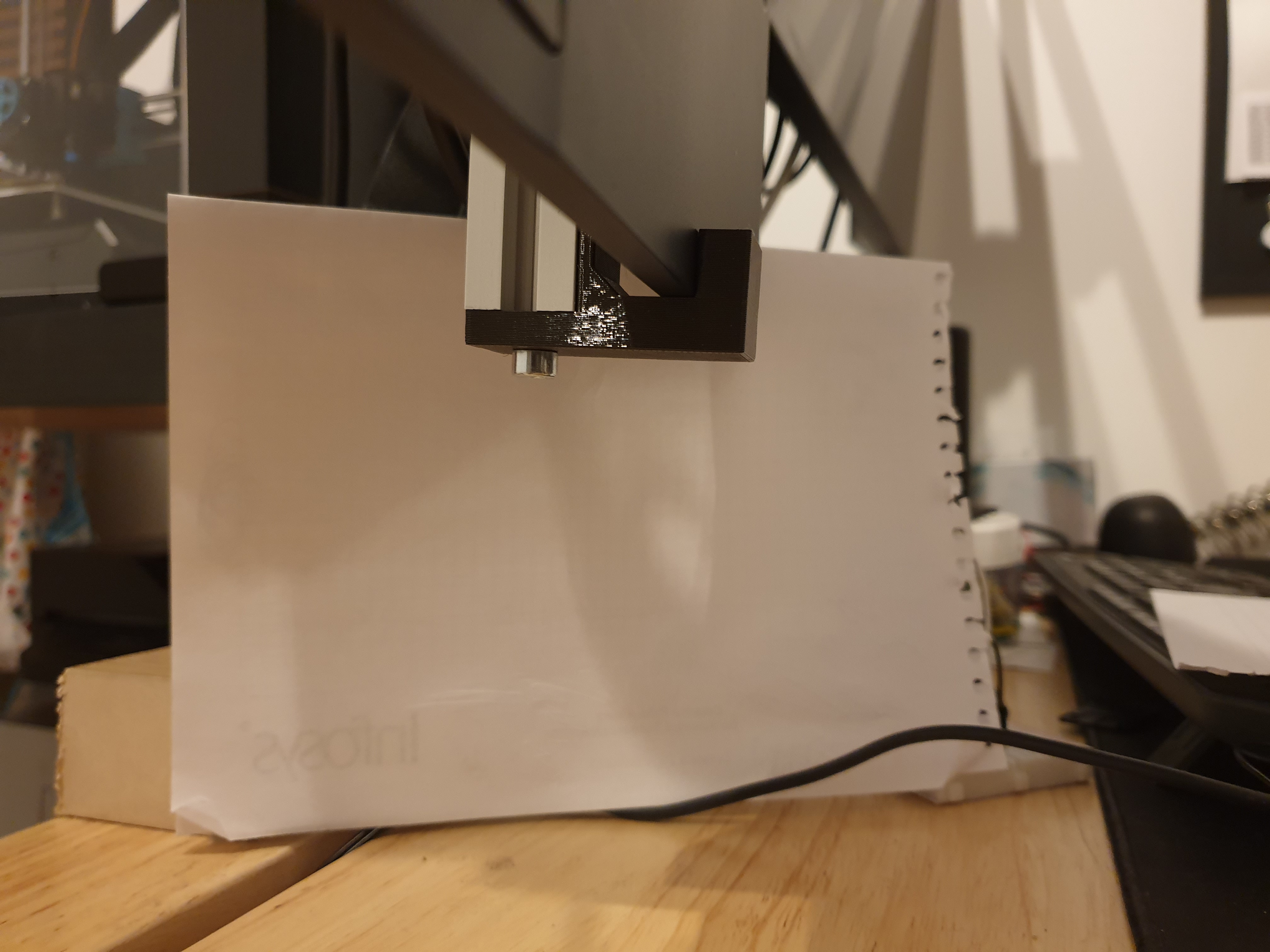

I've mounted my Dell Latitude 5580 with these hooks and they hold it in place for around 6 months now with no sign of degradation.



Mounted with M5 bolts to pre-drilled(on my own) profiles.
The drill with thread is easily accessible from a hardware store, it's just the tapping that takes some patience to prepare. Should you need any tips, PM me.

Print setup( 3mf file attached for convenience):
0.4mm nozzle

0.3mm layer height(0.2 for first layer)

at least 30% infill

NOTE:

the profiles are connected to each other with both of angle connectors and M5 bolts for my own peace of mind.

Printables

Vesa laptop mount.

Publicado em 5 de fev de 2023

10
Curtidas
29
Downloads
Categoria Other Ideas
Tags
hook cap 2020 connector 2020aluminum aluminumprofile vesa100 vesa200 vesaadapter vesa75 20x20profile laptophook
Licença Creative Commons — Public Domain
Arquivos (5)
2020_end_cap_filled_v1.stl 6.9 KB
2020_end_cap_w_hole_v1.stl 12.9 KB
2020_connector_v1.stl 13.9 KB
laptop_hook_v1.stl 9.5 KB
2020_laptop_vesa_mount_v1.3mf 53.4 KB
