Triggered by a community request, I adapted the original case so that it fits a Raspberry Pi 3B +.Test prints are done by the community, too.You can find more details here:[https://twitter.com/spikeinkent/status/1294704712101527553](https://twitter.com/spikeinkent/status/1294704712101527553)

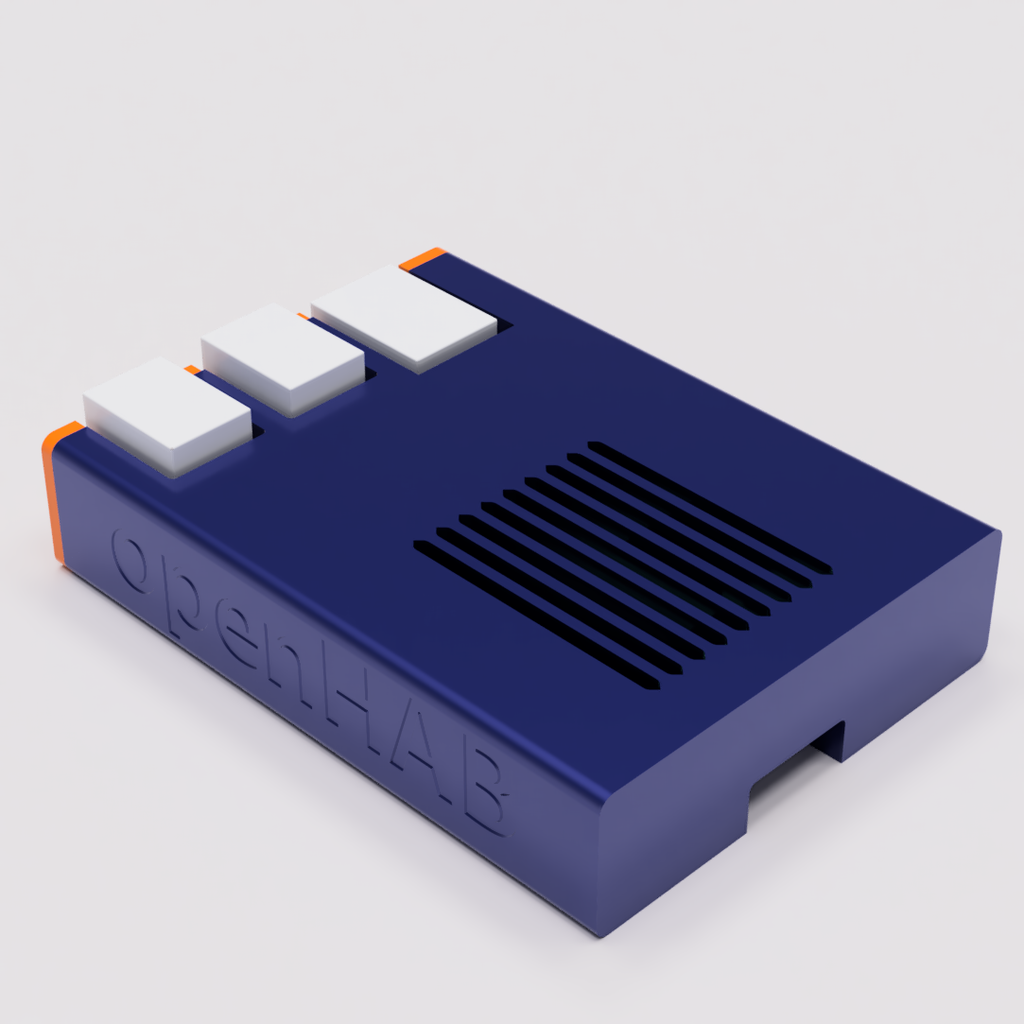

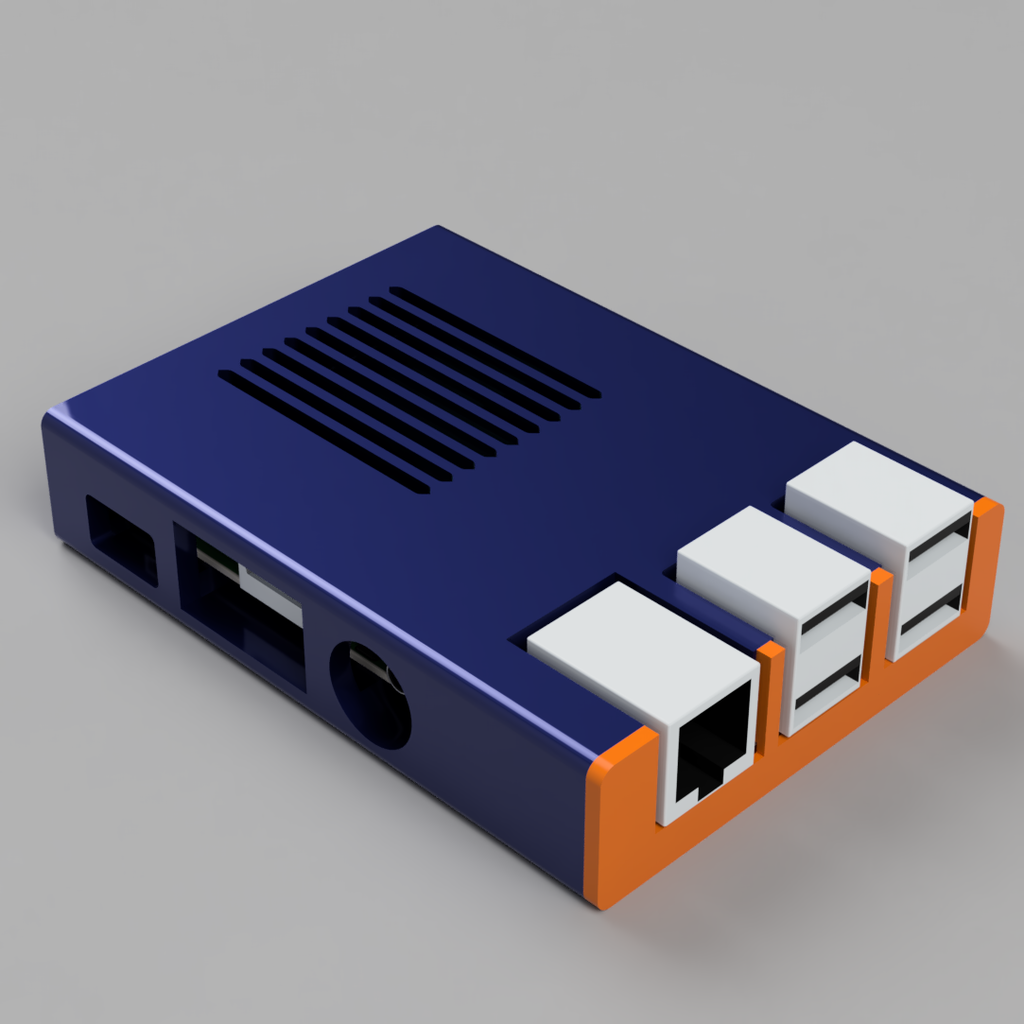

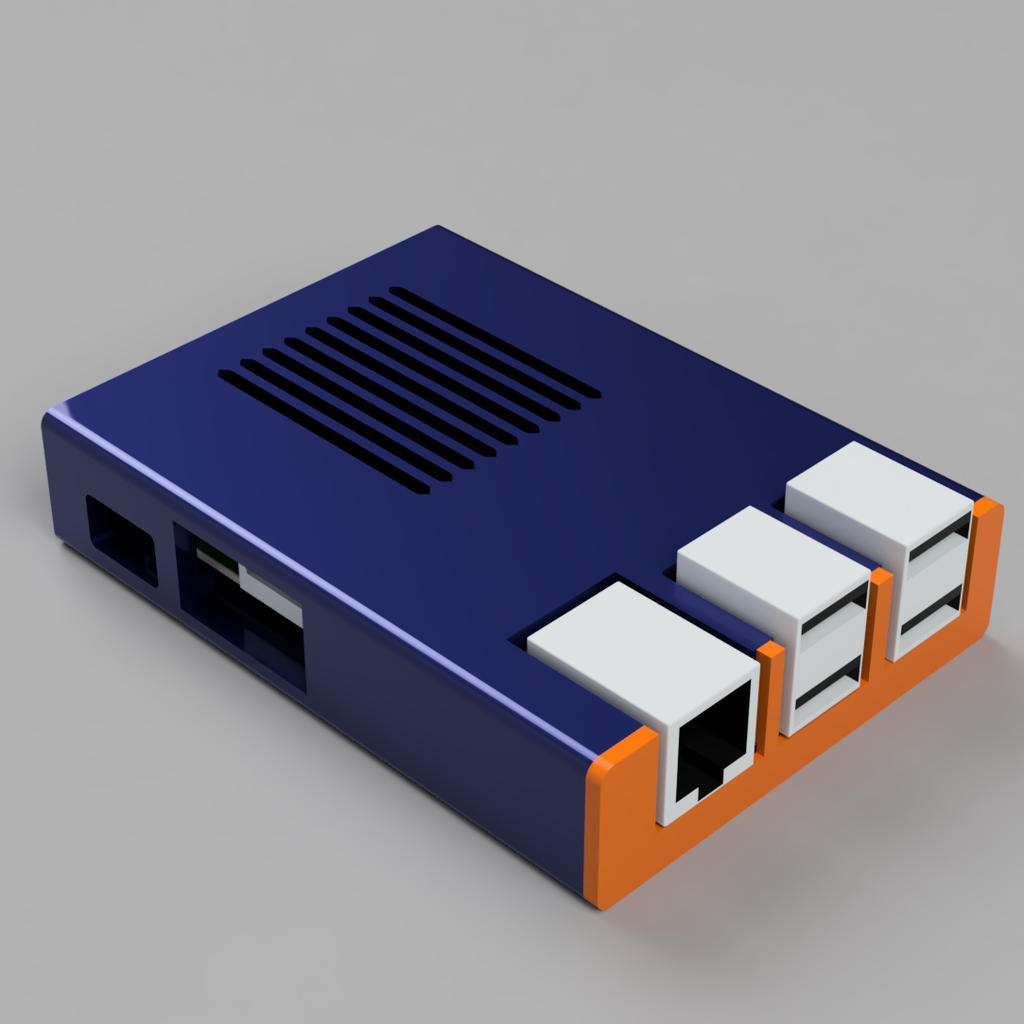

The case should have the same thermal properties than the original one and this slim case is not designed for systems with heavy loads.I'm running pi-hole, openHAB, octoPring systems with the original sleeve. I've uploaded several different configurations, but if you want different configurations you can simply manipulate the attached Fusion 360 file.

During the modelling process I've used this file for test fitting tests

• [https://grabcad.com/library/raspberry-pi-3-model-b-reference-design-solidworks-cad-raspberry-pi-raspberrypi-rpi-1](https://grabcad.com/library/raspberry-pi-3-model-b-reference-design-solidworks-cad-raspberry-pi-raspberrypi-rpi-1)
• [https://grabcad.com/library/raspberry-pi-3-b-2](https://grabcad.com/library/raspberry-pi-3-b-2)

Different Model?

Raspberry Pi 3B: [https://www.prusaprinters.org/prints/10349-raspberry-pi-3b-sleeve](https://www.prusaprinters.org/prints/10349-raspberry-pi-3b-sleeve)

Print instructions

Category: Electronics Summary

Triggered by a community request, I adapted the original case so that it fits a Raspberry Pi 3B +.Test prints are done by the community, too.You can find more details here:[https://twitter.com/spikeinkent/status/1294704712101527553](https://twitter.com/spikeinkent/status/1294704712101527553)

The case should have the same thermal properties than the original one and this slim case is not designed for systems with heavy loads.I'm running pi-hole, openHAB, octoPring systems with the original sleeve. I've uploaded several different configurations, but if you want different configurations you can simply manipulate the attached Fusion 360 file.

During the modelling process I've used this file for test fitting tests

• [https://grabcad.com/library/raspberry-pi-3-model-b-reference-design-solidworks-cad-raspberry-pi-raspberrypi-rpi-1](https://grabcad.com/library/raspberry-pi-3-model-b-reference-design-solidworks-cad-raspberry-pi-raspberrypi-rpi-1)
• [https://grabcad.com/library/raspberry-pi-3-b-2](https://grabcad.com/library/raspberry-pi-3-b-2)

  Print Settings

Printer Brand: Prusa

Printer: i3 MK3

Rafts: No

Supports: No

Resolution: 0.2

Infill: doesn't matter

Filament: - PETG -
