Win & Win Black Wolf Accutune Rest

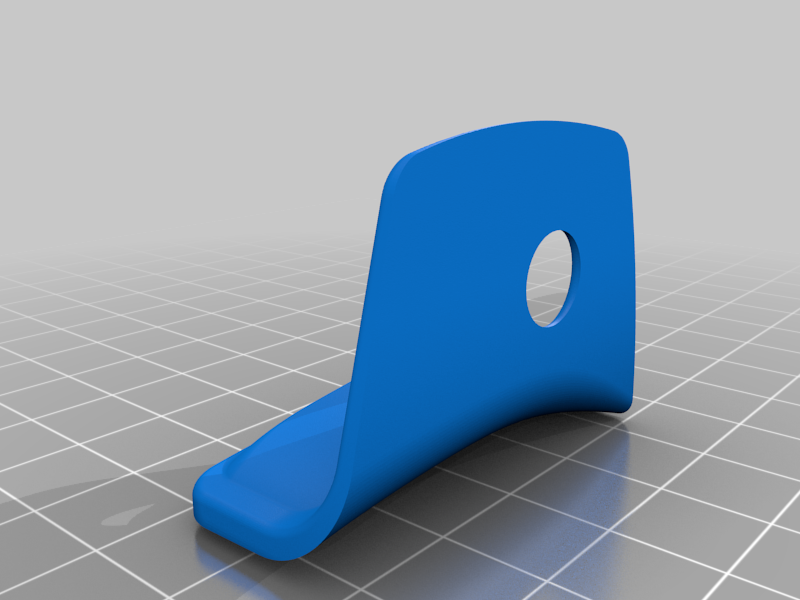

Recurve Bow Rest for use with "The Push" Accutune.

I have provided both right and left handed versions.

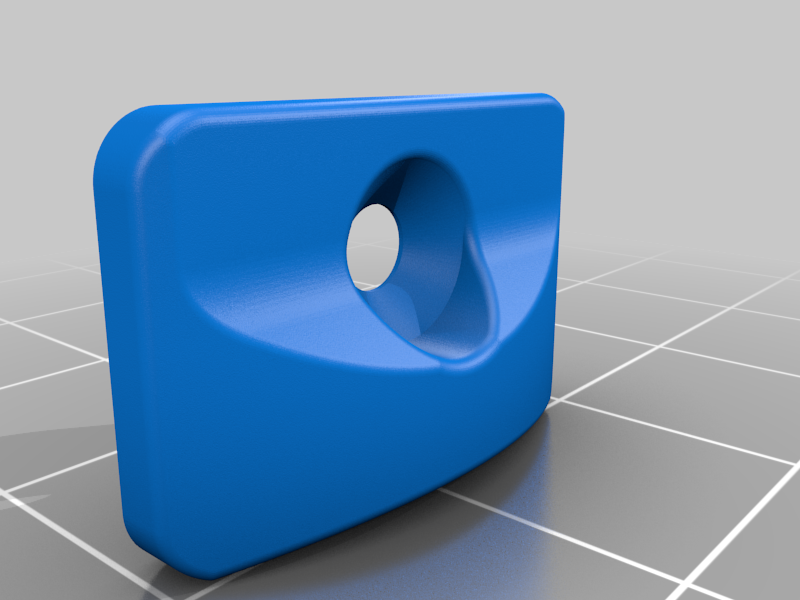

The plate works for both.

Because of the multiple compound curves involved with this model, you may need to do some filing of the back and base to get the fitting correct.

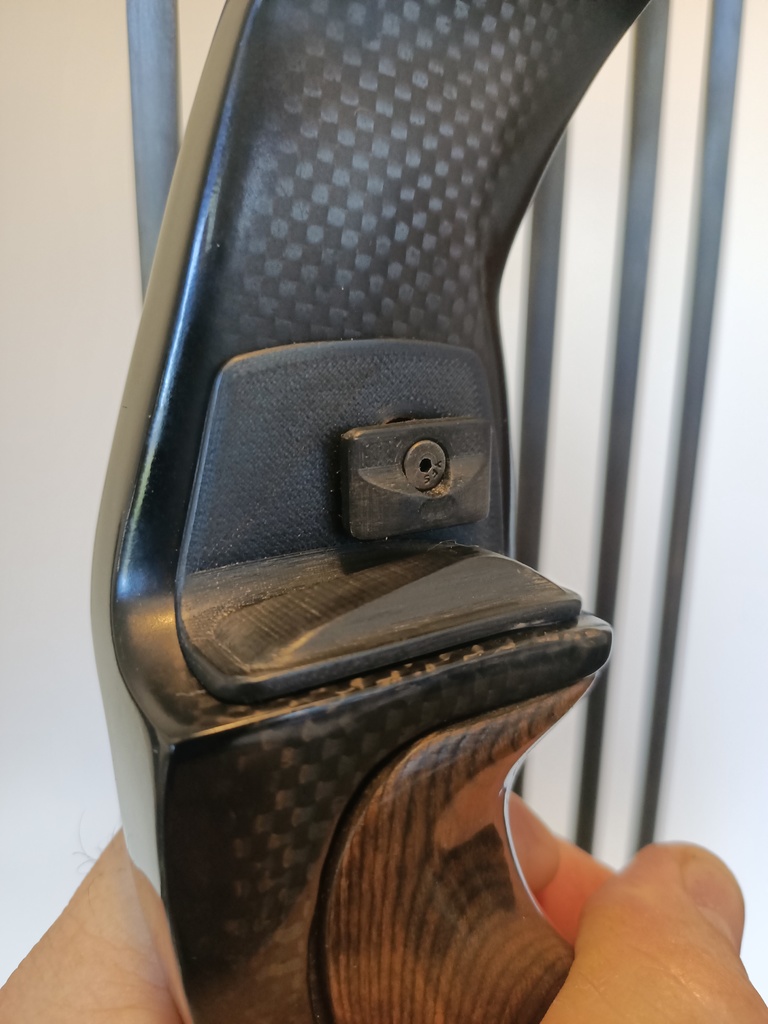

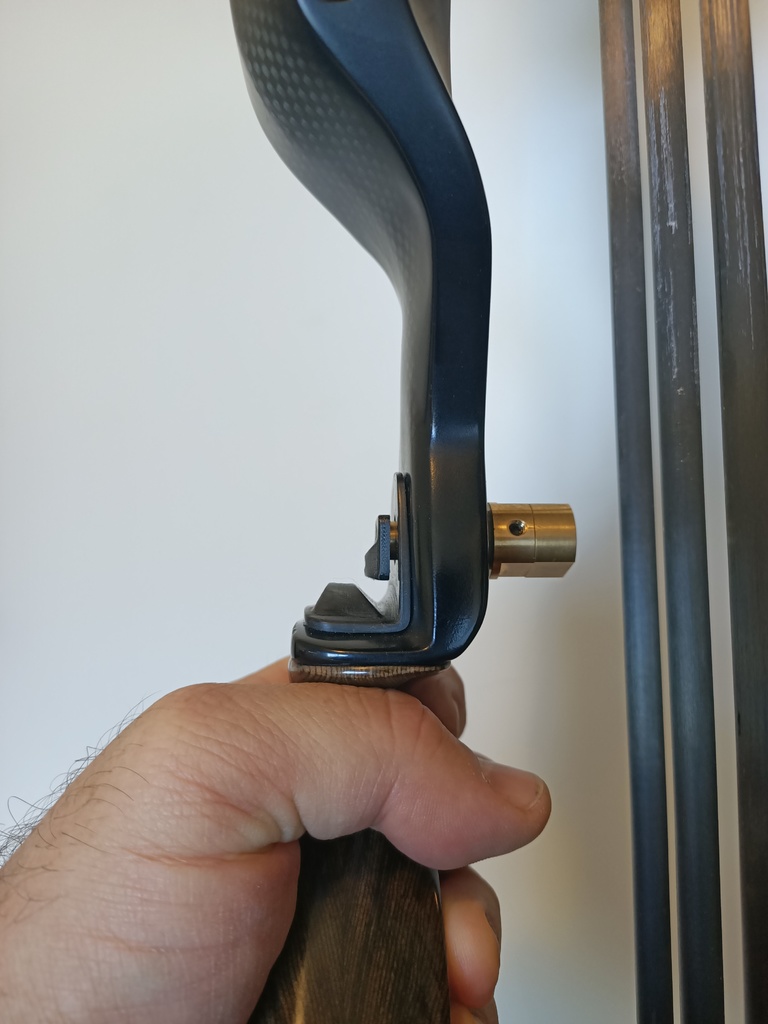

I attached mine using a couple of strips of hot glue after cleaning the bow and rest with isopropyl.

Printer Brand:

Wanhao

Printer:

Wanhao Duplicator i3 Plus

Rafts:

Supports:

Yes

Resolution:

0.1 or better

Infill:

100%

Filament: 3D Fillies PLA + Black

Notes:

Print orientation was with the vertical plate flat on the table.
You will need supports from the bed only.

If your slicer permits - use supports from the bed only.

You will probably need to file the back (vertical) side where the supports were to make a good fit to the bow.

I also did a bit of smoothing with 1000 wet and dry.

Object was designed using Fusion 360.

Sliced using PrusaSlic3r.

Printed using Cocoon Create Touch (Wanhao Plus).
