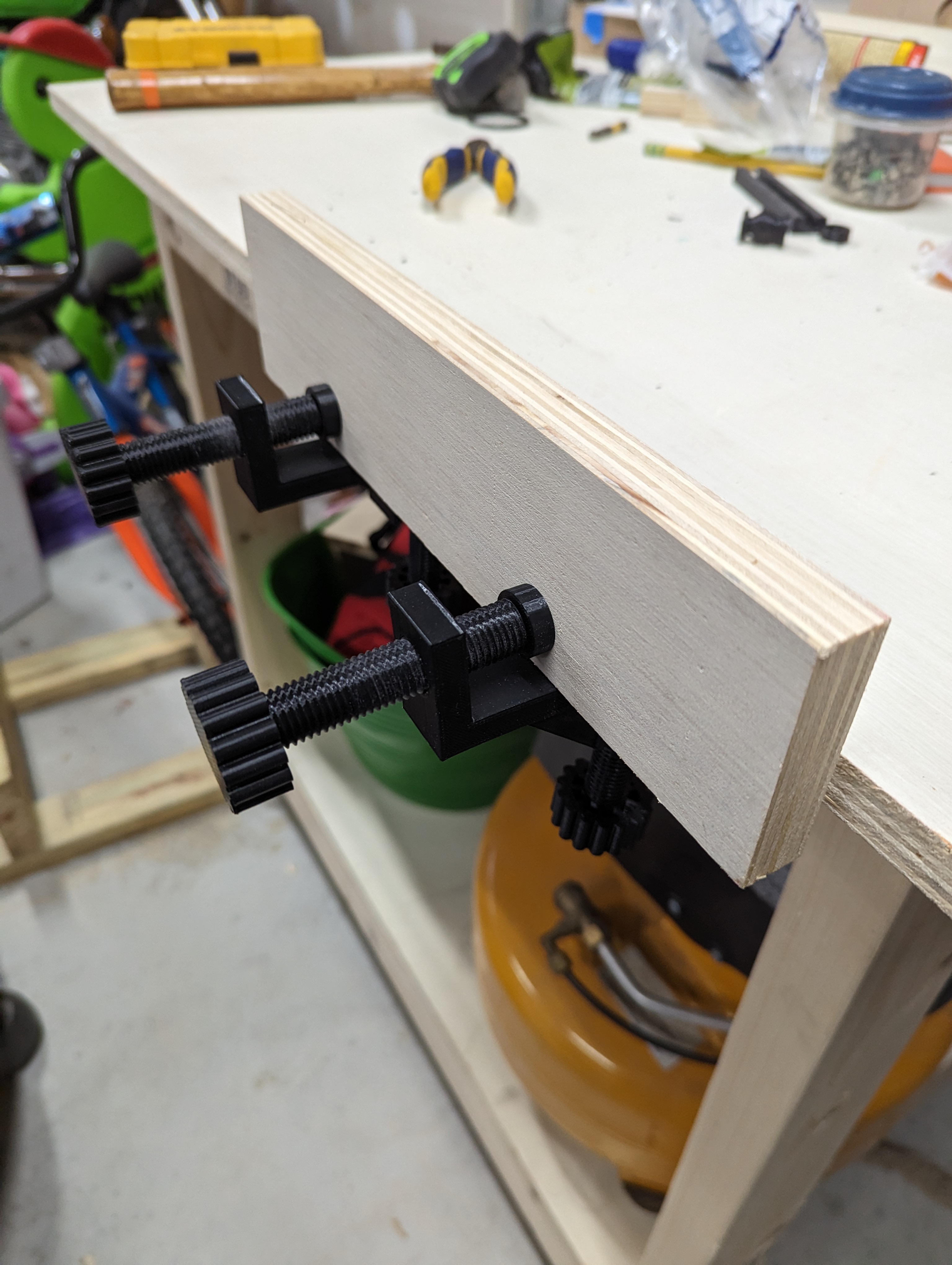

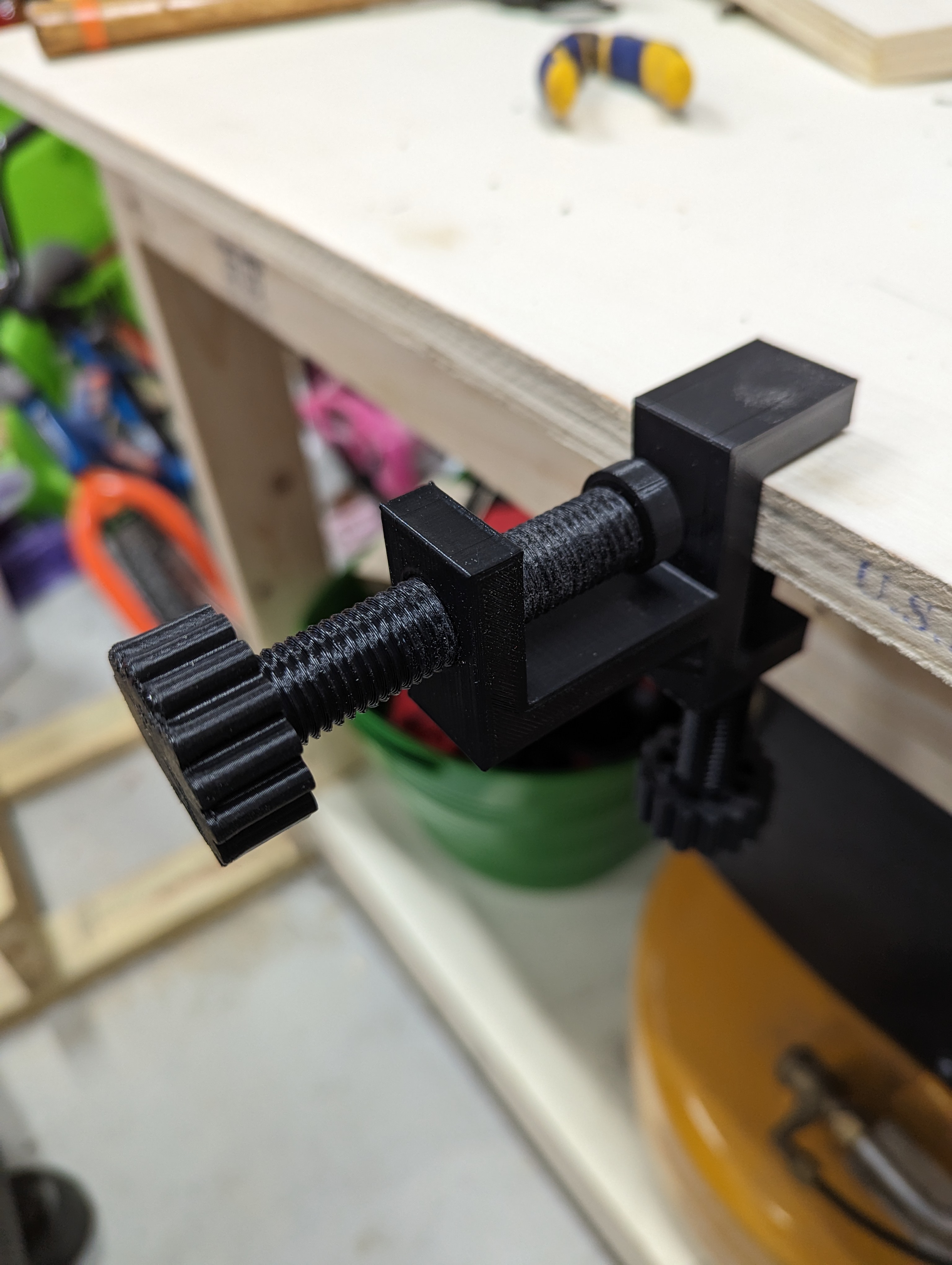

This clamp is designed to be clamped to a table allowing for a board to be clamped vertically. It can also be used to clamp certain woodworking jigs to the table without interfering with the working area of the jig.

The threads are M16x2 with a 0.1mm offset on top, bottom, and edge of thread to allow for extra clearance.

The cap snaps onto the end of the screw after it has been threaded into the clamp. It can be secured by threading the screw all the way in and pinching the cap against the inside of the clamp until it snaps into place.

You can add gripper material to the clamping surfaces to prevent slipping when clamped to a surface.

Please provide feedback if you have any suggestions on how to improve this model.
