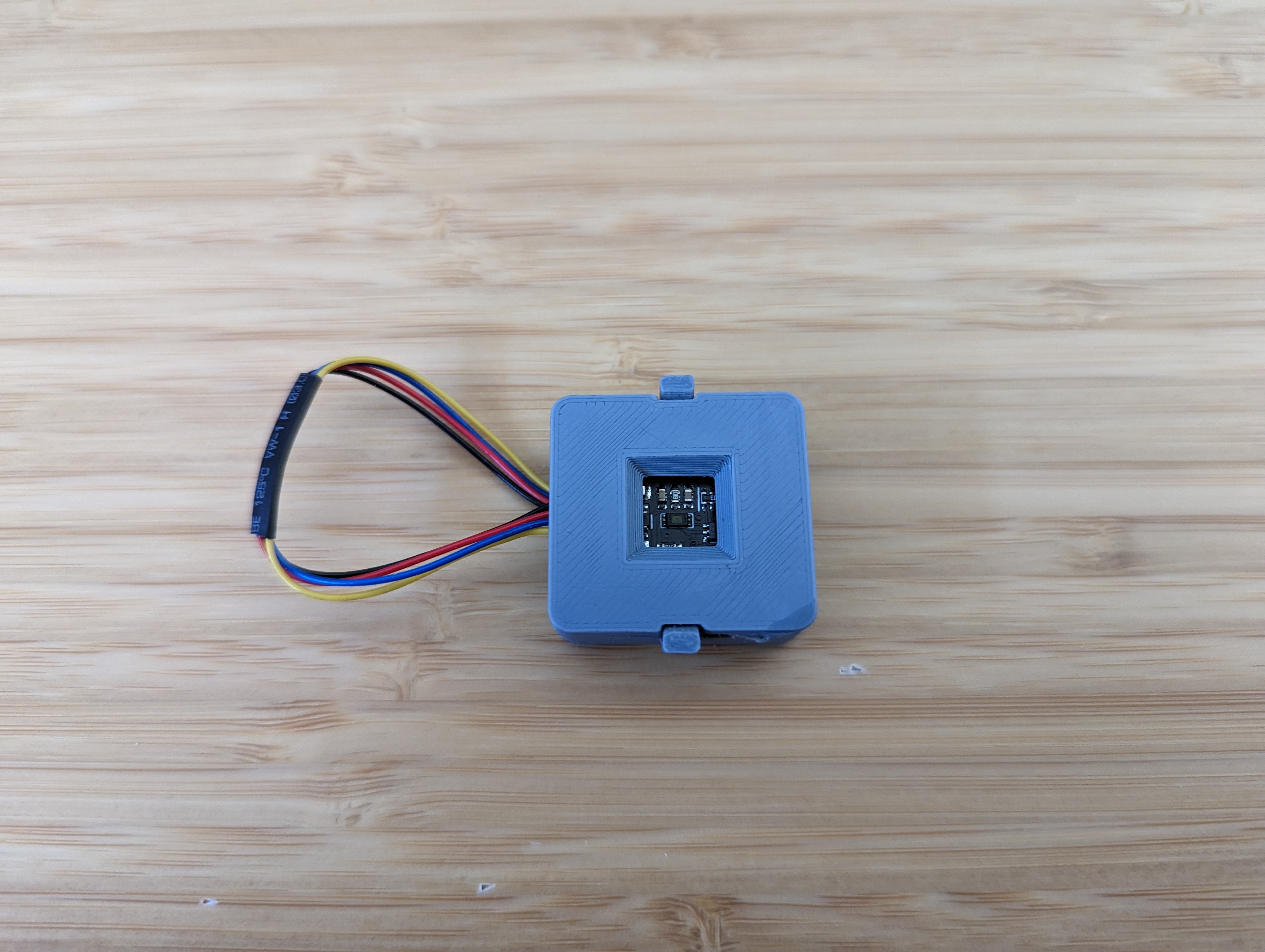

Compact snap together case for an Adafruit QT PY board and Stemma QT sensor. Supports recommended.

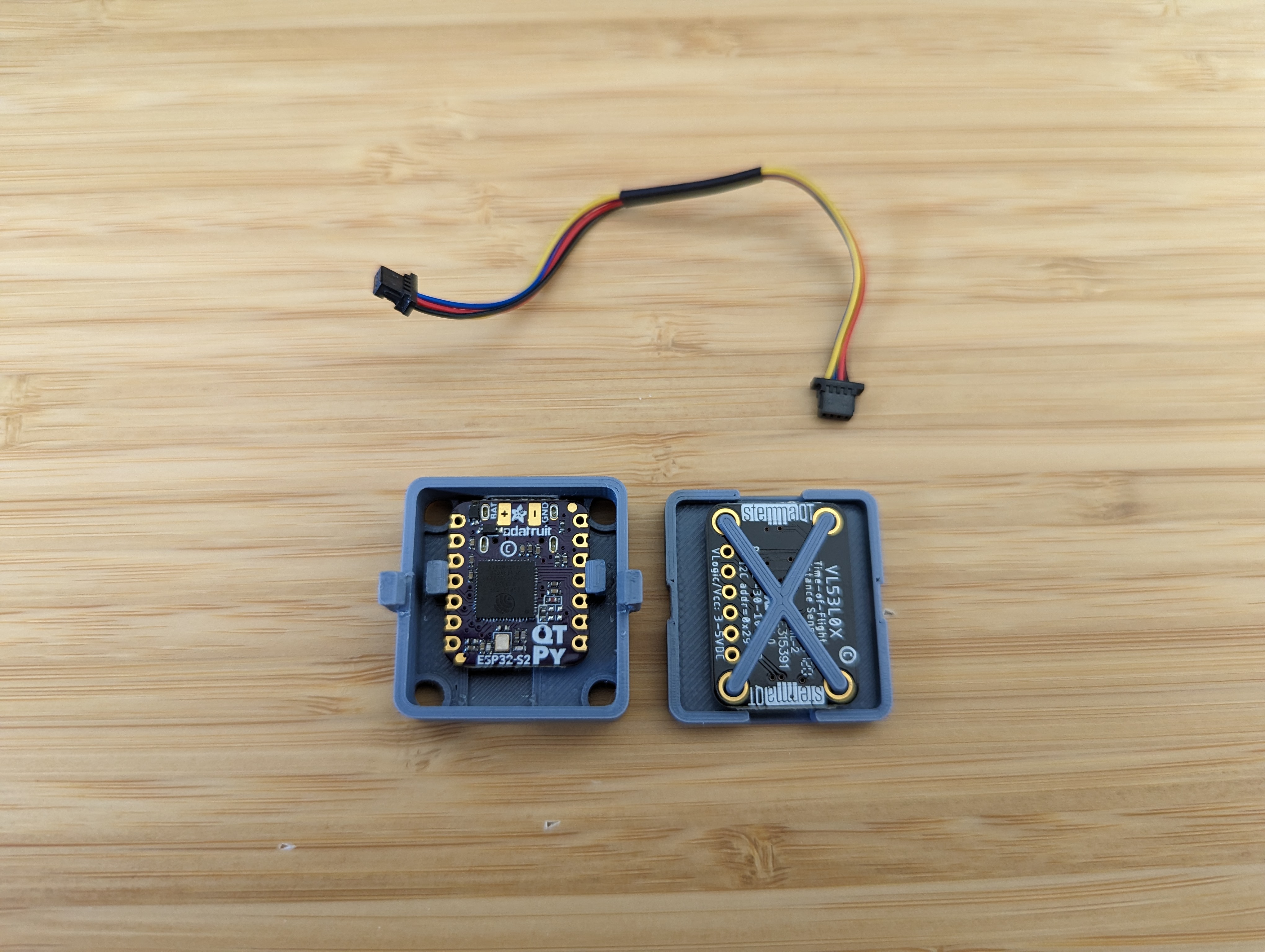

Three piece design includes base that holds QT PY board face down with two holes for access to boot and reset buttons, divider with indexing pins to prevent shorts, and lid with oversized opening to accommodate different sensor types and sizes. The base also has four holes to allow M3x3 heat-set inserts for mounting options.

I highly recommend using the divider (~1mm) or other similar approach to prevent damage to your board or sensor.

Assembly:

1. Insert board into base making sure to orient correctly (USB C should sit in the centered slot)
2. Plug Stemma QT cable into board
3. Place sensor in the lid lining up with the indexing pins
4. Place divider on back of sensor lining up indexing pins in the remaining two empty holes
5. Leaving lid/sensor in place, push base down until the two pieces snap together (if its tight it helps to rock the base from one side to the other)
6. Plug Stemma QT cable into sensor through opening
7. Rejoice
