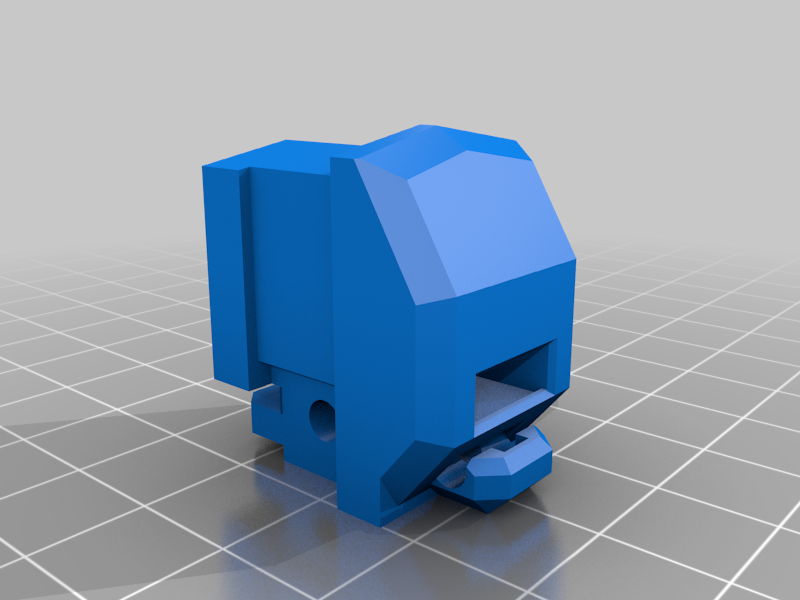

TinyTrainer V2 - Tail mount

The tail includes mounting for:

• Lollypop style antenna - versions for TBS Triumph Pro (15.2mm) and TrueRC Singularity (12.5mm)
• XT30 battery connector
• Happymodel ELRS dipole antenna

To be printed in TPU.

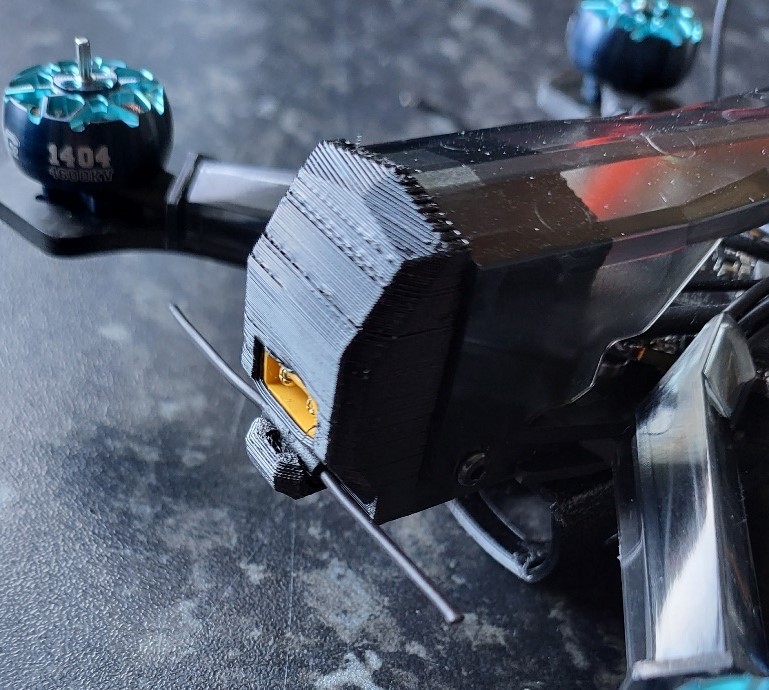

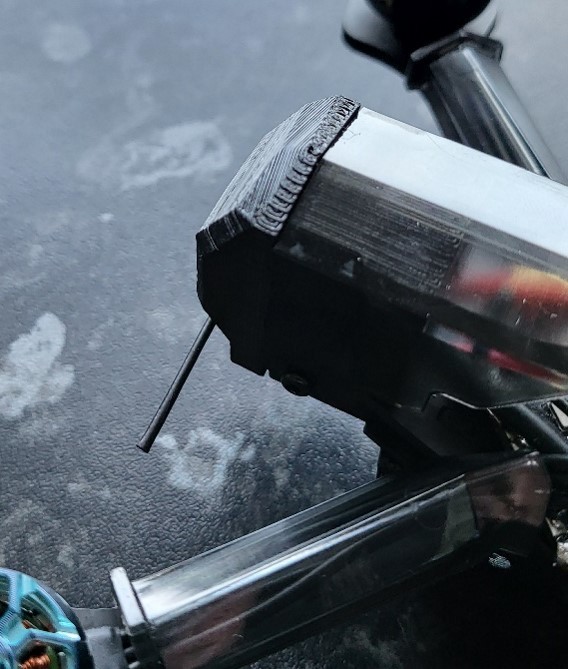

Fit the TinyTrainer V2's rear metal dowel, XT30, antennas and mount.

I would suggest using a small and low ESR capacitor - I use a 25v 470uf capacitor which is 8mmx12mm and fits comfortably, you may struggle to fit larger capacitors within the body.

TrueRC Singularity V2 - tested
TBS Triumph Pro V2 - Not yet tested, possible updates to follow but should fit

In future versions I may mount the XT60 further into the tail so that the external connector is better protected.
