Modelo 3D Coin Cell / Button Cell Battery Case (Customizable) por 6d6178 no Printables

Descrição

This is a case for button cell / coin cell batteries. It's a remix of the parametric Small-Battery Case by George F with various improvements:

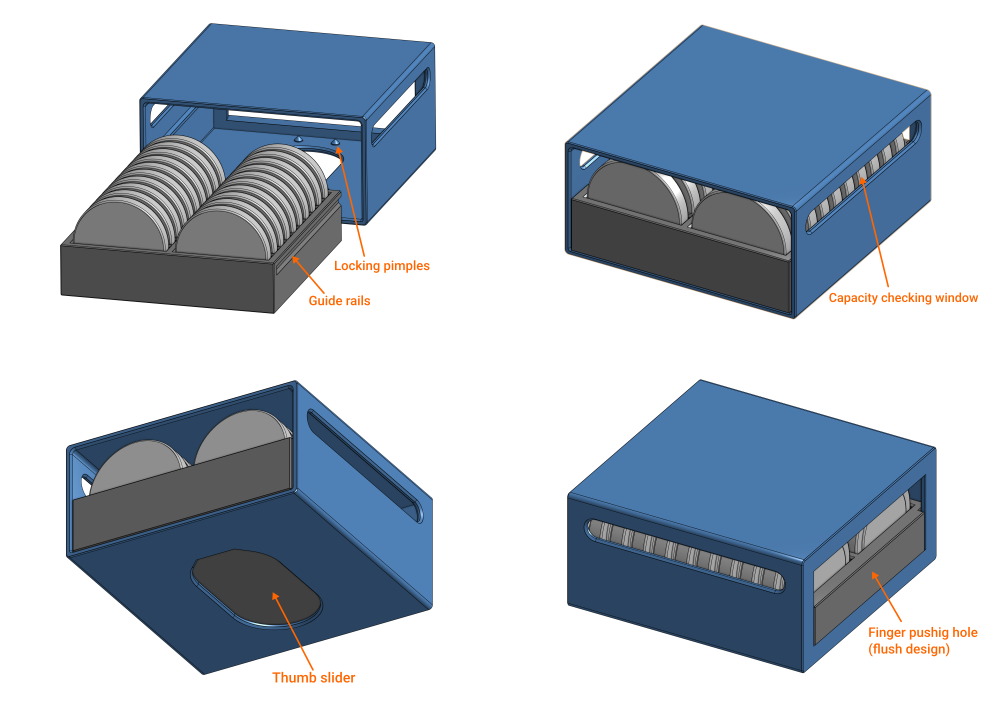

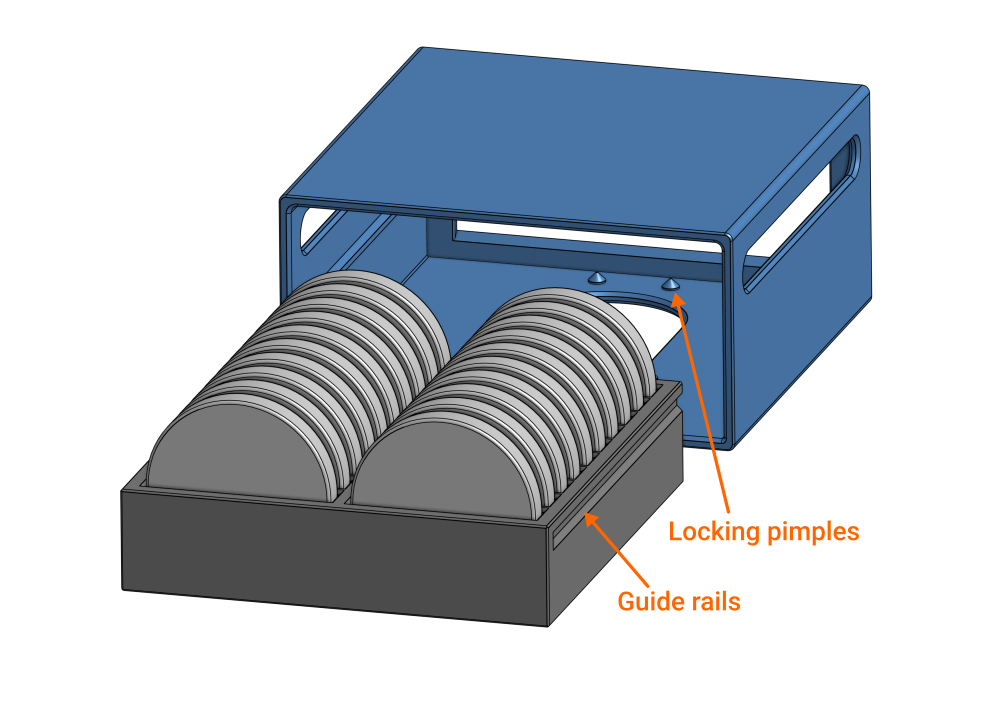

  • Slider rails

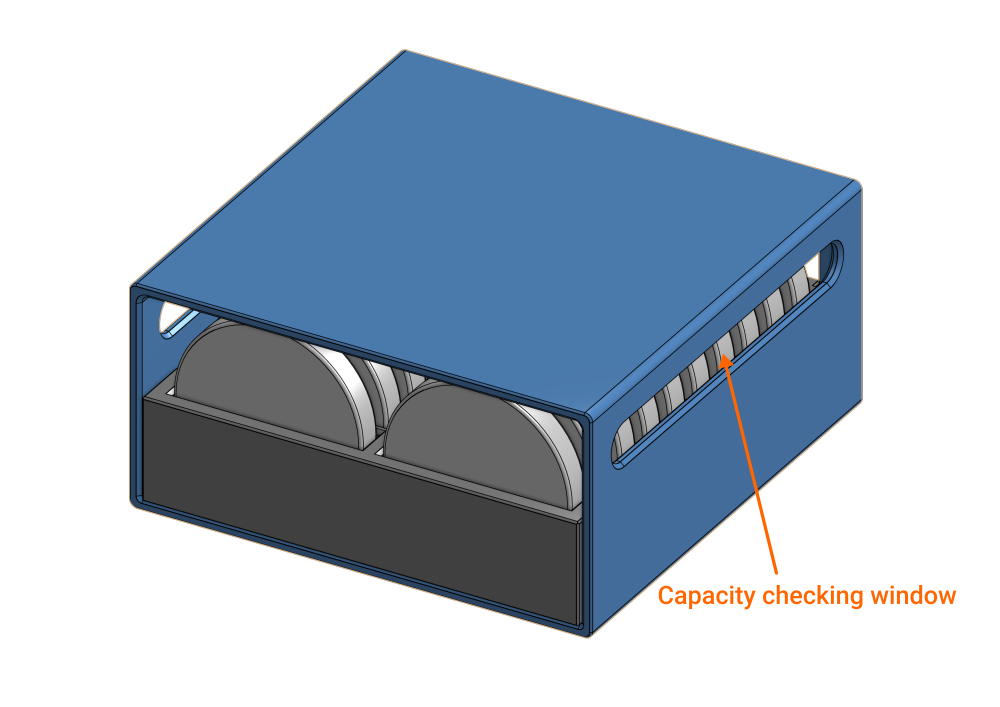

  • Windows on the side to check how many batteries you still have
  • A locking mechanism to prevent the crate from accidentally sliding out of the sleeve

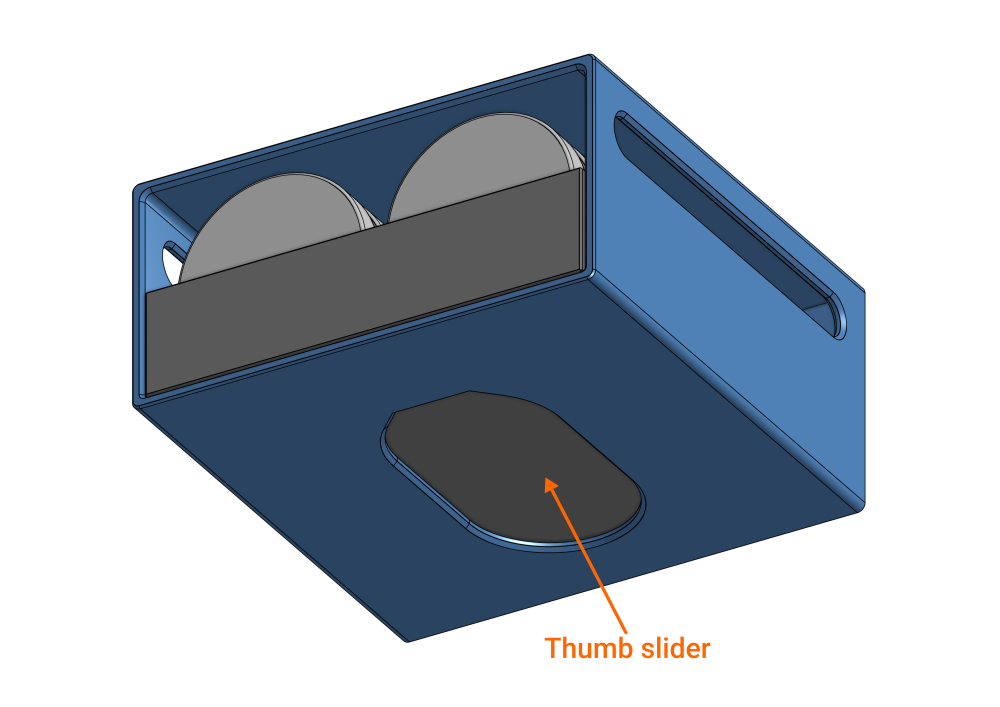

  • A thumb slider at the bottom

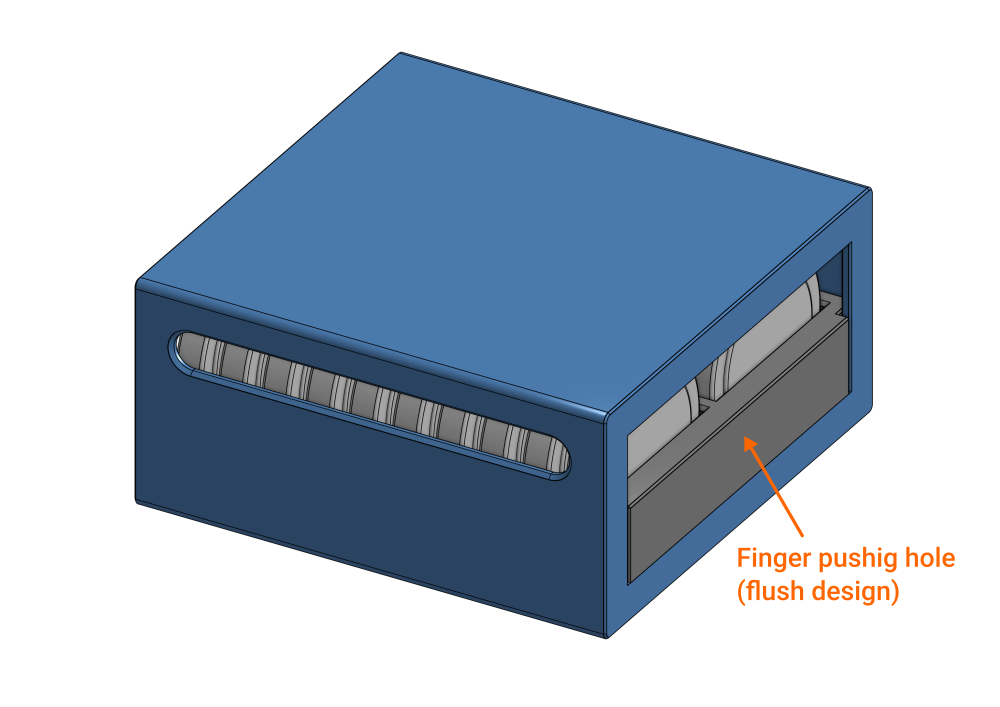

  • The crate is flush with the sleeve at the back
  • Closed bottom
  • Pre-generated STLs for many battery types
  • Customizable in Onshape (scroll down for more info)



Printing

Make sure your printer is properly calibrated. The two parts have to fit together. Over extrusion or inconsistent extrusion might result in bad fit.

Print the parts in the original orientation. All the STL files are pre-rotated.

Print Settings

  • Material: PLA, PETG, etc.
  • Extrusion width: 0.4mm
  • Layer height: 0.2mm
  • Perimeters: 3 or 4
  • Top / bottom solid layers: 4
  • Infill: 10% (might work without infill too)



Pre-generated STLs

There's a folder in the Files tab for each battery type. Multiple versions with different capacities are available for each battery type.

The file naming is as follows:
[NAME]_[TOTAL_CAPACITY]_[COLUMNS]_(Crate or Sleeve).stl

Note: Apart from the ones in the pictures, battery sizes have not been tested. The dimensions were taken from datasheets from the Umtel components library. If you find any incorrect sizes please send me a message. The list of battery equivalents are from Wikipedia.

Available Pre-generated Cases

Depending on the size of the batteries, pre-generated cases are available with a total capacity 64, 40, 32, 20, 16, or 10 batteries and with 4, 2, or 1 columns.

Name / PrefixEquivalent / Alternative Name
CR10255033LC
CR12165034LC
CR12205012LC
CR1616
CR16205009LC
CR1632
CR2020
CR20255003LC
CR20325004LC
CR2354560
CR24305011LC
CR24505029LC
CR927
SR41AG3, SG3, G3-A, LR41, 192, 384, 392, 6135-99-949-0402, QR41, LR736, SR736, 1135SO, 1134SO
SR44AG13, SG13, LR44, LR154, 6135-99-792-8475, 6135-99-651-3240, A76, S76, EPX76, 157, 303, 357, 1128MP, 208–904, A-76, A613, AG14, AG-14, CA18, CA19, CR44, D76A, G13A, G13-A, GDA76, GP76A, GPA7, GPA75, GPA76, GPS76A, KA, KA76, AG76, L1154, L1154C, L1154F, L1154G, L1154H, LR44G, LR44GD, LR44H, MS76H, PX76A, PX675A, RPX675, RW82, SB-F9, V13G, 357A, LR1154, SR1154, 1166A, 1107SO, 1131SOP
SR54AG10, SG10, G10-A, LR54, 189, 387, 389, 390, L1131, LR1130, SR1130, 6135-99-796-0471, LR1131, SR1131, 1138SO



Customization

You can create a case for an existing battery type with custom capacity and number of columns. Or you can create a case for a custom battery type with custom battery dimensions.

Click the link below to start customizing.

> CUSTOMIZE IN ONSHAPE <

How To Customize

  1. Open the link above.
  2. In the top left, change the configuration according to your needs. You may have to resize the section to see all the options. The configuration options are described below.
  3. In the lower left, right-click on the parts and select “Export” from the menu.
  4. In the Export dialog, select
    • Format: STL
    • Units: millimeter (important!)

Configuration Options

Battery TypeThe type of battery. Use the table above to find the canonical name. If your battery is not listed, select “Custom” and enter the battery dimensions yourself.
CapacityThe minimum number of batteries you'd like to store. The number will be rounded up in case it isn't divisible by the number of columns.
ColumnsThe number of columns in the case. The number of batteries per column is the capacity divided by this value, rounded up.
Battery DiameterIf you chose “Custom” as the battery type you can specify the diameter of your battery.
Battery ThicknessIf you chose “Custom” as the battery type you can specify the thickness of your battery.
Thumb SliderUncheck this box if you want to disable the Thumb Slider slot. This can be useful when the battery case is too small to properly render the slot. Or if you simply don't like it.
Print OrientationCheck this box to export the 3D model in the correct orientation for printing.



Printables

Coin Cell / Button Cell Battery Case (Customizable)

6d6178 6d6178 (abre em nova aba)

Publicado em 4 de jun de 2025

271
Curtidas
1,414
Downloads
36
Impressões
Categoria Organizers
Tags
parametric battery customizable customizer cr2032 cr2025 sr44 batteryholder batterycase onshape coincell coincellholder parametricdesign cr2450 cr2430 cr1620 cr2020 buttoncell cr1632 onshapecad coincellbattery cr1616 buttoncellbox 6d6178 watchbattery cr1220 buttoncellbattery coincellbox buttoncellholder cr1216 cr2354 sr45 sr41 cr1025 cr927
Licença Creative Commons — Attribution
