Bottle Dryer System v2

The bottom of this version is flatter and straighter, making it easier to place bottles, mugs, cups, etc... on it

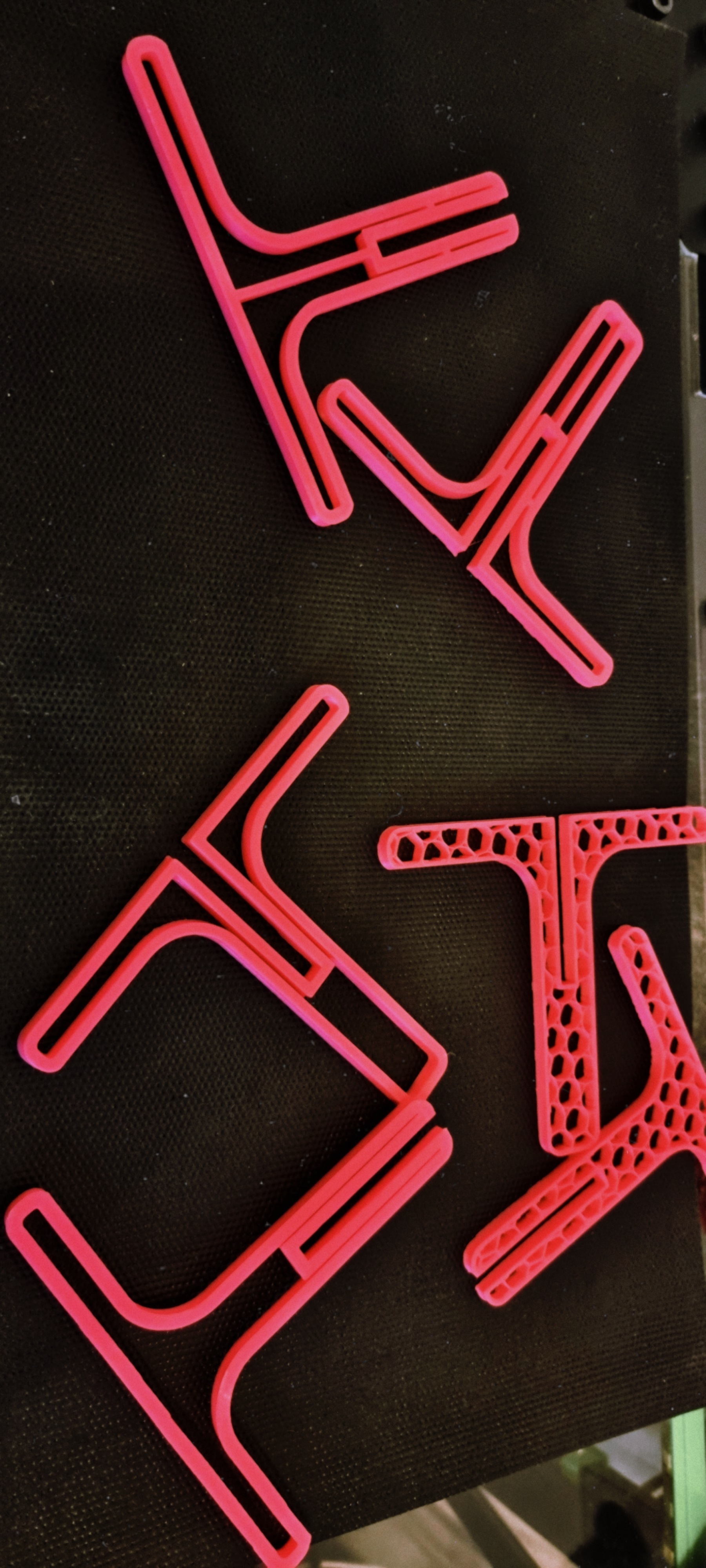

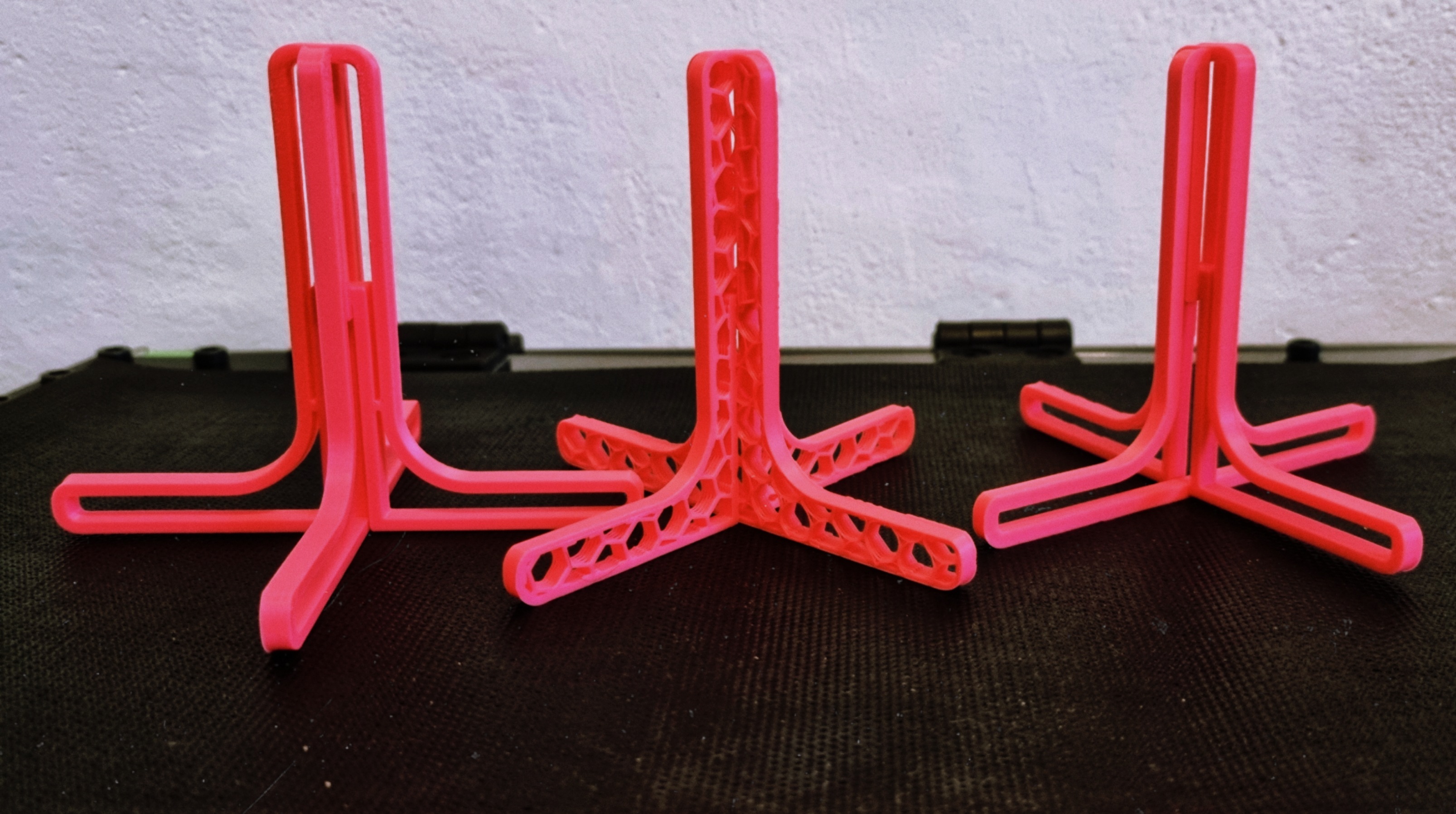

we have 4 versions

Version 1 simple
it works but for me it is a bit too shaky

Version 2 more stable
here i made small reinforcements in the gaps, which brought considerably more stability

Version 3 strengthened
preferred for heavier glass bottles or vases, there are additional supports in the lower area so that the holders do not bend or break

Version 4 full
You can simply print this version normally, which would of course be the most stable, but also use more material and take longer to print

therefore you can also print this version as follows:
TopLayer = 0
Bottom layer = 0
Perimeters = 4
Infill = 10-20% (depends on infill)
Infill Width = 0.5 (if you use a 0.4 nozzle)

recommended infills:
-Honeycomb
-Monitoric
-Archimedean Chords
-Octogram spiral

or just what you like best visually you have to test a little with the infill quantity until it fits

for version 1 and 2 you can choose a layer height between 0.1 and 0.3 with a 0.4 nozzle 3 perimeter as well as 3 top and 3 bottom layers

3 versions to store the Bottle Dryer

version 1 stand
a holder that you can put in the closet, the drawer or on the table

version 2 screw
a holder that you can screw to the wall

version 3 tape
a holder that can be stuck to the wall or in the closet with double-sided tape
