Descrição

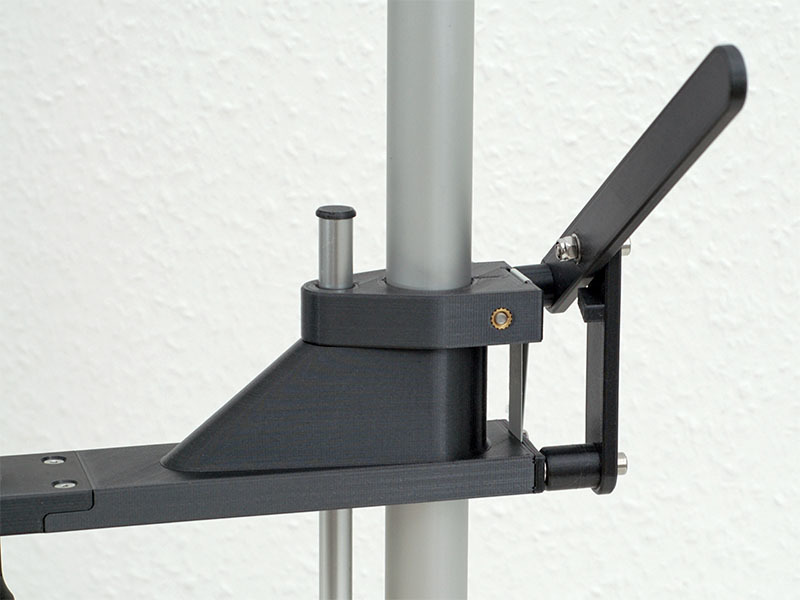

I made this for an upcoming Voron project. It's based upon parts I already had lying around.

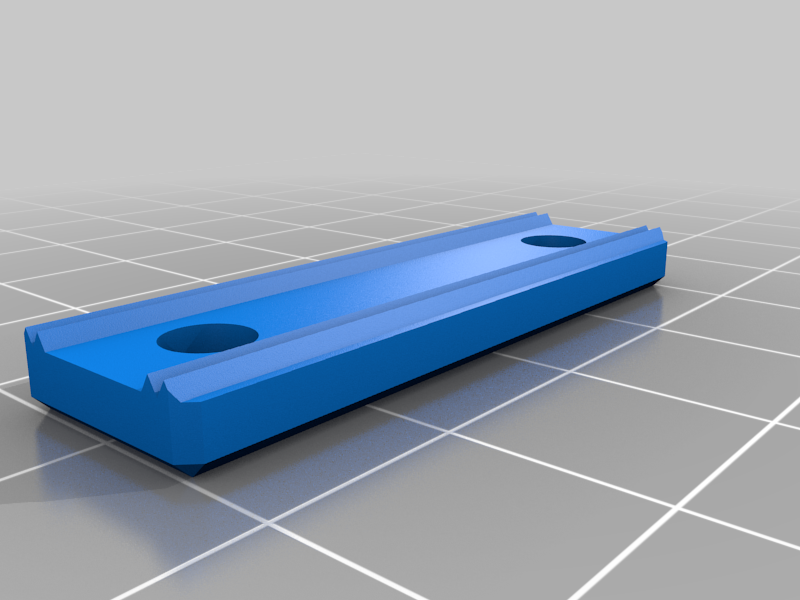

Since I don't had a suitable spring I used a piece of silver "Thera Band ®". But you can use any other elastic band, that is strong enough instead.

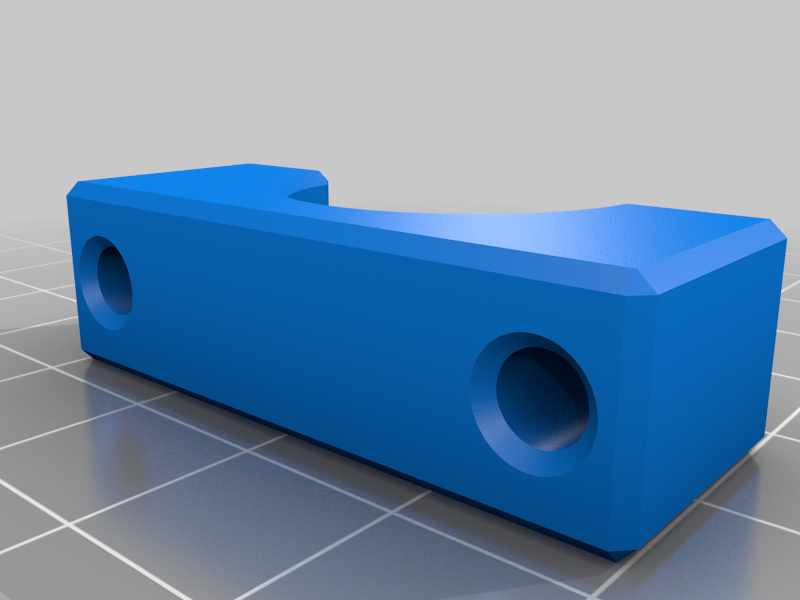

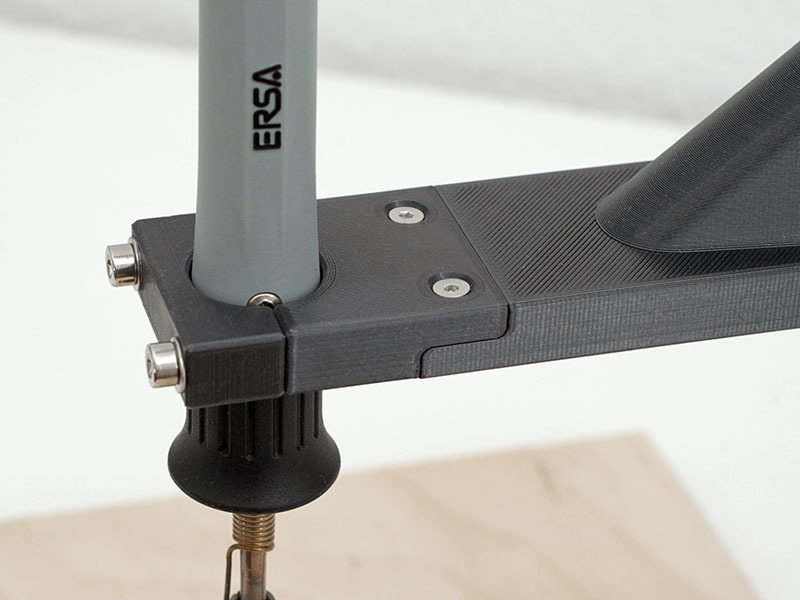

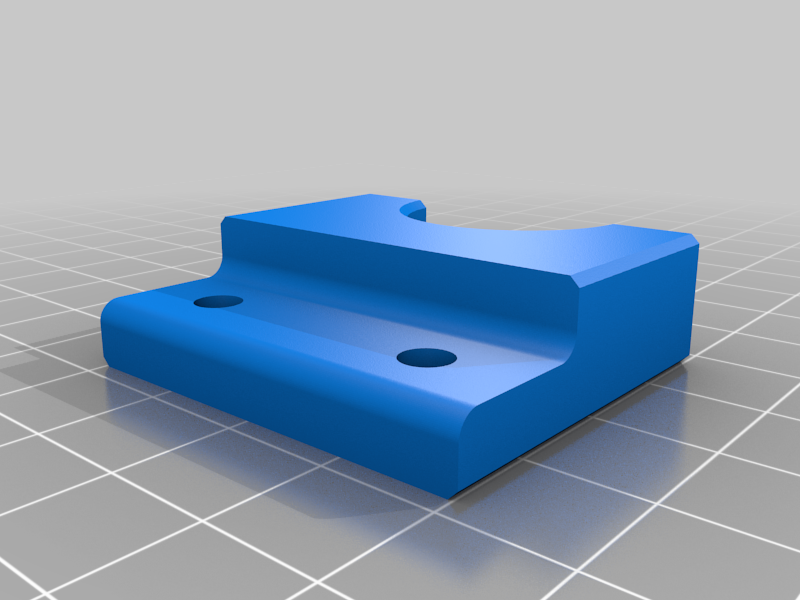

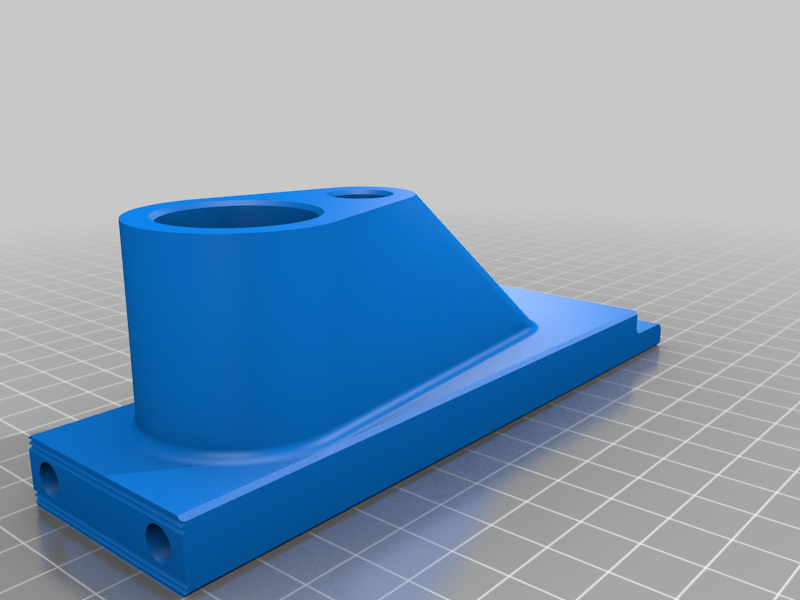

The "Iron-Clamp" fits my Ersa Multitip 25 soldering iron with a diameter of approximately 23 mm. I made the clamp changeable, so if I ever want to use a different soldering iron, I won't have to print the whole "boom" again
Because of the heat, that comes frome the soldering iron, print with heat resistant Filament!
Use at your own risk. Soldering Irons are getting very hot and can cause fire!
Additional parts needed:

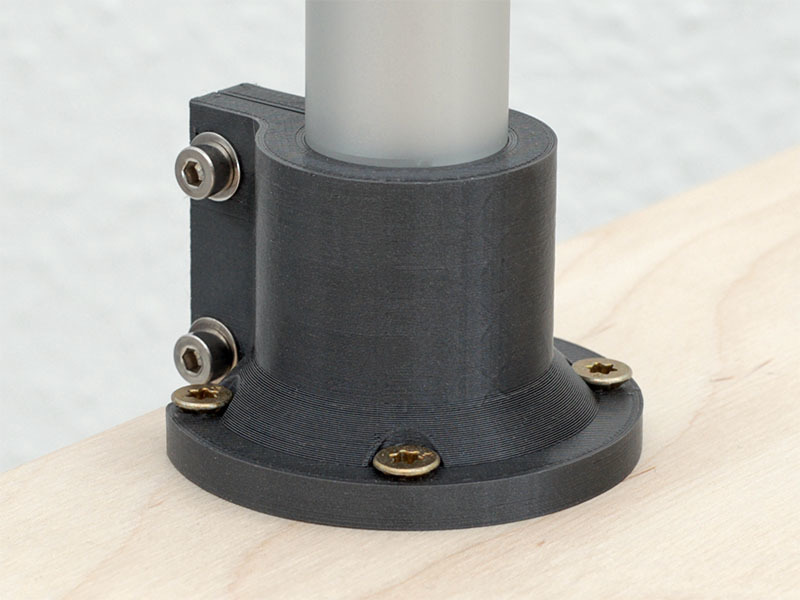

25mm Aluminum Tube approx. 450mm long

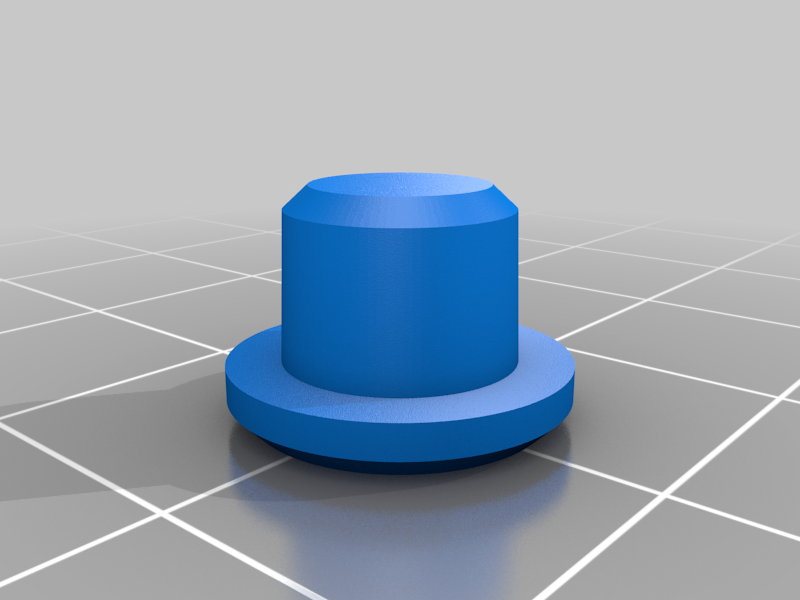

10mm Aluminum Tube approx. 130mm Long
Piece of plywood.

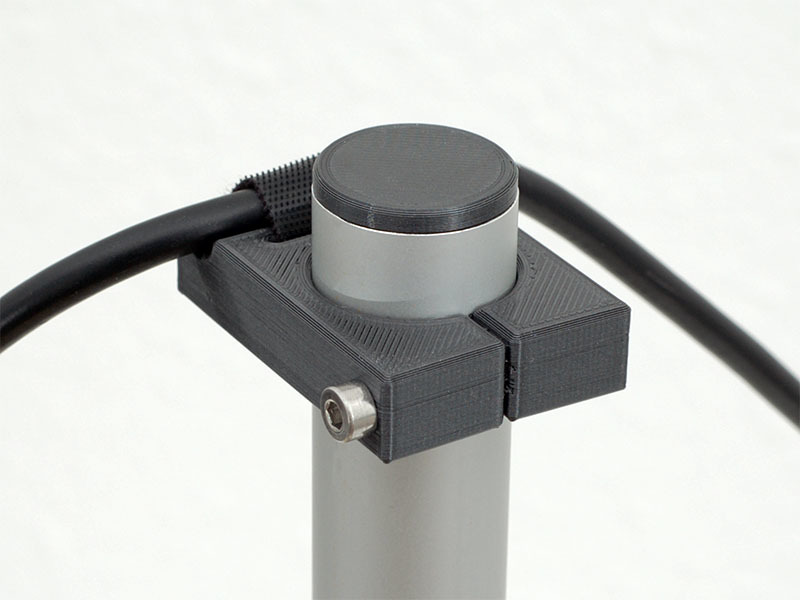

Piece of Velcro tape
Piece of elastic band e.g. silver "Thera Band ®"
M4 and M3 screws and washers.
M4 Threaded inserts.
Print Settings
Rafts:
No
Supports:
No
Filament: Your Choice Heat resistant Filament
Category: Tools
Heat Set Insert Press For Threaded Inserts.
Publicado em 28 de jan de 2023
