Modelo 3D Jet engine extruder indicator por Karkovski no Printables

Descrição

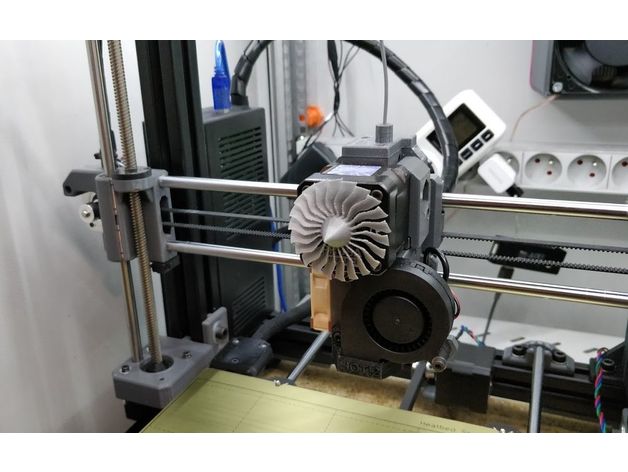

An extuder motor indicator made from a 3D Printable Jet Engine's fan by CATIAV5FTW - scaled down to 25%, with a cone or without.

Link to this awesome printable jet engine here: Thingiverse

There are three versions:

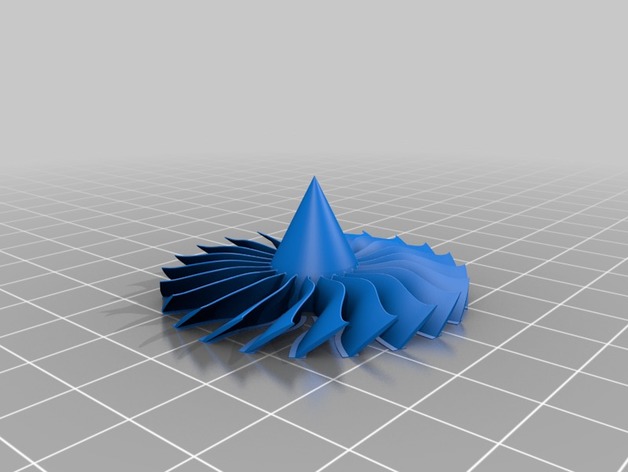

  1. With an integrated cone - for one color print or use ColorPrint in PrusaSlicer to print the cone in another color

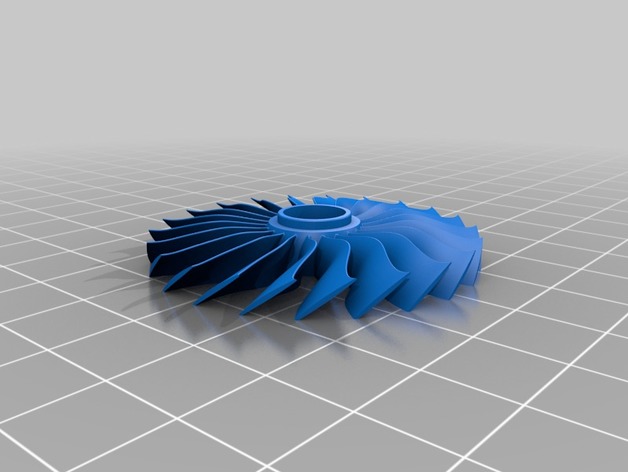

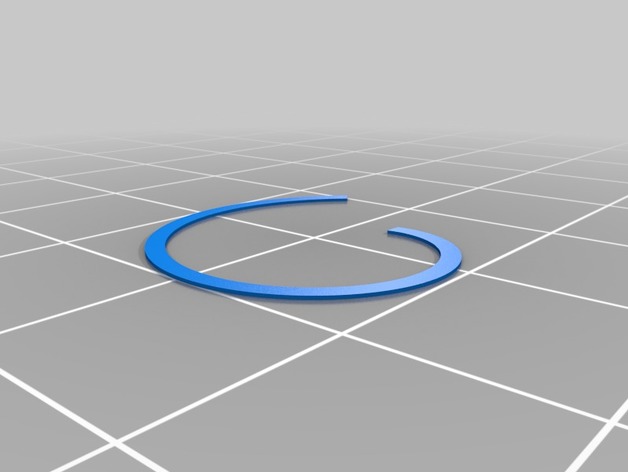

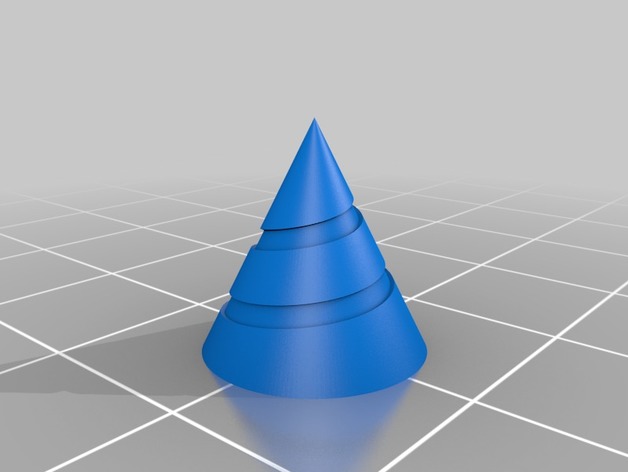

  2. With a separate cone and a spiral strip (you can print each with another color)

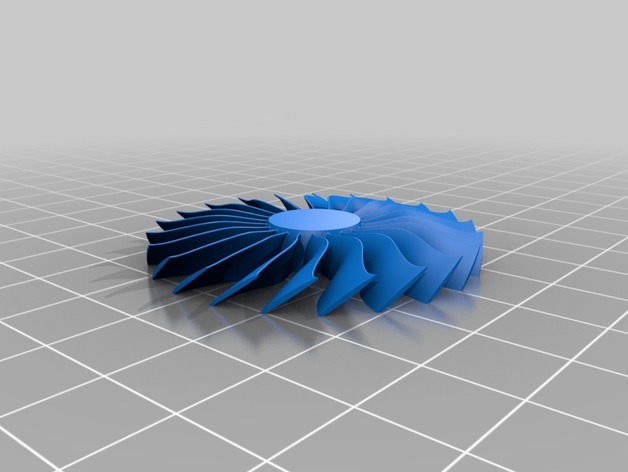

  3. Without a cone

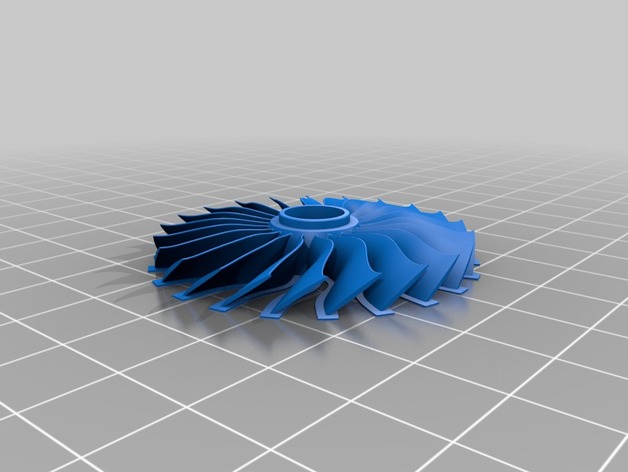

Each of them has a separate version with a brim around blades as the ones without a brim proved not printable for me - as they were lifting from the bed due to not enough surface to adhere (but it seems that it might be the property of the filament I wanted to use).
Versions with a brim have a 0.1 mm high brim helping with the adhesion - set the first layer height to 0.1 mm. You can remove it carefully with an xacto knife later.

There's also a spacer to move the indicator further away from the motor, if your magnet is 3 mm thick (8x3 mm is a standard so you probably need this).

The spacer is supposed to fit inside the little cavity on the base of the Fan for easier positioning ;)

Recommended layer height: 0.05-0.1 mm.

You also need a 8x3 mm magnet and a CA glue (or similar) to glue the magnet, spacer and fan together (just be careful not to glue the fan to the extruder motor ;) ). You will also need to glue the spiral strip to a cone if you choose this version - get a toothpick to apply the glue and a lot of patience ;)

Print instructions

Printer Brand: Prusa
Printer: i3 MK2S
Rafts: No
Supports: No
Resolution: 0,05-0,1

Printables

Jet engine extruder indicator

Publicado em 20 de jun de 2019

301
Curtidas
1,931
Downloads
14
Impressões
Categoria Accessories
Licença Creative Commons — Attribution — Noncommercial
Arquivos (9)
Fan-indicator-brim.stl 15.7 MB
Fan-indicator.stl 15 MB
fan-indicator-spiral-strip.stl 99.9 KB
Fan-indicator-nocone-brim.stl 15.6 MB
Fan-indicator-nocone.stl 9.3 MB
Fan-indicator-spiral-fan-brim.stl 9.9 MB
Fan-indicator-spiral-fan.stl 9.4 MB
fan-indicator-spiral-cone-correct.stl 594.7 KB
spacer.stl 36.2 KB
