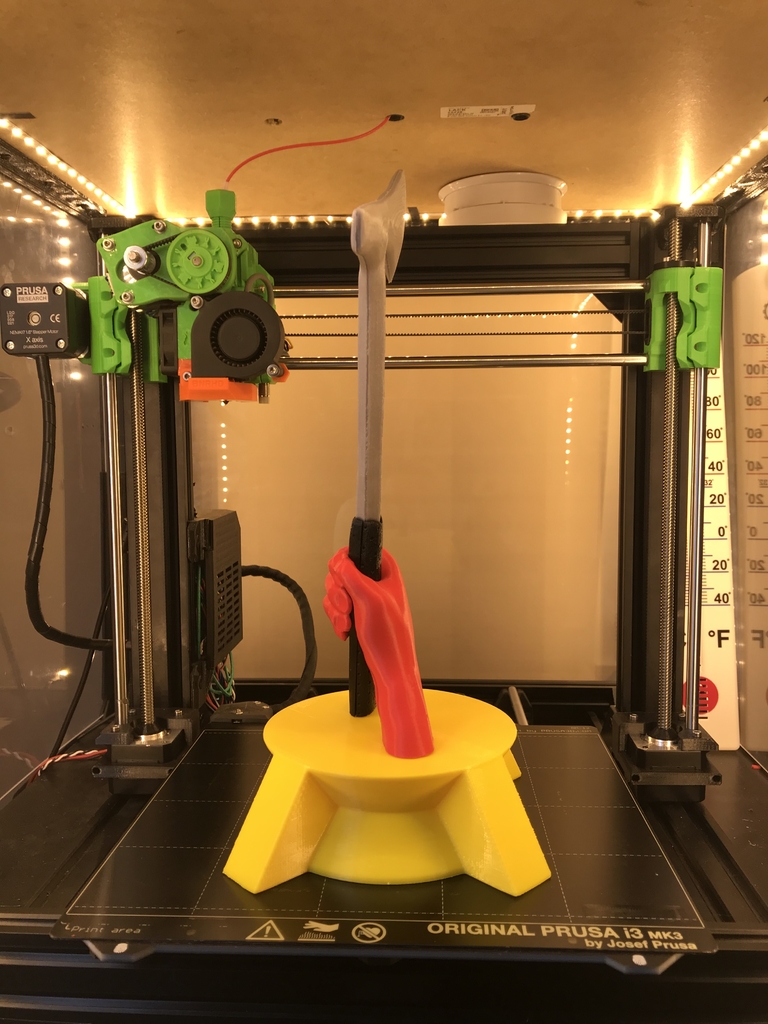

This model was created at the request of a customer. It is available here for free under a non-commercial/no derivatives license - please dont be that person trying to sell these! That said, this model is awesome to print and assemble. The pins were modeled directly in oculus medium as part of the primary sculpt and work perfectly to keep things aligned. There is no glue required for assembly and only some supports are necessary for the hand. The trophies are very tough when assembled and can be dropped from waist height pretty safely without taking damage. Please post your makes and let me know if there are any problems I can improve upon! I obviously do contract design and print work so if you like this model and you would like to request a quote for something please feel free to contact me. Enjoy!

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

Yes

Resolution:

0.1-0.3

Infill:

10%

Notes:

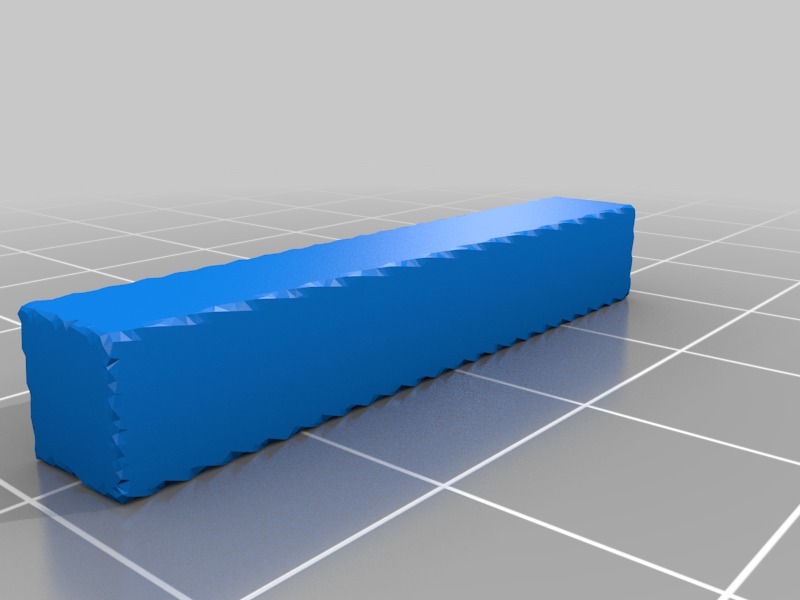

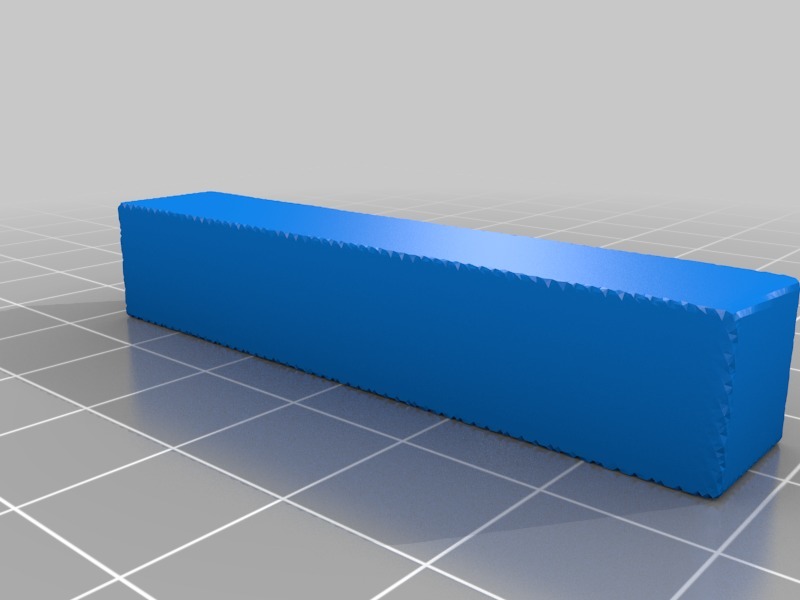

*Note the pins have all been sized down 7% relative to the parts they insert into. You may need to play with this scale ratio a bit based on your printer's output.*

Post-Printing

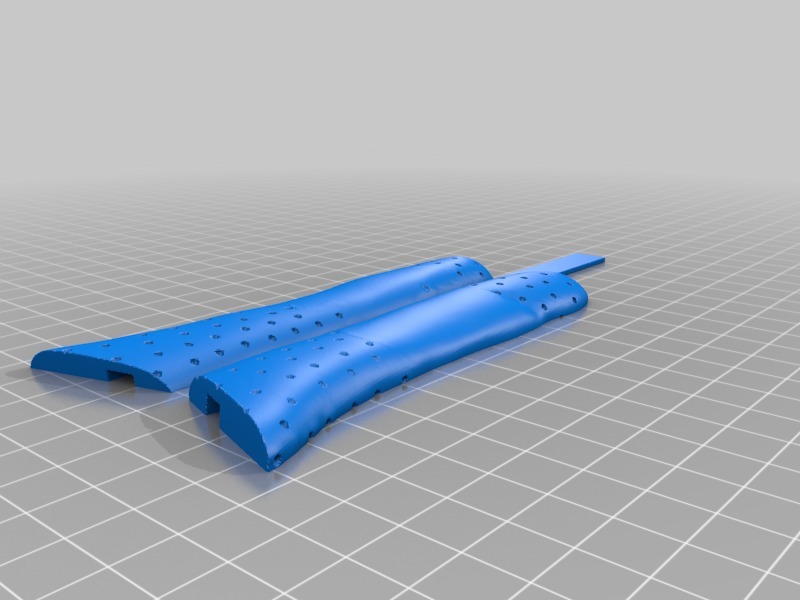

Assembling the hand around the handle required a bit of heat gun on the hand to soften the plastic and allow it to flex a bit. This could probably be reduced/eliminated by adjusting the scale ratio of each. Also, I had to insert one pin into the bottom of the handle and one into the pedestal, then flex both pins slightly as I slid the pedestal and hand/handle assembly together. It's a little tight, but its a good thing after it's together!
