A 'remix' of the excellent 1U Rackmount Cable Management Rings by boulwarek.

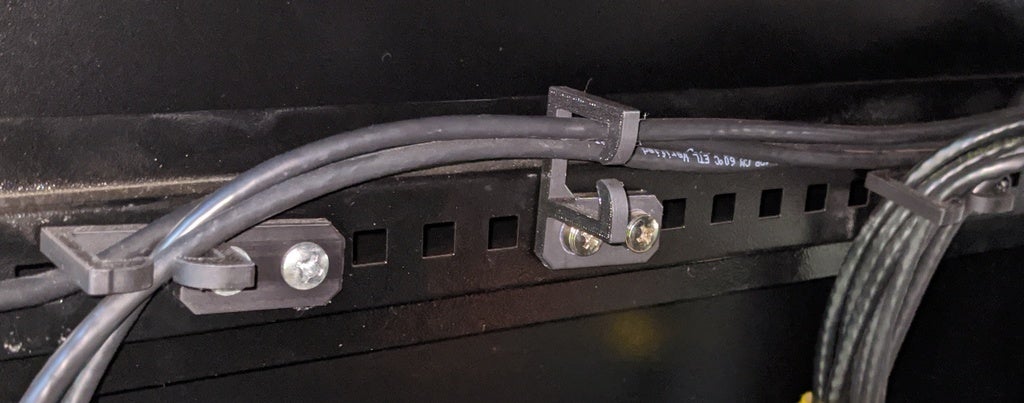

I have scaled the 'ring' down in size to accommodate fewer cables and changed the screw hole spacing to fit 'front-to-back' rails in my server rack.

• holes needed to be spaced 10.85mm apart

• distance between center of screw is 20.0mm

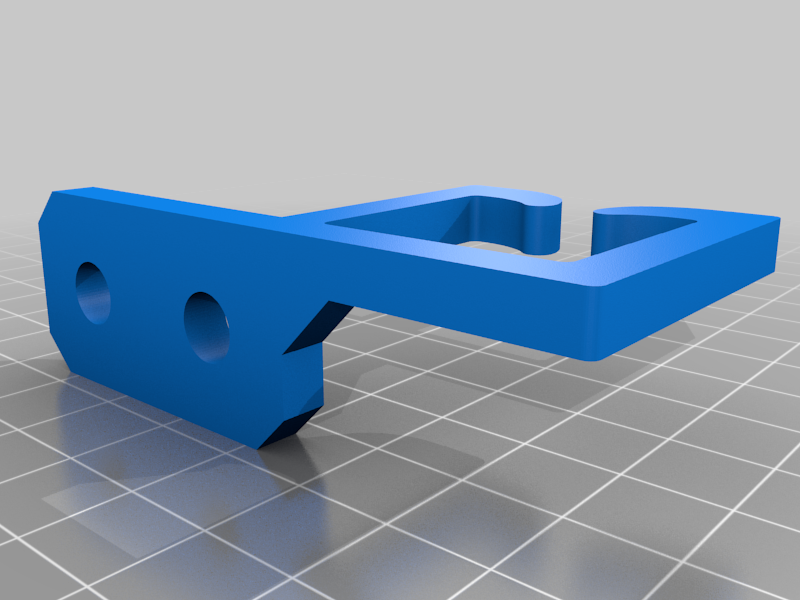

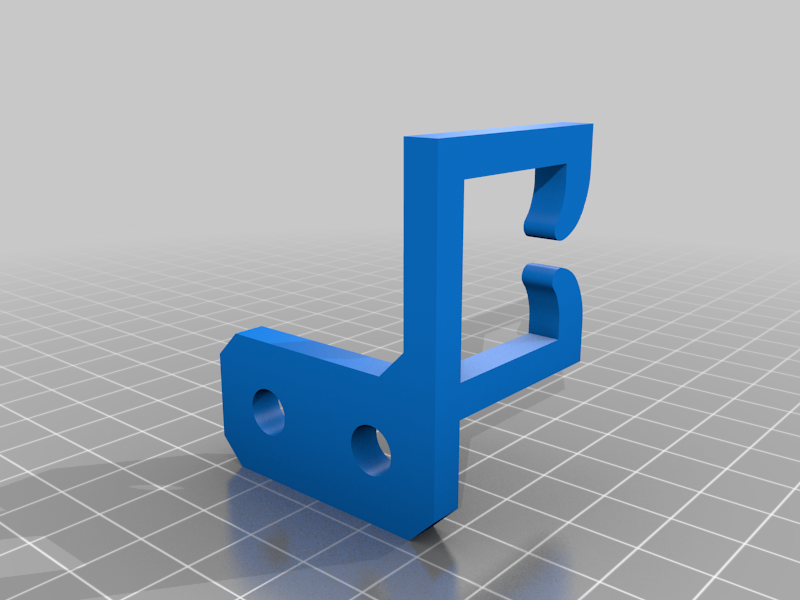

  I made the rings slightly smaller as the horizontal / vertical runs are only for a few cables

  This post originally appeared on my website

Print instructions

Category: Organization Summary

A 'remix' of the excellent 1U Rackmount Cable Management Rings by boulwarek.

I have scaled the 'ring' down in size to accommodate fewer cables and changed the screw hole spacing to fit 'front-to-back' rails in my server rack.

• holes needed to be spaced 10.85mm apart

• distance between center of screw is 20.0mm
  I made the rings slightly smaller as the horizontal / vertical runs are only for a few cables

  This post originally appeared on my website

PrusaPrinters does not support uploading Fusion360 files, so grab that from thingiverse

Print Settings

Printer Brand: Prusa

Printer: I3 MK3S

Resolution: .3

Notes:

The parts take about 30min each to print. The set in combined.3mf will be about 1 hour for .3mm layer height.

The suggested print orientation is shown in an attached picture. No overhangs or support structure needed when printed as suggested. Very minimal bridging for the screw holes.

Any material will work as will any resolution. I printed fast and cheap because the parts are not usually visible or frequently handled so finish and appearance are largely inconsequential
