Descrição
I wanted to do some experiments with wind turbines of various types and then
I designed these windmills for a simple installation in the garden.

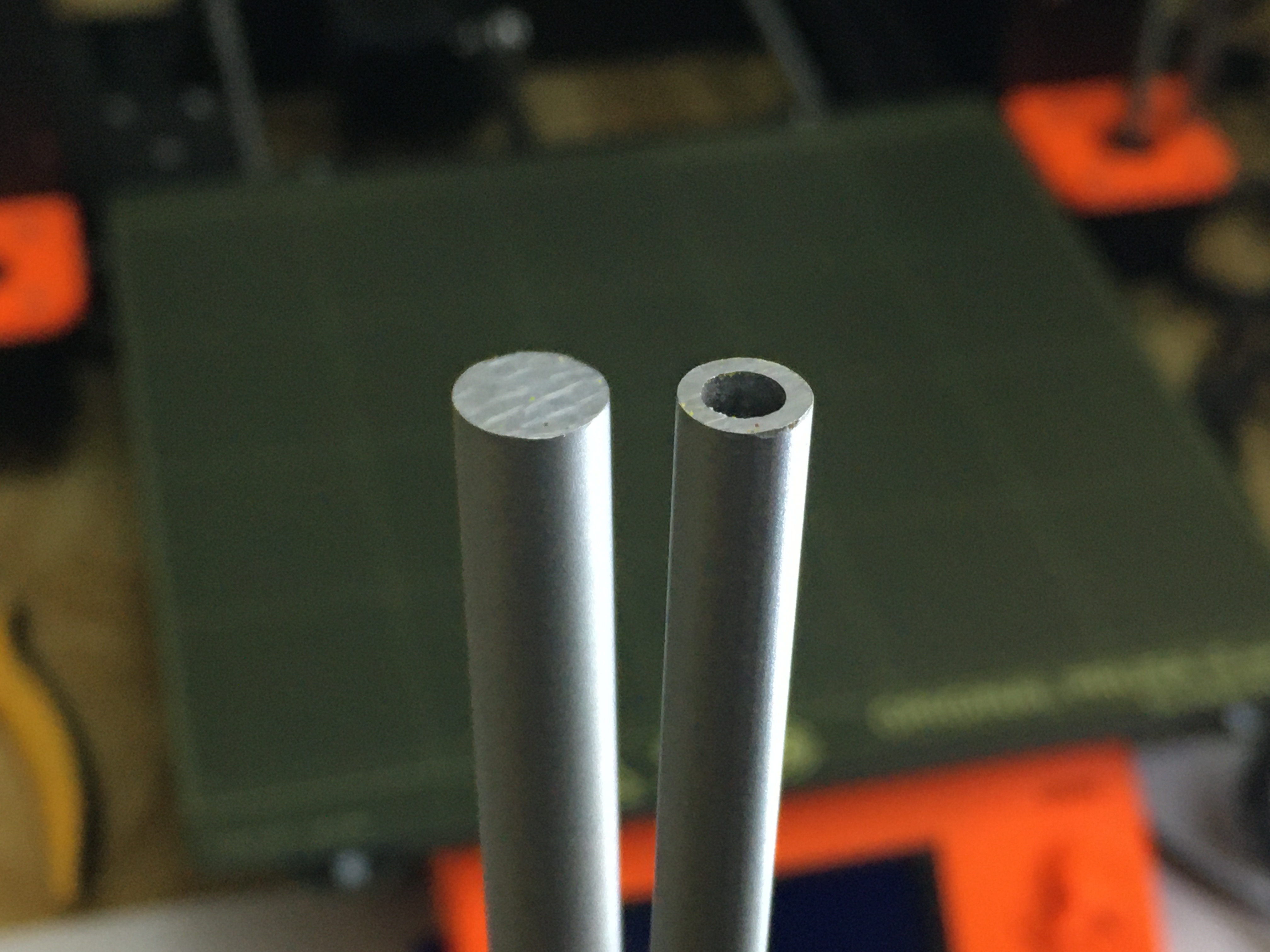

They are designed to be inserted in an aluminum rod Ø8 (usually Ø7.8/7.9mm)

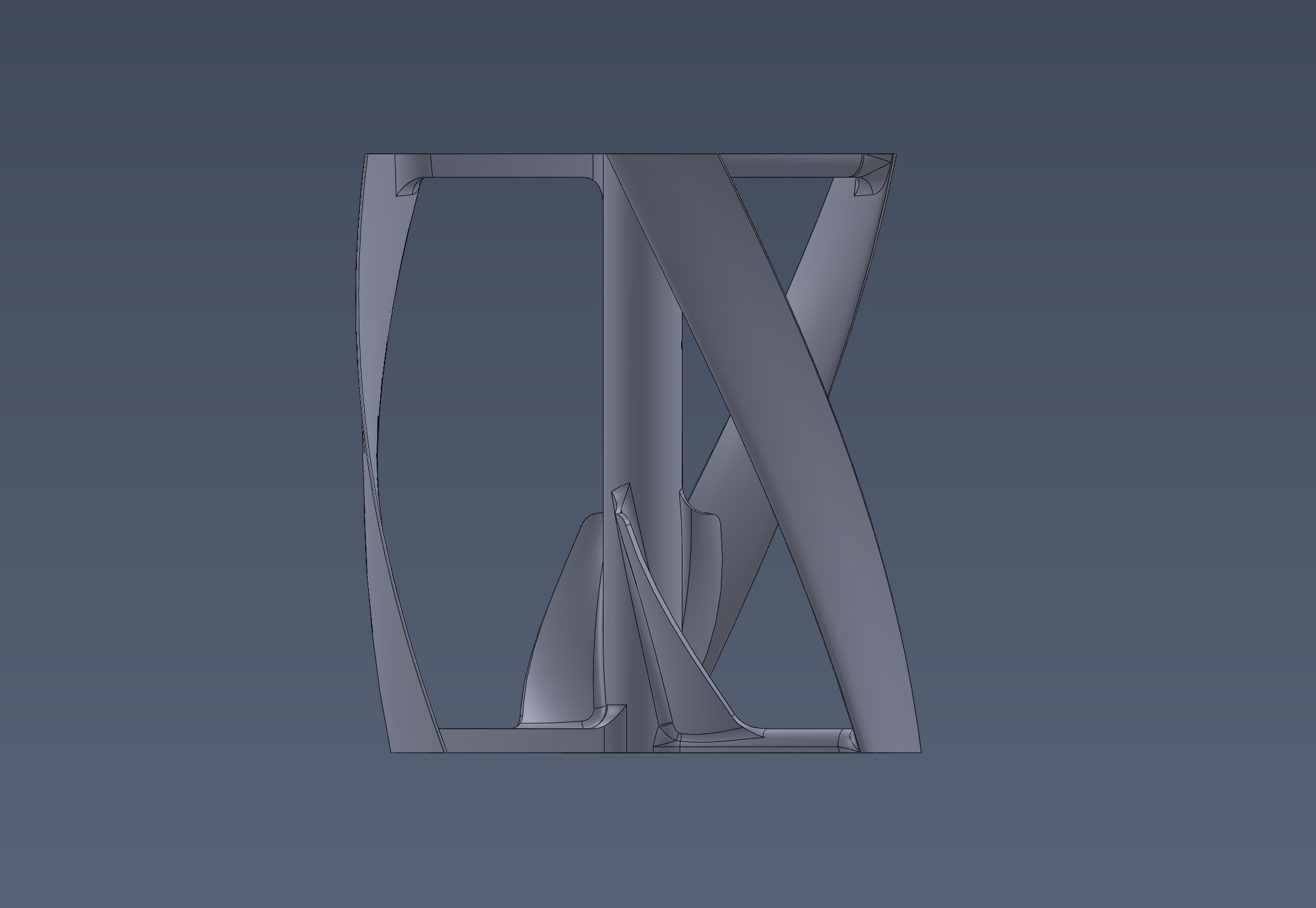

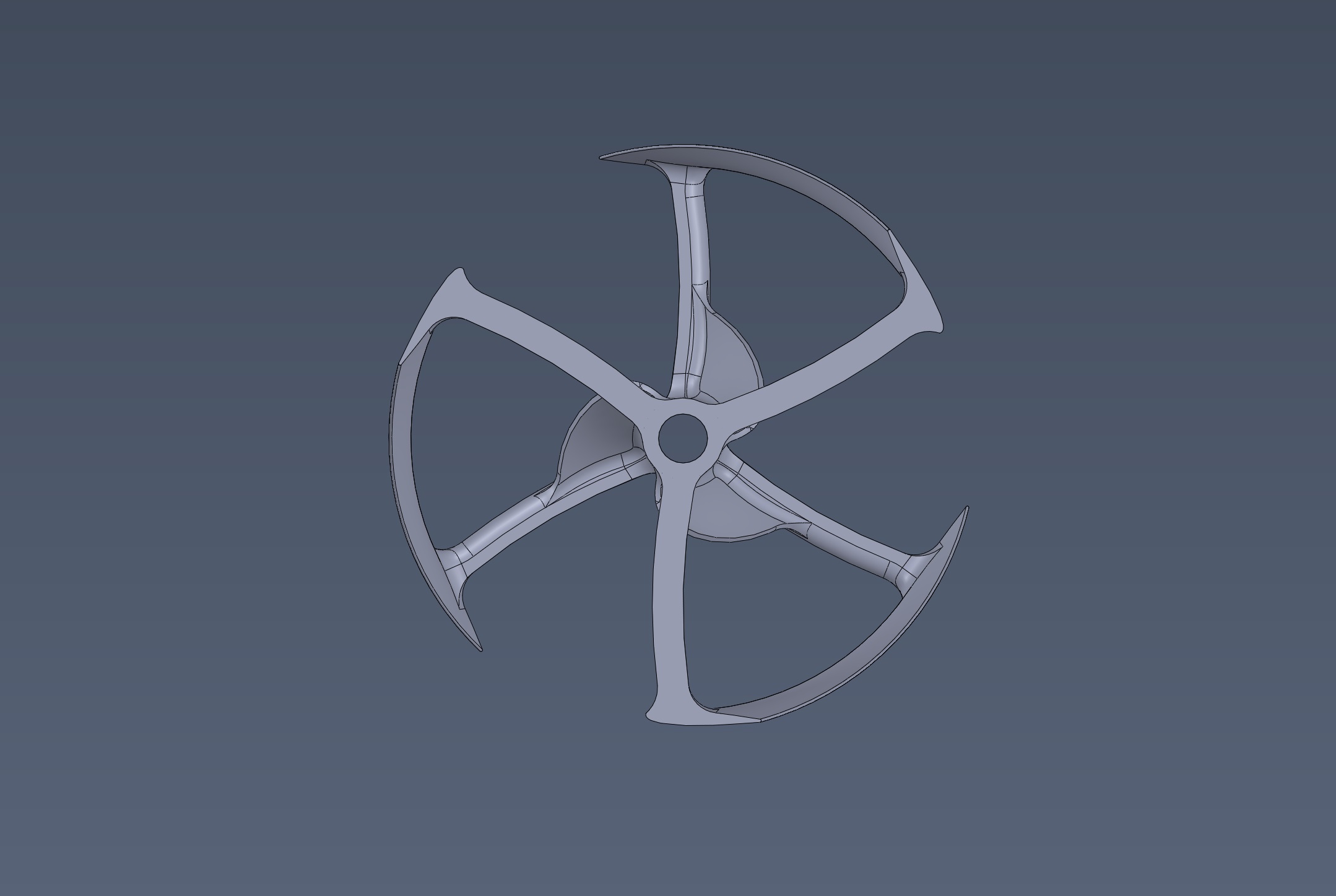

Dimensions
External Diameter Ø96 mm
Height 100 mm
Internal hole diameter Ø 8.10 mm
This type of wind blade needs sustained wind to rotate
Works even if horizontally installed
I printed it at 0.3mm layer height, with 2 perimeters and no infill for lightness purposes,
I also printed it with supports only on the upper arms but I lowered the speed as it was going up to the higher levels to avoid vibrations caused by the moving bed.
have fun
