Descrição
How to print:
I suggest PETG or PETG-FRJet if real candles are to be used.
Lantern is so big so there will be no space left for raft or brim on MK3 sheet.
Lantern body needs supports only on top window frames (manually set in 3mf already),
while its roof must printed without supports - for real candle usage.

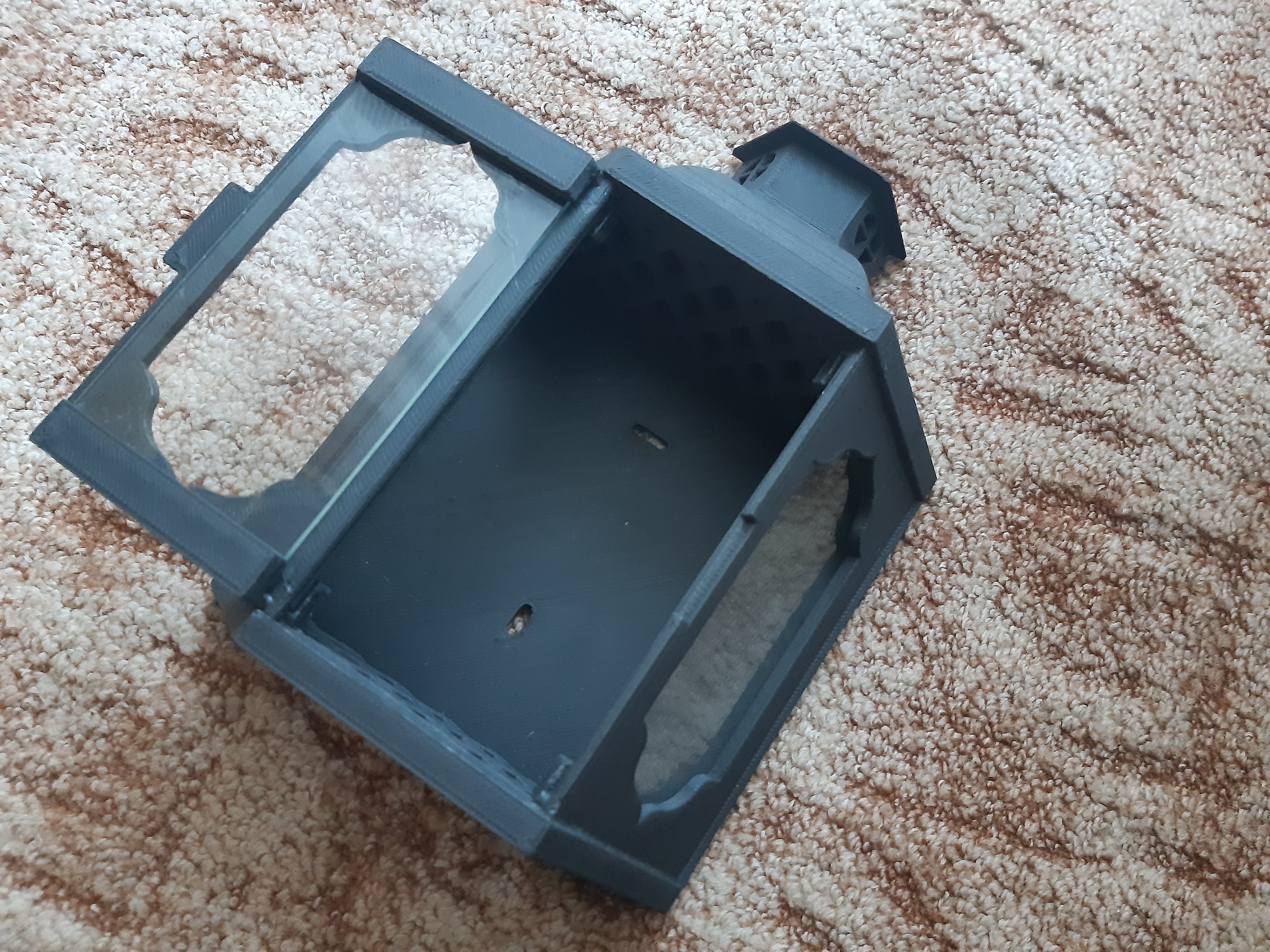

Lantern door needs supports on both glass slots.
Do not forget remove supports on door slots for glass before completion.
Warning:
Removing supports from 2.6 mm slots at lantern door is the most complicated part of this work, I done it with small screwdriver and good pliers when most of support
came out together at once. But I must use small file and drill to do the rest also.
/Maybe printing the door in two parts, single door and slide slots separately
and glueing together is also possible way.
Or you can simply enjoy this model without any glass./
Assembly:
Door scale is 99.5%, so can be easily joined to lantern body without force,
just with little bending.
Then model is ready for optional glass inserting.
You can add 3 pieces of glass - size 7x13 cm and thickness 2 mm - to all lantern sides.
For wall montage model has 2 holes with vertical distance about 7 cm.
Czech note:
V českých obchodech nástěnné lucerny téměř žádné nemají,
navíc jsou na rozdíl od jiných typů dostupné jen v moderním provedení.
