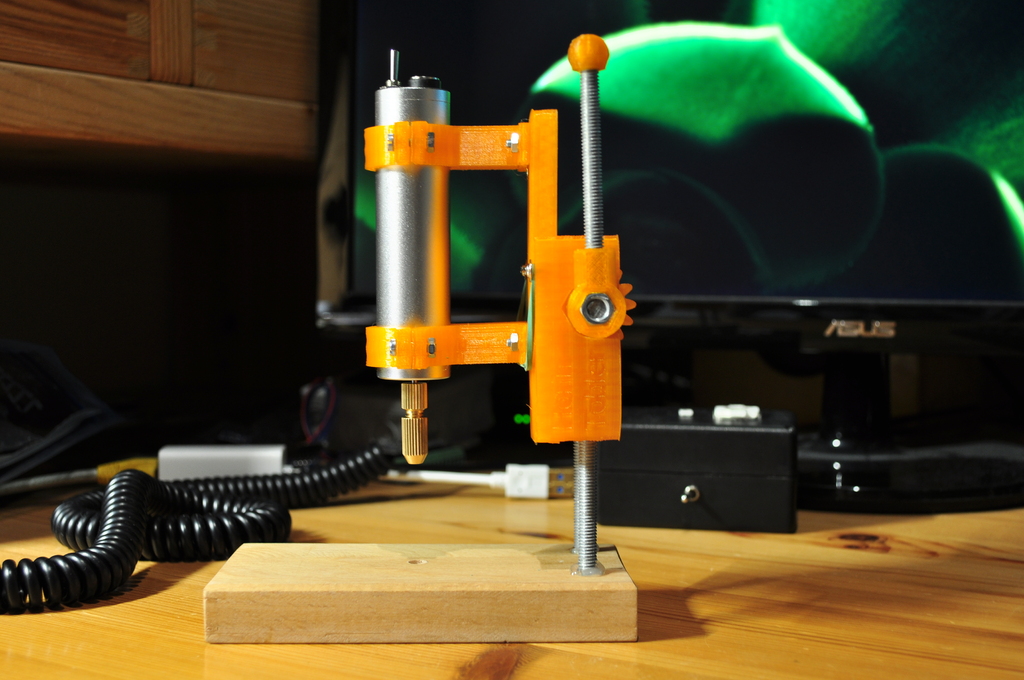

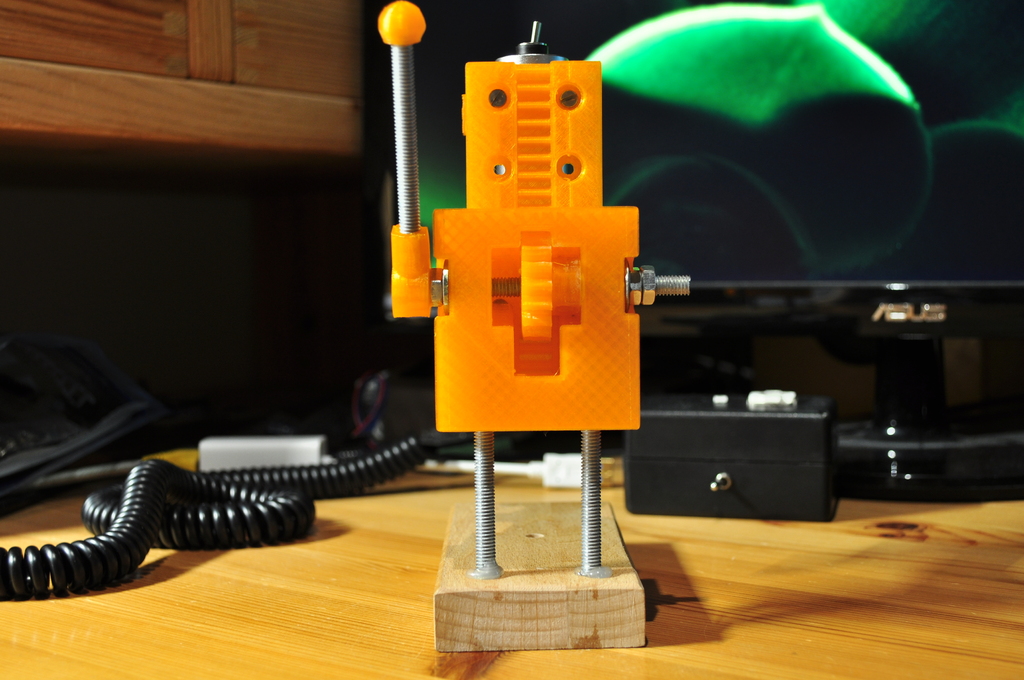

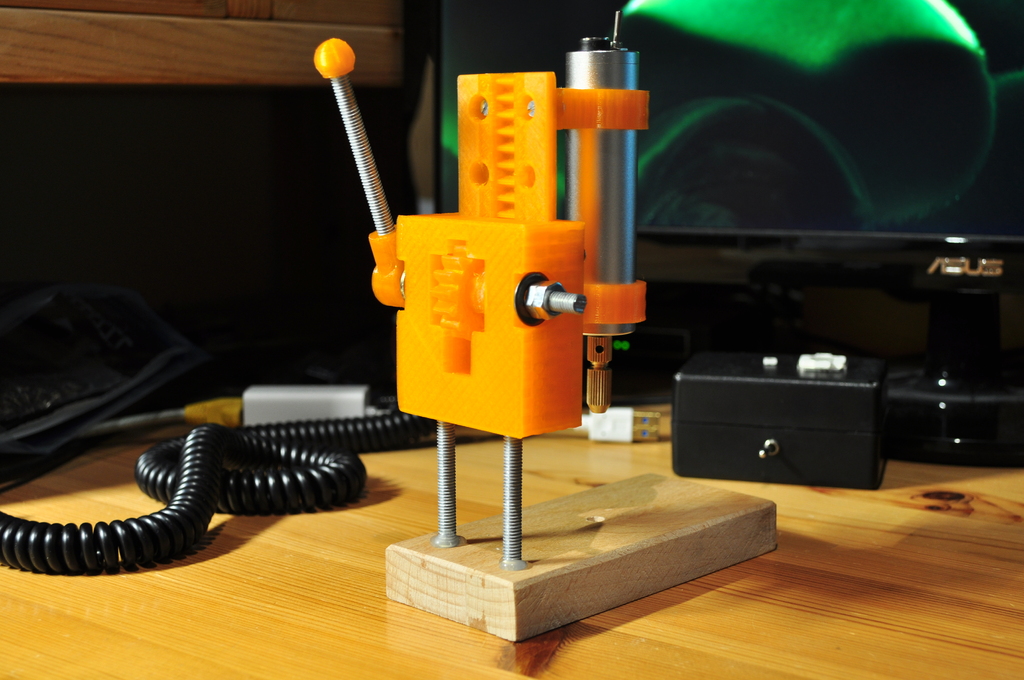

This is my miniature Drill press.

I made it to drill holes in PCBs.

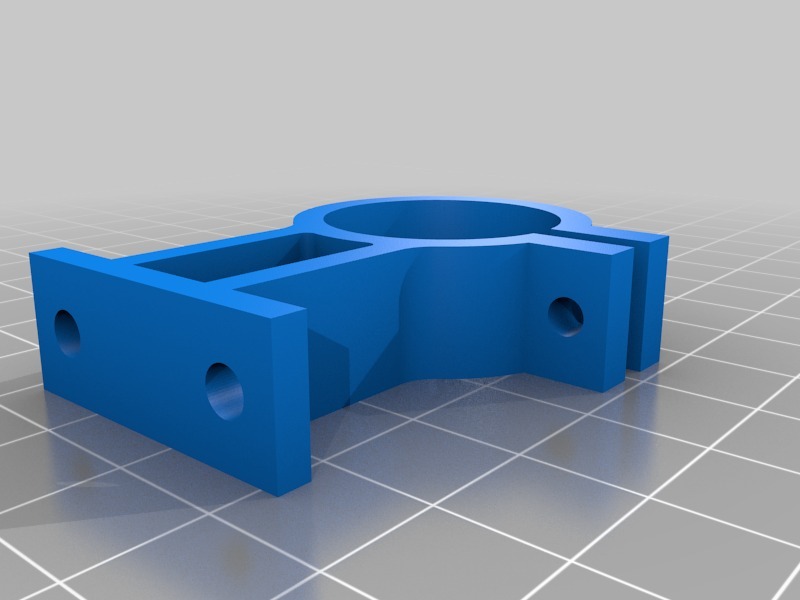

The brackets have a inside diameter of 24mm.

Be free to read the instructions :)

Inspired by this project on Thingiverse

(mine is a total redesign)

Drill is from Ebay here

Sadly, the drill chuck could be better.

Instructions

Part List:

6x M3x12

6x M3 Nut

About 320mm M6 threaded rod (70mm + 2*125mm)

4x M6 nut

2x M6 washer

wooden base 125x60x18mm

24mm diameter drill Motor (Ebay)

Instructions

• Print the parts out. Let them cool before you remove them, because you don't want to bend something (especially the slider).

Be sure the parts are completely cool, because if they are hot, they will shrink a bit.

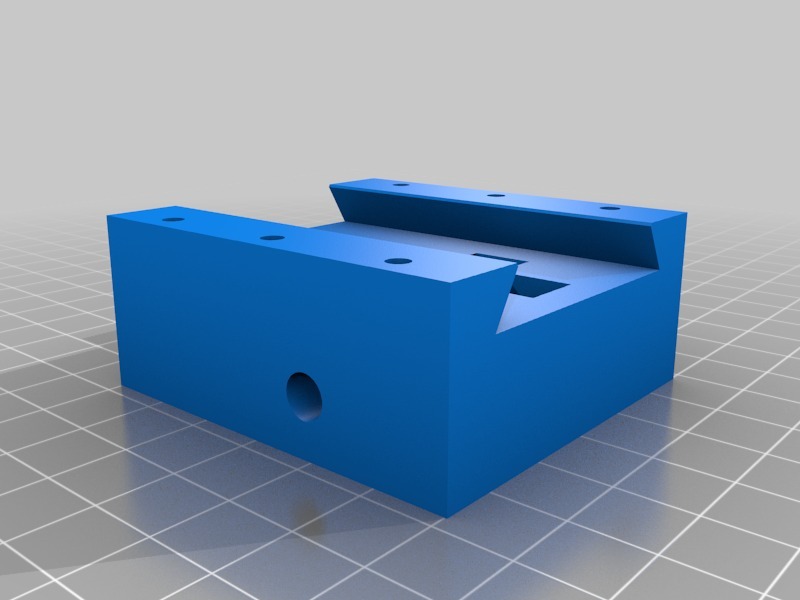

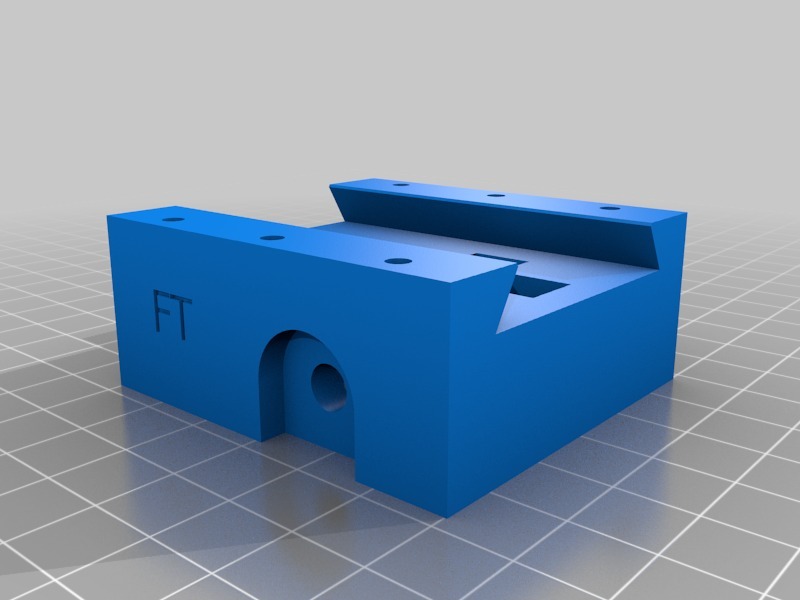

Rasp the slider crosswise on a sheet of sandpaper until it fits the base perfectly. The sandpaper should lie on a flat surface. I only sanded the surface width the gear rack.

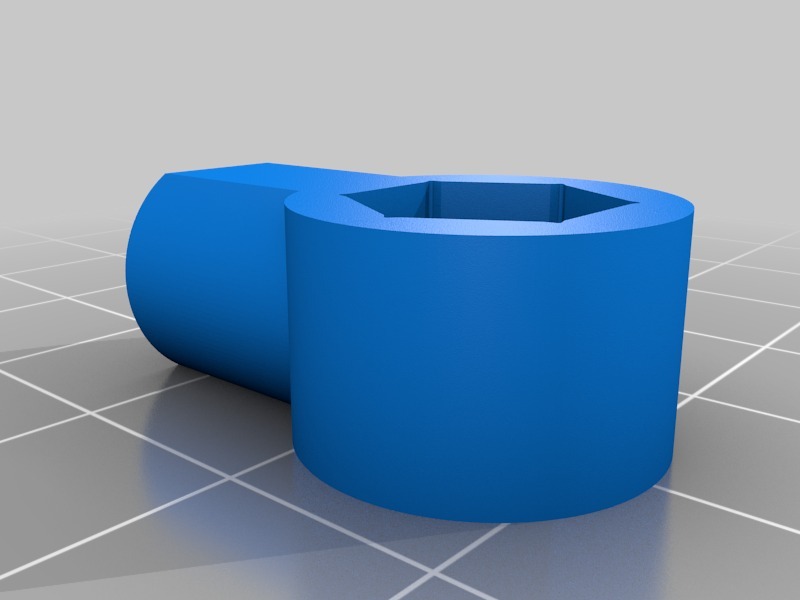

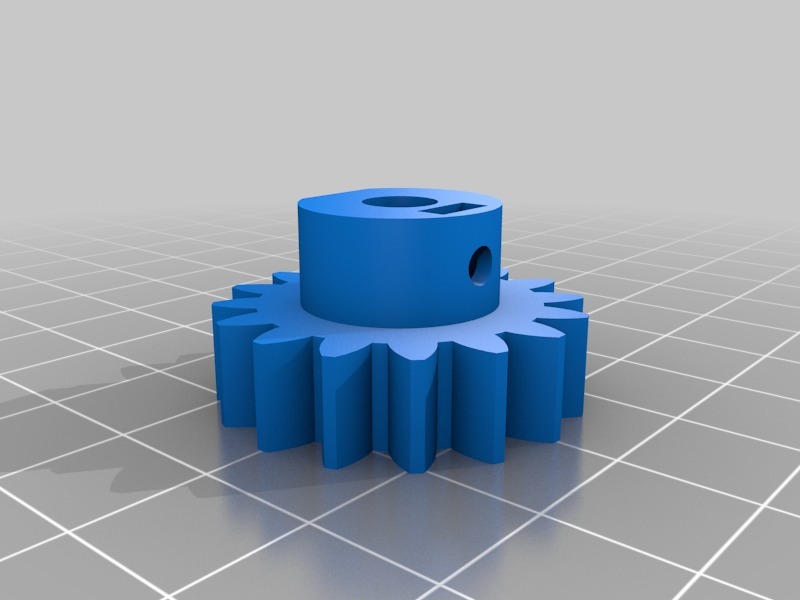

I attached the gear width superglue to the threaded rod. Same thing width the lever.
