Prototype Board Display Stand

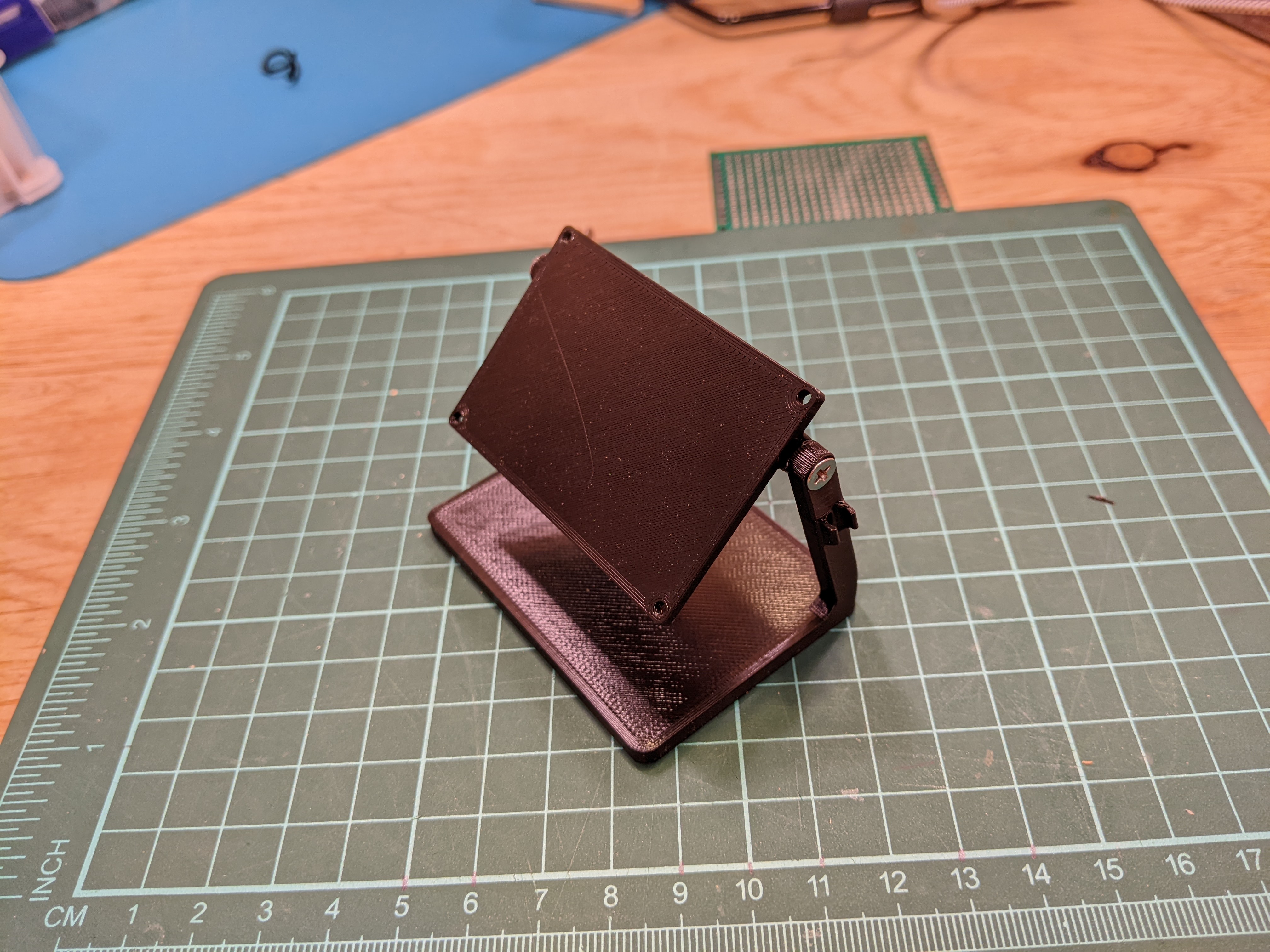

Pivoting stand for 60x40mm prototyping board. Has holes for mounting M2 stand-offs.

Approximately 180 degrees of rotation. Cable strain relief bracket on right of stand. Pivot point is made from M3 screws and heat set threaded inserts.

Be careful when placing the heat set threaded inserts. There isn’t a lot of plastic there and the soldering iron can soften the entire mounting point area if care isn’t taken.

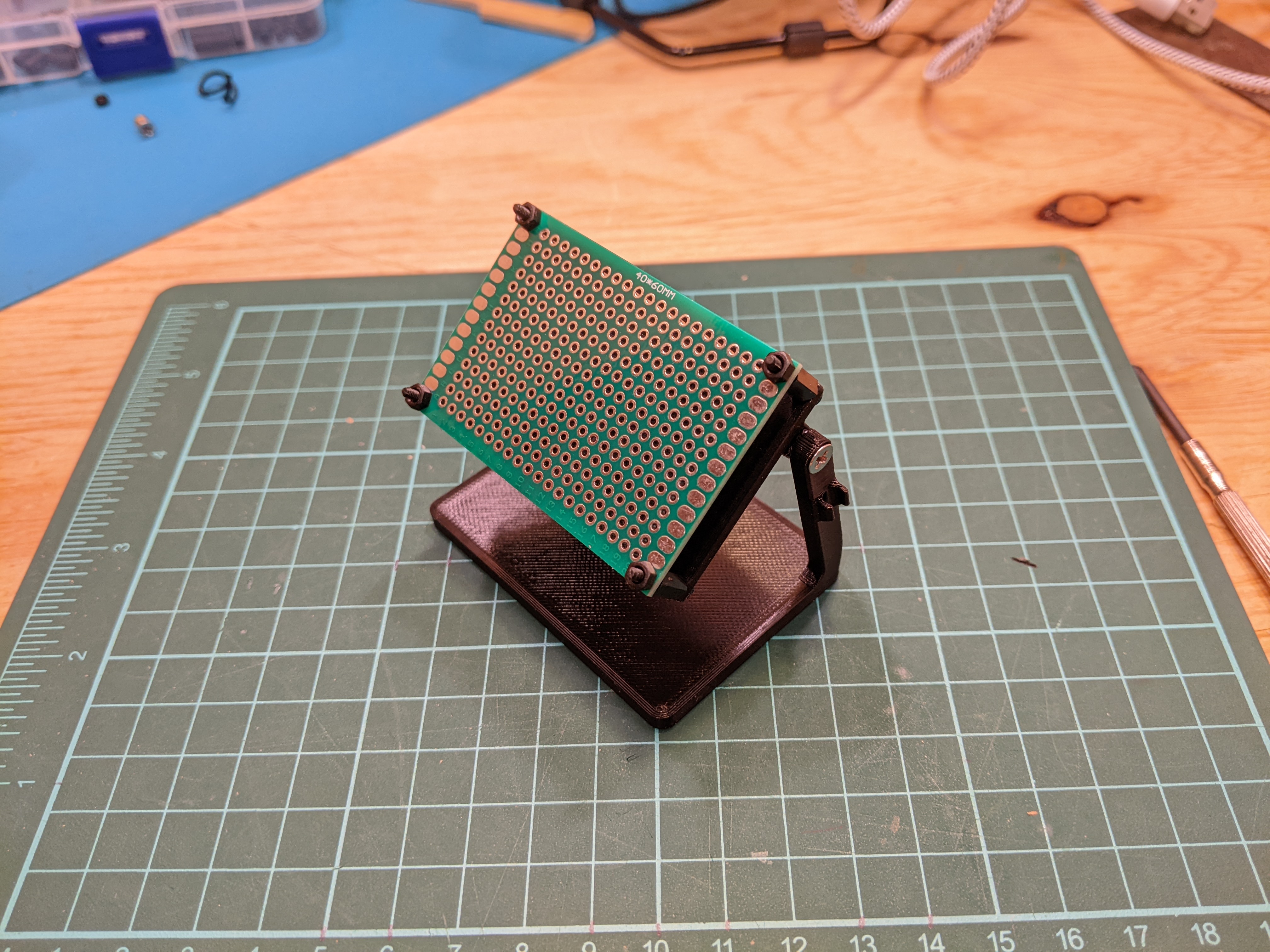

This stand can accommodate any project that will fit on a 60 x 40 mm prototyping board.

The pictured device is a temperature sensor with a basic LED display. It can be used to monitor the temperature in your 3d printer enclosure or your stepper motors or power supply. See build guide if interested: [https://github.com/ZPaulWeleschuk/Simple_Thermistor_Arduino_Project](https://github.com/ZPaulWeleschuk/Simple_Thermistor_Arduino_Project)

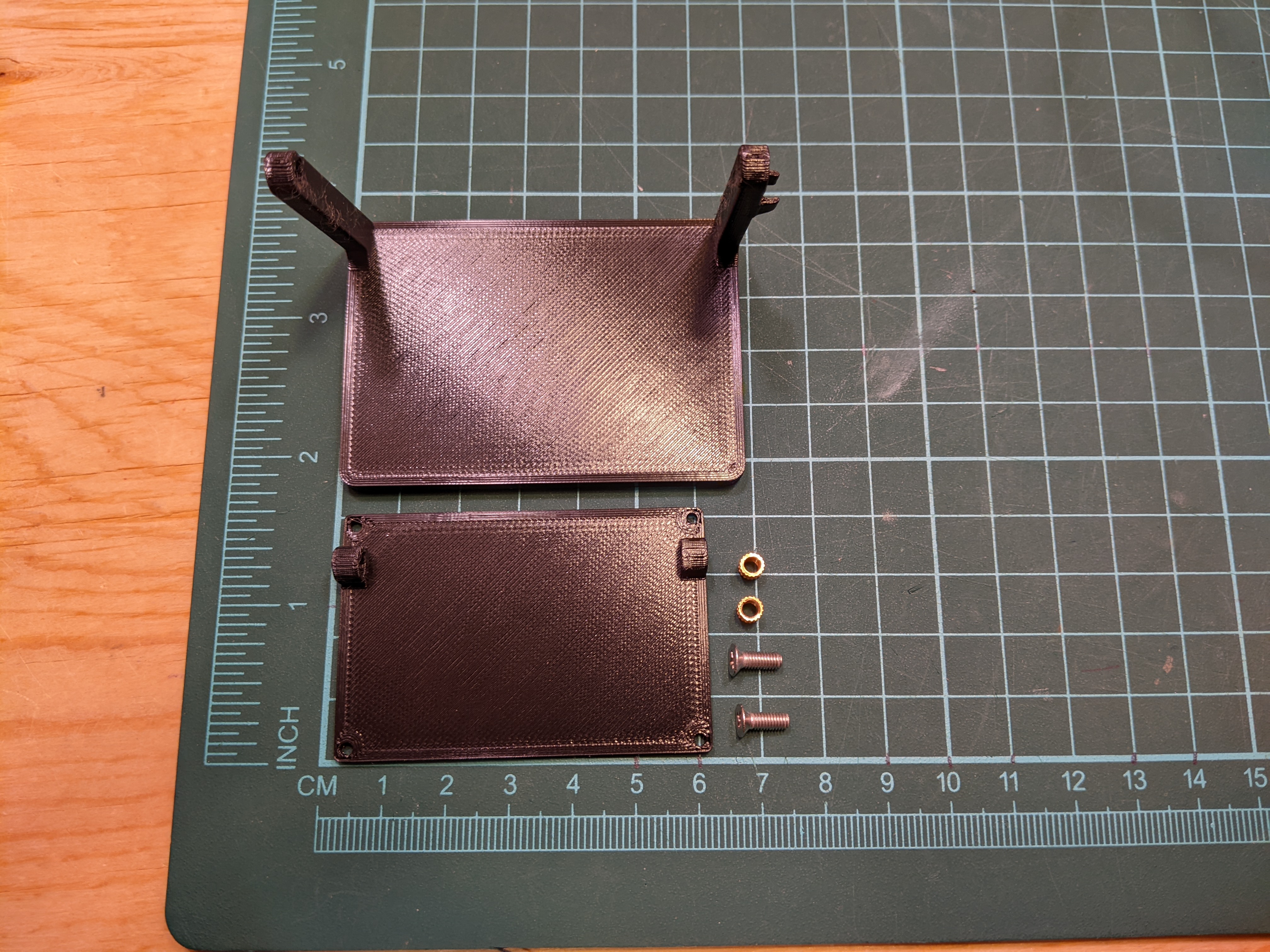

Materials needed:

• 2 – M3 x 8mm screws (can use longer screws as well)
• 2 – M3 x 4mm heat set threaded inserts (OD: 4 to 4.2mm)

Recommended Print Settings:

Layer Height: 0.2mm
