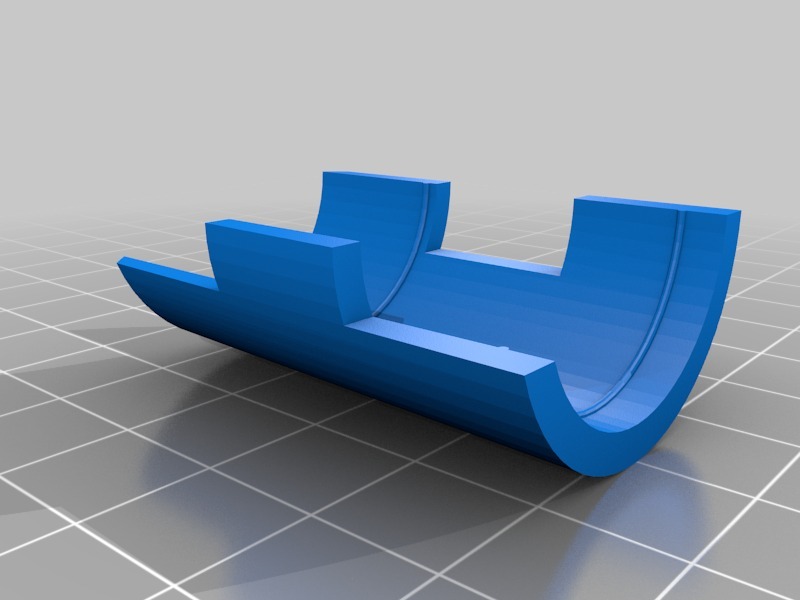

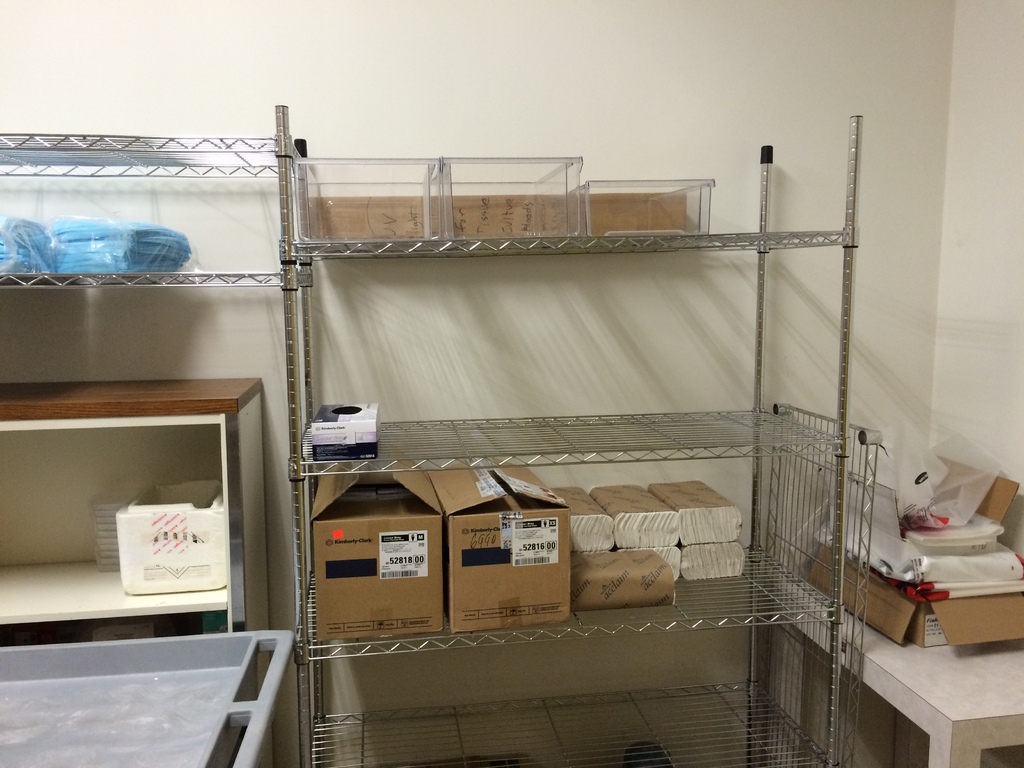

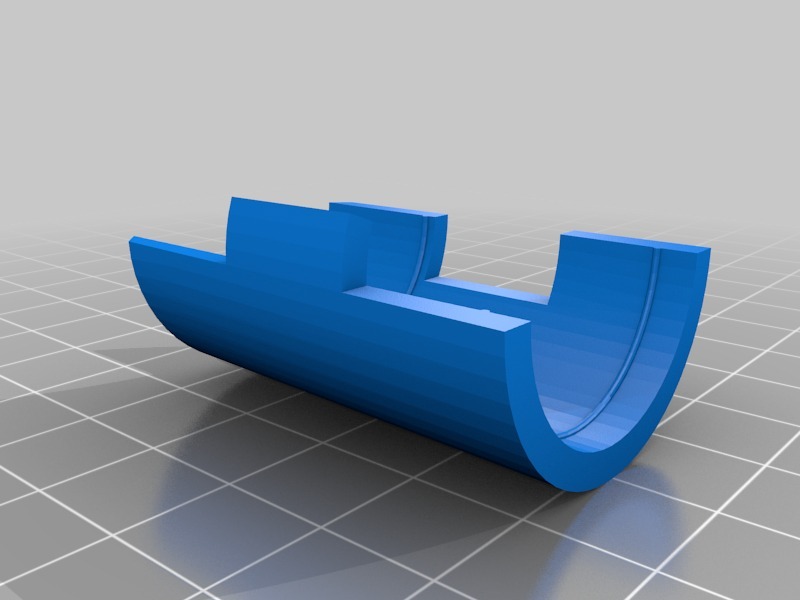

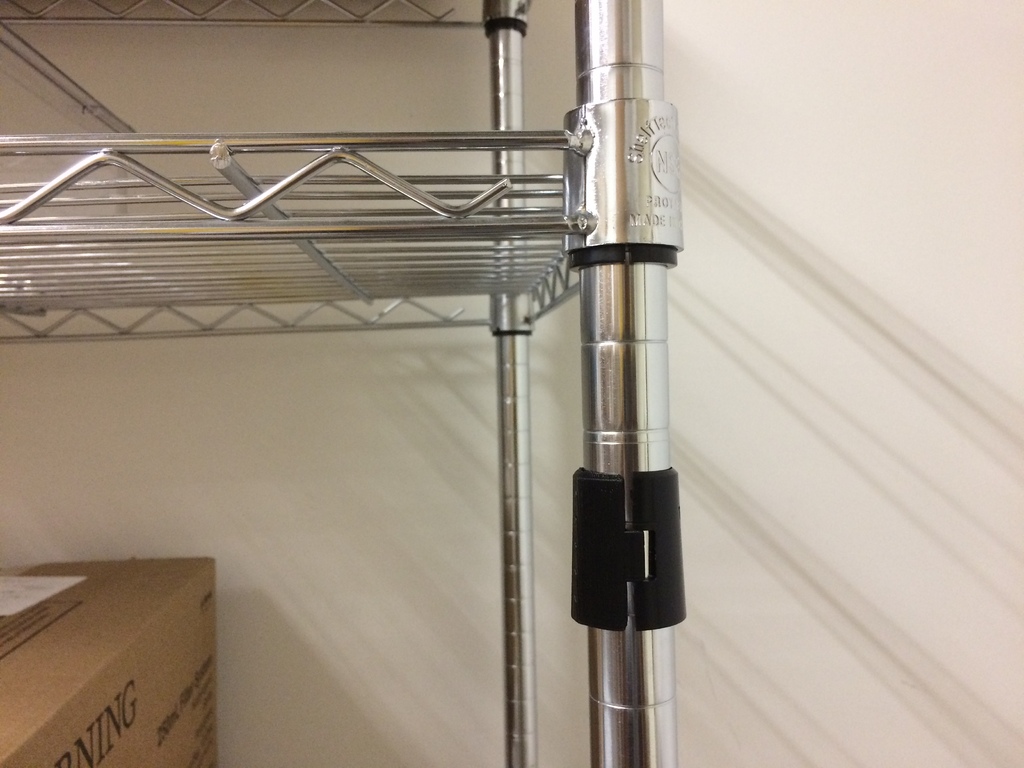

This is the clip that works as an insert to fix wire shelves onto a tube. It is designed to fit 1in thick tubing from commercially available wire shelving (Home depot/lowes). I'm told it's called a shelf split sleeve.

**Added a more accurate copy of the original clip (wireShelfClip_fixed.stl)

Print Settings

Printer:

Monoprice Maker Select

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

50%

Notes:

I printed it horizontally in order to mitigate the risk of delimitation while hammering down the metal shelf on the plastic piece. I also printed the concave side up to reduce supports.

How I Designed This ===================

Category: Replacement Parts
