Modelo 3D Heltec Wireless Stick Lite V3 basic case por Droidbot no Printables

Descrição

Here are two versions of a basic case for the Wireless Stick Lite V3 with USB-C port. Both snap together.

Buttons are untested, but should work. Might need to be sanded down. They work for either case style.

Versions:

Basic case: Holes for USB-C, antenna, and buttons.

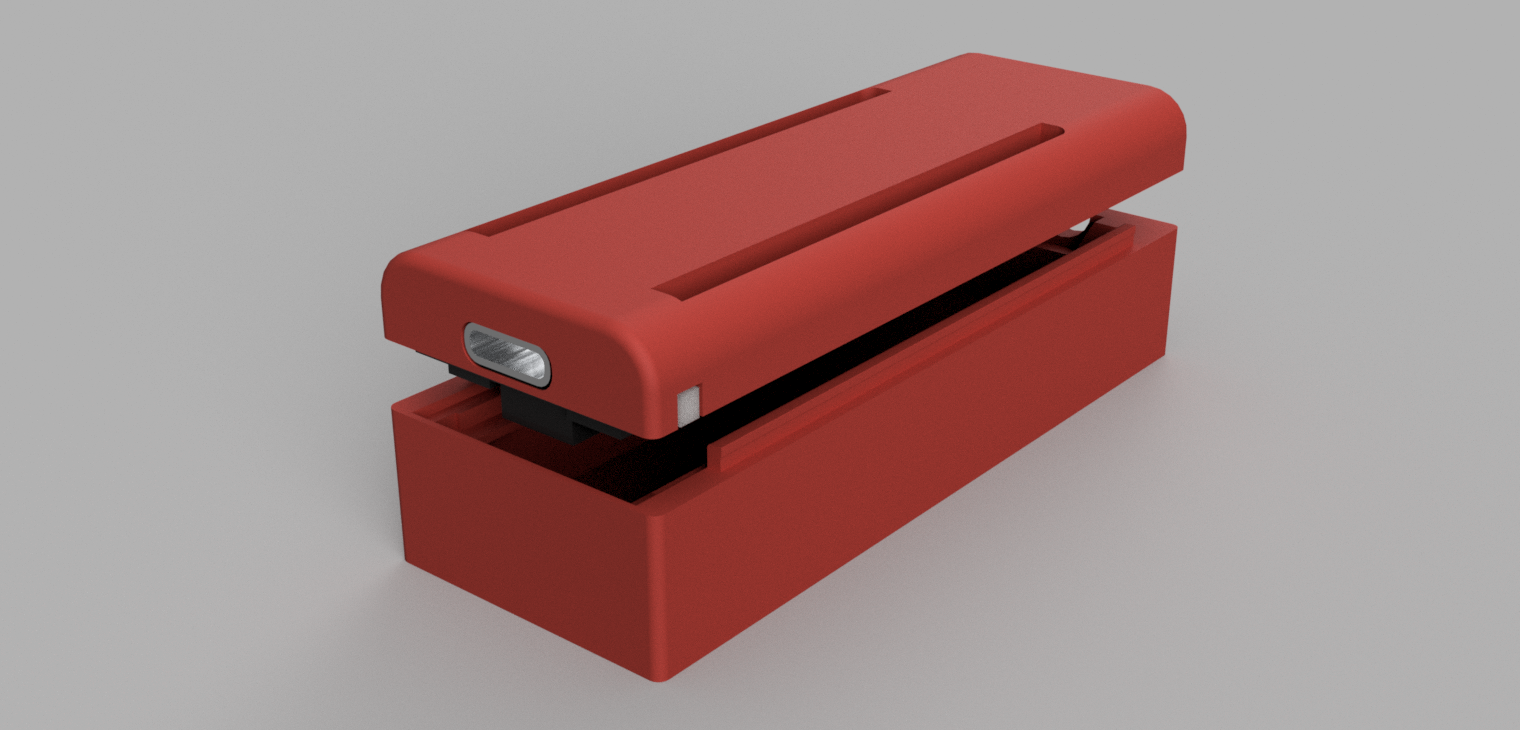

Basic+ case: Adds slots for headers (May need to be plugged in before assembling case) and case is longer and deeper so you could fit a battery inside. Any battery that is thinner than 9 mm and fits should work (Maybe a 500 mAh?)



Printing:

I used 0.2mm layer height with a 0.6mm nozzle. 10% infill. It should take about an hour. Could also be done at a finer layer height.

Printables

Heltec Wireless Stick Lite V3 basic case

Publicado em 9 de ago de 2023

24
Curtidas
395
Downloads
1
Impressões
Categoria Electronics
Tags
meshtastic heltec heltecesp32 helteclora wirelesssticklite wslv3
Licença Creative Commons — Attribution — Share Alike
Arquivos (9)
WSL_CasePlus_Bottom_V2.stl 1.2 MB
WSL_CasePlus_Top_V2Open.stl 1.4 MB
WSL_CasePlus_Top_V2.stl 1.4 MB
WSL_UserButton_large.stl 117.1 KB
WSL_ResetButton_large.stl 110.7 KB
WSL_Case_Top.stl 1.8 MB
WSL_Case_Bottom.stl 1.8 MB
WSL_Case_User_button.stl 2.2 KB
WSL_Case_Reset_button.stl 2.2 KB
