February 05, 2022

This is a remix of a remix of a remix....

A remix from [https://www.thingiverse.com/thing:5168552](https://www.thingiverse.com/thing:5168552) from [https://www.thingiverse.com/MyStoopidStuff](https://www.thingiverse.com/MyStoopidStuff)

Which is a remix from my [https://www.thingiverse.com/thing:4854682/remixes](https://www.thingiverse.com/thing:4854682/remixes)

which again was a remix from [https://www.thingiverse.com/thing:4833955](https://www.thingiverse.com/thing:4833955)

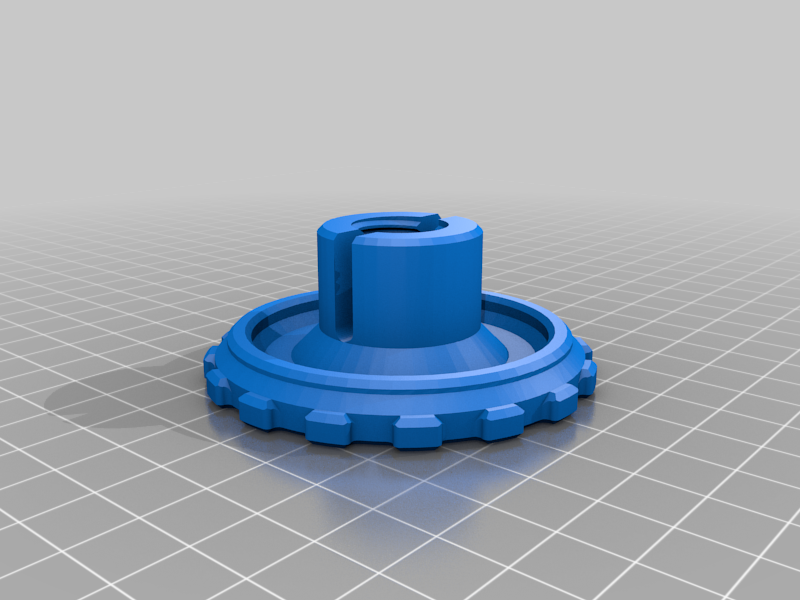

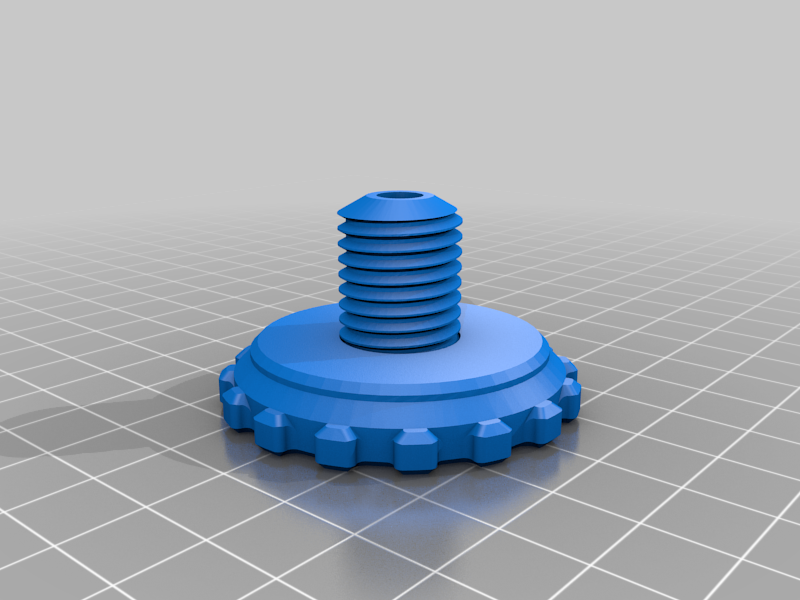

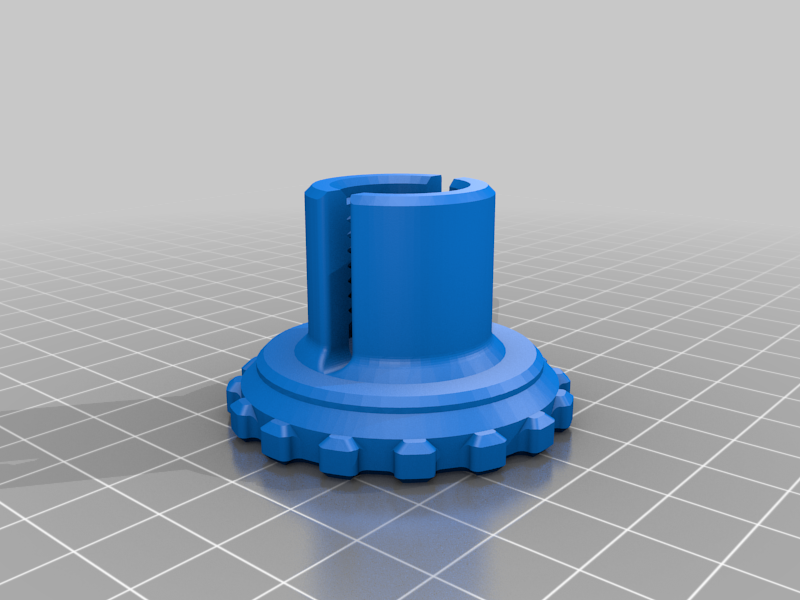

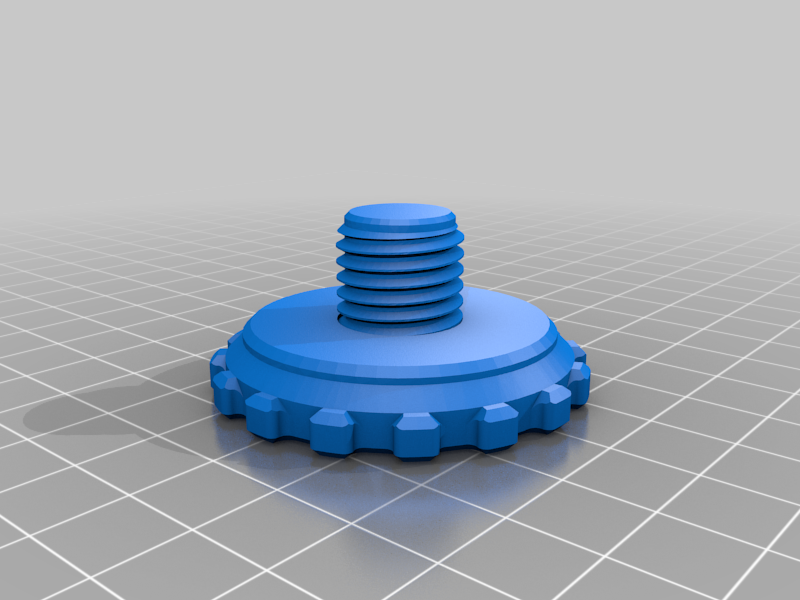

I have changed the figure of the body and top part, added a kind of knob (thanks MyStoopidStuff for this Idea) to both parts,

reduced the diameter of the screw thread and modified the form of the screw a little so that it fits better.

Top and bottom parts are printed without support. For the body I select the suport as tree, that creates cleaner internal surfaces and it's easier to remove.

26.03.2022:

for clearance (for johntron):

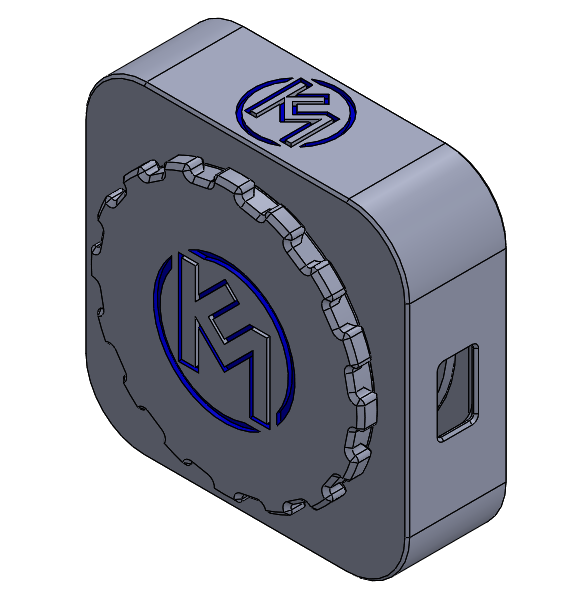

• V2 means, this is the new design of the top and bottom part with the "knob". They differ form from the earlier design here [https://www.thingiverse.com/thing:4854682/remixes](https://www.thingiverse.com/thing:4854682/remixes)
• Standard size: The body measures 52mm square, 25mm high

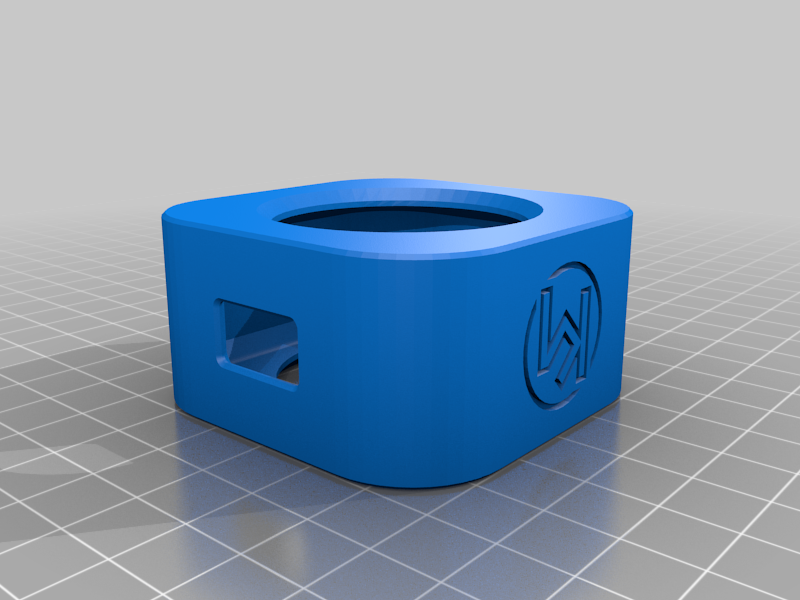

• Large size: The body measures 60mm square, 30mm high

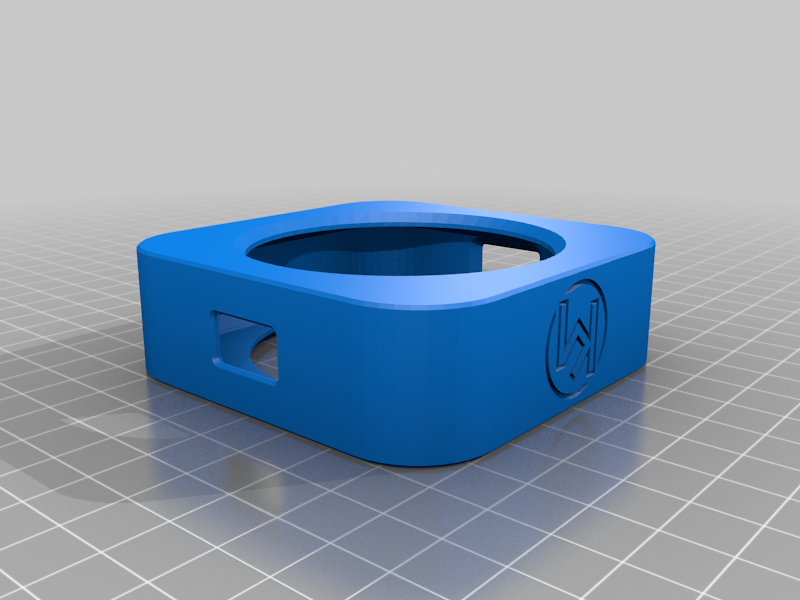

• Size 150: The body measures 80mm square, 25mm high.
• Size 200: The body measures 105mm square, 25mm high

The sizes 150 or 200 mean that a cable with normal thicknes and a length of 150 or 200 mm should fit in there.

But this is only approximate and depends on the cable diameter and stiffness.

Print Settings

Supports: Yes

Resolution:  0,2mm

Infill: 40%

Filament: PLA

Notes:

Supports only for the body, the top and bottom parts don't need support.
And I'm using only a skirt, no brim.
