Pellet Loader (Diabolo)

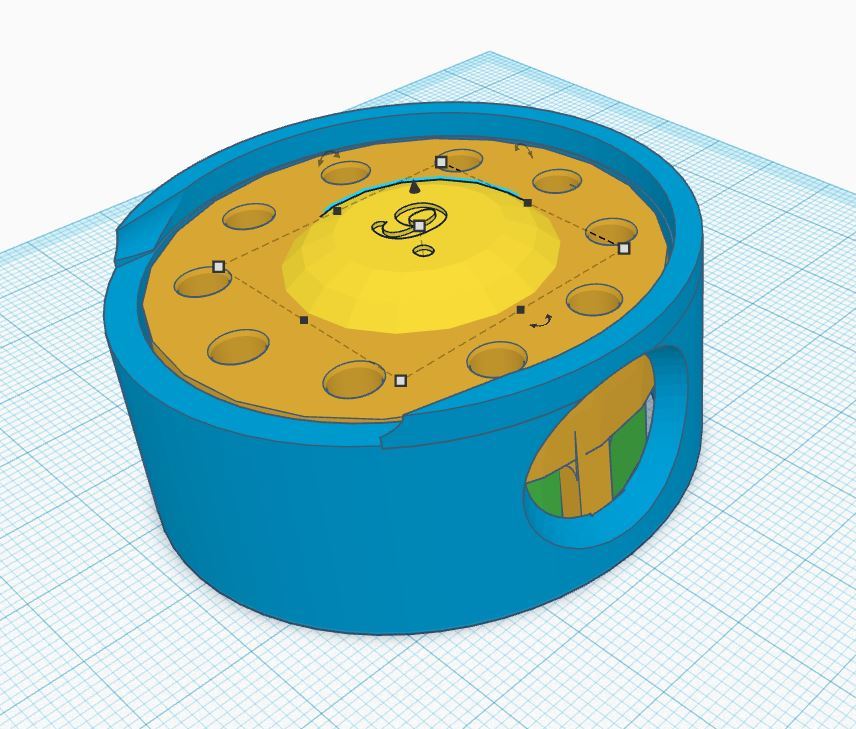

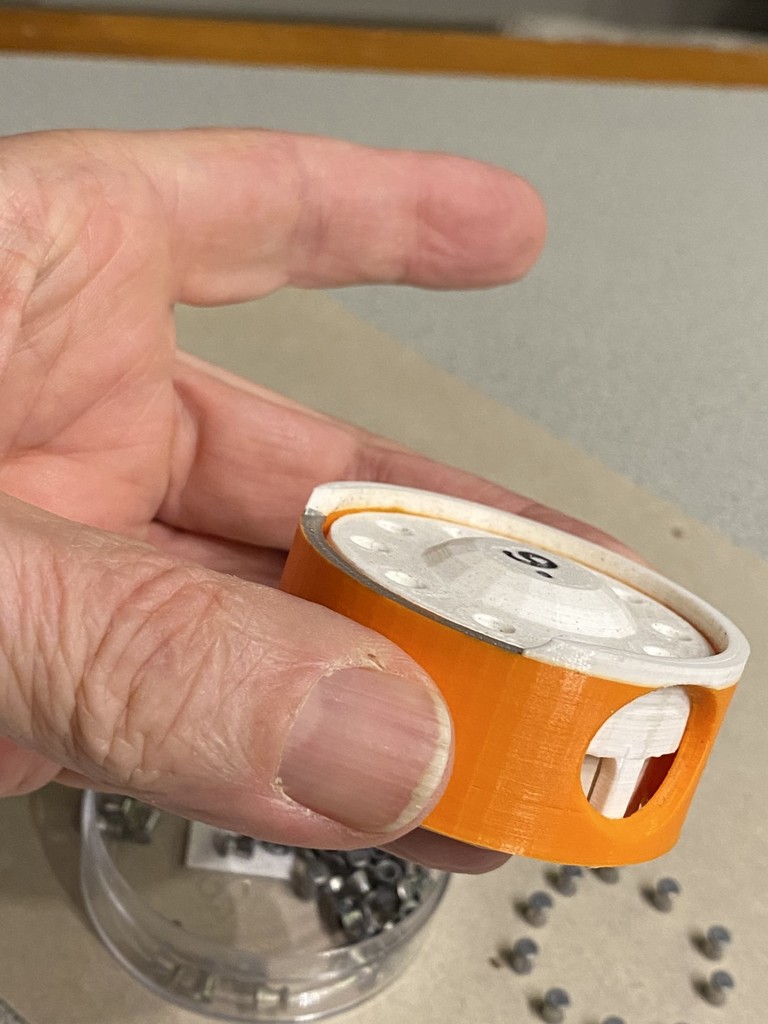

This little helper is an alternative to the 100 pellet containers. It makes fun working with it. You fill a couple pellets into the upper part of the loader, mix the pellets and soon you have 10 pellets in the appropriate holes.During this you hold the slider with thumb and pointing finger in a fixed position through the holes of the "Receiver".

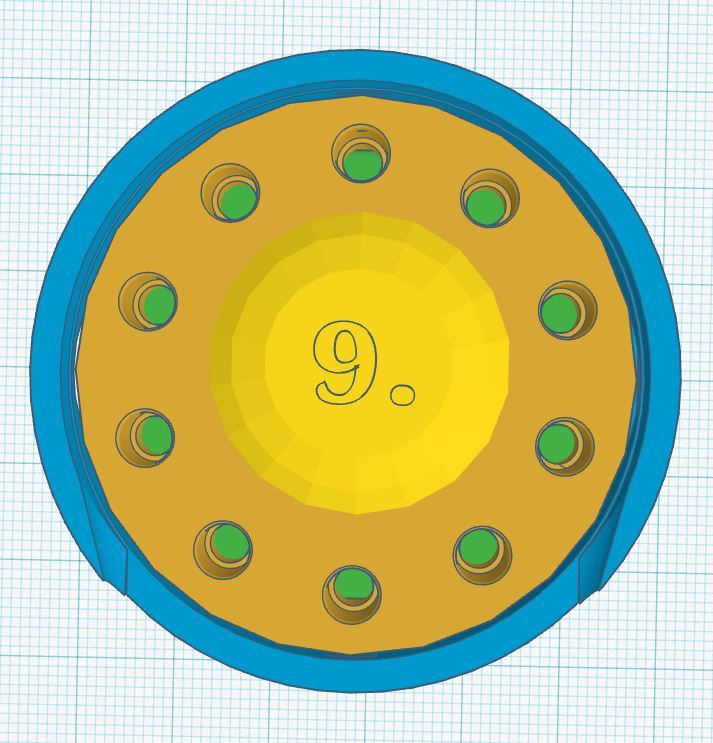

You lift the slider with one "left-over" finger, pour away the remaining pellets, best into its origin container! Then you quickly turn the device 180° and drop it on a "soft" surface. If you are lucky, and I bet you will after several trials, then you have ten shots nicley aligned in a circle.

Have Fun, Good Shooting!

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK3

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0.2mm (quality). Prusa Slicer.

Infill:

25% (or your choice)

Filament: Doesn't matter I choose PLA, although the slider with the small legs may be a little too brittle, maybe PETG? Definitely your choice!

Notes:

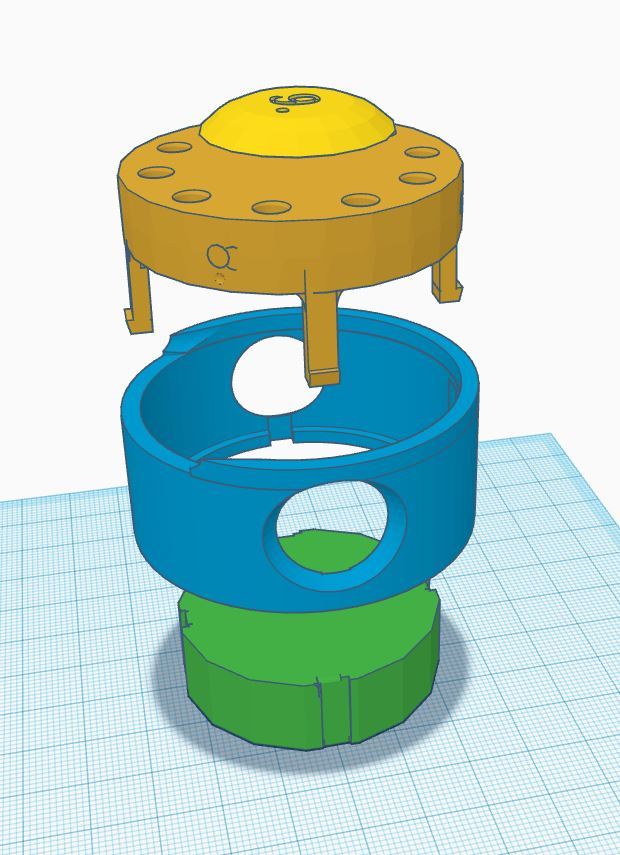

The lid is glued on as last step. This is to have space for the pellets to drop down. I am sure, when you reach this point of my description you are smart enough to figured this out. Don't give up early!

;-)
