Modelo 3D Touch ID Box with Button Press por GLOUPY no Printables

Descrição

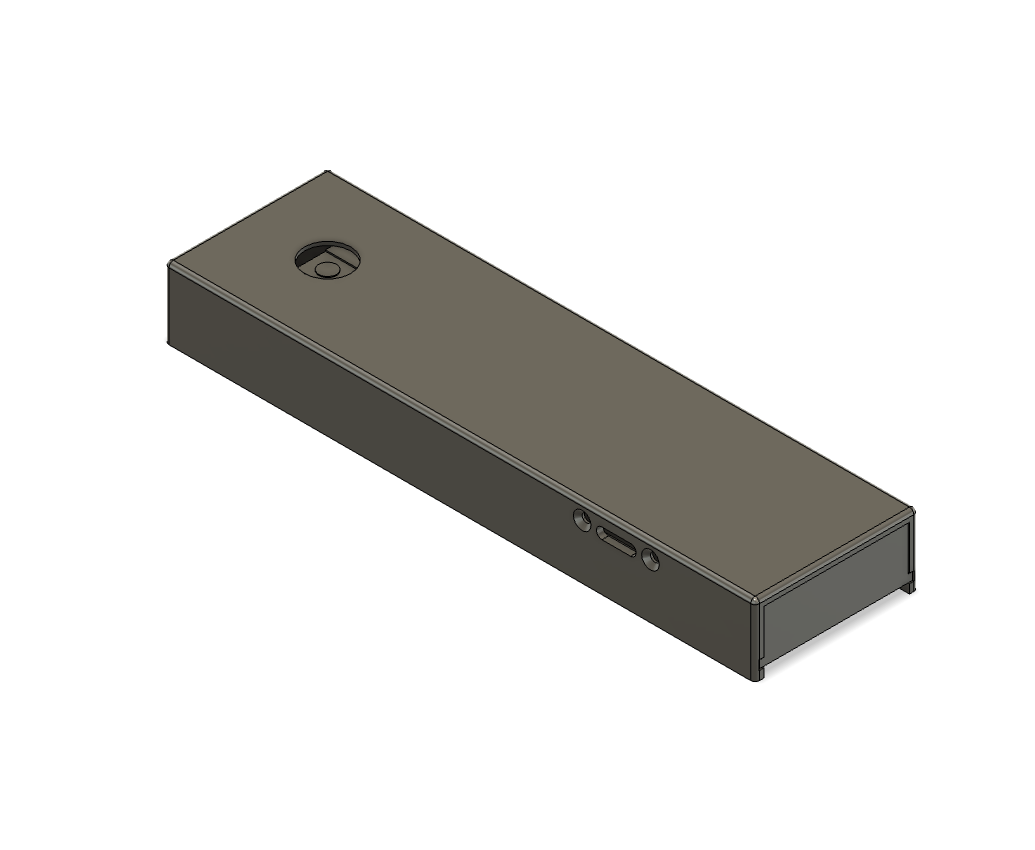

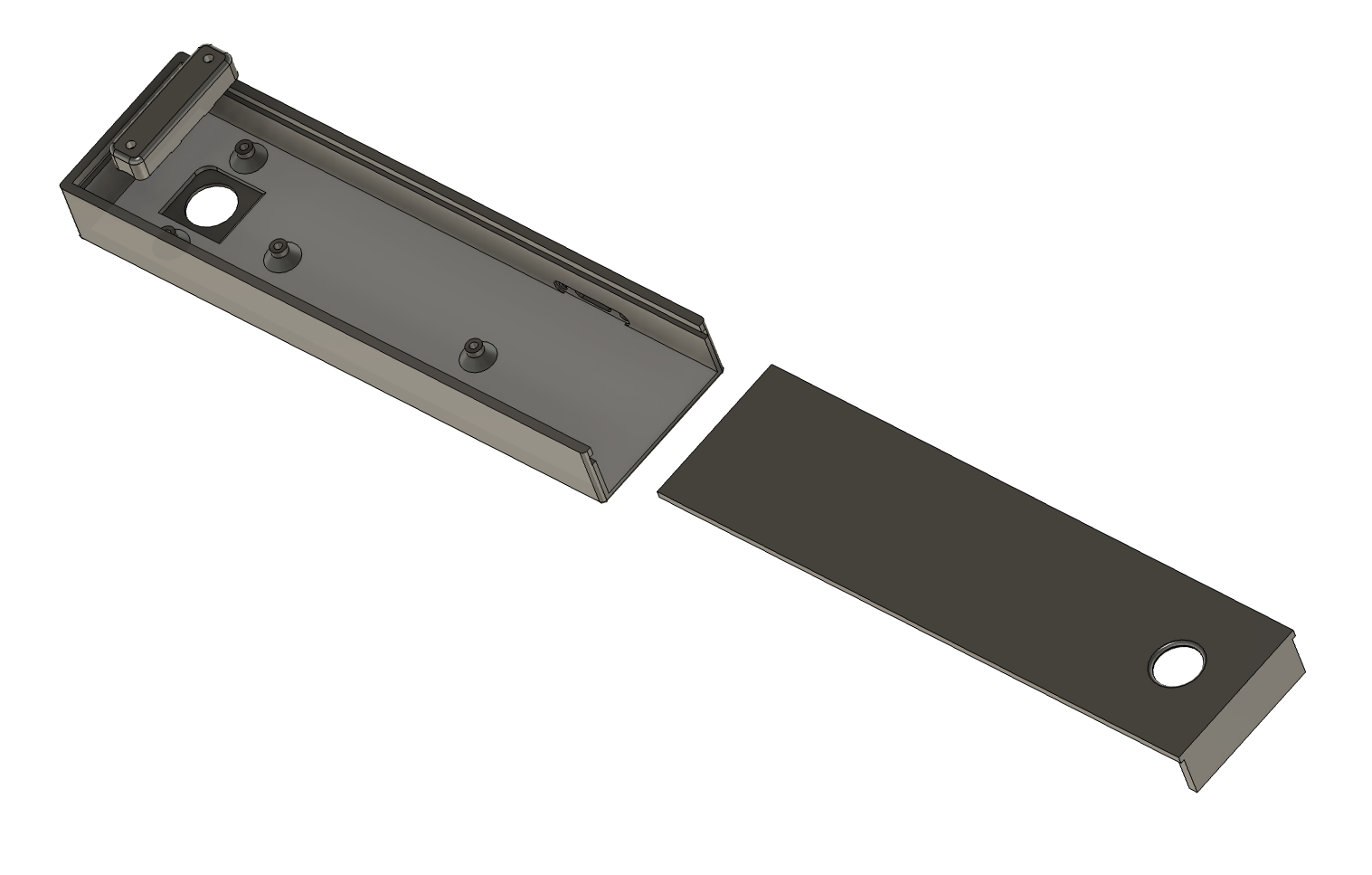

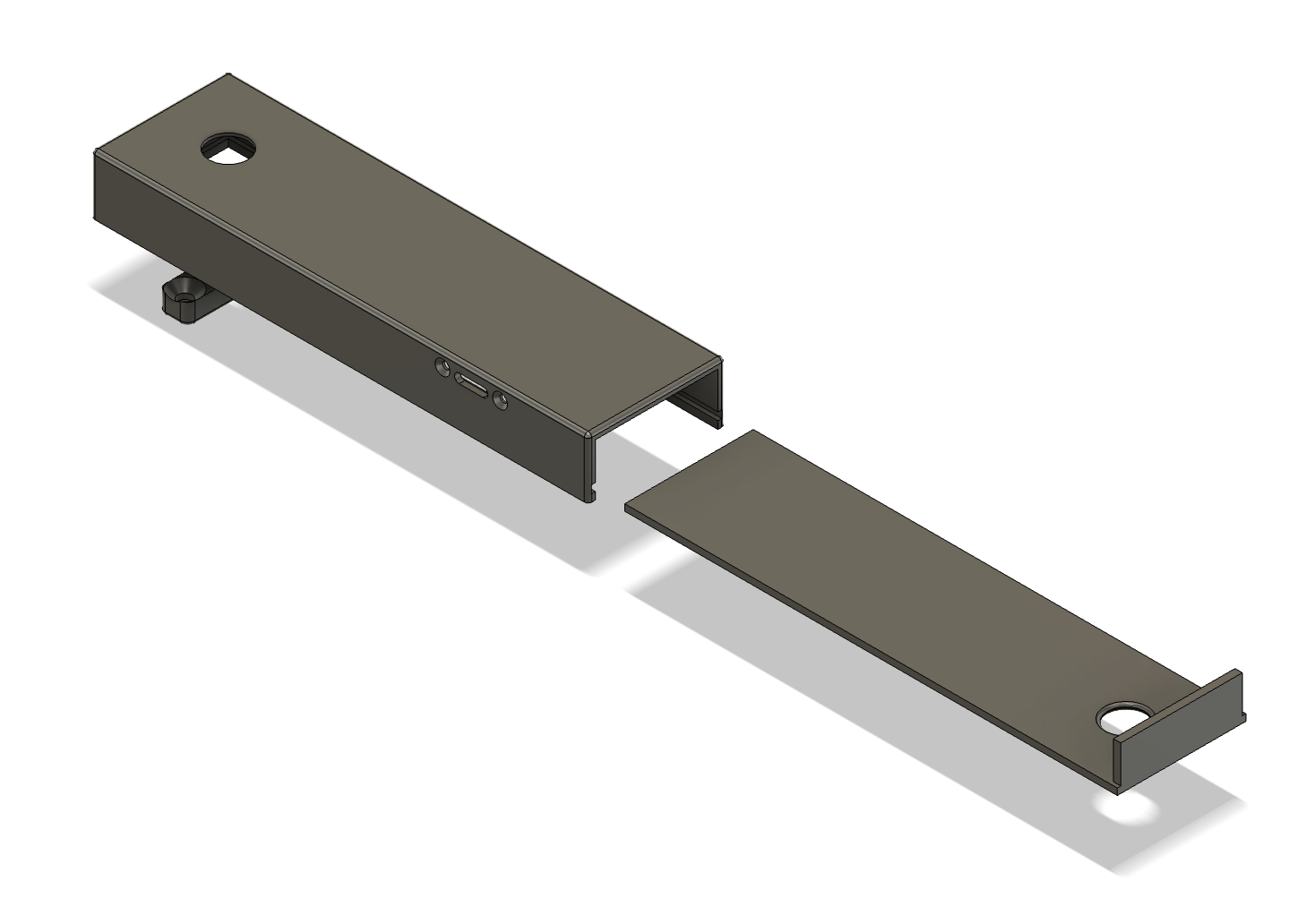

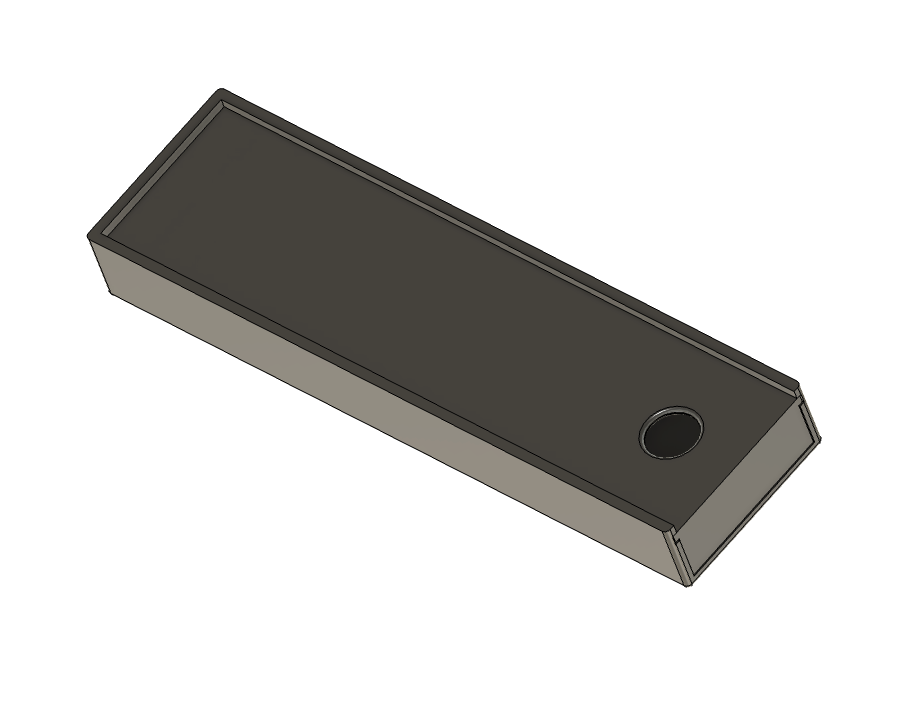

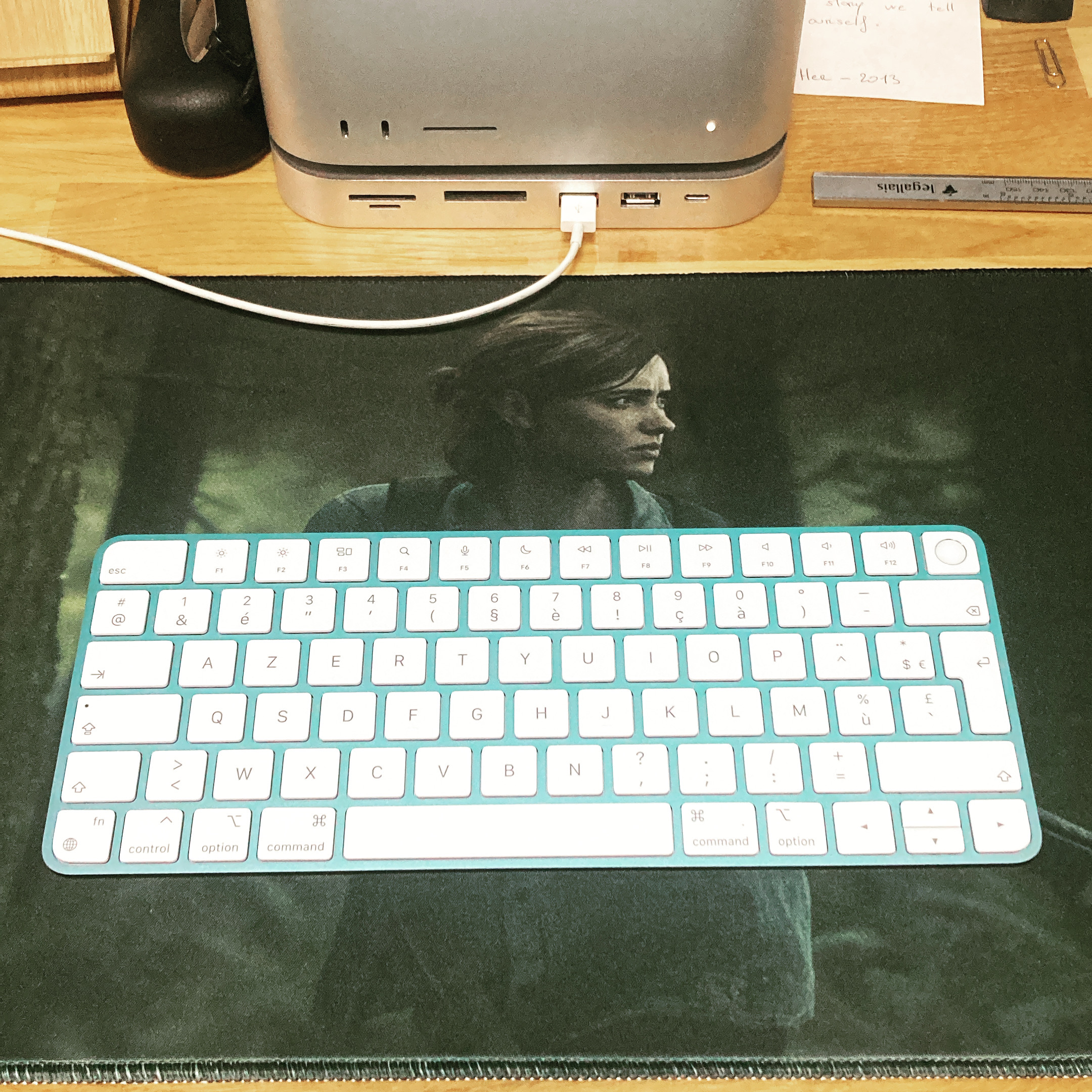

Building upon Snazzy Labs, I made this Touch ID Box managing to maintain the keystroke of the button and having it entirely removable (no plastic melting). And I removed the slight angle because I want it flat next to my Mac Studio.

A few notes :

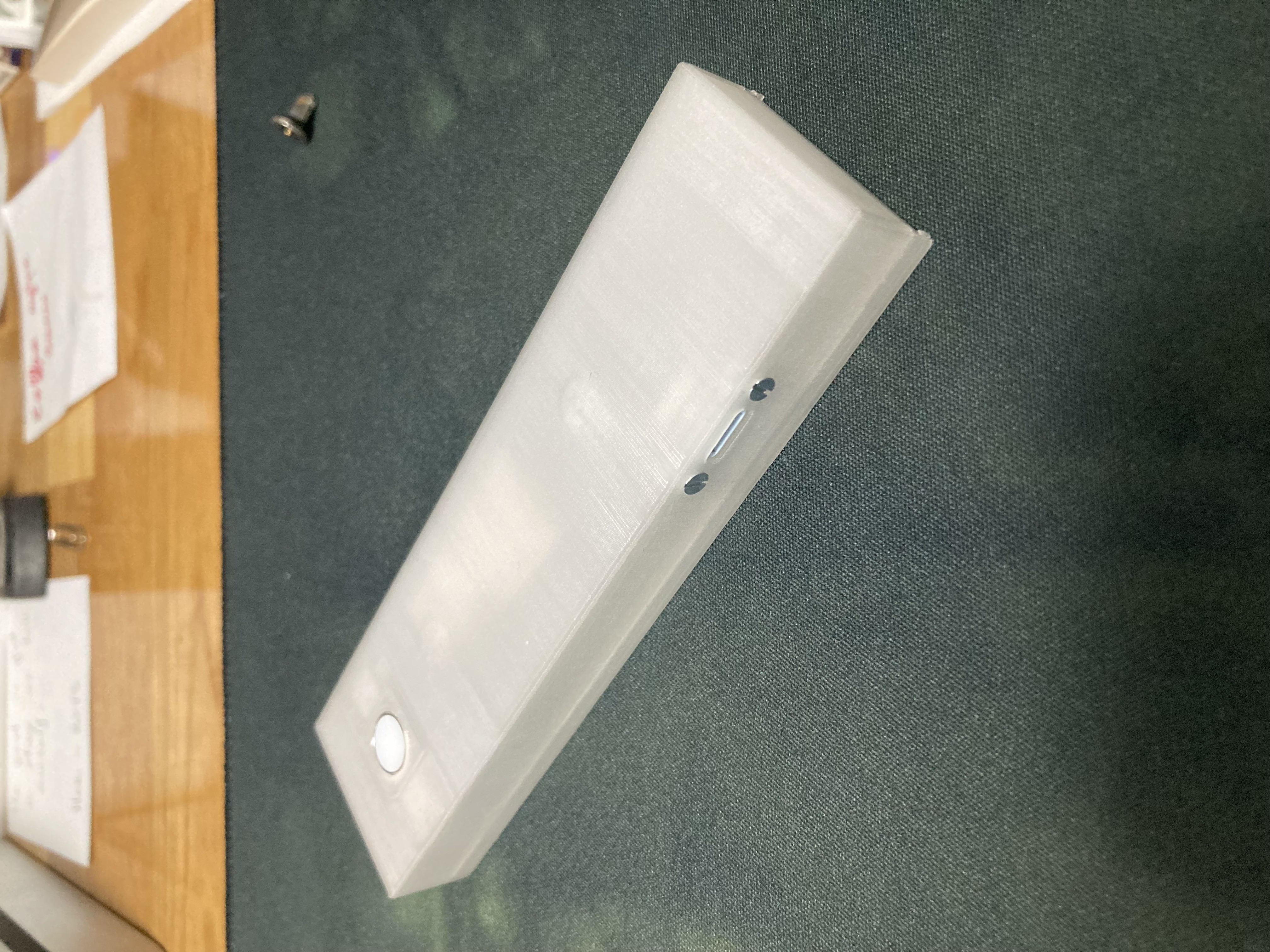

  • Print the box upright
  • Lightning port :
  1. Cut the metal part in front of the holes and enlarge the plastic to 2mm with a metal drill bit.
  2. Use M2x5mm screws + bolts. A little finicky but doable.

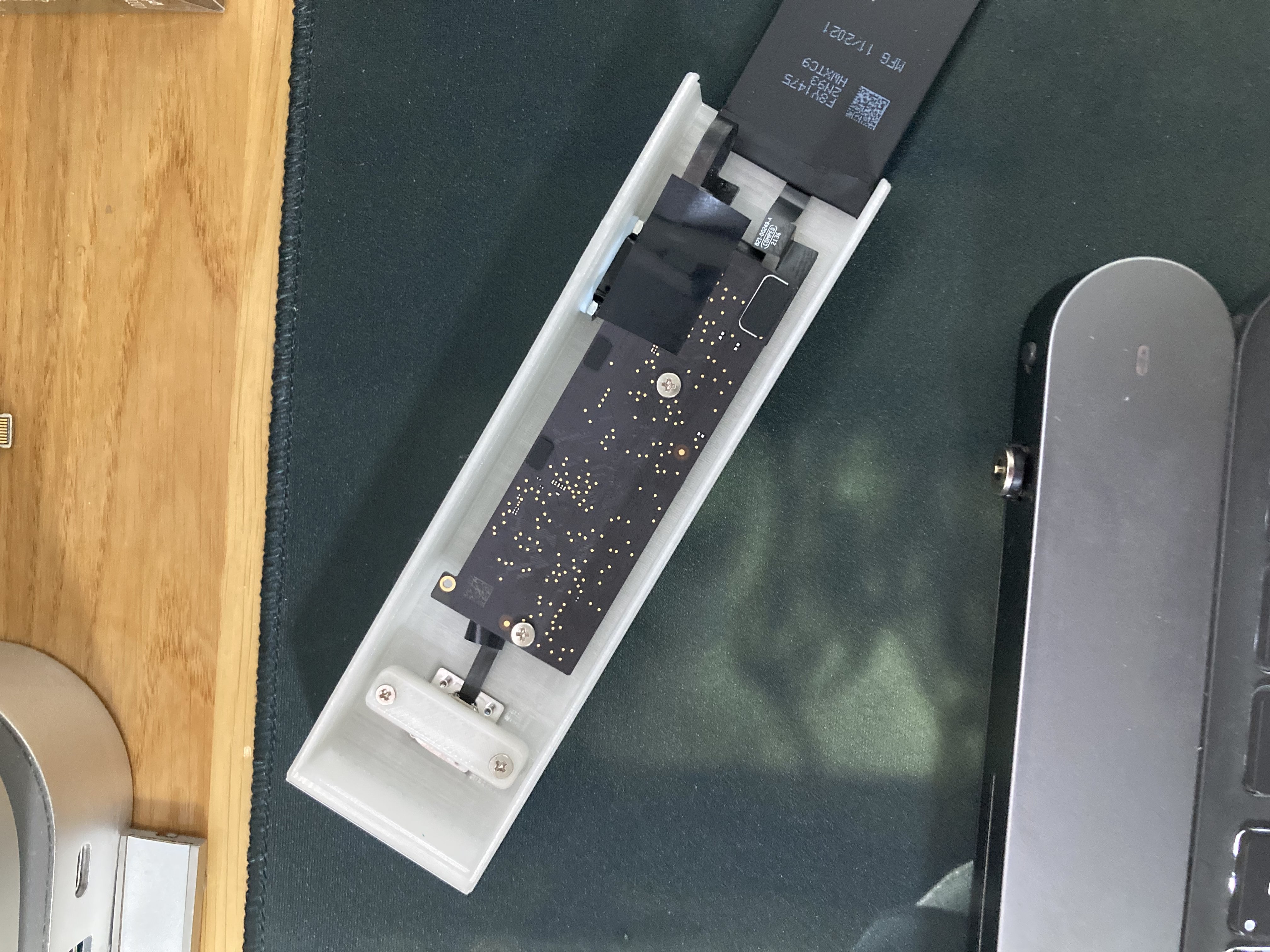

  • Pre-drill the fixing holes using a small screw before fixing anything. I had some 1.8mm screws lying around from laptop teardowns.

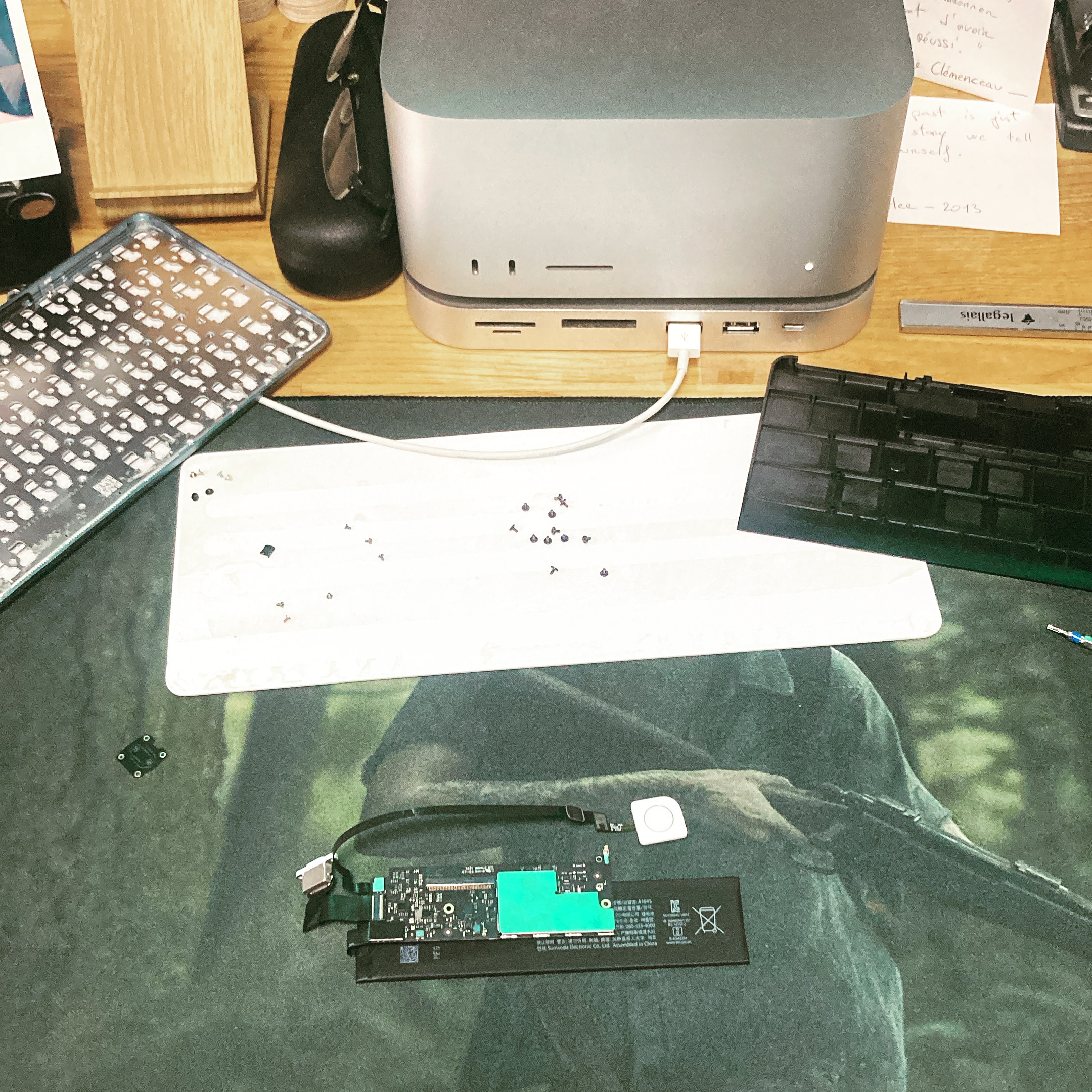

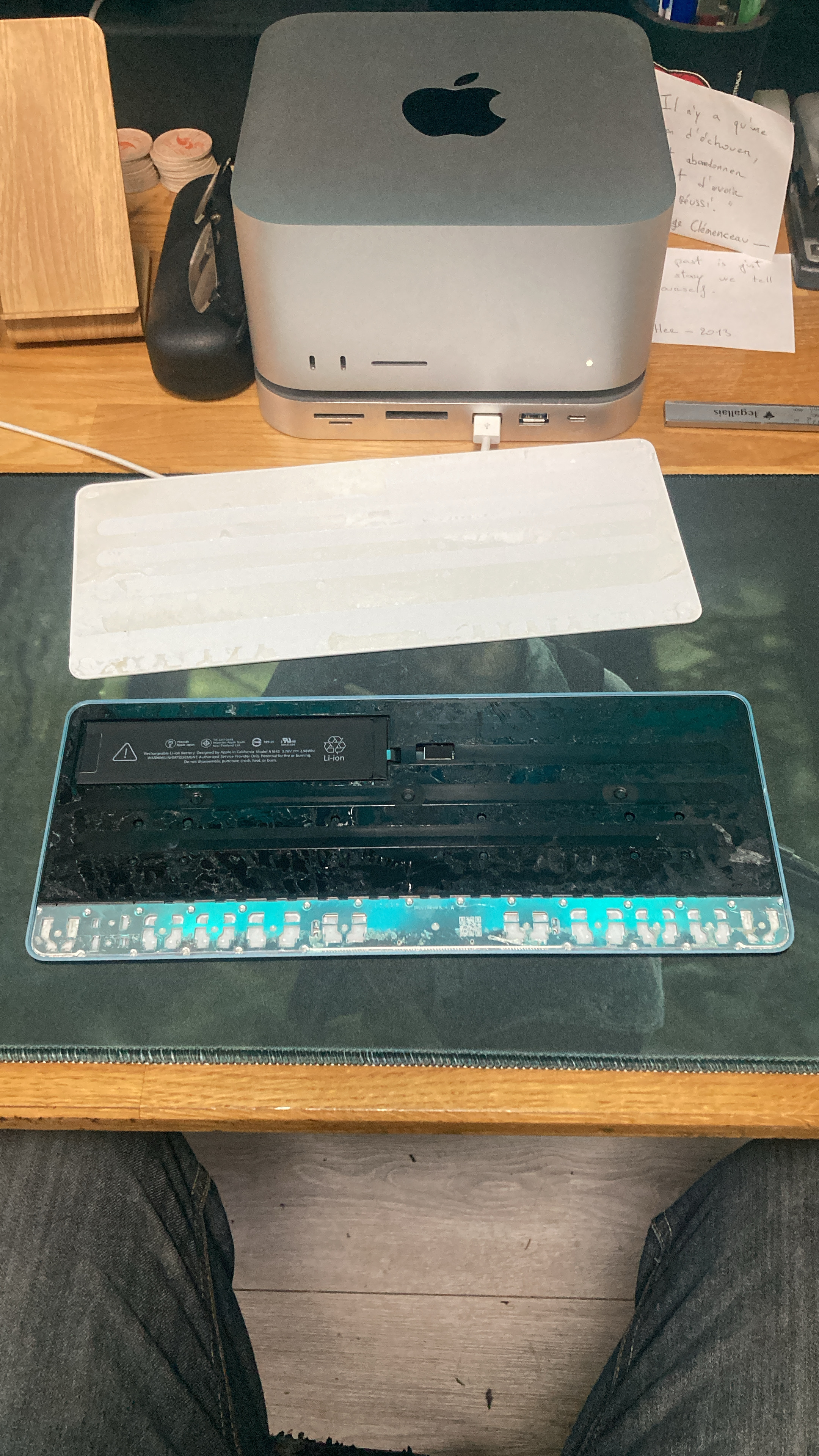

  • Alternatively you can reuse the screws from the keyboard itself.
  • Gently remove and stick the little square of black foam form the keyboard's chassis to the back of the button. It will help a little by acting like a spring.

That's pretty much it.

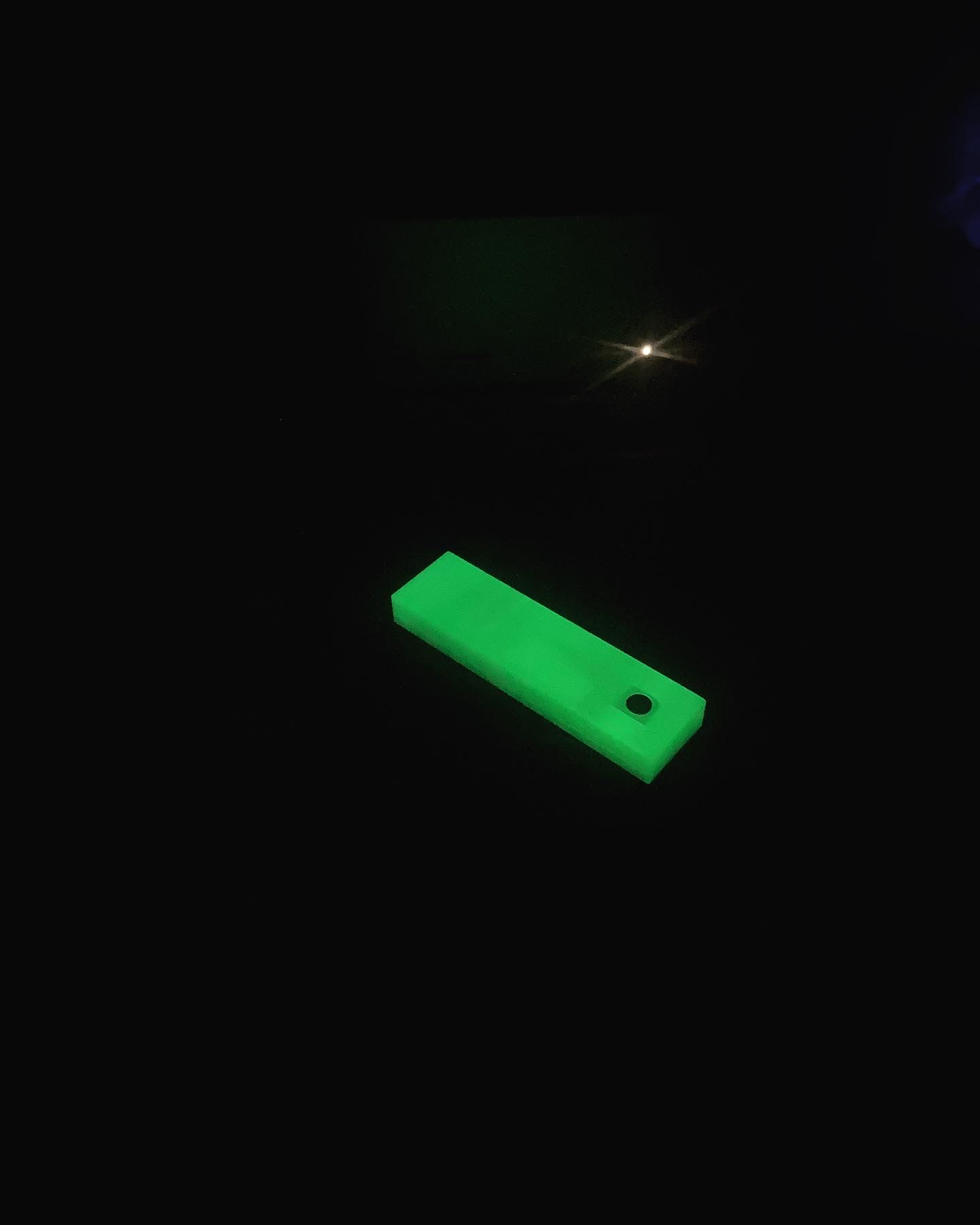

Printed mine with a glow in the dark filament =]

Thanks Snazzy Labs !

GLOUPY



Printables

Touch ID Box with Button Press

Publicado em 4 de fev de 2023

23
Curtidas
240
Downloads
2
Impressões
Categoria Computers
Tags
box apple magickeyboard touchid applemagickeyboard
Licença Creative Commons — Public Domain
Arquivos (6)
BOX v12.3mf 108.8 KB
COVER v12.3mf 50.8 KB
BTN MECANISM v12.3mf 151.2 KB
BOX v12.stl 136.8 KB
COVER v12.stl 53.6 KB
BTN MECANISM v12.stl 109.5 KB
