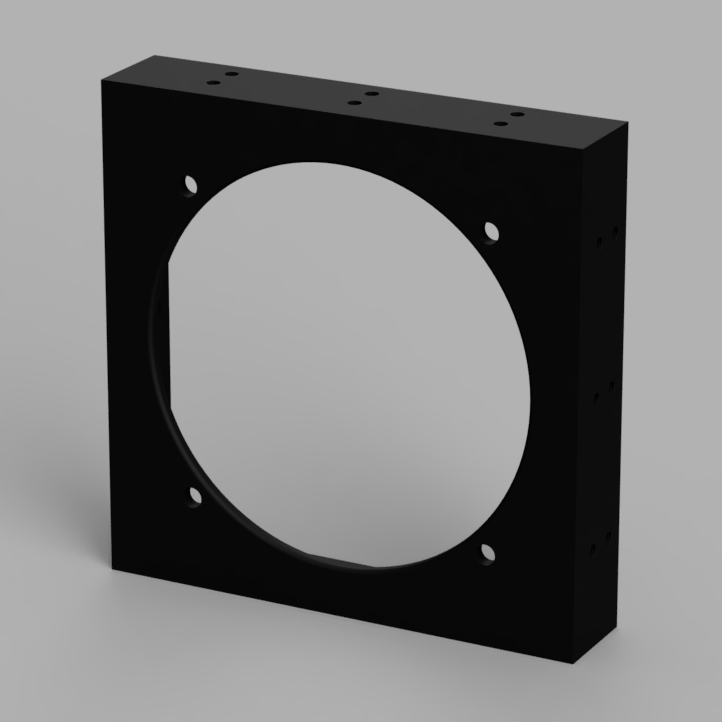

A modular cockpit panel for my Flight Instruments. The 100x100mm modules can be stacked vertically and horizontally as desired. Connection is done by M3x6 screws, M3 threads are included in the model on top and right side.

UPDATE 2023-01-08: Bottom module added
UPDATE 2023-01-24: Side walls added
UPDATE 2023-03-27: Back sides added
UPDATE 2023-08-31: Connector for extension modules added

Models are provided for standard 80mm instruments, with cutouts on bottom and a panel without any holes for customization. Bottom module provides a secure stand.

Use the PCB Mount M3 for mounting an Arduino Mega 2560, glue them to the bottom modules as desired for your setup.

Side and back panels are now also available. Center panel rear cover has a cutout and a protruding cover for the attitude indicator.

See all my Flight Instruments to fill the panel:
Altimeter for Flight Simulation
Gyro Compass for Flight Simulation
Airspeed Indicator for Flight Simulation
Variometer for Flight Simulation
Attitude Indicator for Flight Simulation
Turn Coordinator for Flight Simulation

For a realistic look&feel:
Spacer Frame with Glas for Flight Simulation Instruments

See also the flexible modules:
Modular Switch Panel for Flight Simulation

Remixed instruments:
Automatic Direction Finder (ADF) for Flight Simulation by Alex Bürgel
7-Segment Display for Flight Simulation by Alex Bürgel
