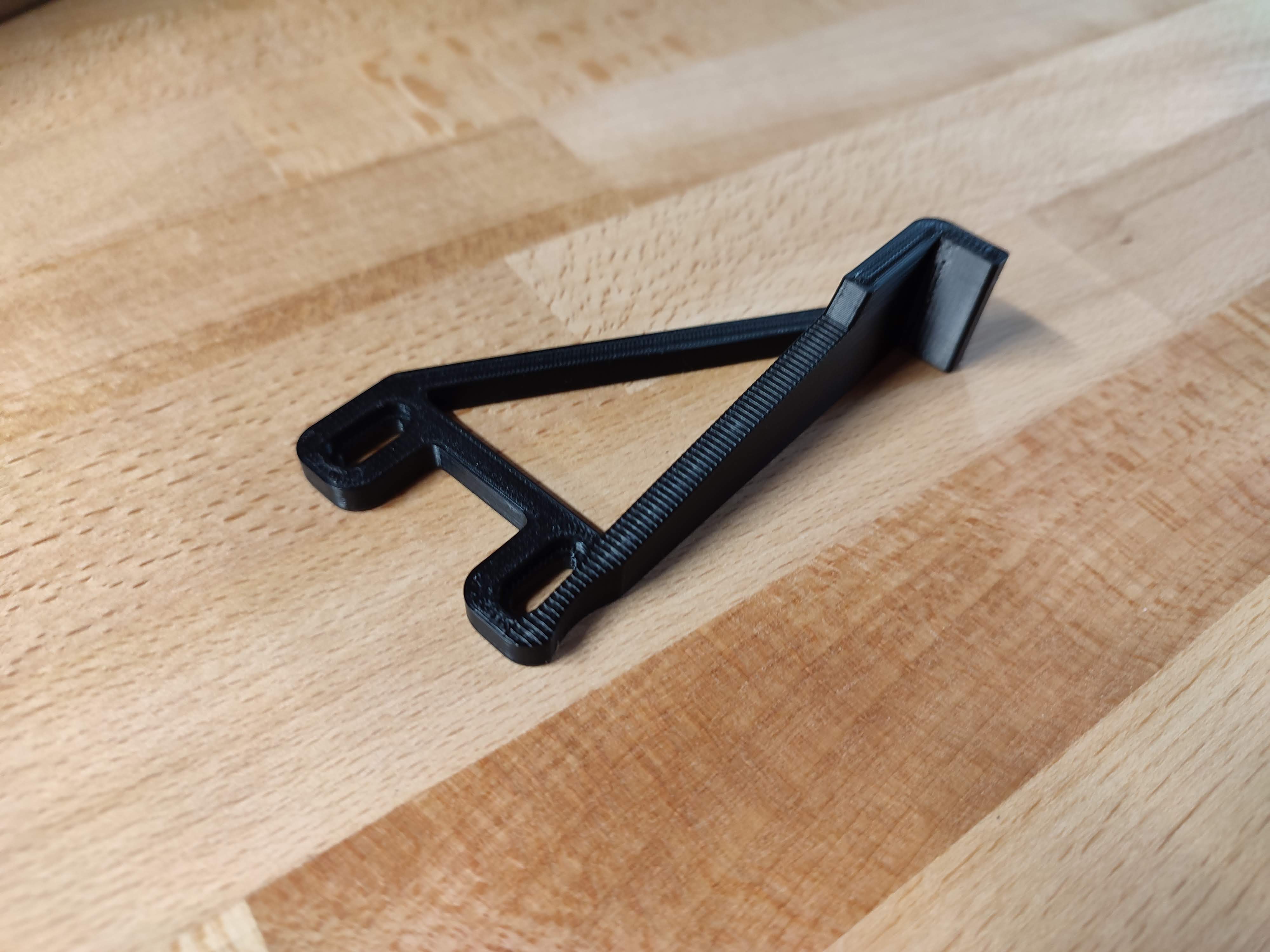

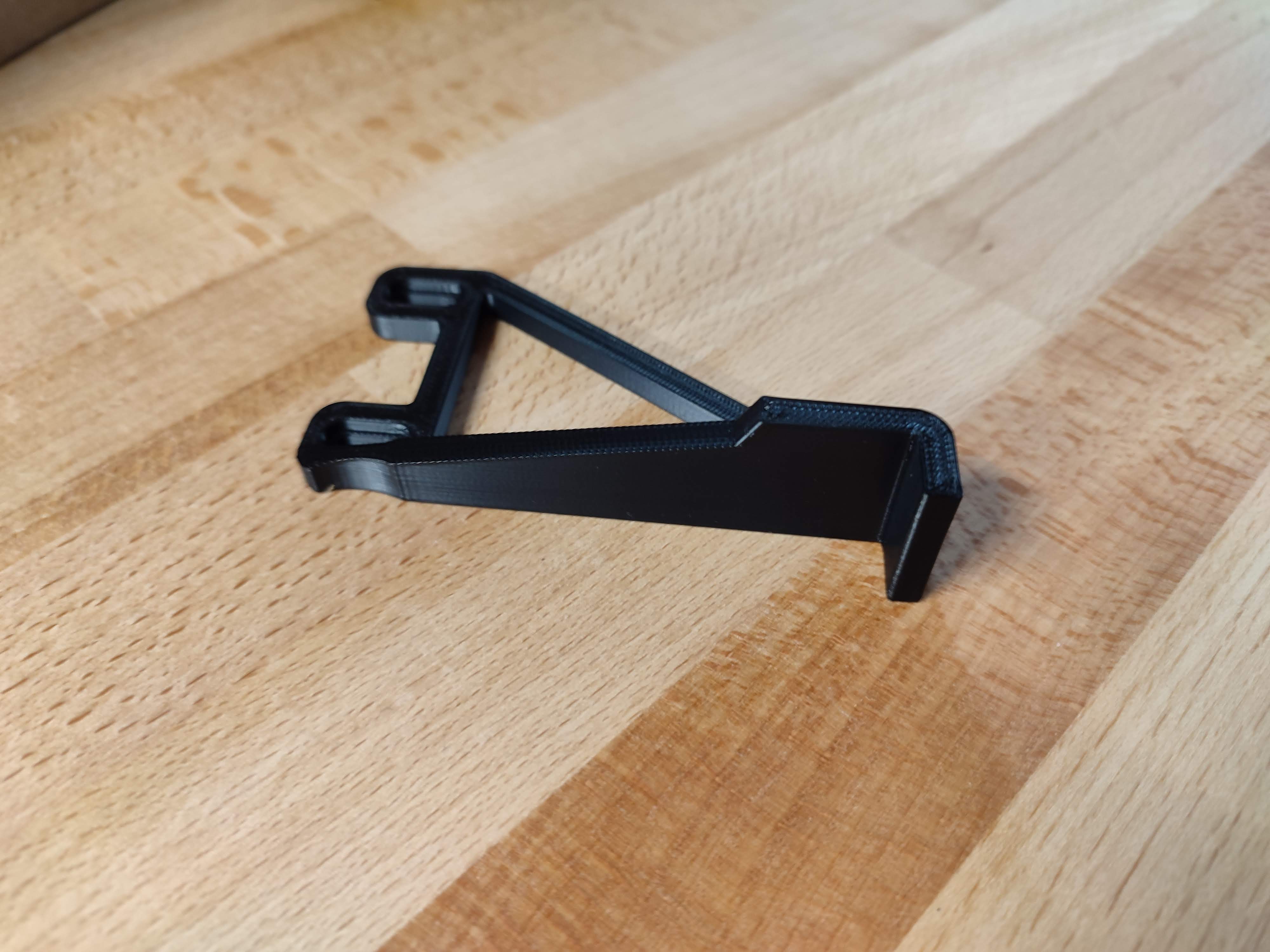

Tool to align magnetic bed sheets, kinda like the stop pins on the Prusa MK3. Supports decontaminator nozzle brush.

Fits Voron 2.4 250, 300, 350.

What you need:

• 4x M3x8 SHCS
• 4x M3 2020 T-Nuts or M3 2020 Hammer Head T-Nuts

(You should have them left over from the Voron Build.)

Print in ABS/ASA/high temperature material. Mirror it in your slicer.

UPDATE 2023-05-01:

• support for decontaminator nozzle brush.
  • only print one side (usually right side)
  • for the other side, where your brush is, use “brush_holder_sheet_stop”
  • reinforced because of bending issue with bed at >100°C

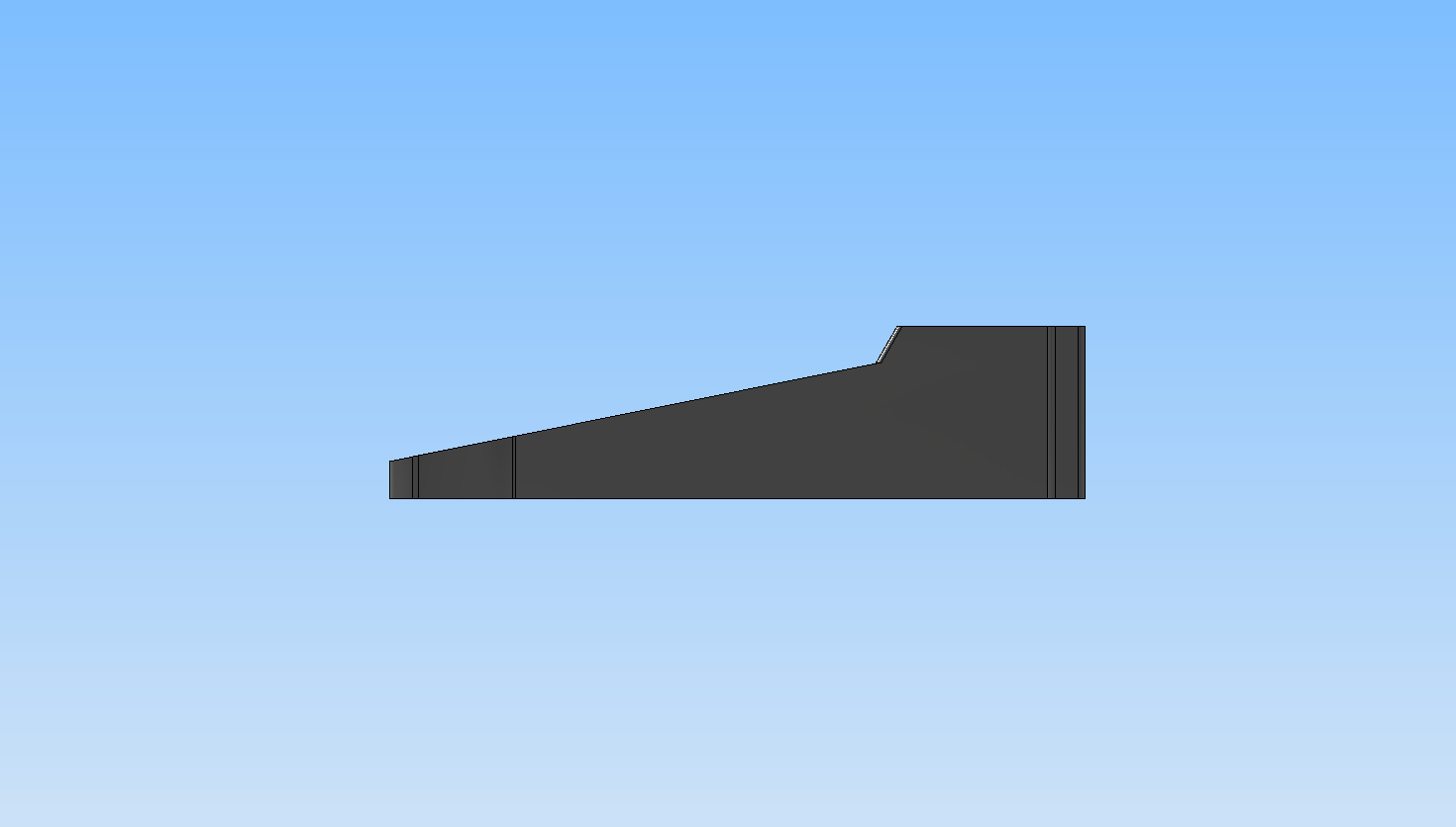

• added .stp and .ipt files
  • the .ipt file is parametric. Parameter x is the width of the bed. The actual width is usually 5mm larger than the specced width. For example V2.4-300 → x=305mm
    • though this value can vary as some beds are 10mm wider. This, along with the inaccuracy of the manually aligned frame under the bed, is the reason for the elongated mounting holes.
