the updated file was some simple corrections with the some of the numbers were not correctly over its dash marking. nothing else has changed.

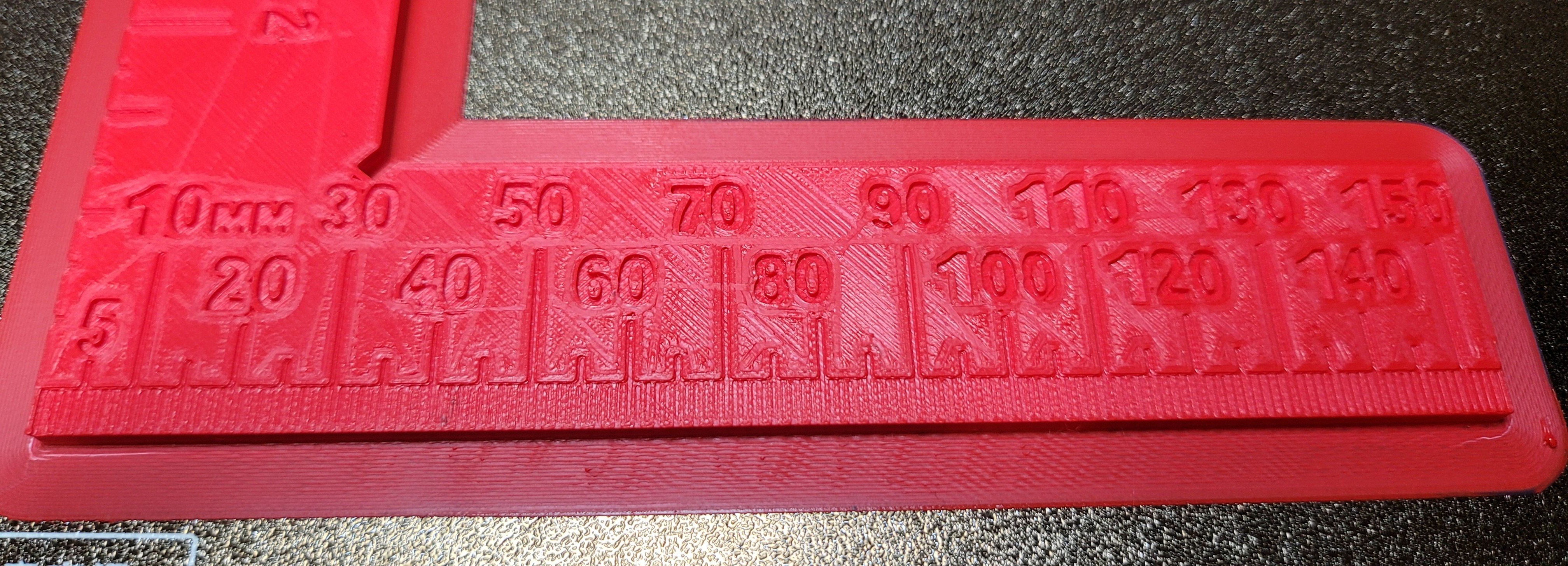

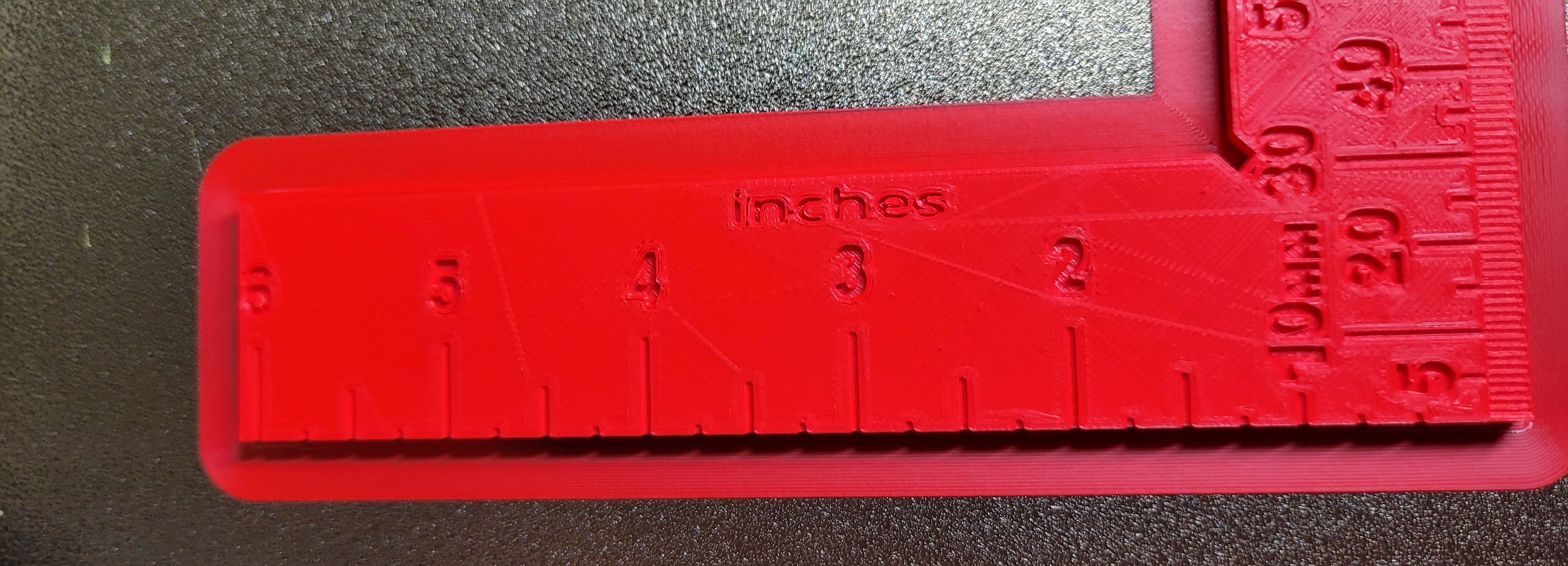

I designed this to help with drafting ideas and real world quick measurements. Each small “dash” represents 1mm then the other corresponding ones are noted above their relative “dash” with the exception of the 5mm which are just a bit taller than the 1mm “dash”. The inches side are self explanatory ( ¼", ½", ¾", and 1" up to 6")

PolyTerra PLA+ red

I used 0.15 layer height so the small detailed “dashes” would show.

2 wall count to keep it clean looking

20% infill and 60mm/s speed

I used a brim ( because I was going to use ABS and forgot to turn it off) but you don't have to if you have good bed adhesion
