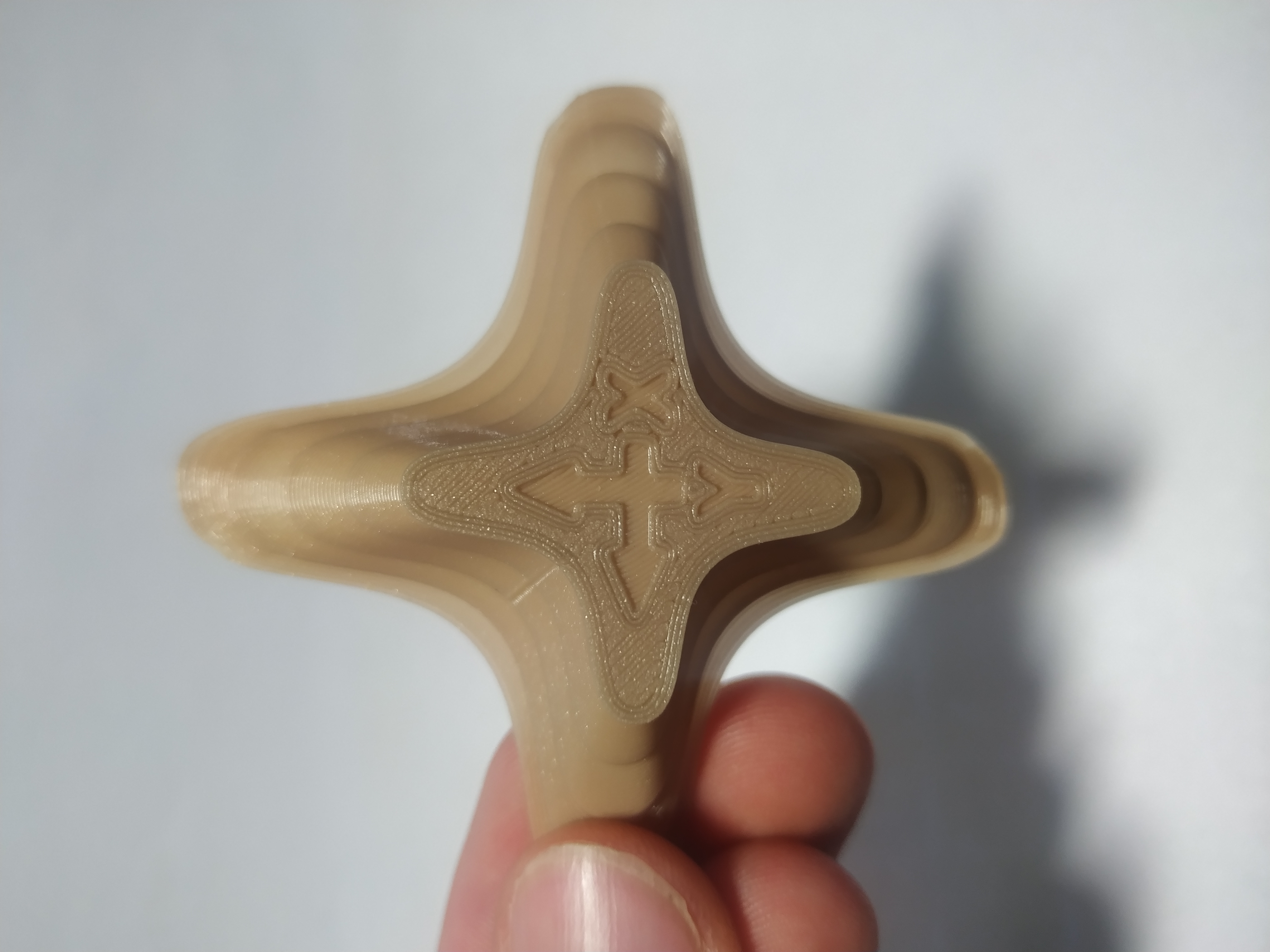

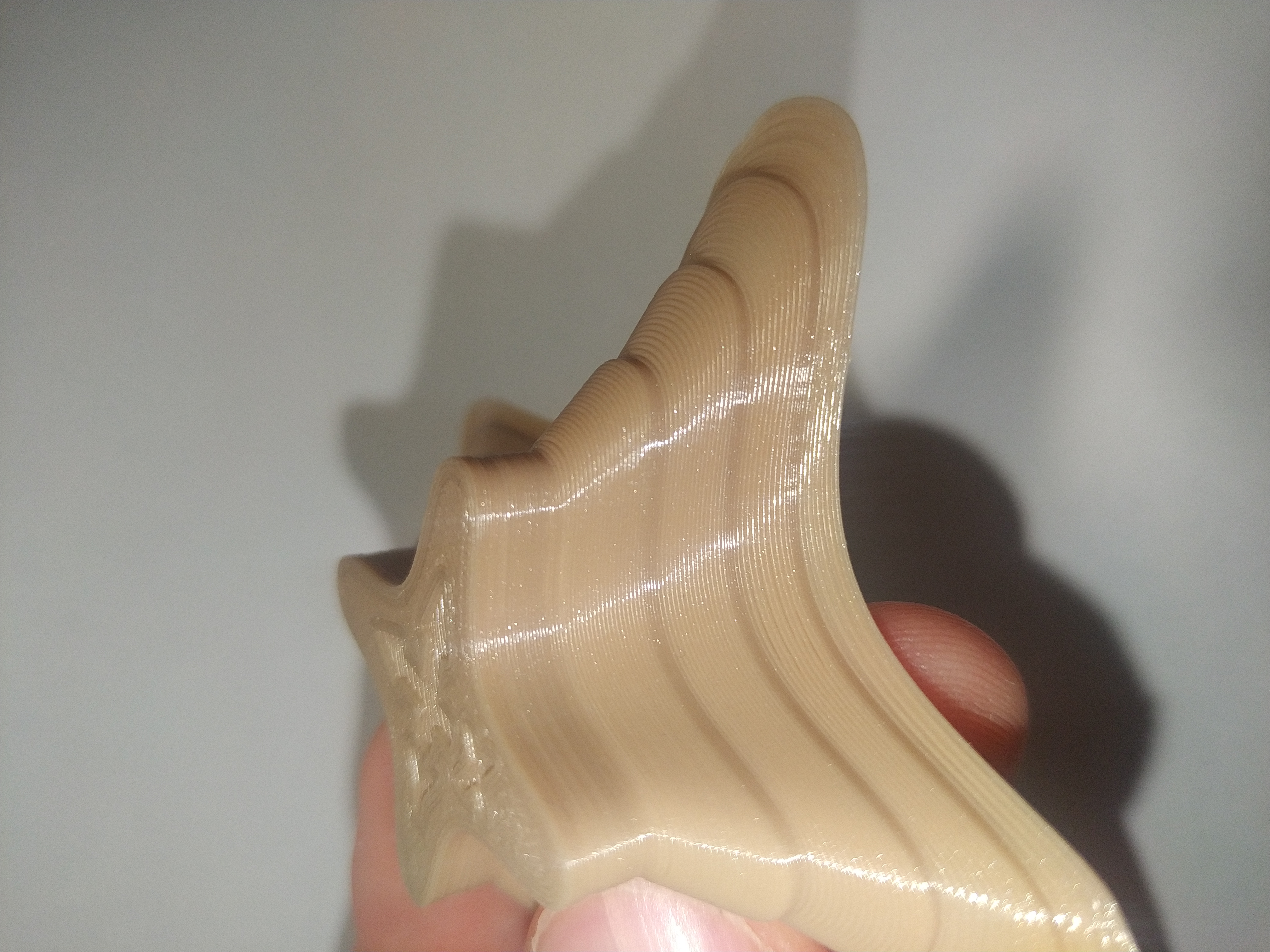

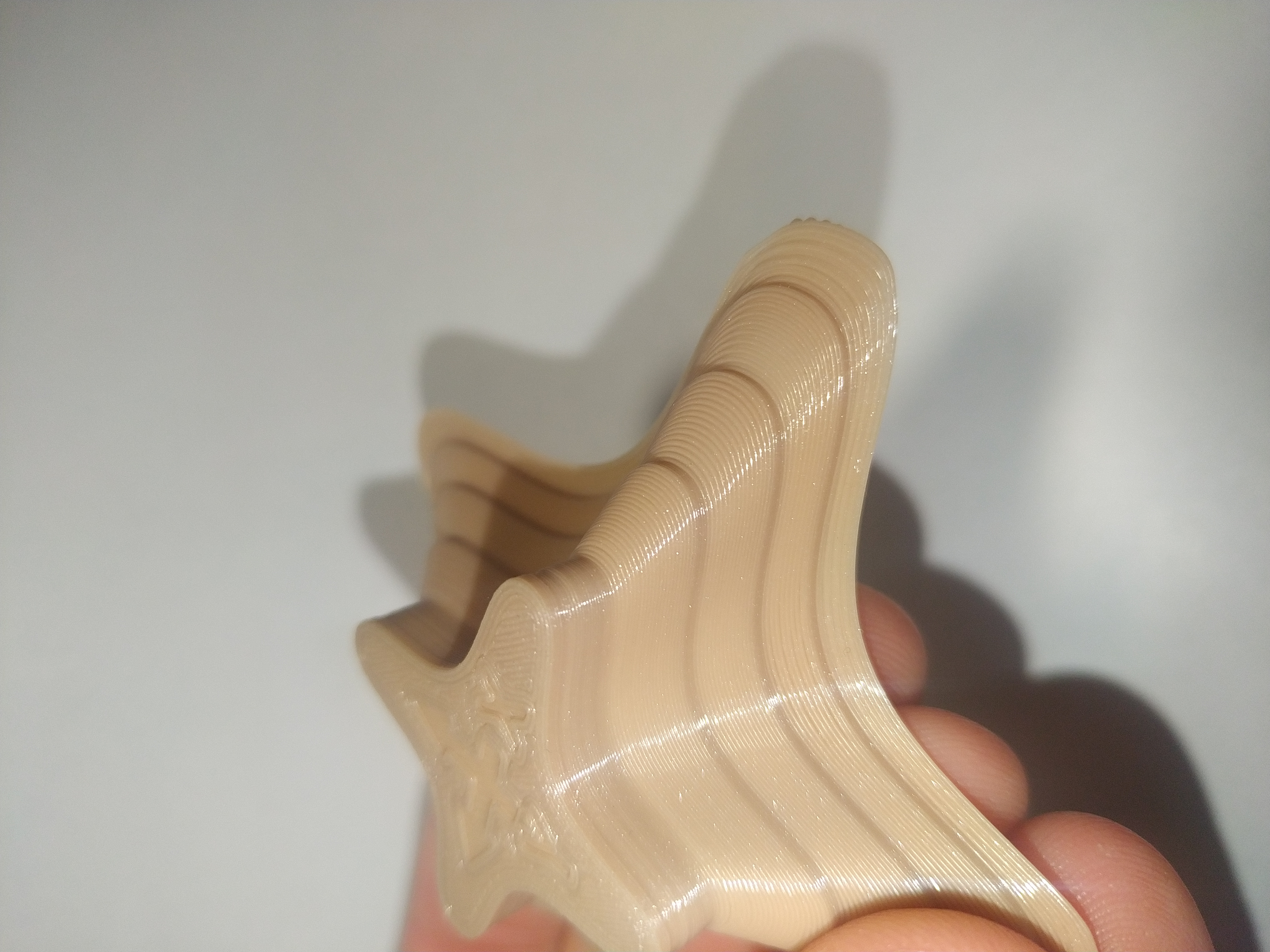

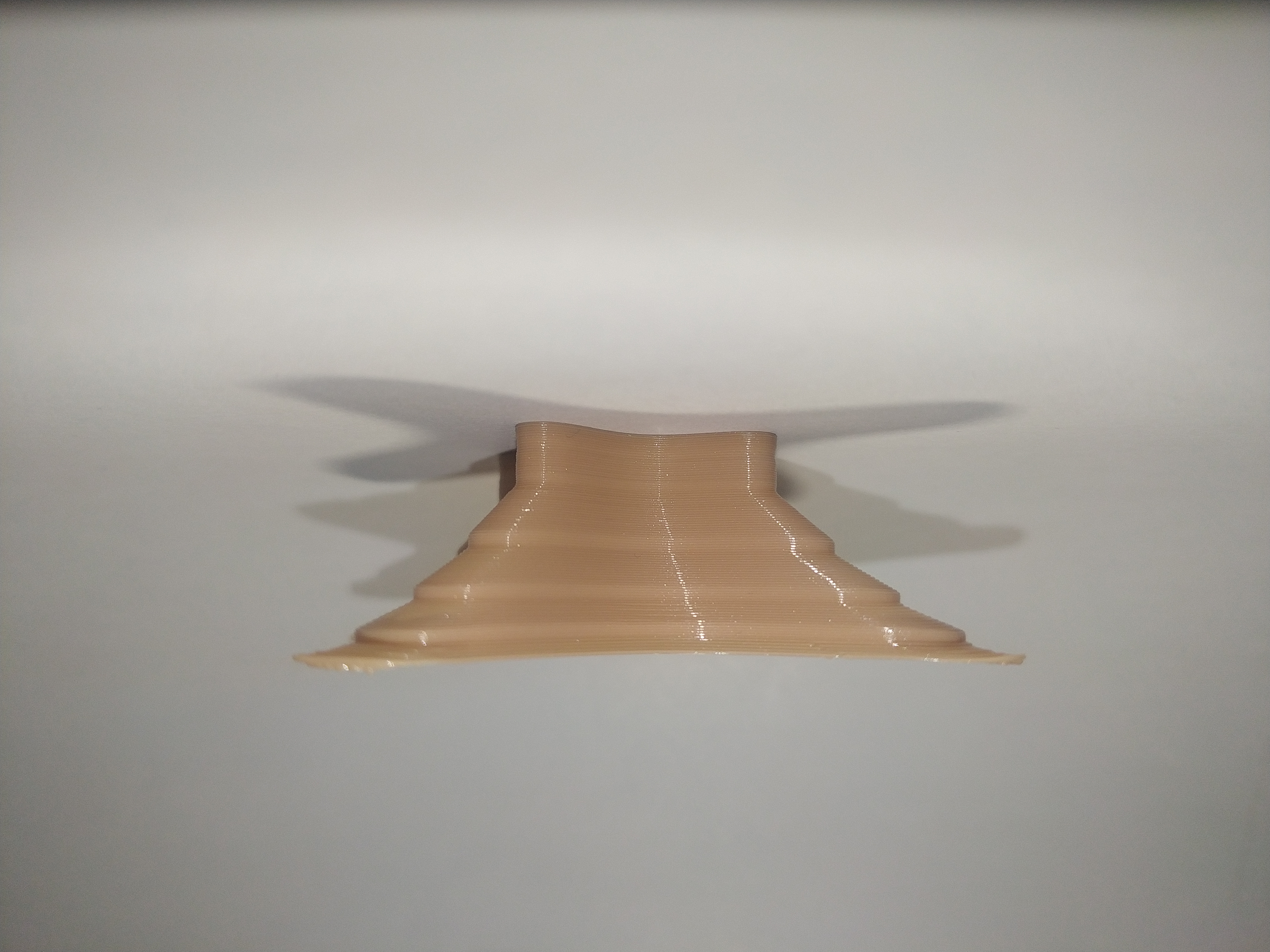

This is a new modell, of my popular overhang test. In this model I eliminated some of the old ones issues (like bumping with the nozzle).

It test for 40, 30, 20 and 10° overhangs.

It prints quick, around 30 mins.

Print settings you must follow (it will print like vase mode):

• 3 walls
• 0% infill
• 0 top layers
• 0 bottom layers
• Z seam: aligned

Pay attention to the markers on the bottom to mach your X and X axis.

If you found it useful, give it a like!

Check out my other model, for detailed overhangs:

[https://www.printables.com/model/342302-overhang-test-for-detailed-prints](https://www.printables.com/model/342302-overhang-test-for-detailed-prints)
