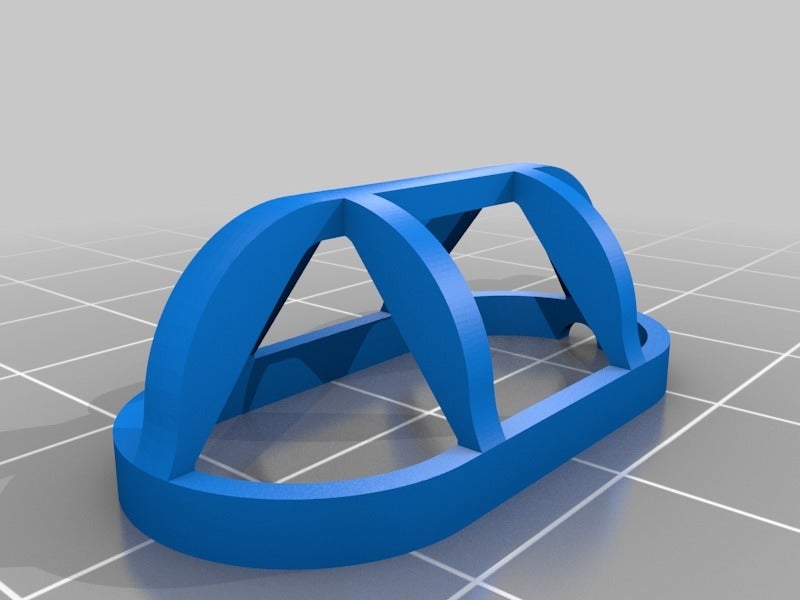

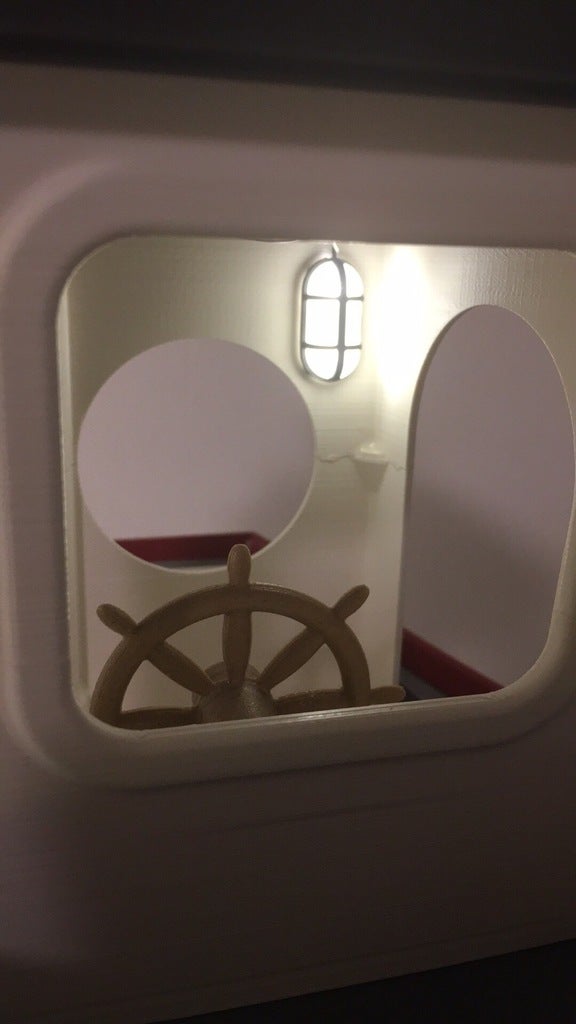

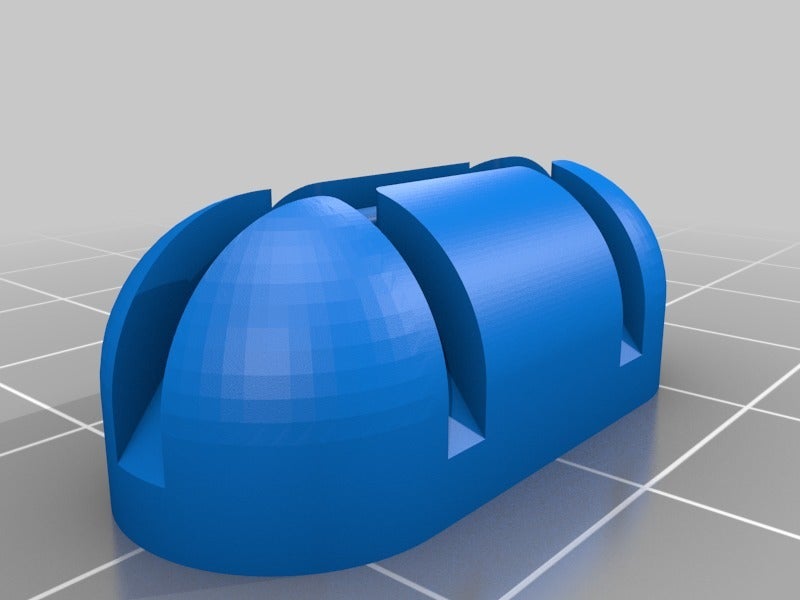

Simple bulkhead lamp for models.
This light fixture is about 30.2x15.2x11 mm in size, and therefore roughly scale 1:8.

Made for two 5mm LEDs, you might need to sand the top of the LED to have it fully seated.

Picture shows an XT-60 connector for size reference.

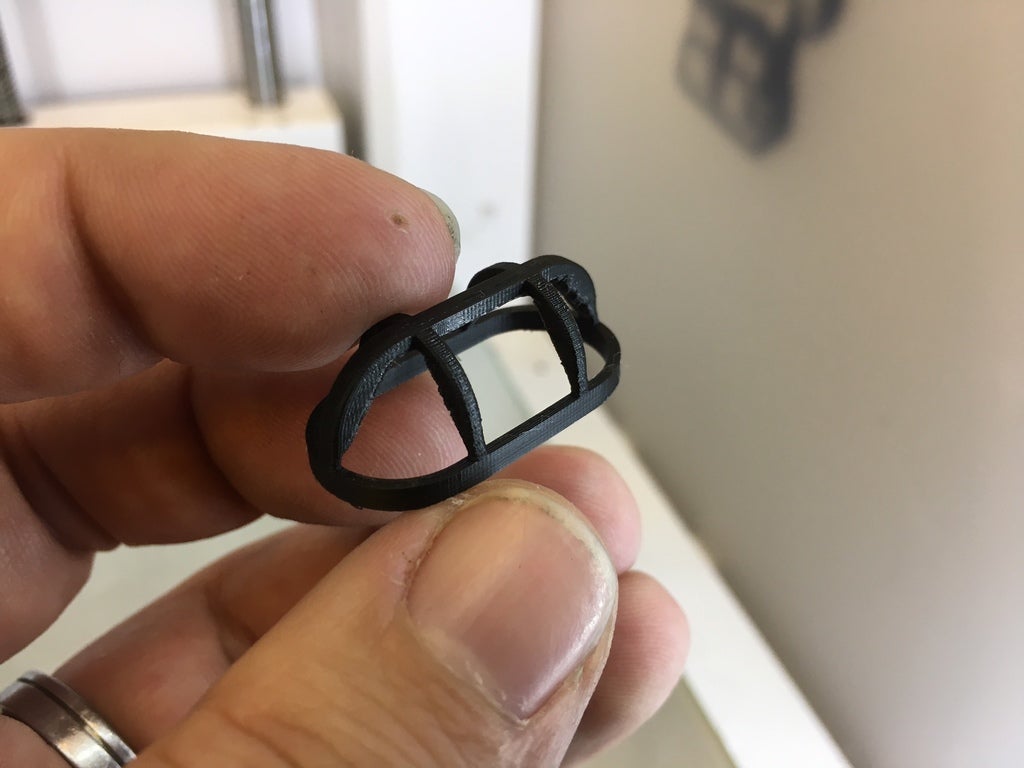

Printed in black and clear PLA.

Print instructions

Unassociated tags: bulkhead lamp, bulkhead light, marine lamp

Category: R/C Vehicles Summary

Simple bulkhead lamp for models.
This light fixture is about 30.2x15.2x11 mm in size, and therefore roughly scale 1:8.

Made for two 5mm LEDs, you might need to sand the top of the LED to have it fully seated.

Picture shows an XT-60 connector for size reference.

Printed in black and clear PLA.

Print Settings

Printer Brand: Ultimaker

Printer: Ultimaker 2

Rafts: No

Supports: No

Resolution: 0,1

Infill: 100

Notes:

The fixture is printed with 0.25 mm nozzle at 0.1 mm layer height.
The lens will print fine with 0.4 mm nozzle at 0.15 mm layer height.
