Info:

• remodelled and made a great model from @Meistel Edel (thx!) parametric, so any size can be easily created
• any width/height
• any number of holes
• the plate is 3.2mm thick

Variations:

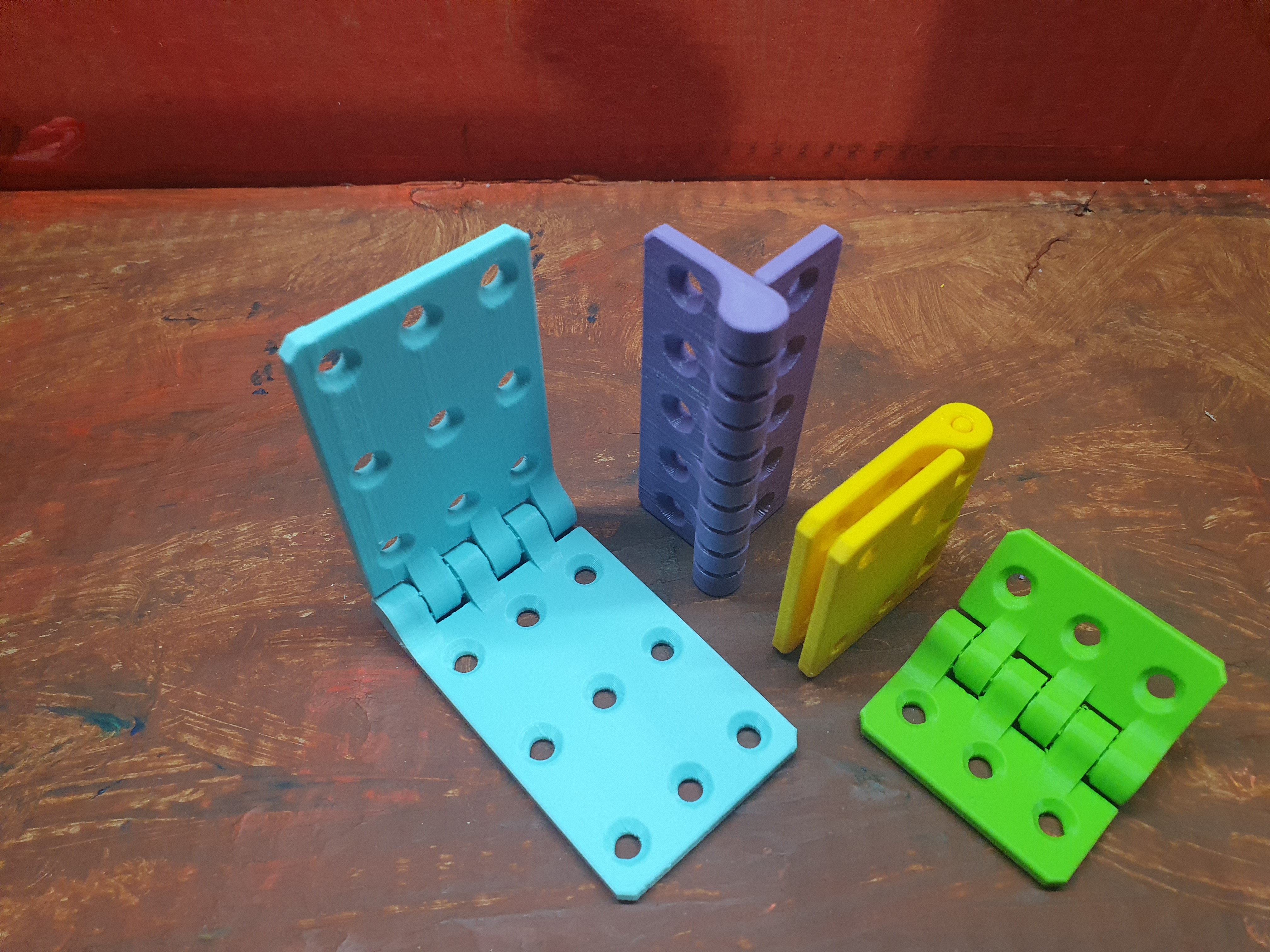

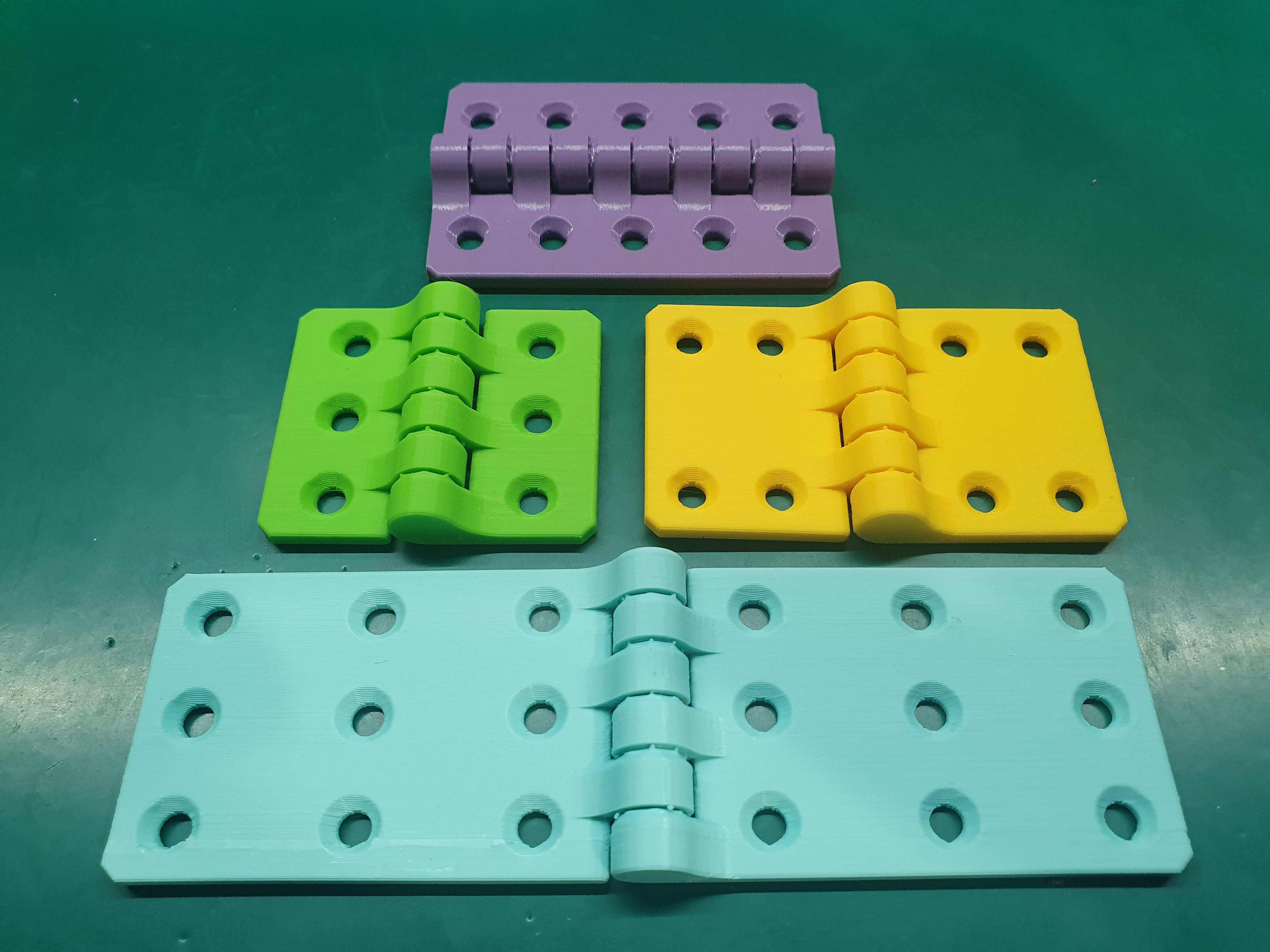

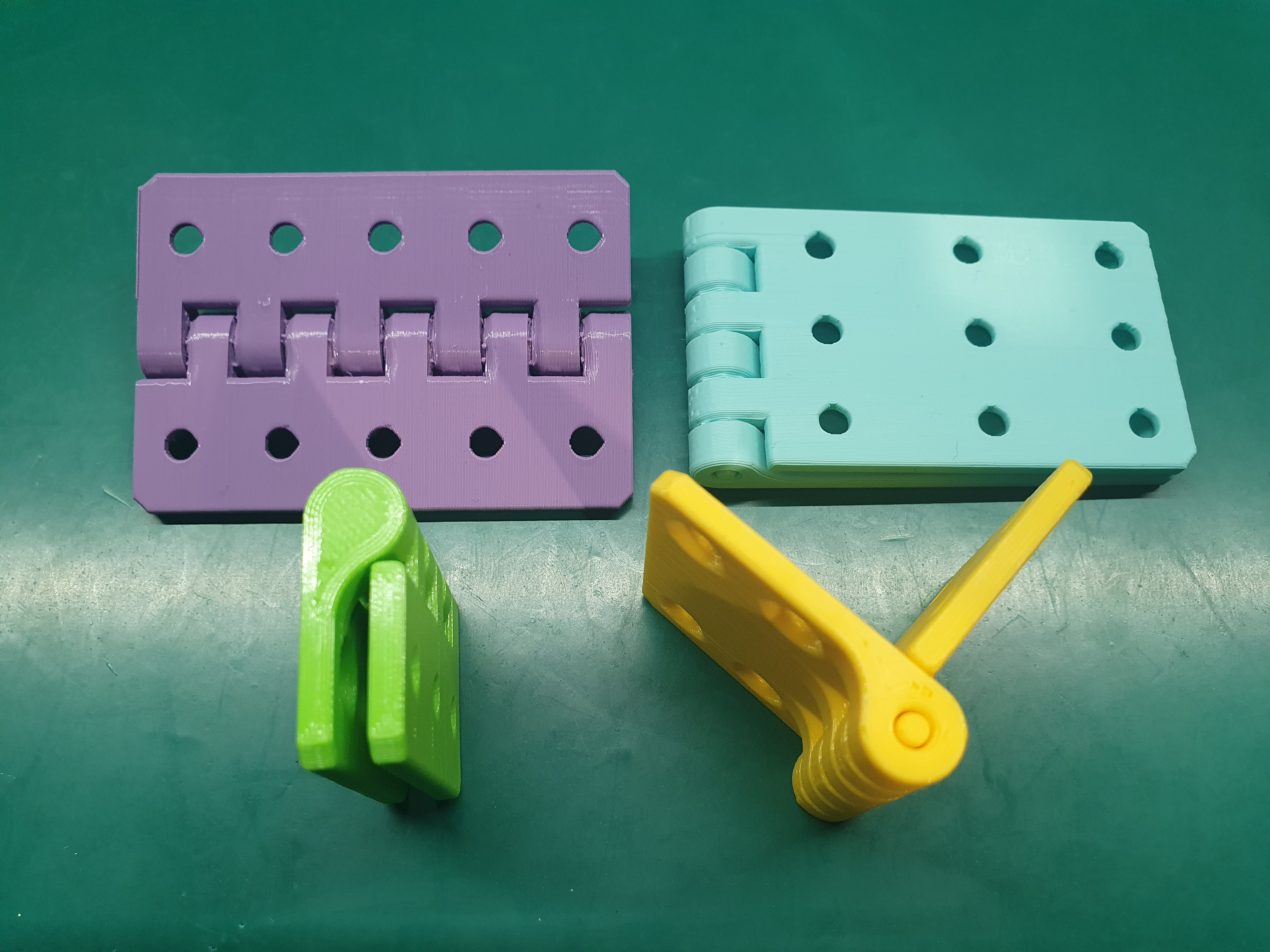

• exported few most common variations for convenient usage
• see Blender file for other params

Print info:

• 4 perimeters - so almost whole body is made of perimeters
• brim
  • it is not mostly, but to be sure and especially for high and not wide hinges, add brim
• 50% infill (there is not much of it with 4 perimeters)

Assembly:

• ❗❕ on 1st look it may look like impossible to bend, but try to bend it slowly on one side and back, repeatidly and after a while it should work nicely.
• if the side is short, it may be really difficult, youc an try also to cut small inner hinge supports with razor sharp

Note: there is also less robust vertically printed hinge: [https://www.printables.com/model/334697-parametric-hinge-vertically-printed](https://www.printables.com/model/334697-parametric-hinge-vertically-printed)

Parametric design:

• connectors_count
  • the height of hinge
  • number of connectors on the right side of the hinge
  • height in cm is always connectors_count-0.5 (so for 5connectors, it will be height 4.5)
• side_width
  • width of one side of the hinge in cm
• holes_x
  • number of holes in the width direction
• holes_y
  • number of holes in the height direction
