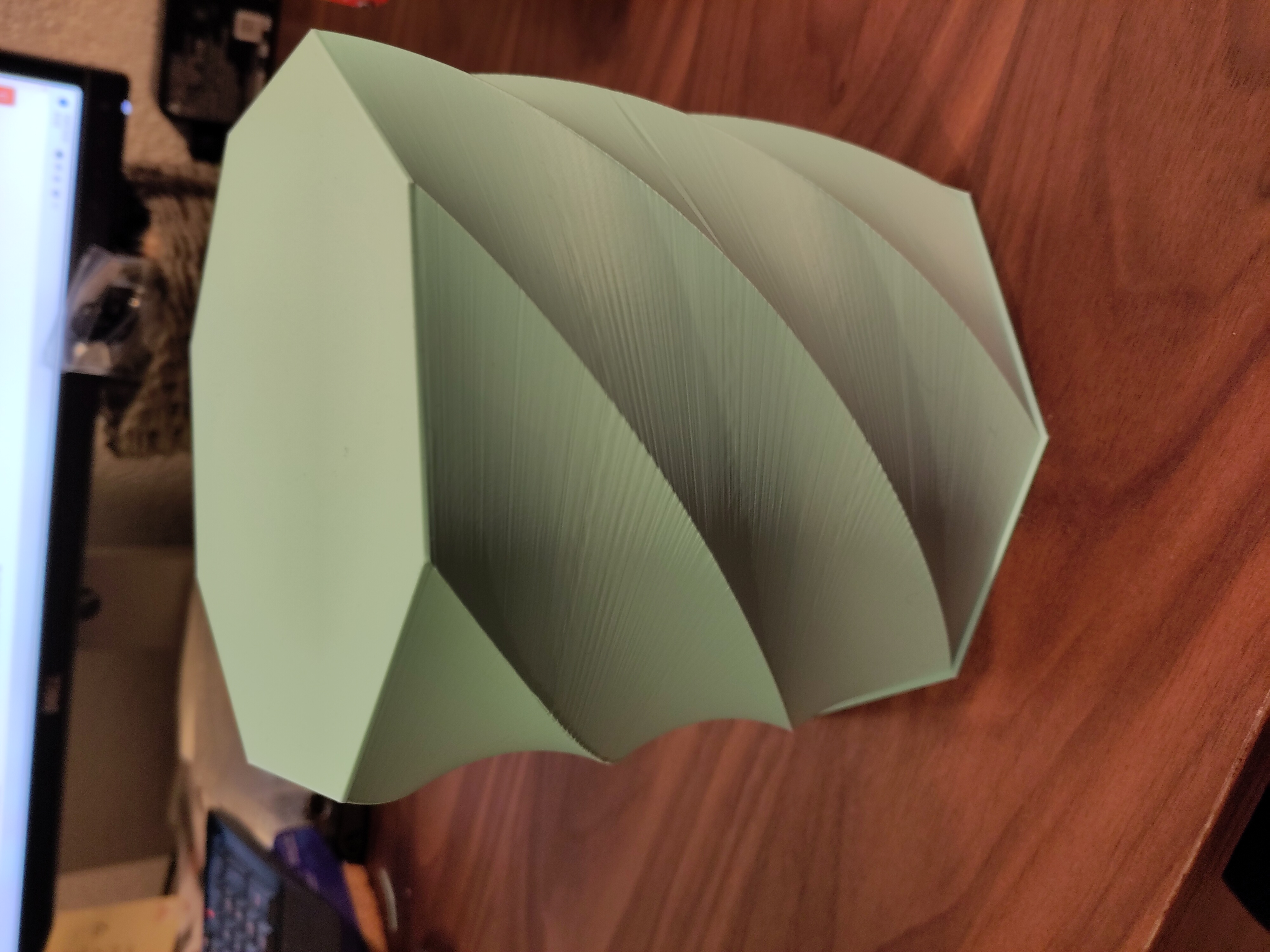

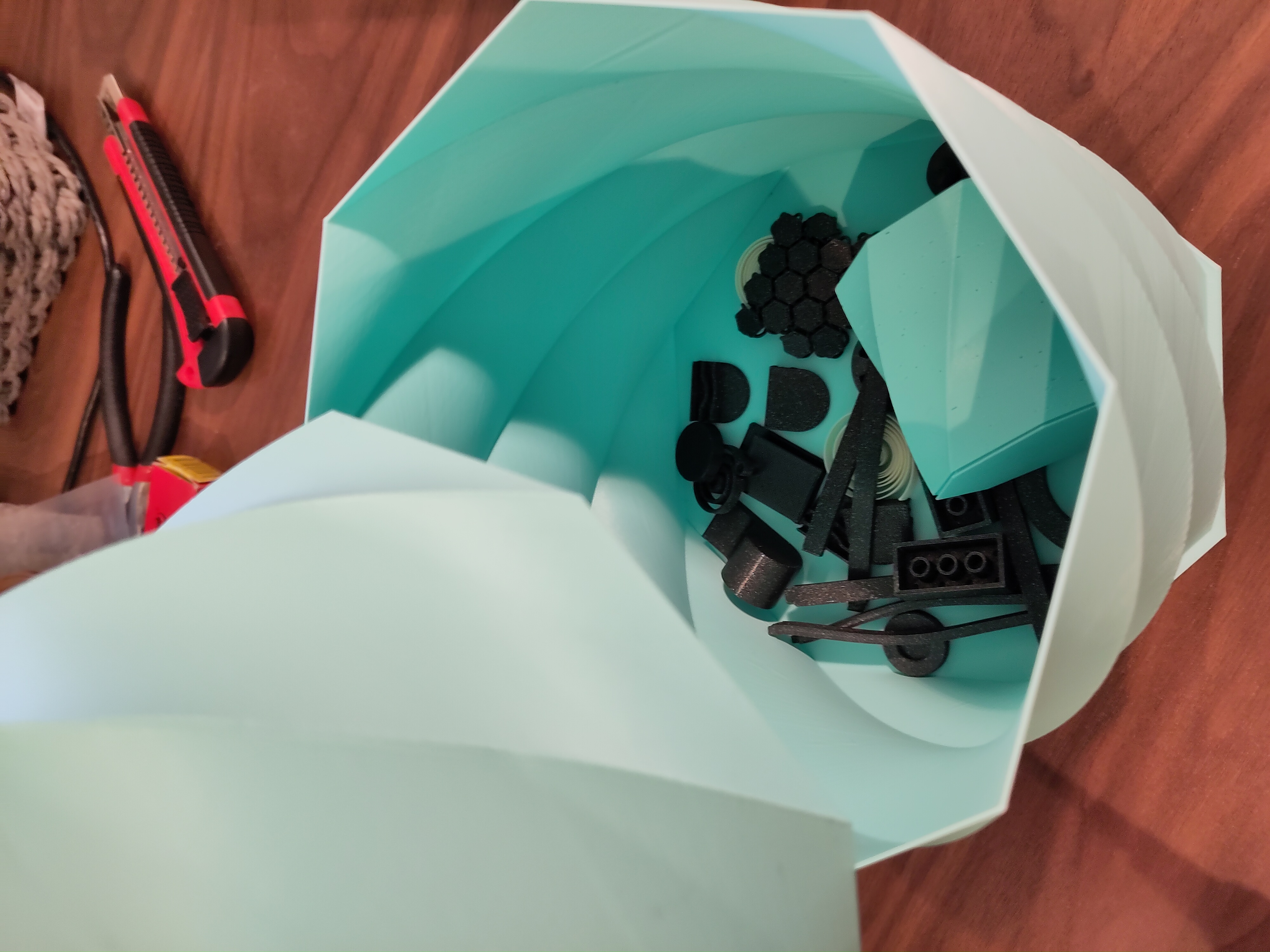

This model provides a large volume for storing stuff. The normal twist containers are pretty small and I wanted to have something bigger to store all my 3D printing gimmicks.

To maximize the size of the box, the model takes advantage of nearly the full Prusa Mini/Mini+ printing volume.
Because of this you will need to scedule two seperate prints, one for the outer and one for the inner element.

Printing

Because the model is so big, it is not printed in vase mode. This is, to keep it stable enough for carrying more weight. So I needed to make the walls thicker.

I printed my Octo Twist Box with a 0.4mm nozzle and a layer-height of 0.25mm.
Because it is such a simple modle with no jumps between printing sections, I could easily crank the speed up to 120%.

Print time was roughly 2 times 5.5h, so 11h

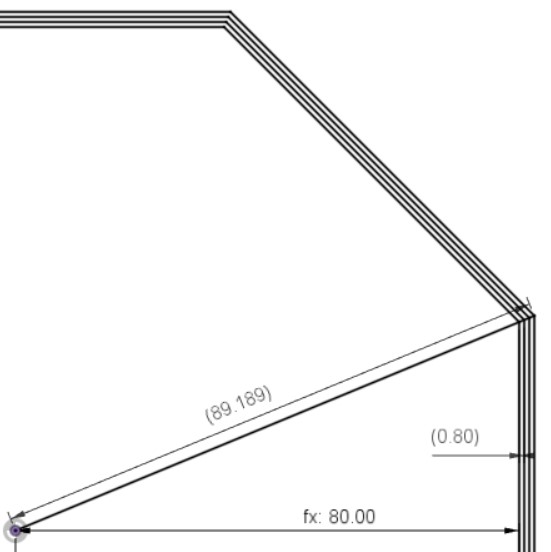

Dimensions

• Inner height: 160mm
• Inner diameter: 160mm (center to side of polygon)
• Outer diameter:  178.4mm (center to corner)
• Outer height: 162.4
• Shell thickness: 0.8mm
• Leeway: 0.8mm

Credits

The idea of this model comes from Devin Montes' Twist Containers and his YouTube channel MakeAnything.
