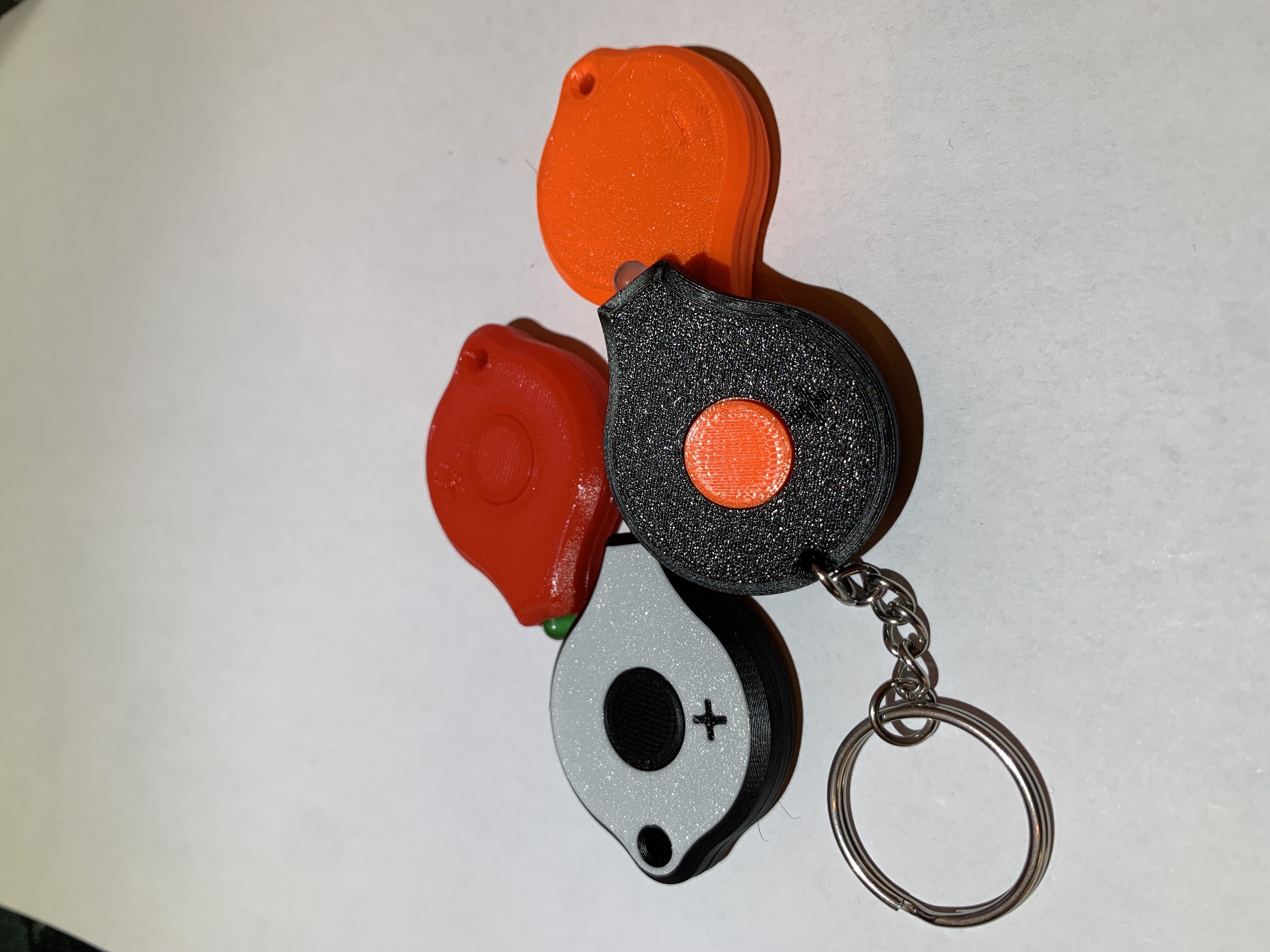

Small LED torch to always have on hand or on your keychain to always have a light just in case.

VERY SIMPLE TO PRINT AND ASSEMBLE

PRINTING INSTRUCTIONS:

• MATERIAL : PLA/PET-G
• NOZZLE SIZE : 0.4 mm
• LAYER HEIGHT: 0.10 / 0.15 mm
• VERTICAL SHELLS: 2
• INFILL: 15%
• SUPPORT: NO
•  Position the parts as shown in the photo:

Have fun changing colors to the various parts or making a color change during printing

REQUIRED COMPONENTS :

• CR2032 button battery
• 3V led diode  5mm

ASSEMBLY INSTRUCTIONS :

Take the part printed with the symbol - (minus ) and place the battery inside it with the positive facing up as in the photo

place the button you printed on the battery and then the second part with the + symbol

now just twist the piece over and it will lock into place

pay close attention now, the longer leg of the LED is positive, while the shorter one is negative

as you can see in the picture there are 2 small holes into which the legs of the led must be inserted .. the longer leg (positive) must be inserted into the hole on the side where there is the + symbol and the button

to facilitate the insertion of the LED, hold the mini torch with the button facing downwards.
Gently insert the LED all the way in

I ADD A QUICK ASSEMBLY VIDEO
