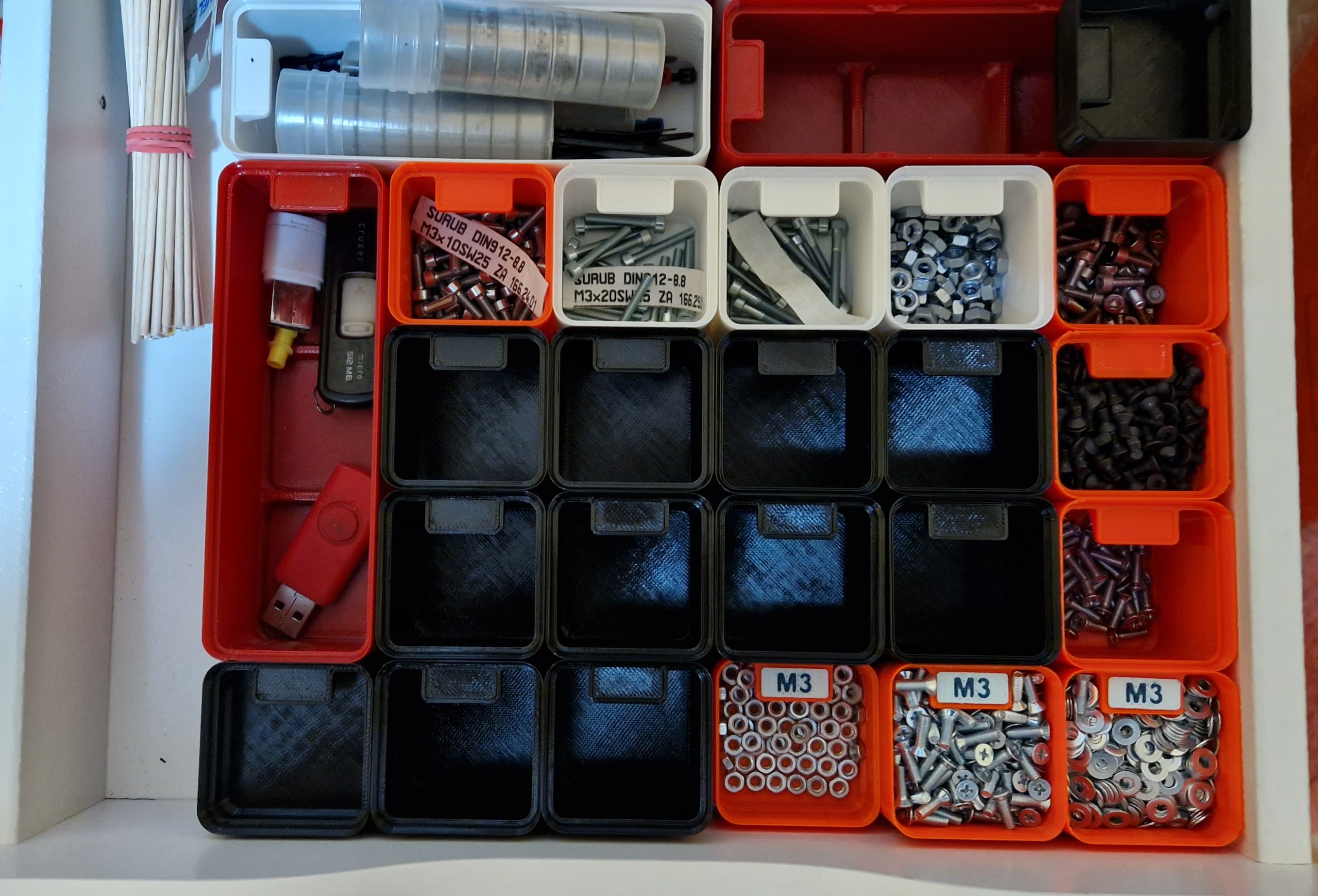

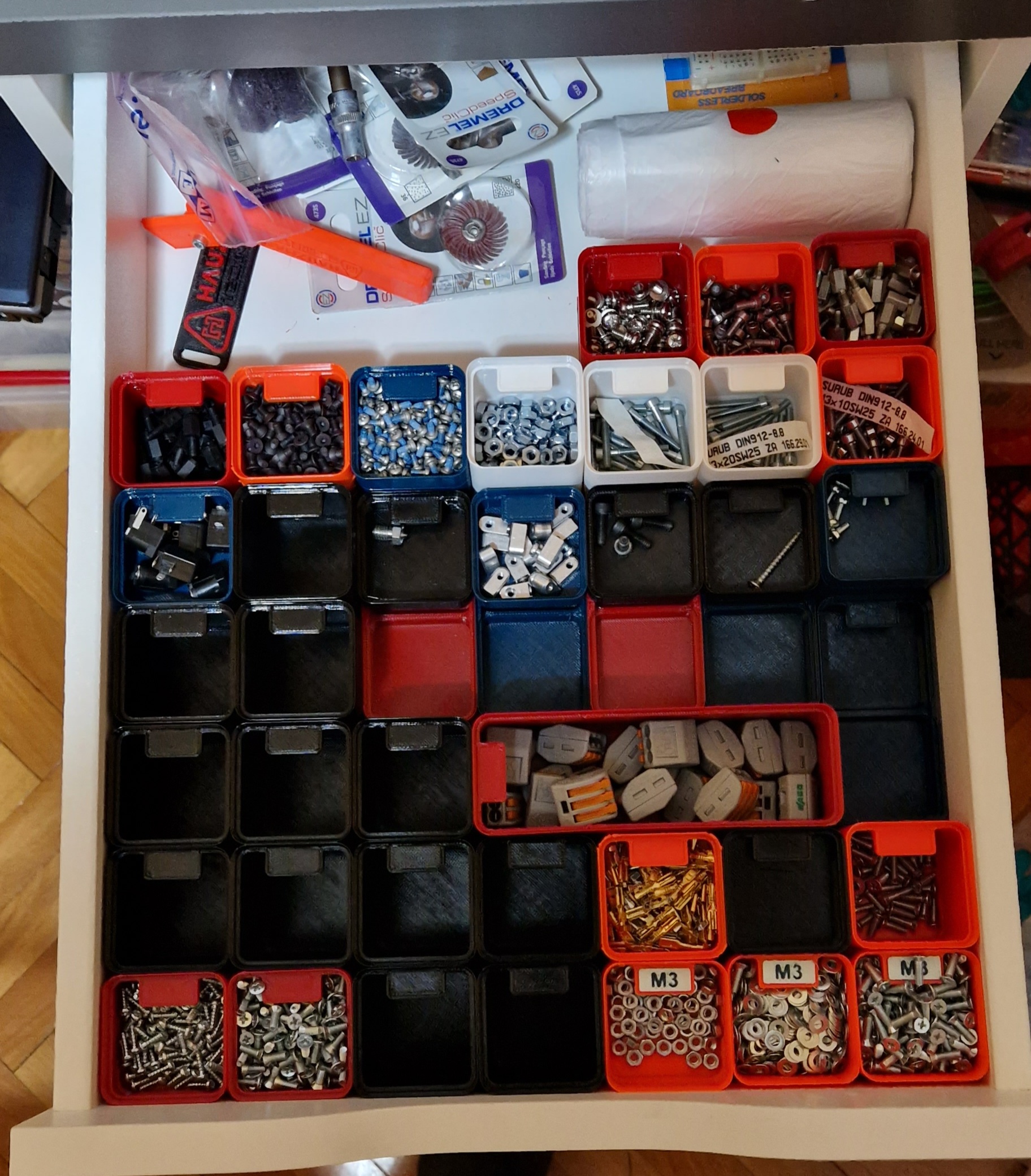

This is  my new storage box for drawers.

I work on this project for a wile and now after a couple of revisions and testing  I have a few boxes what I can say it can be shared, steel with some  minor issues.

I will upload the latest version because I did not save it separately until now.

Modular/Stackable  Organizer Box  is a new concept from  [https://www.printables.com/model/249565-modular-organizer-box-with-drawer-small-components](https://www.printables.com/model/249565-modular-organizer-box-with-drawer-small-components)

Note :  - Did not print yet all the parts. And when I have some spare time I work on them to be more easy print and on new boxes.

Issues know until now :

• at the base grid at the corners may have to sand a bit where the steam is or use a cutter
• possible  stringing

Overview :

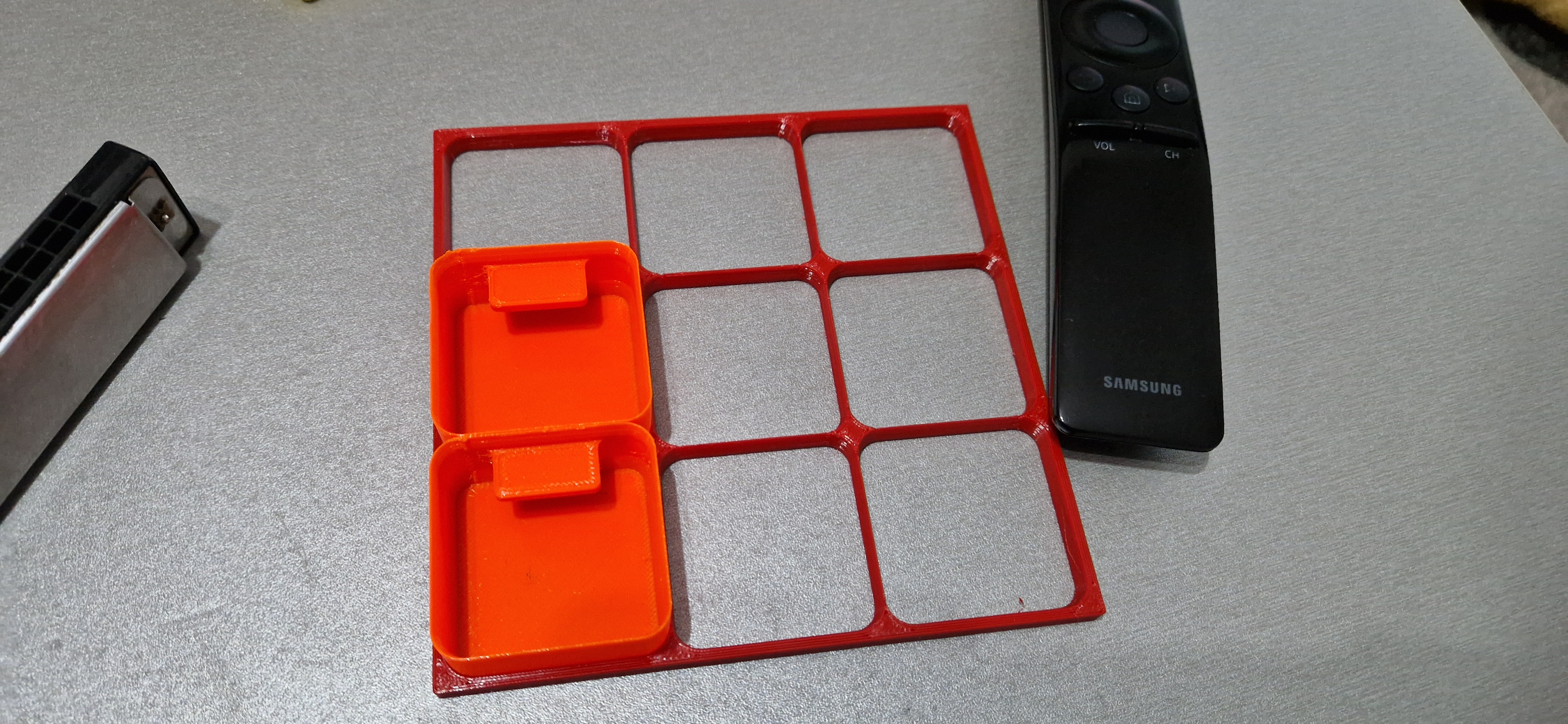

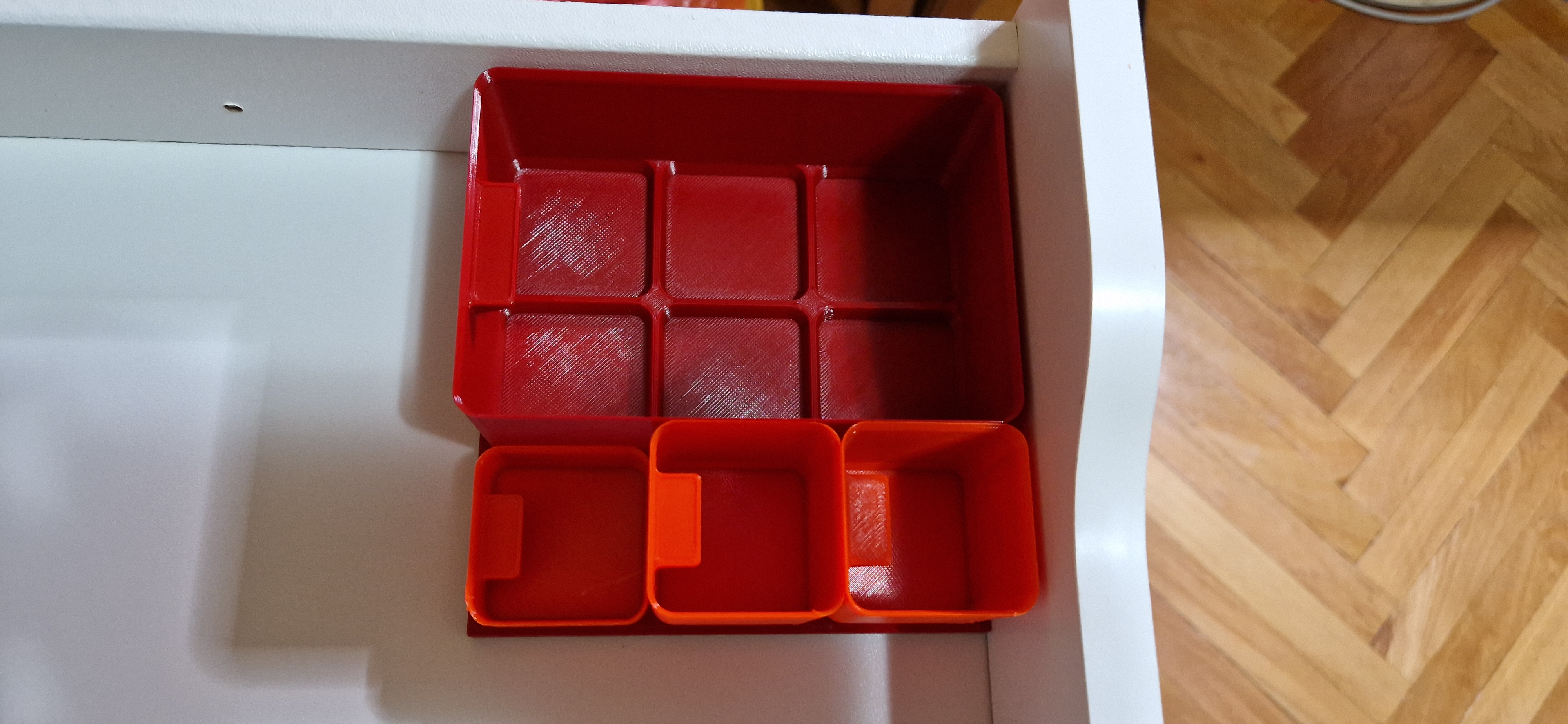

Grid System

• Base Grid_1x3
• Base Grid_2x3
• Base Grid_2x4
• Base Grid_3x3
• Base Grid_4x3
• Base Grid_5x5 - On request - Not Tested

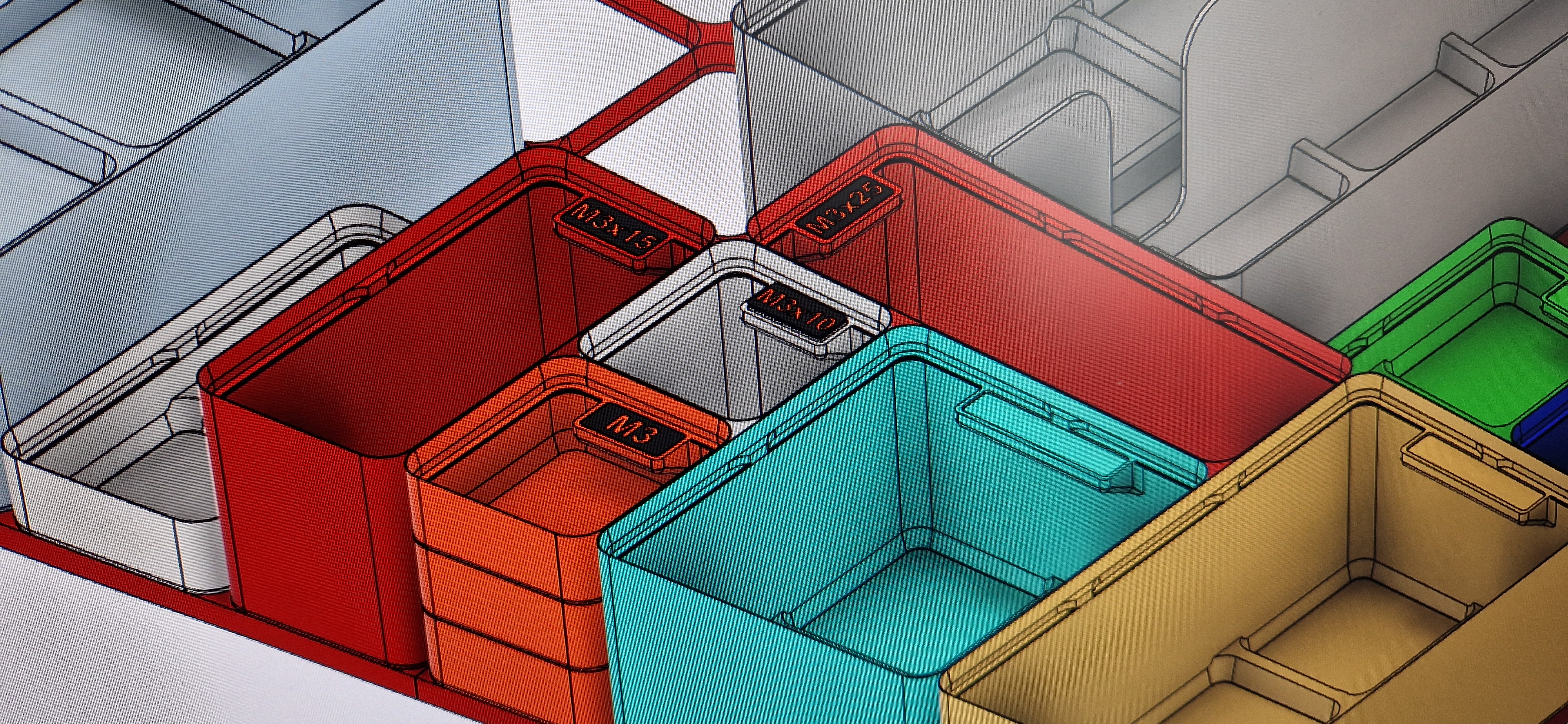

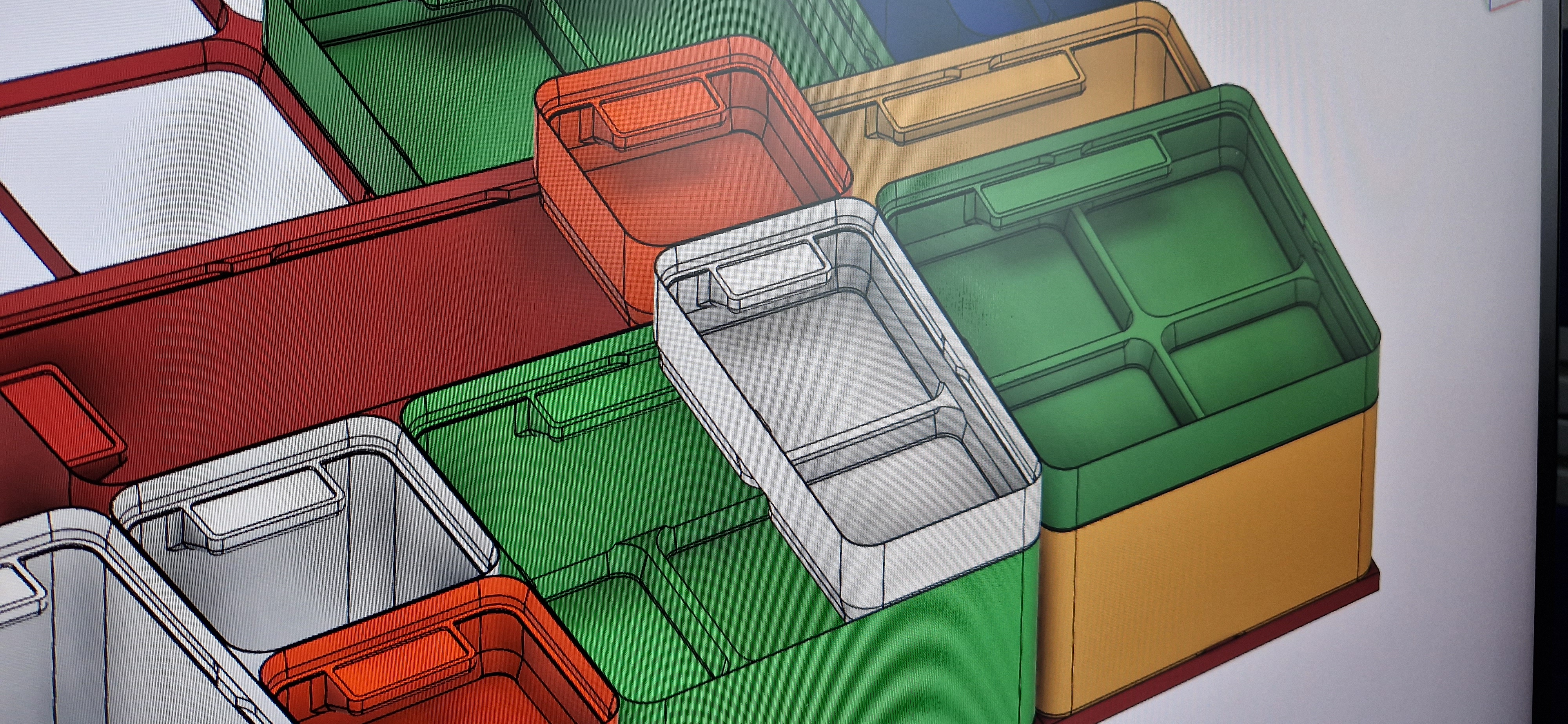

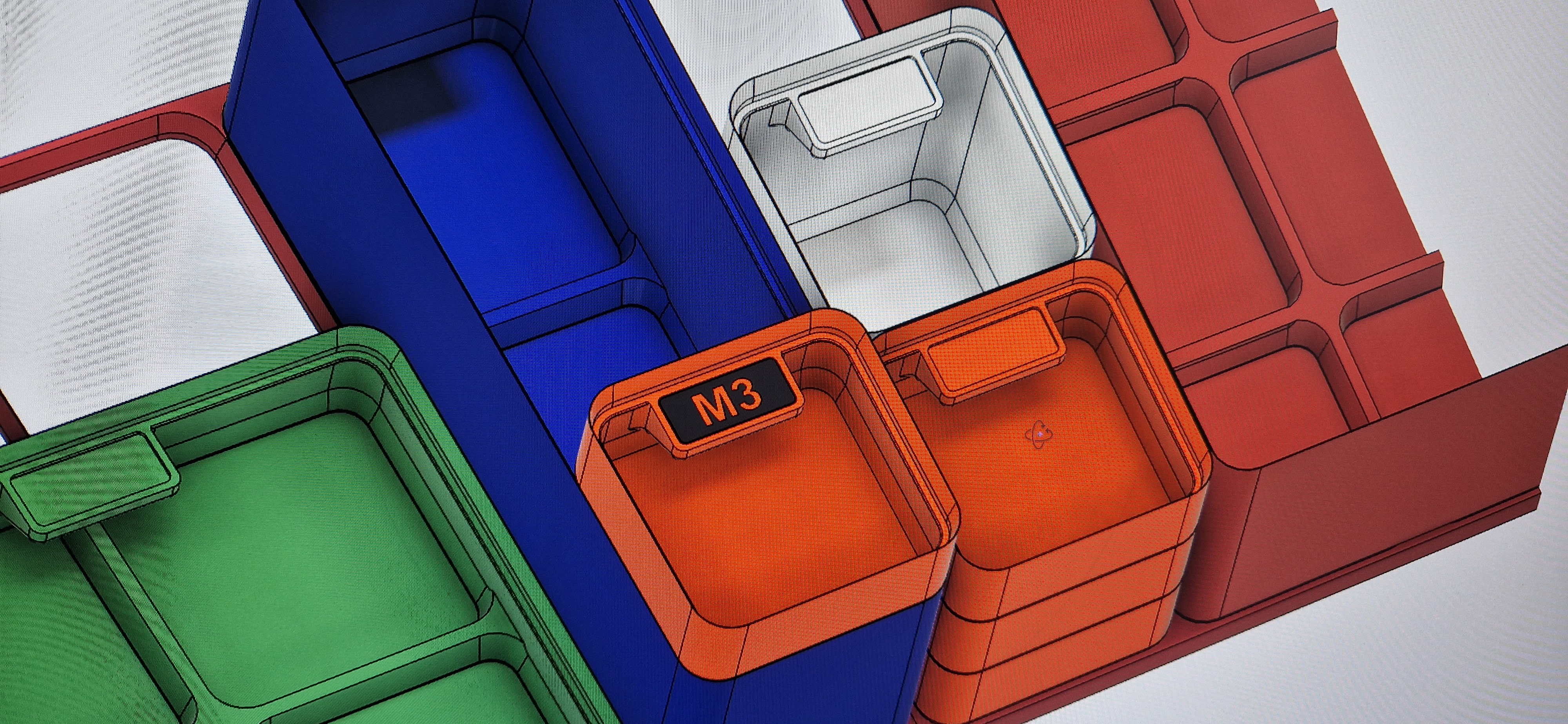

Box System

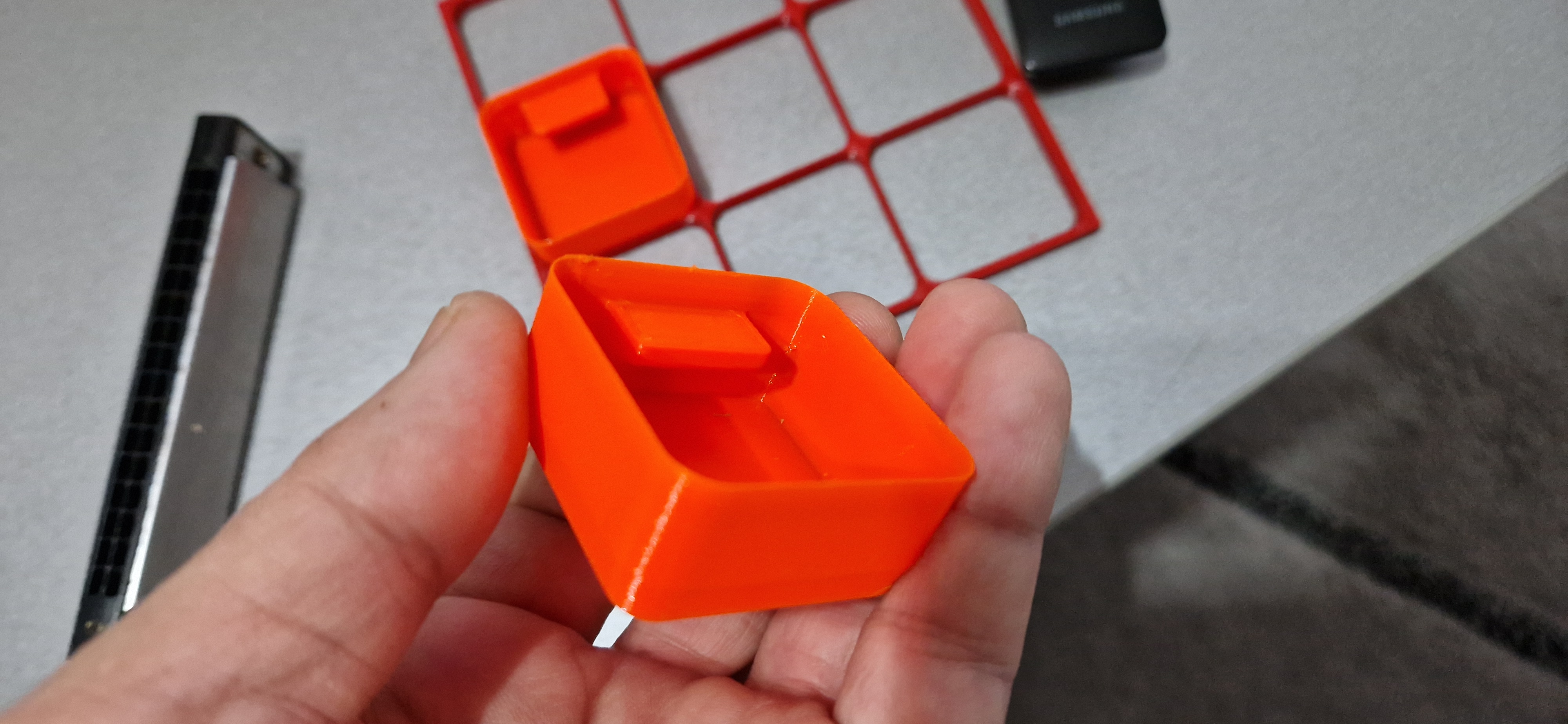

• Box_1x1_20mm  - Tested
• Box_2x3_50mm - Tested
• Box_2x2_20mm - Tested
• Box_2x2_50mm - Tested
• Box_1x4_50mm - Tested
• Box_1x3_50mm - Tested
• Box_1x2_20mm - Tested
• Box_3x3_50mm - Tested
• Box_3x4_50mm_Separator - Tested

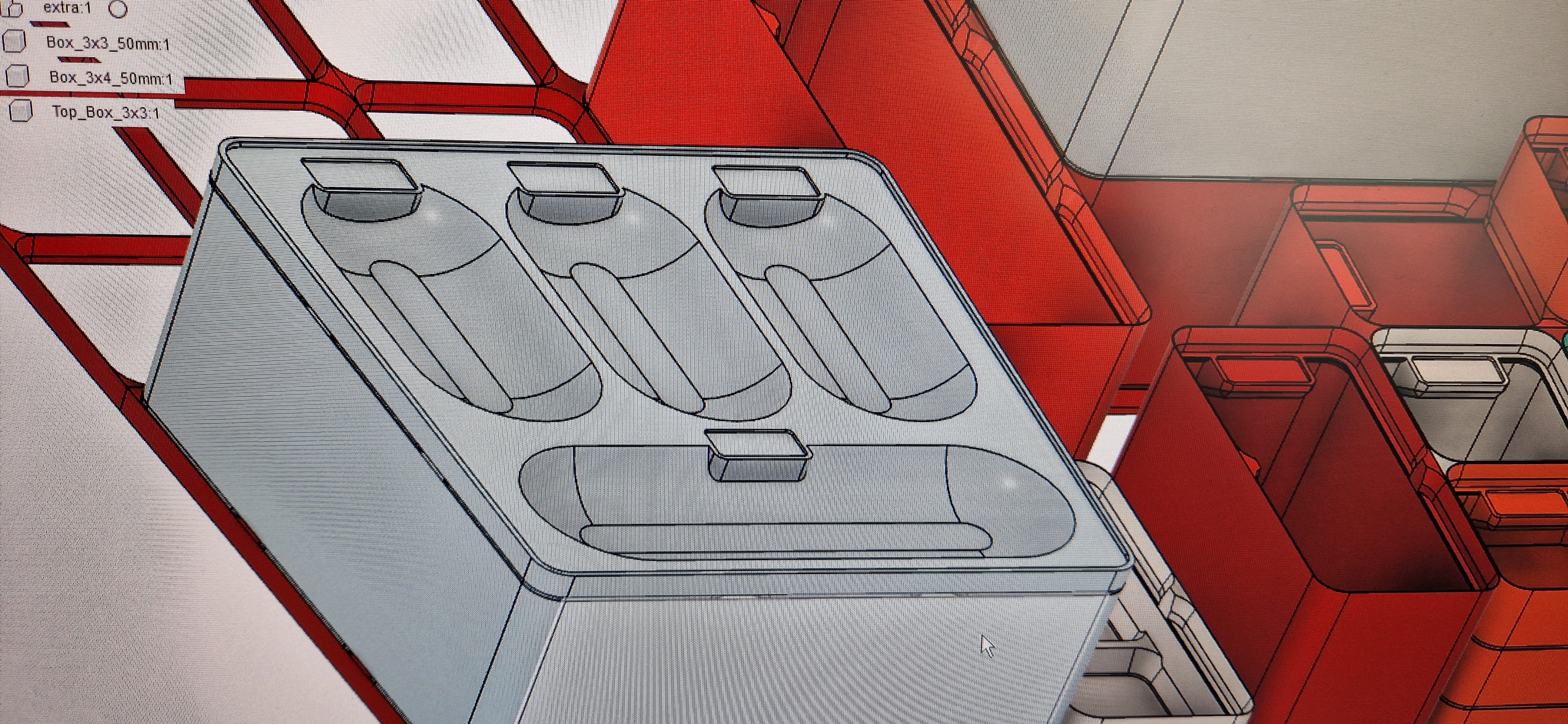

• Top_Box_3x3(need to find a better name :)) - Not Tested
• Box_3x4_50mm - Not Tested
•

Label System

• for the moment I made just a few of them will work on them
• they can be printed with MMU or you can hide the body in the slicer

Print instructions

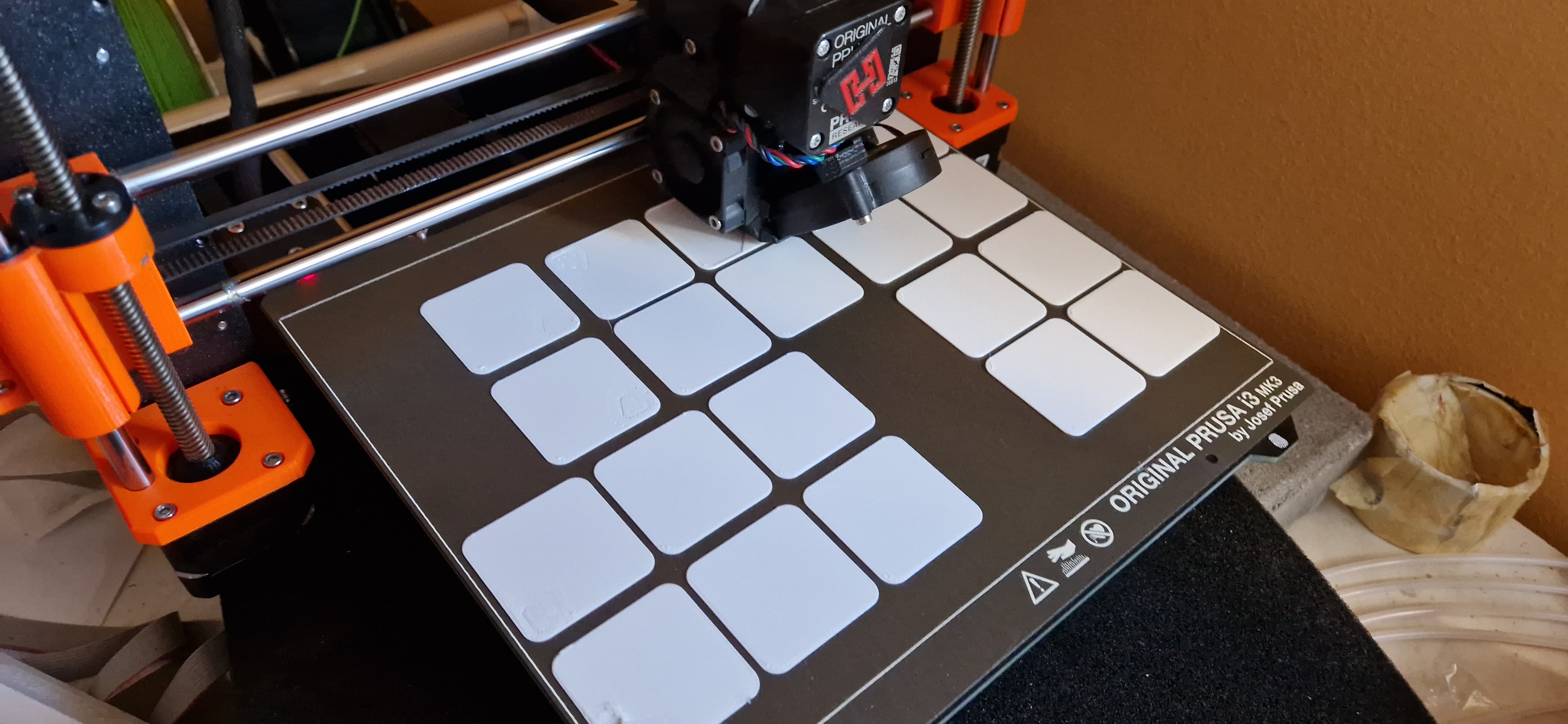

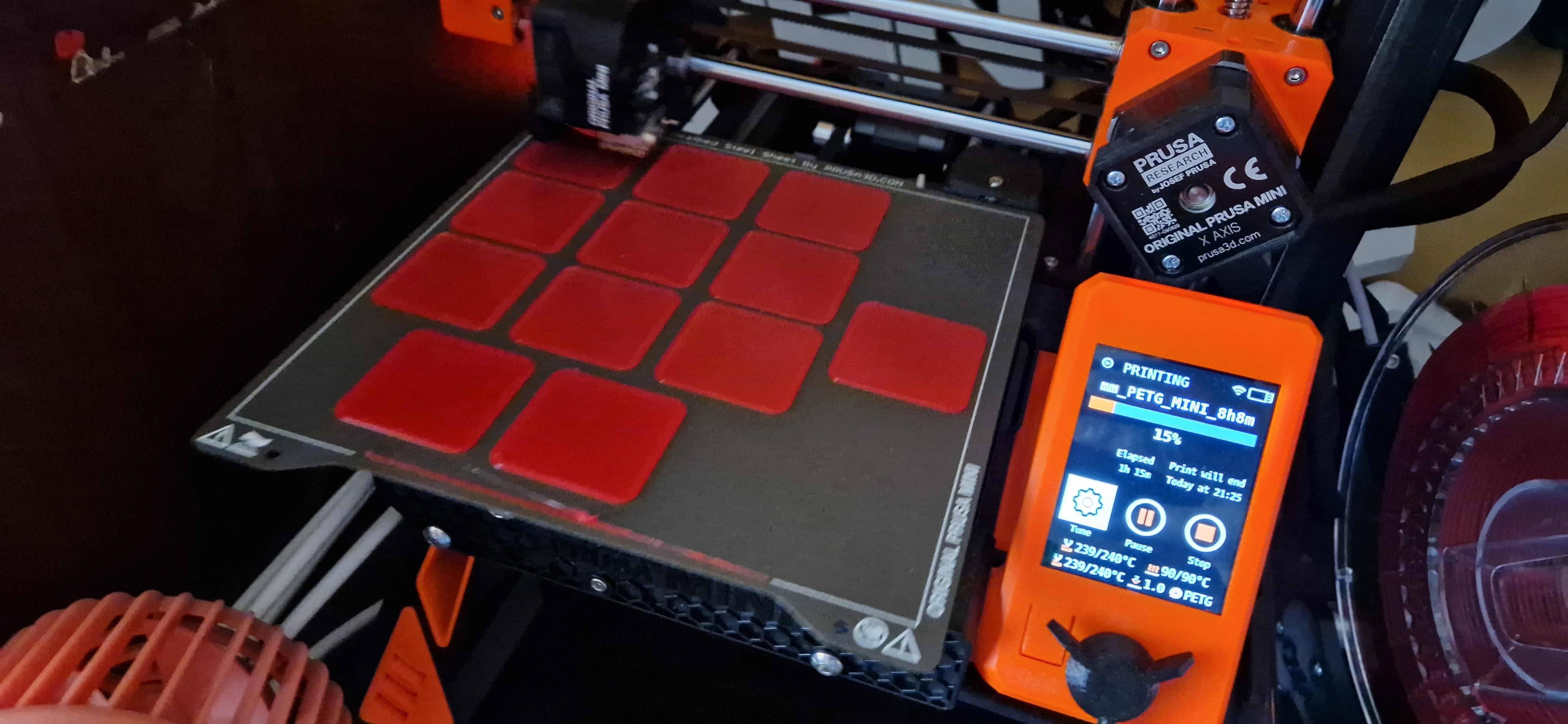

Printer Brand: Prusa

Printer: MK3S+ & Mini +

Rafts: No

Supports: No

Resolution : 0.3 / 0.25

Infill: standard according to profile

Filament :
Devil Design PETG > Red, Black
Prusament PETG > Orange, White, Ocean Blue
Notes:
Also PLA will work,  this materials what i had on hand :) during testing
Standard for 0.4 nozzle I used Prusa Slicer
