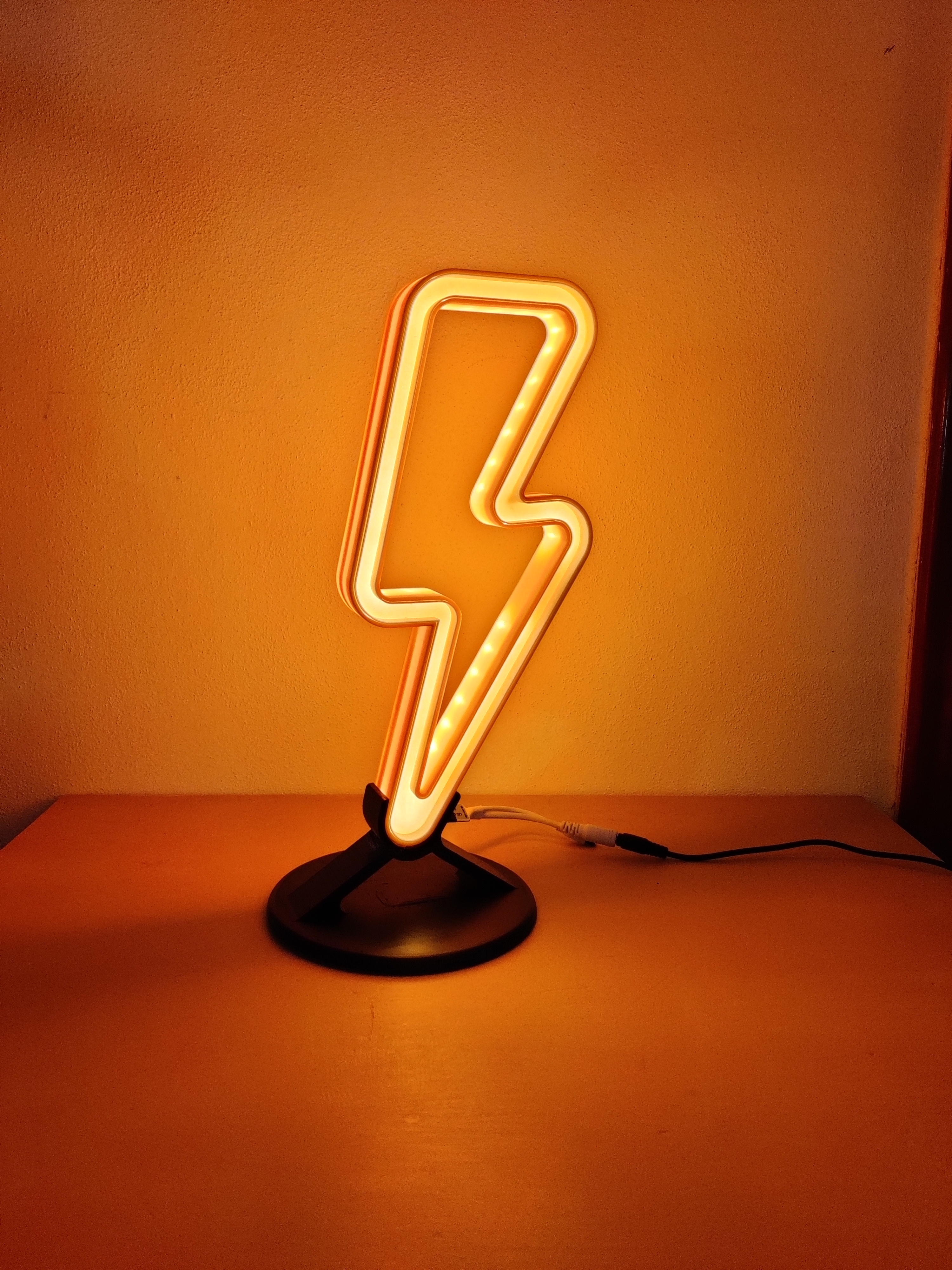

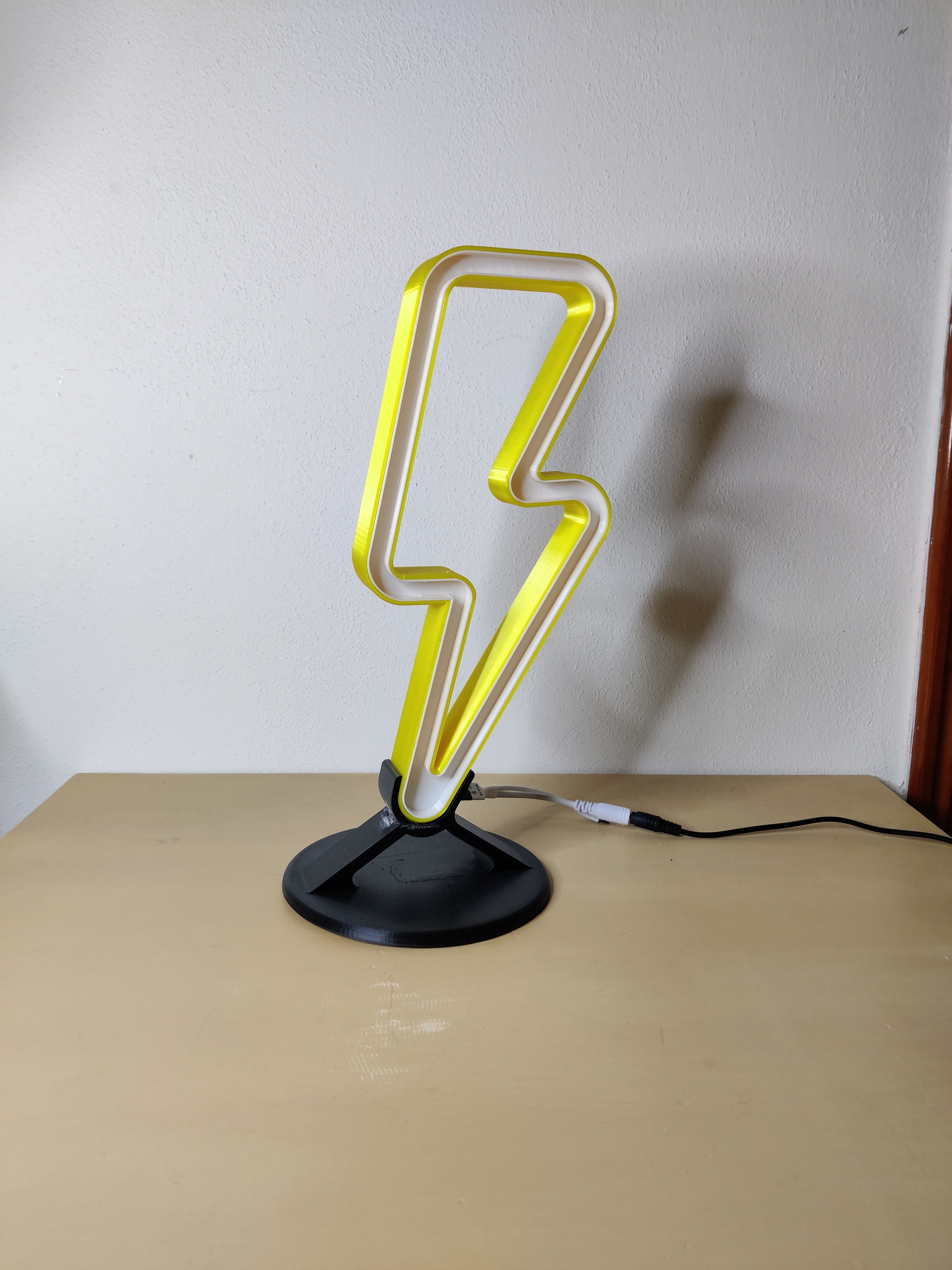

⚡ Lightning Bolt LED Lamp – 12V RGB with IR Remote

I designed this striking lightning bolt-shaped lamp to bring colorful, glowing light to any room. It’s simple to print, quick to assemble, and ready for your favorite 12V RGB LED strip with IR control.

✅ Print Settings

• Material: PLA
• Layer Height: 0.2 mm
• No Supports / No Raft
• Infill: 30%
• Nozzle Temp: 225 °C

🛒 Recommended Components

• 🔌 LED Strip: 5050 RGB LED Strip, 12 V, IP20 or IP65 (Black PCB, 300 LEDs, 5 m)
• 🎮 Controller: IR RGB LED Controller with Remote (12 V, compatible with 3528/5050)

🧰 Assembly Instructions

1. Print the lightning bolt base and lid using the settings above.
2. Apply the LED strip along the inner contour of the bolt shape.
3. Insert the lid onto the base to enclose the LED strip.
4. Glue the base and lid together to secure the full shape.
5. Connect the LED strip to your IR controller and power supply.

✨ Done! Now enjoy your glowing lightning bolt lamp with customizable color modes and effects.

💬 Need Help?

Feel free to reach out here if you run into any issues—I'm happy to help.

📸 Printed this model?
I’d love to see your version lit up—share a photo and show how it looks in your space!
