Modelo 3D Filament Dry Box por NathanMichaelMoore no Printables

Descrição

This is a filament dry box I made for printing nylons. It is inspired by the Markfoged drybox but way cheeper. This uses a Monoprice
9.9 L waterproof hard case and some PTFE fittings and tubing. It can hold two spools of 1KG filament. You will need a 10mm rod to used included files although you can always make your holder or remix this one to fit whatever rod you have.

total build cost $40

BOM (Amazon Links):


1) Dry Box

2) PTFE Hardware

3) 10mm Rod cut to 157mm


4)Printed Parts

Filament I am printing is SainSmart ePA-CF

Prints really nice!

Note: These are affiliate links so I get a kick back if you use them.

Print instructions

Material: PLA or PETG
Layer Height: 0.2
Infill: 20%

Assembly instructions:

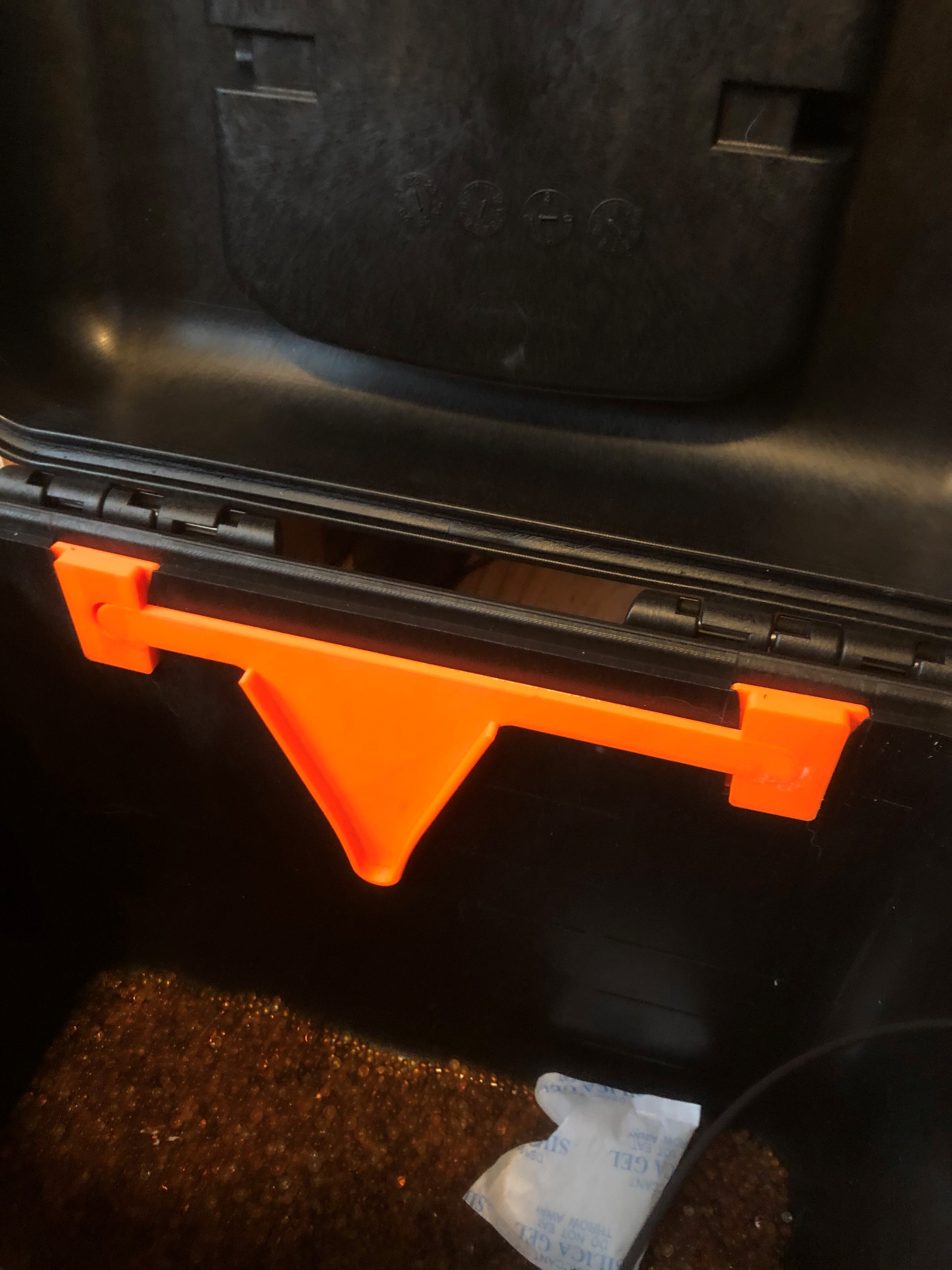

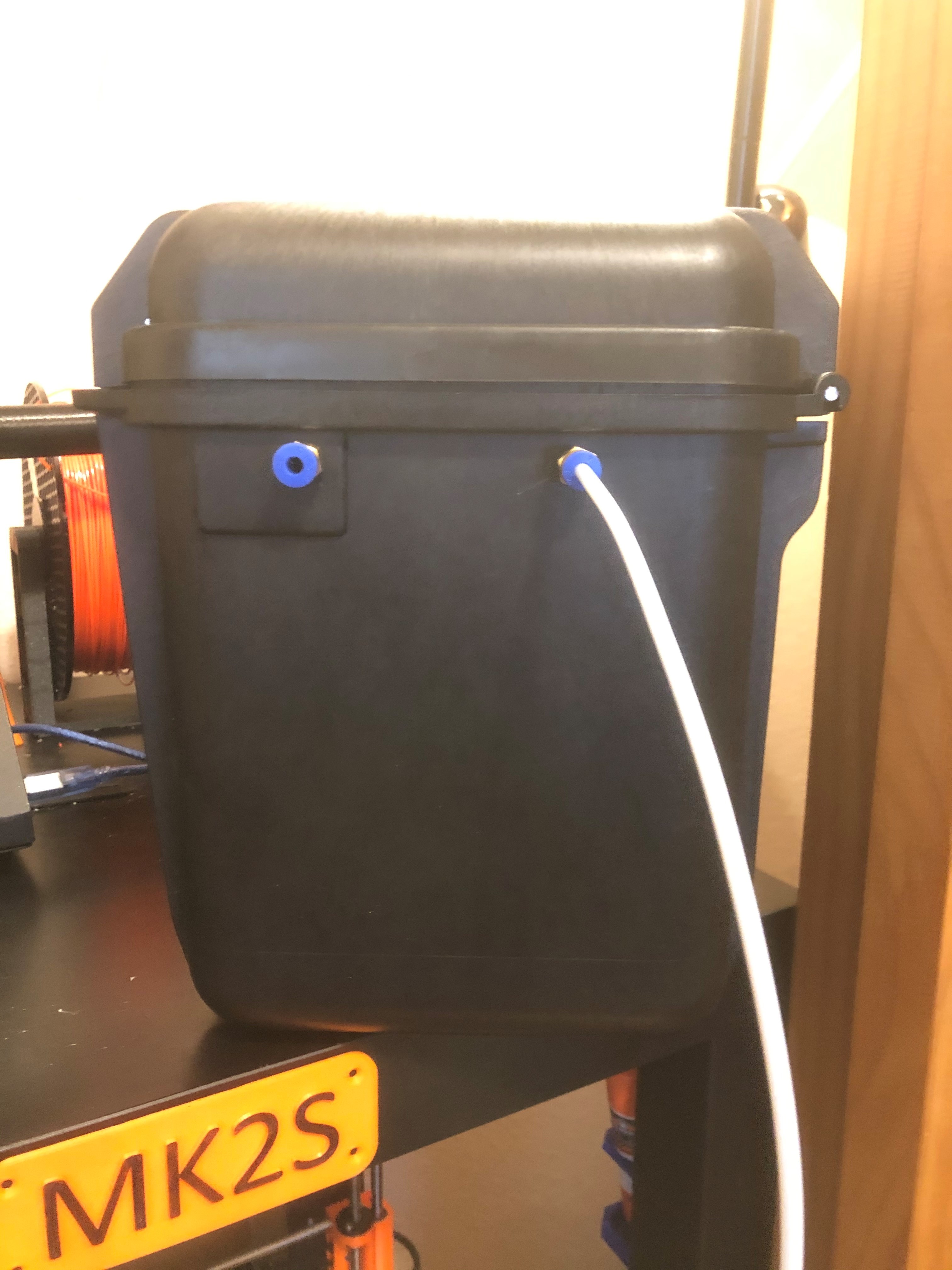

After printing, insert tabs into box then glue the spool holding members. Gluing them in the box ensures to correct for differences in printers and different dry box dimensions. Be careful not to glue it into the box unless you want it to be permanent. Then drill holes for the PTFE fittings in the general area shown in the photos above. If you use a smaller hole then the thread OD there is no need to tap as they will self tap as you screw them in. Finally insert desired length PTFE tubing and your good to go. Happy Printing!

Printables

Filament Dry Box

Publicado em 18 de jan de 2024

48
Curtidas
181
Downloads
Categoria Accessories
Tags
box drybox hardcase case pelican fillamentdrybox monoprice dry waterproof
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (9)
drybox-slot-hook-v7.stl 186.6 KB
drybox-slot-hook-v7.step 252.3 KB
drybox-slot-hook-v7.amf 745.9 KB
spool-holder-for-10mm-rods.f3d 93.2 KB
spool-holder-for-10mm-rods.step 53.7 KB
spool-holder-for-10mm-rods.stl 614.1 KB
drybox-cap-v3.step 18.1 KB
drybox-cap-v3.f3d 74.5 KB
drybox-cap-v3.stl 332.1 KB
