Modelo 3D Dumpster Fire with LEDs por Rick's 3D Printing & Design no Printables

Descrição

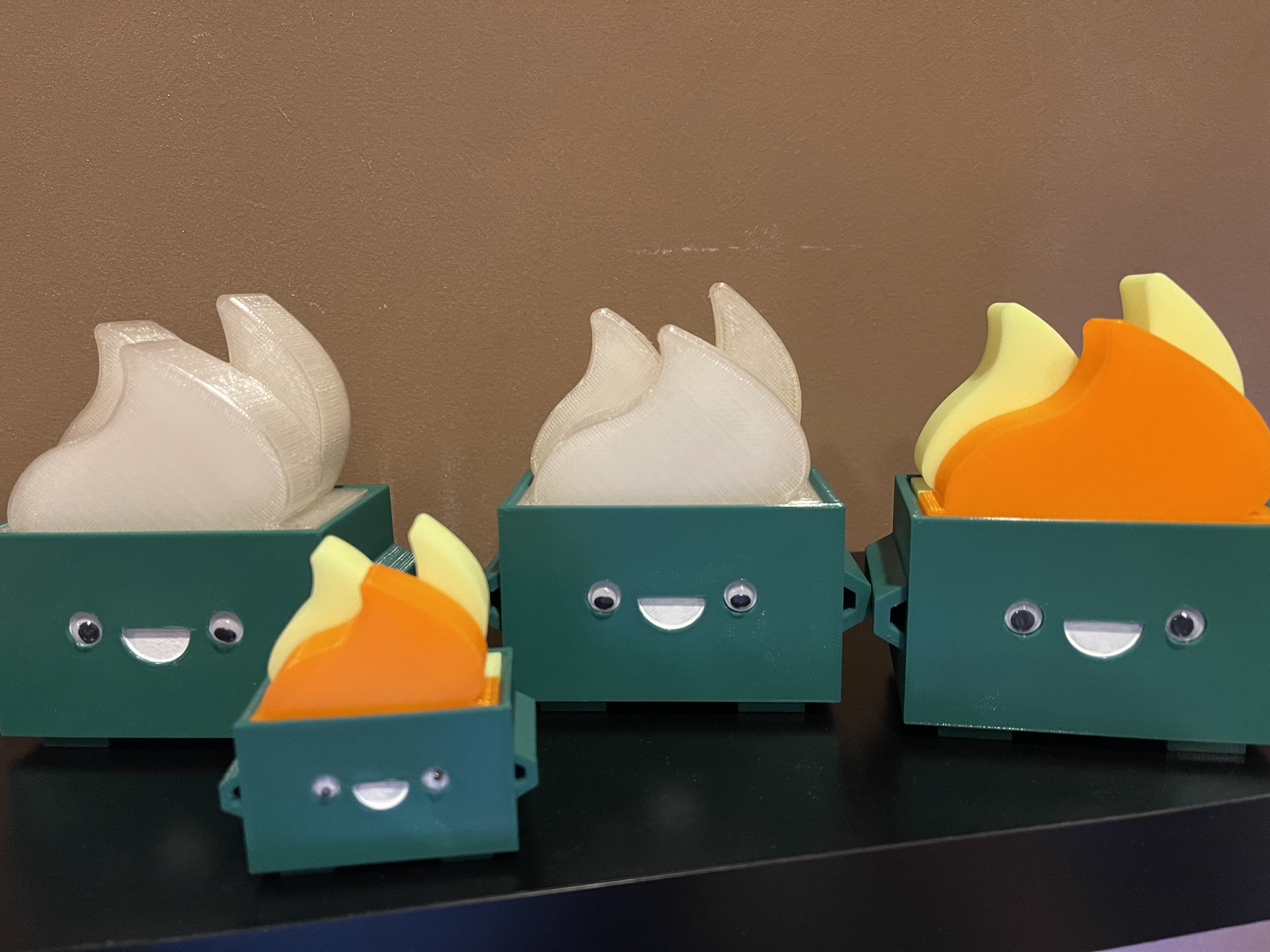

I originally printed a bunch of these small ones to give to my friends. One recommend a large one. I didn't stop there, I added an ESP for use in home automations using the WLED project. Scale them to fit your needs!

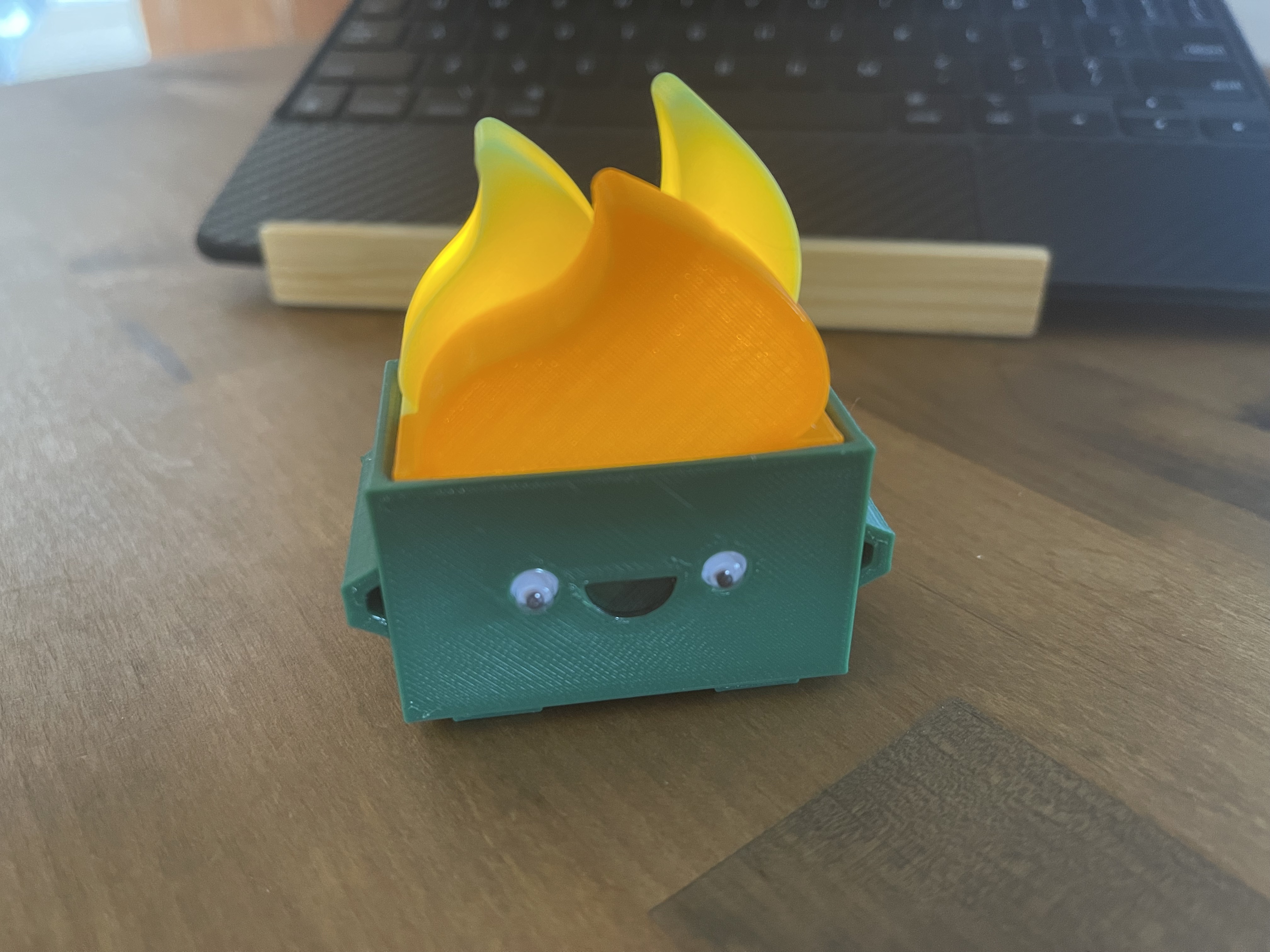

Supports were not needed for the smaller dumpster and fire, the larger you go you will need something in the middle. The 170 percent dumpster has an example of a support added. These will fit a tea candle led.

Dumpster parts
Filament - Any, only real requirement is Clear if you want to get the best of the WLED option.

Eyes - 5MM (Small) and 8MM (Large) or paint your own [https://www.amazon.com/gp/product/B093D2JFML/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1](https://www.amazon.com/gp/product/B093D2JFML/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1)

Paint for smile - White, black, even add a red tongue.

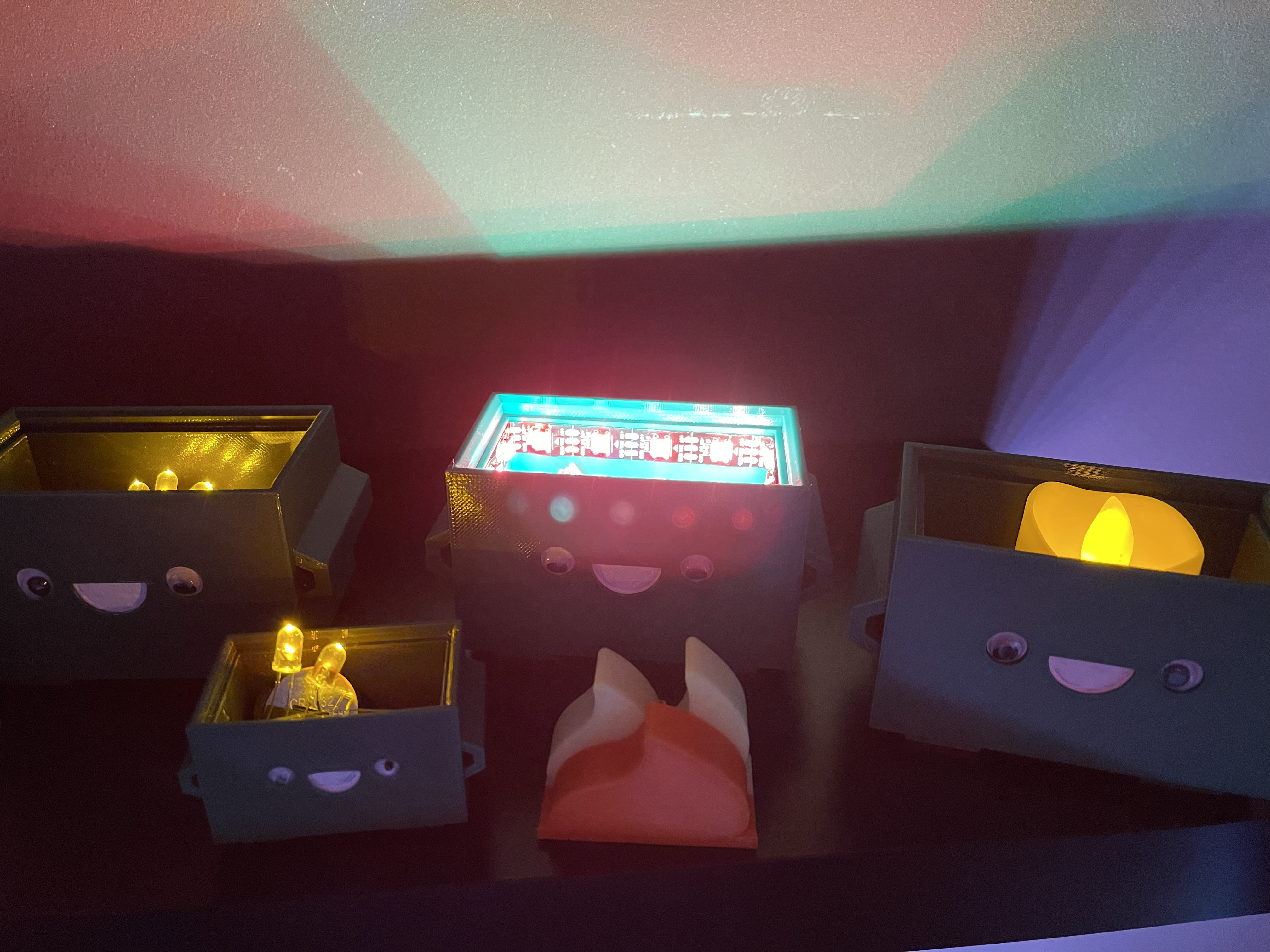

LED Options

Large dumpster will fit any generic 1.5in LED candle light
[https://www.amazon.com/Flameless-Battery-Operated-Realistic-Flickering-Electric/dp/B07DN39C5J/ref=sr_1_1_sspa?keywords=led+candle&qid=1670099729&sr=8-1-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUExSFQwUjlaRkZBRVJaJmVuY3J5cHRlZElkPUEwNDYzMDAzS1A0TUNSTUs2NjFSJmVuY3J5cHRlZEFkSWQ9QTA5NDc5OTgzTVEyR01aVVFHWFdaJndpZGdldE5hbWU9c3BfYXRmJmFjdGlvbj1jbGlja1JlZGlyZWN0JmRvTm90TG9nQ2xpY2s9dHJ1ZQ==](https://www.amazon.com/Flameless-Battery-Operated-Realistic-Flickering-Electric/dp/B07DN39C5J/ref=sr_1_1_sspa?keywords=led+candle&qid=1670099729&sr=8-1-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUExSFQwUjlaRkZBRVJaJmVuY3J5cHRlZElkPUEwNDYzMDAzS1A0TUNSTUs2NjFSJmVuY3J5cHRlZEFkSWQ9QTA5NDc5OTgzTVEyR01aVVFHWFdaJndpZGdldE5hbWU9c3BfYXRmJmFjdGlvbj1jbGlja1JlZGlyZWN0JmRvTm90TG9nQ2xpY2s9dHJ1ZQ==)

Make or invent your own LED option
Here are some options I have come up with but truly any led would do!

LED Candle Flicking Lights - [https://www.amazon.com/gp/product/B0785G1SBP/ref=ppx](https://www.amazon.com/gp/product/B0785G1SBP/ref=ppx)
Battery - cr2032 battery holder - [https://www.amazon.com/gp/product/B07Z7R49J6/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1](https://www.amazon.com/gp/product/B07Z7R49J6/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1)

ESP and WLED project - [https://kno.wled.ge](https://kno.wled.ge) - [https://kno.wled.ge/basics/install-binary/](https://kno.wled.ge/basics/install-binary/)

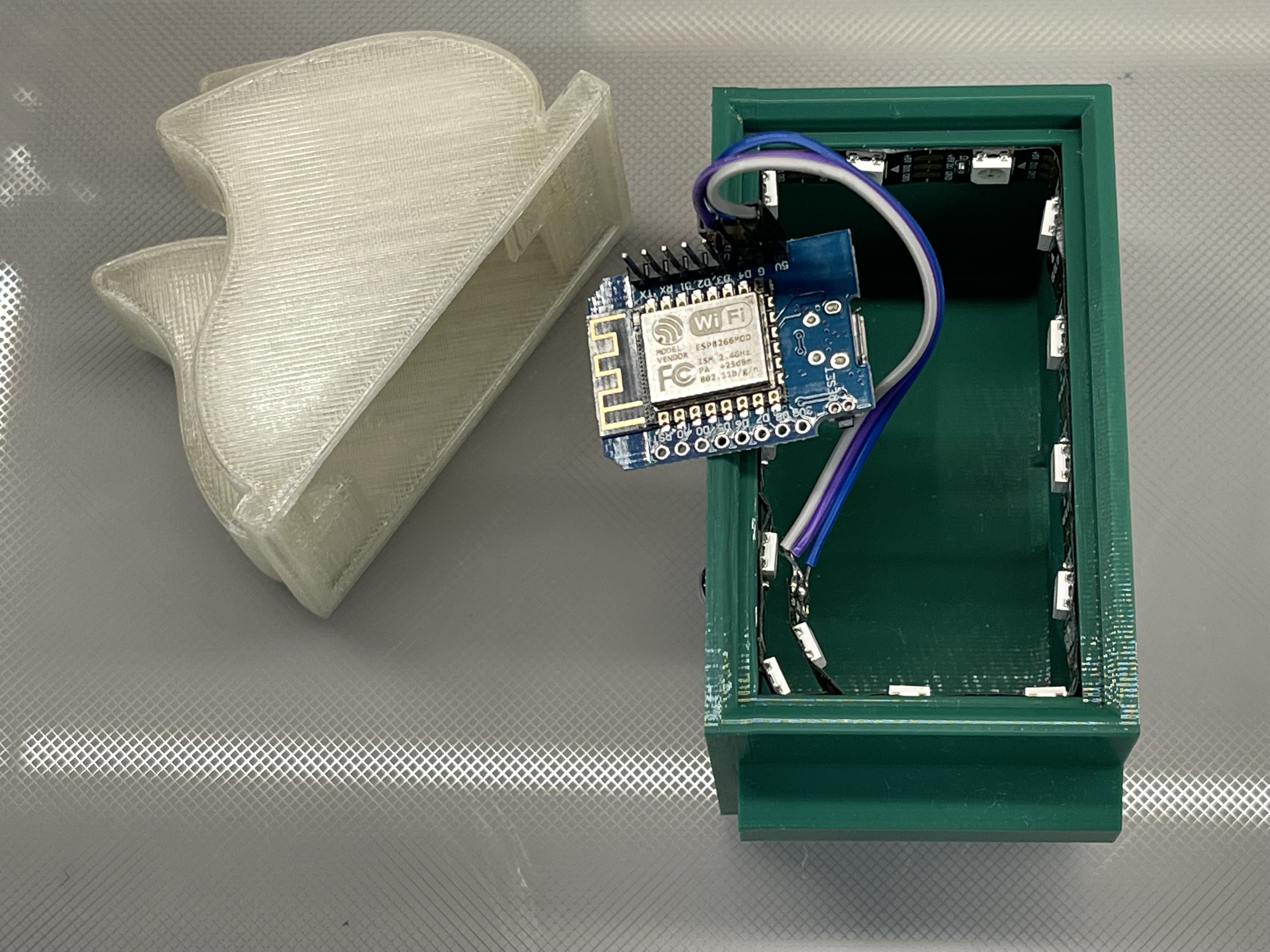

ESP - Any ESP8266 will work, I used a WEMOs D1Mini - [https://www.amazon.com/gp/product/B0B4D7BQHV/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1](https://www.amazon.com/gp/product/B0B4D7BQHV/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1)

WS2812B addressable LEDs - [https://www.amazon.com/gp/product/B088BPGMXB/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1](https://www.amazon.com/gp/product/B088BPGMXB/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1)

You can wire directly to the D1Mini for 5V by standard micro usb adaptor. I only used 14 addressable LEDs on mine, but you could add more.

ESP and WLED is an easy way to run your LED projects. There are many walkthroughs on getting started on you tube. Check our DrZzs Channel - [https://www.youtube.com/@DrZzs](https://www.youtube.com/@DrZzs)



Printables

Dumpster Fire with LEDs

Publicado em 3 de dez de 2022

141
Curtidas
218
Downloads
8
Impressões
Categoria Electronics
Tags
led fire esp8266 ws2812b esp32 wemosd1mini d1mini ws2811 cr2032 ledlight wled dumpster
Licença Creative Commons — Attribution
Arquivos (6)
Dumpster.stl 78.6 KB
Fire.stl 252.2 KB
Dumpster.3mf 97.7 KB
Dumpster_Fire.3mf 83.2 KB
Dumpster-170percent.3mf 59.2 KB
Dumpster_Fire-170percent.3mf 90 KB
