DISCLAIMER: I have no pets or children, use discretion in how you use mouse poison!

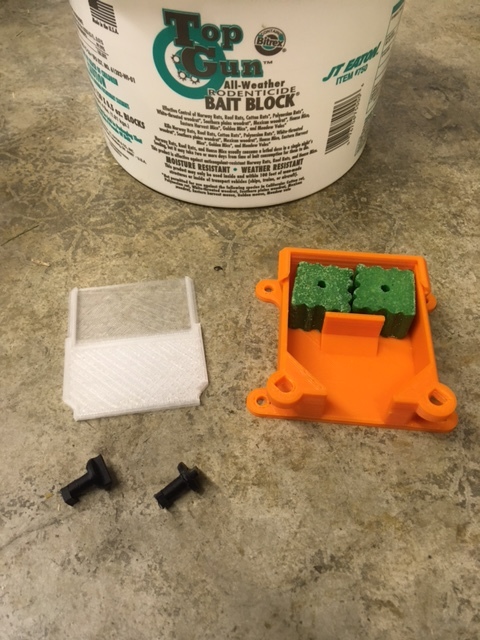

Here is a small mouse bait station that can hold 2 Top Gun mouse bait blocks. It consist of a cover a box, a lid and two pins (Print 2 per station) that secure the lid to the box. To assemble the station, slide the lid into the groves on the box and insert the pins into the holes on the top corner of the box. Turn the pins to lock once inserted.

There are also holes if you want to screw the station to a surface.

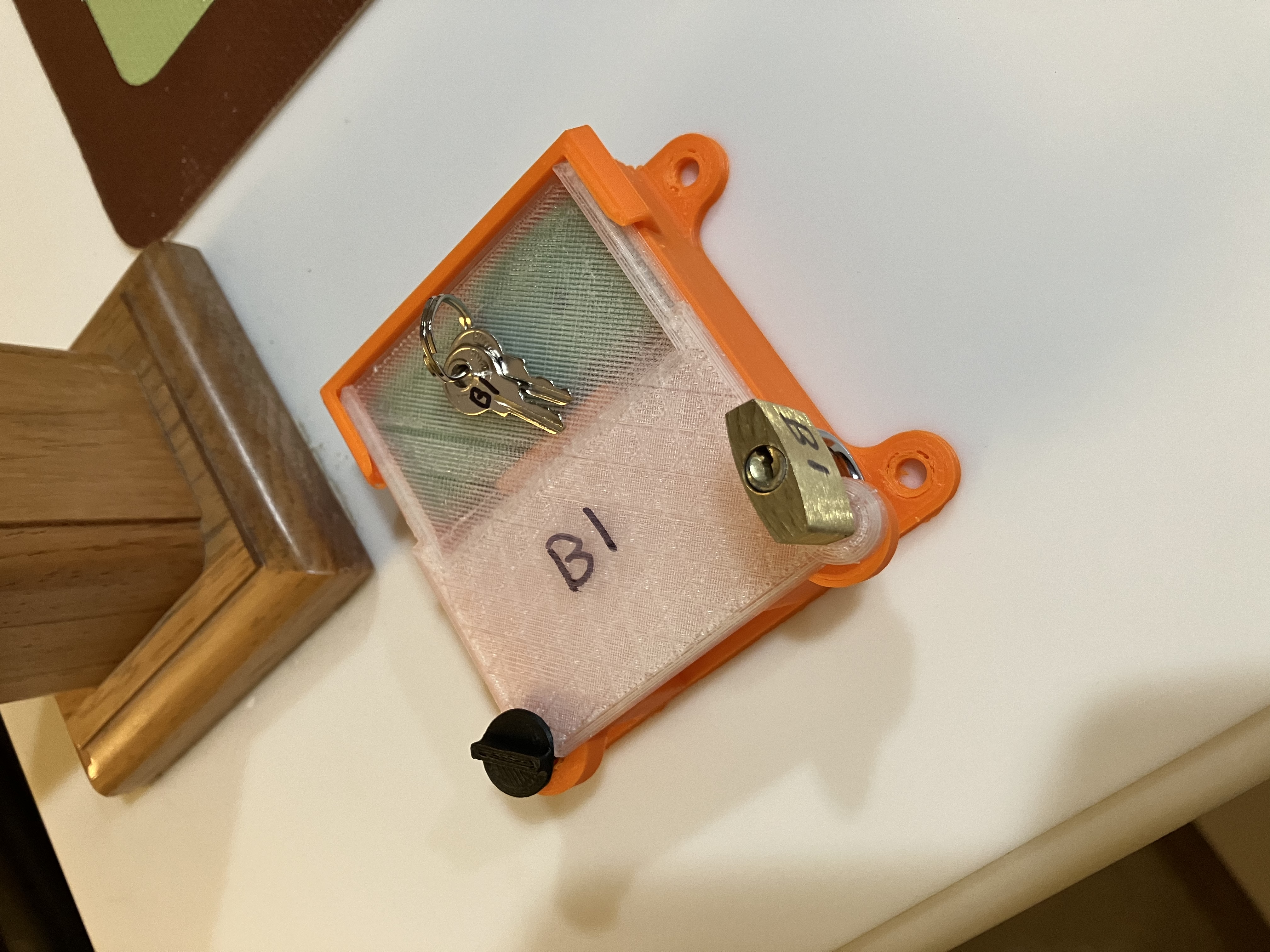

Update:  I’ve added a lockable lid for a luggage type padlock.  Of course this doesn’t prevent a determined person from breaking into it, but hopefully helps deter curious tampering.

Print Settings

Printer:

Qidi Tech 1

Rafts:

No

Supports:

Yes

Filament:

Polymaker Polylite ABS

Orange

Notes:

I also used Reprapper clear ABS for the lid and Sunlu black ABS for the pins.

Support is needed for the pins and the box where the pins get inserted. No support is needed for the lid.

Post-Printing

Just remove support

Category: Tools
