Stack versions of PRUSA PRO Face Shield
~ 1 h 35 min per pcs

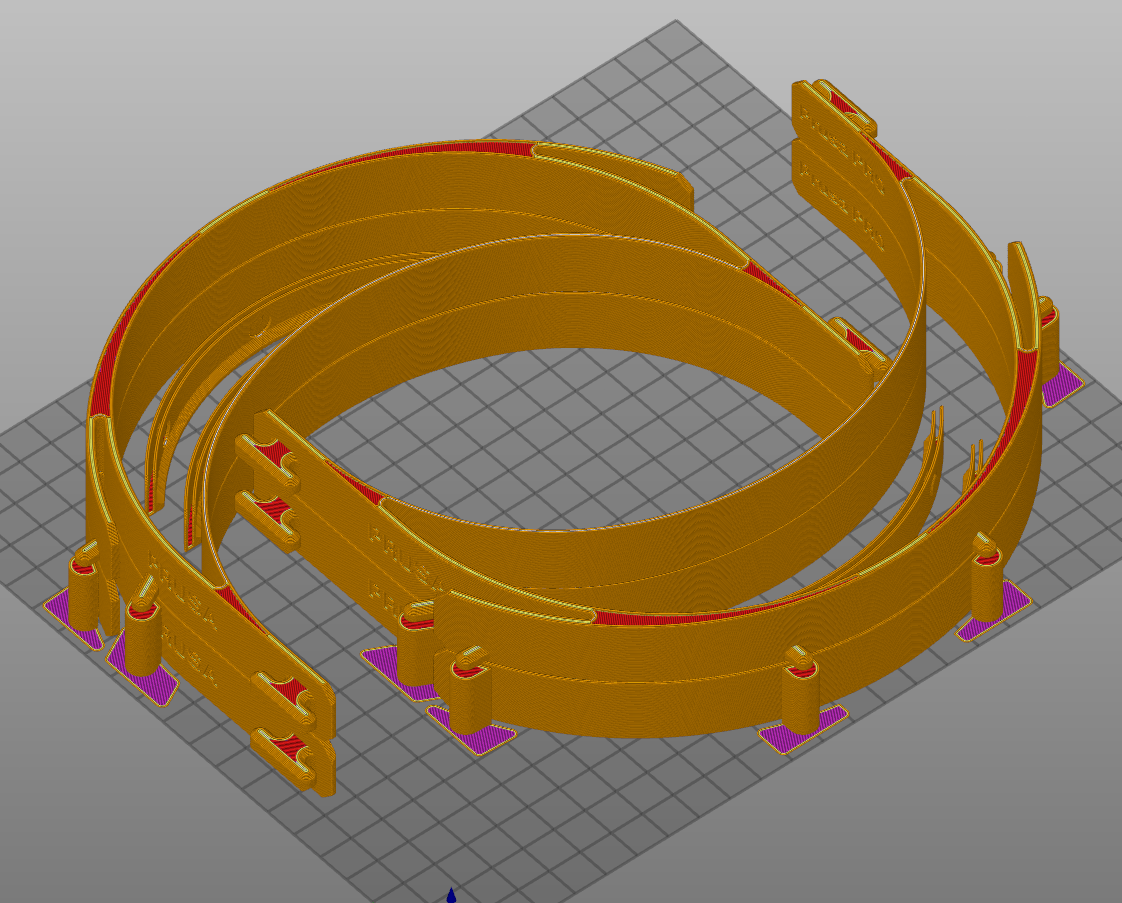

We provided two options, including reinforcement parts:

• 4 pcs on the print bed (2 stacks, each with 2 headbands)
• 8 pcs on the print bed (2 stacks, each with 4 headbands)

Product information: PDF including shorten assembly

Assembly manual: English version, Czech version

Useful links

• All about 3D printed Face Shields
• How to get a certification for face shields
• Visor drawing: PDF, DXF
• Single version of the PRUSA PRO Face Shield
• How to STERILIZE the face shields

Licence and selling of face shields
We share these files under non-commercial licence. It would be great if you donated these shields to those in need for free. If you need to cover your production costs, we are ok with you selling the shields for production cost. However, we do not want to see these shields on eBay for $50.

Print instructions

Supports are included in the model.
Print with at least 2 perimeters, and 5% infill. The model is optimized for a layer height of 0.25mm.

Print it from PETG, headbands from other material can be brittle with these print settings.

The printer will be running at increased speeds. Expect louder operation and make sure your printer is in good shape before running this G-code. Check the Maintenance guide.
