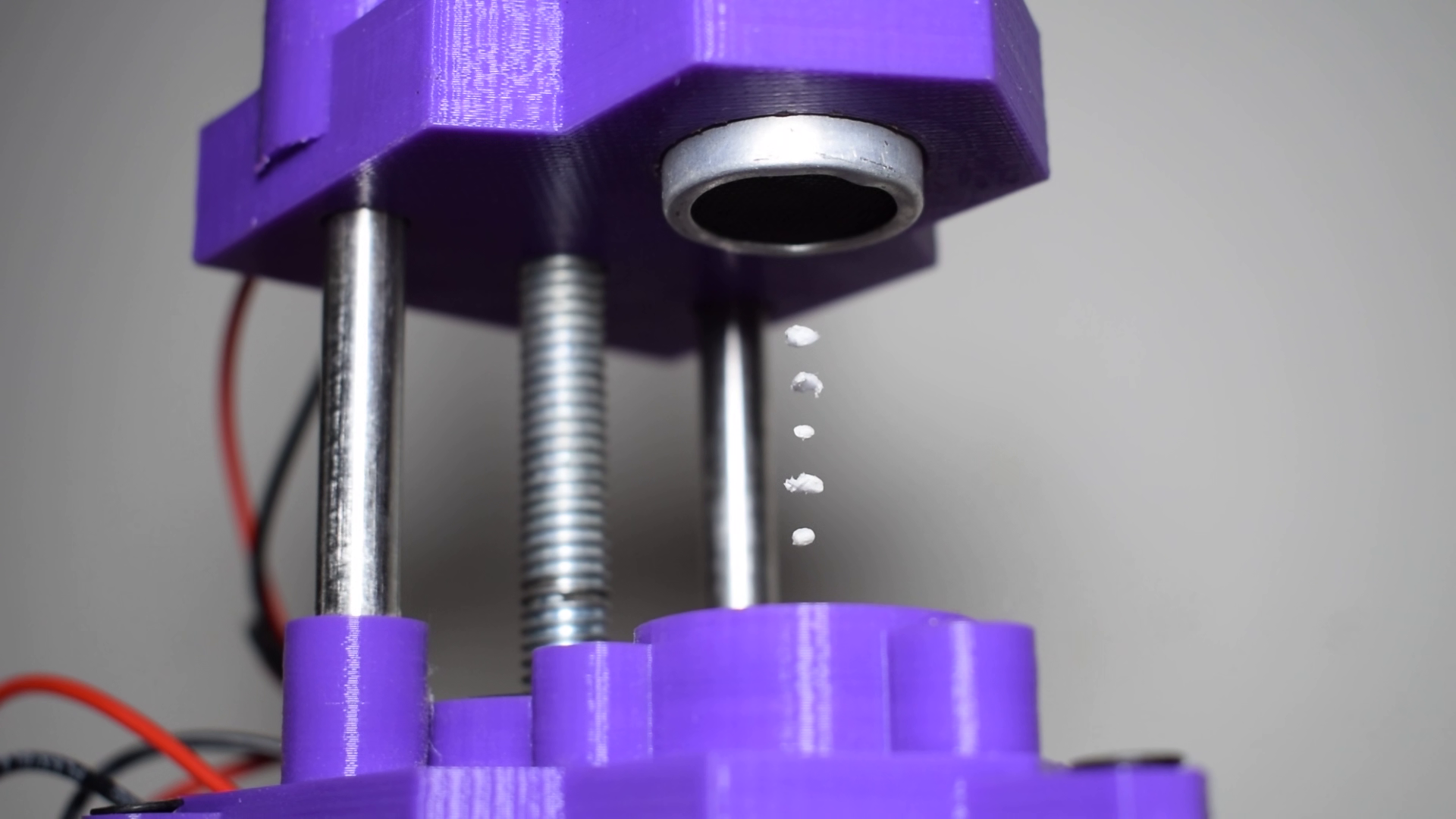

In this project I have designed and made an Acoustic Levitator.
For this project you need;
Lm8uu Linear Bearing (shorturl.at/nANTV)
6000zz bearing (shorturl.at/pvNOX)

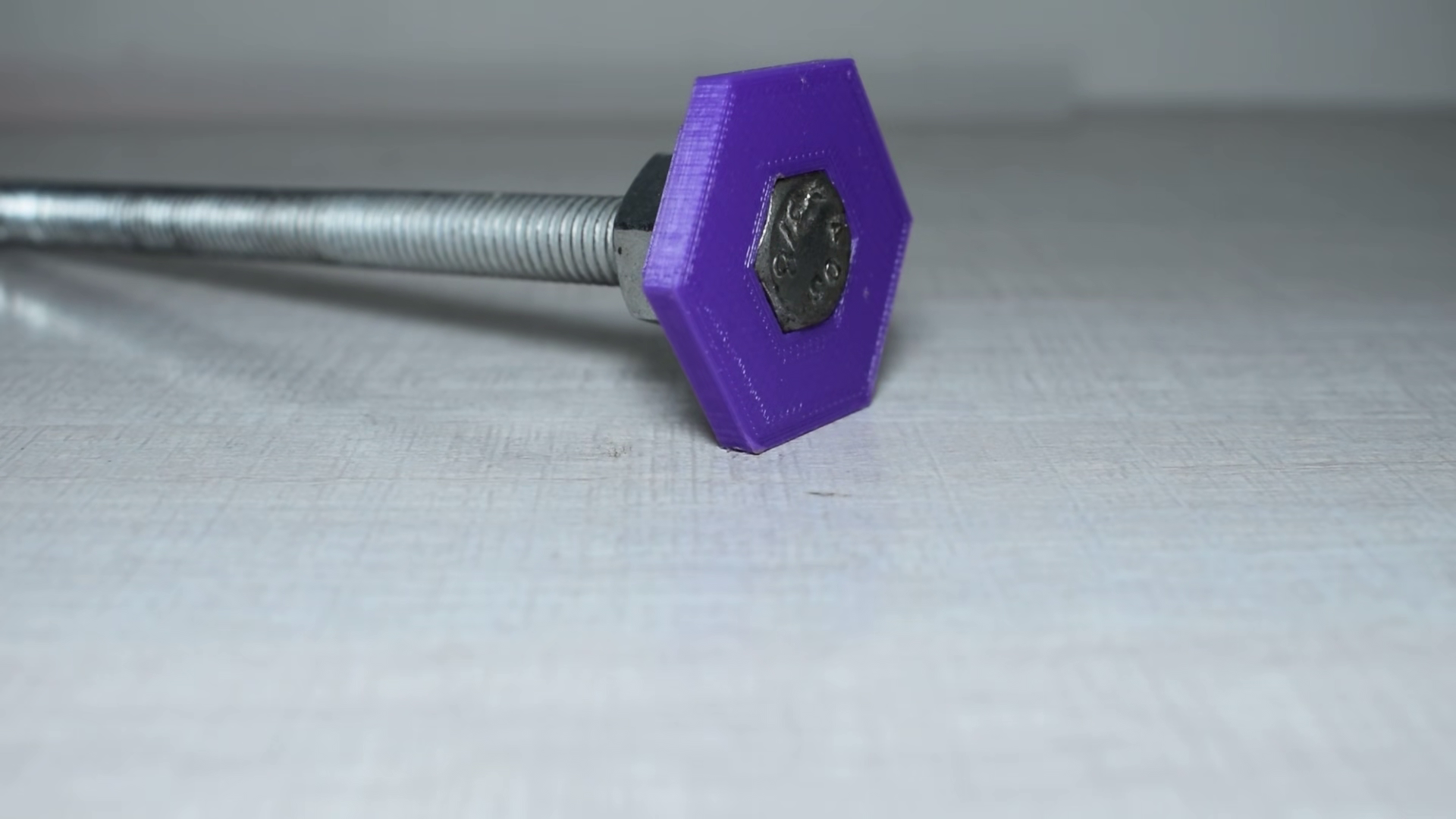

10mmX150mm long Bolt and Nut
Arduino Uno (Arduino Sketch is attached with the downloadable files)

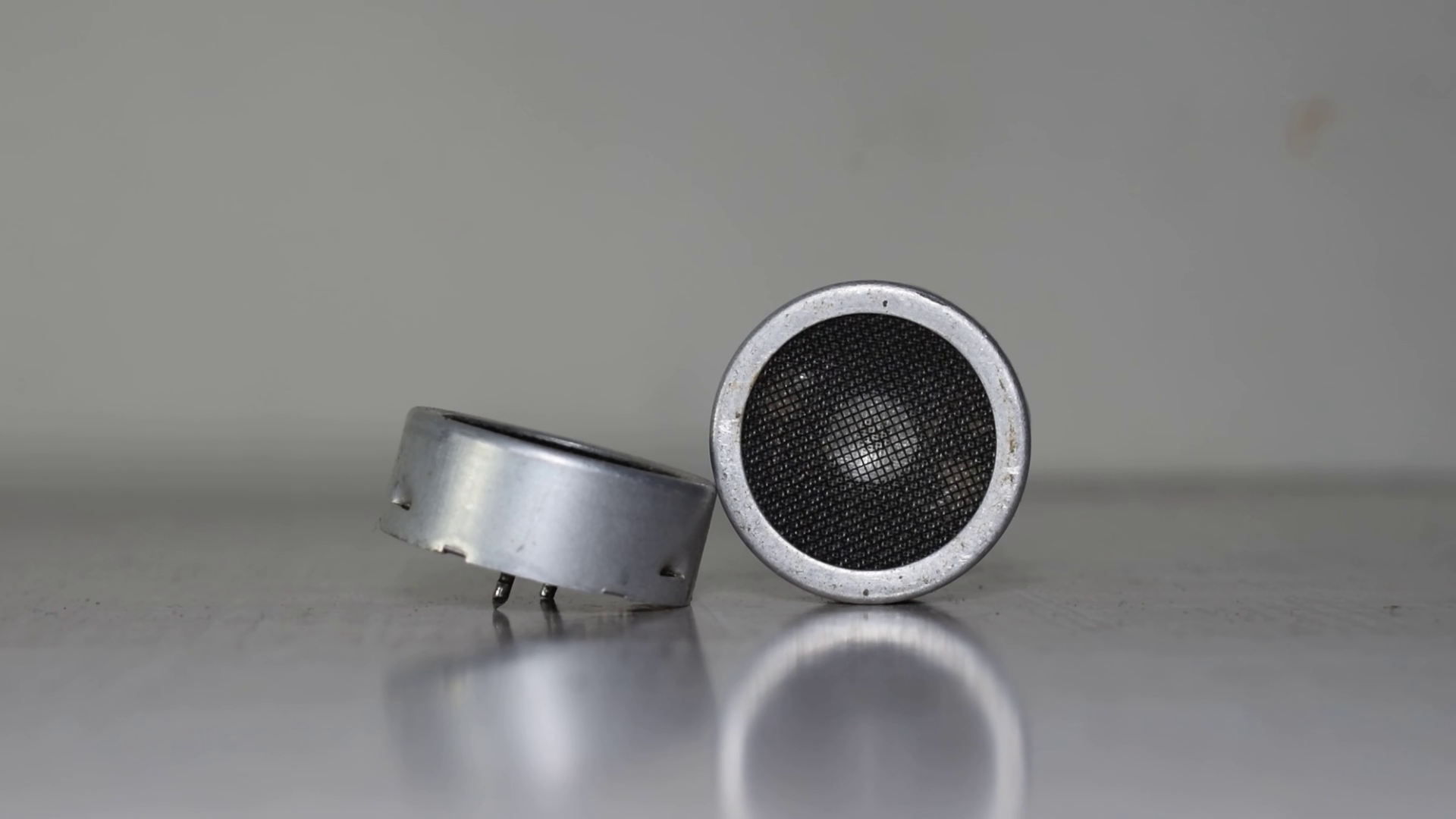

OC40K5 Transducer OR The Ultrasonics Sensor hc sr 04 Transducer(TCT40-16T)
Note: I have also attached another stl for the regular transducer, If you have a hc sr 04 Sensor just desold the transducer and use them. If you are using the regular ones than keep the input voltage upto 20 volts)
L298D Motor Driver Module
Boost Module 3-32V 4A XL6009( I tuned mine to 30volts)
Lots of Jumper wire
150x50mmx19mm 2 pieces of Plywood(You can us a box if you want I was being lazy to design a box for it so I just kept it open)
I have also attached the schematic, I took the idea from this article(
[https://www.instructables.com/id/Mini-Acoustic-Levitation/](https://www.instructables.com/id/Mini-Acoustic-Levitation/)
) and I have added a boost converter for more power.
Support me by subscribing and watch the video.

Print instructions

Print Settings
Printer brand:
Creality

Printer:
Ender 3

Rafts:
No

Supports:
Yes

Resolution:
0.16

Infill:
50

Filament_brand:
PLA

Filament_color:
Purple

Filament_material:
PLA
