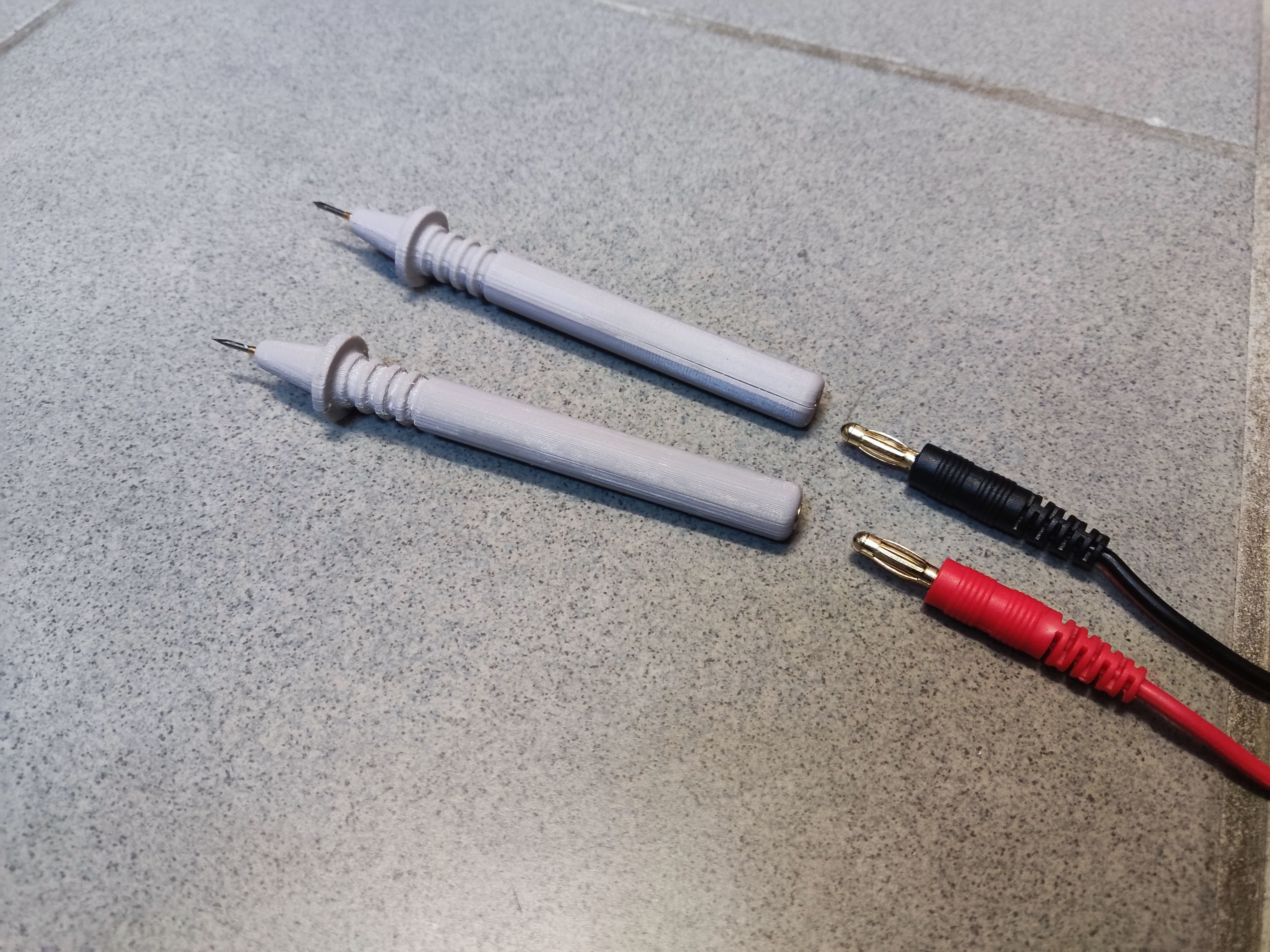

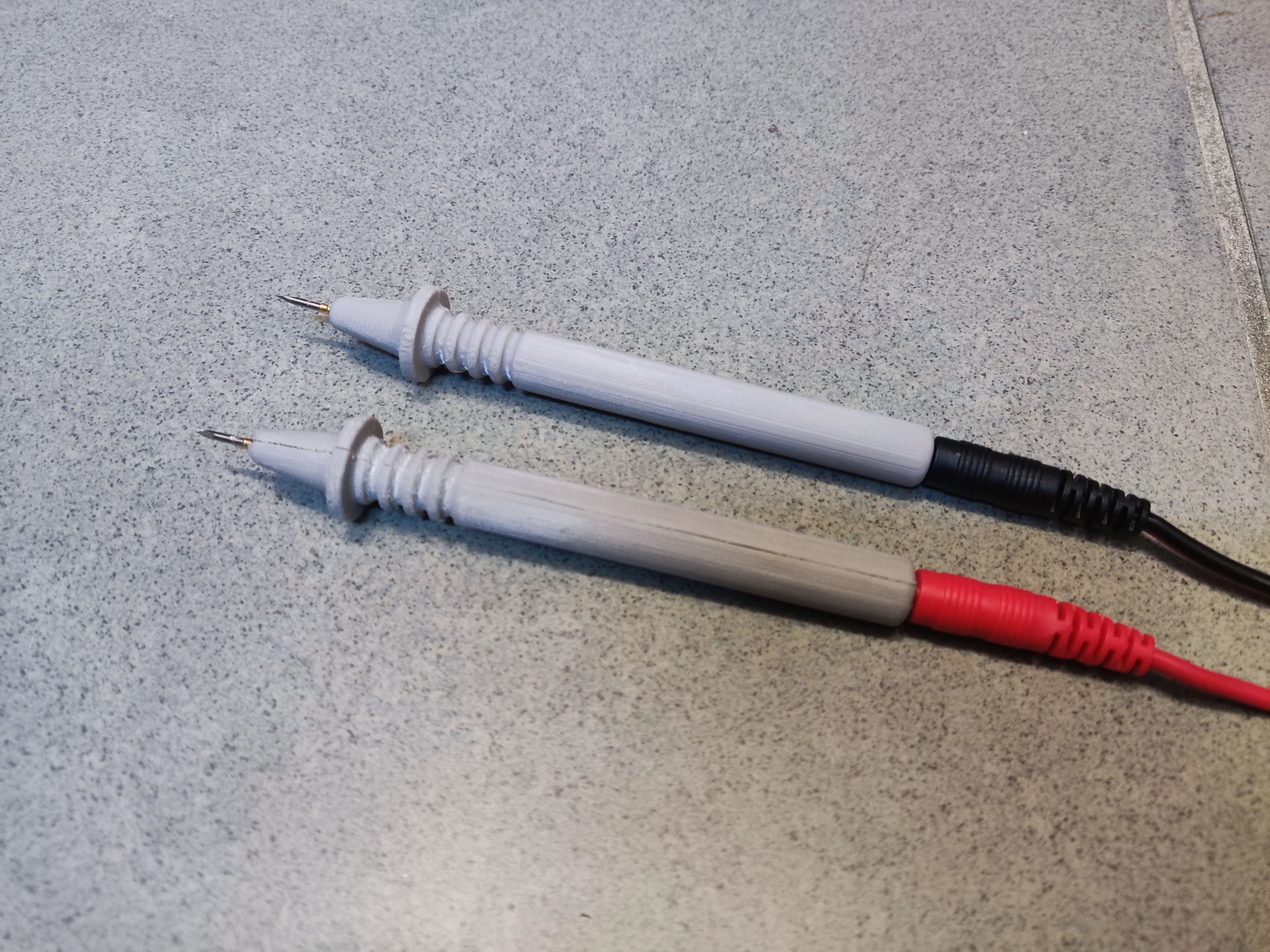

For measuring in tight spaces and small SMD components I wanted some spring loaded probes with detachable cables. So I designed these around some PCB test pins.
Required hardware:
- pogo pins/test pins: like GKS-912 291 130 N 3005 C, 1.65mm shaft, 35mm long, might also work with P75-B1 pins
- connectors: 4mm connectors
Available Files :
- probe: entire probe, for modifying it by yourself
- probe_half: file for printing, glue the wire and connector/pin into one half, glue other half on top
Printing Instructions
- Prusament PETG Urban Grey
- layer height 0.15mm
- No raft
- No brim
- No support
Feedback Appreciated
Please give feedback and post your makes.
Printables
Spring Loaded Multimeter Probe for SMD Components
Publicado em 27 de nov de 2022
6
Curtidas
51
Downloads
Categoria
Electronics
Tags
measure
spring
probe
multimeter
electornics
Licença
Creative Commons — Attribution — Noncommercial
Arquivos (2)
probe_v10.stl
559.3 KB
probe_half_v10.stl
296.3 KB
