I want the vacuum robot to be able to go below the kid's bed.

So here is my solution:

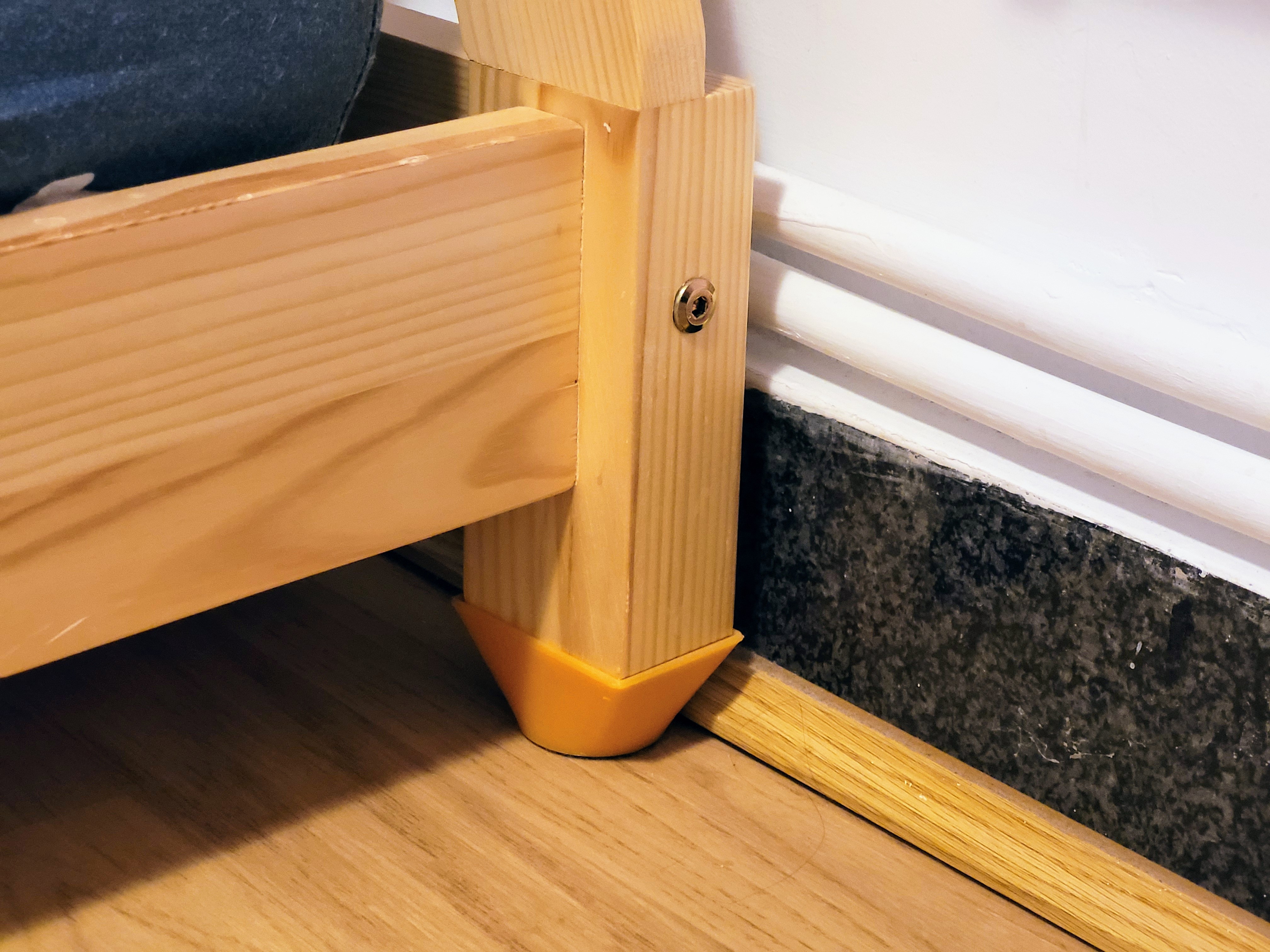

• Rising the bed by 27mm with the 3D feets + couple of millimeters from the felt patch

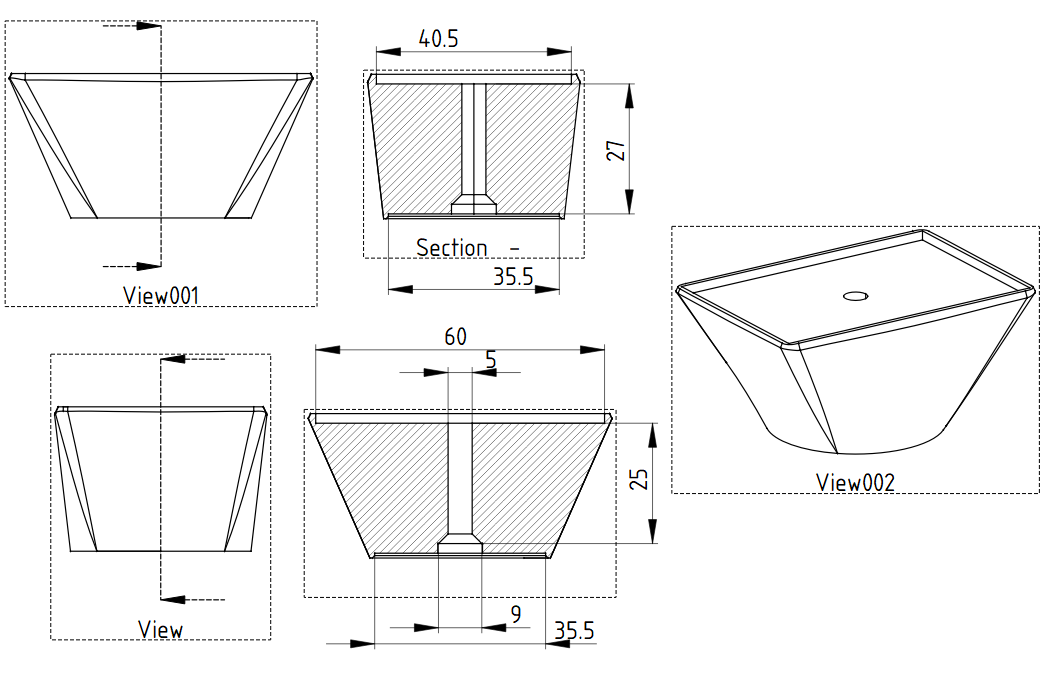

  • feet are designed for a 60mm x 40mm rectangular wooden feet (see pictures)

  • Felt diameter needs to be D35mm or below

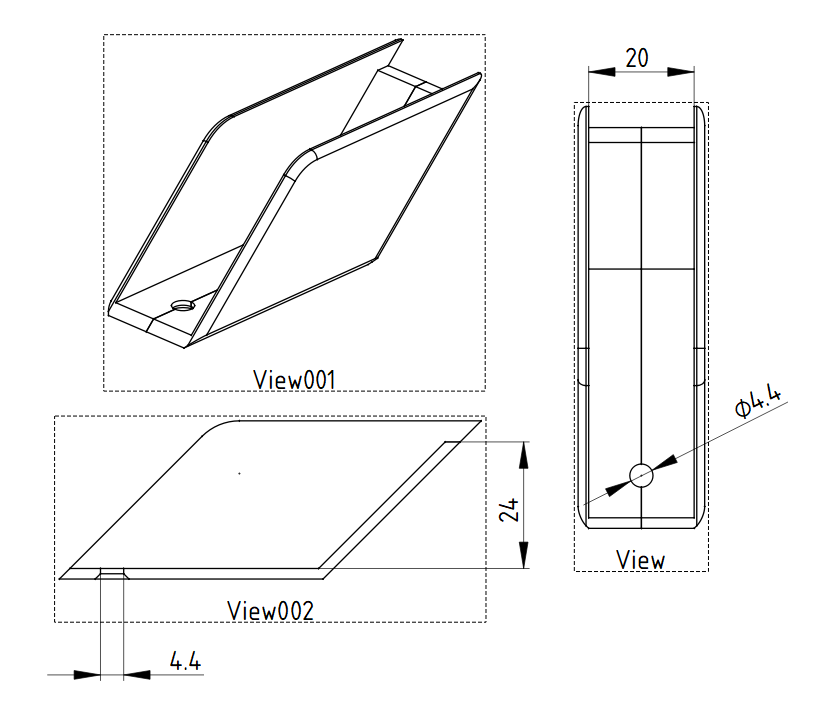

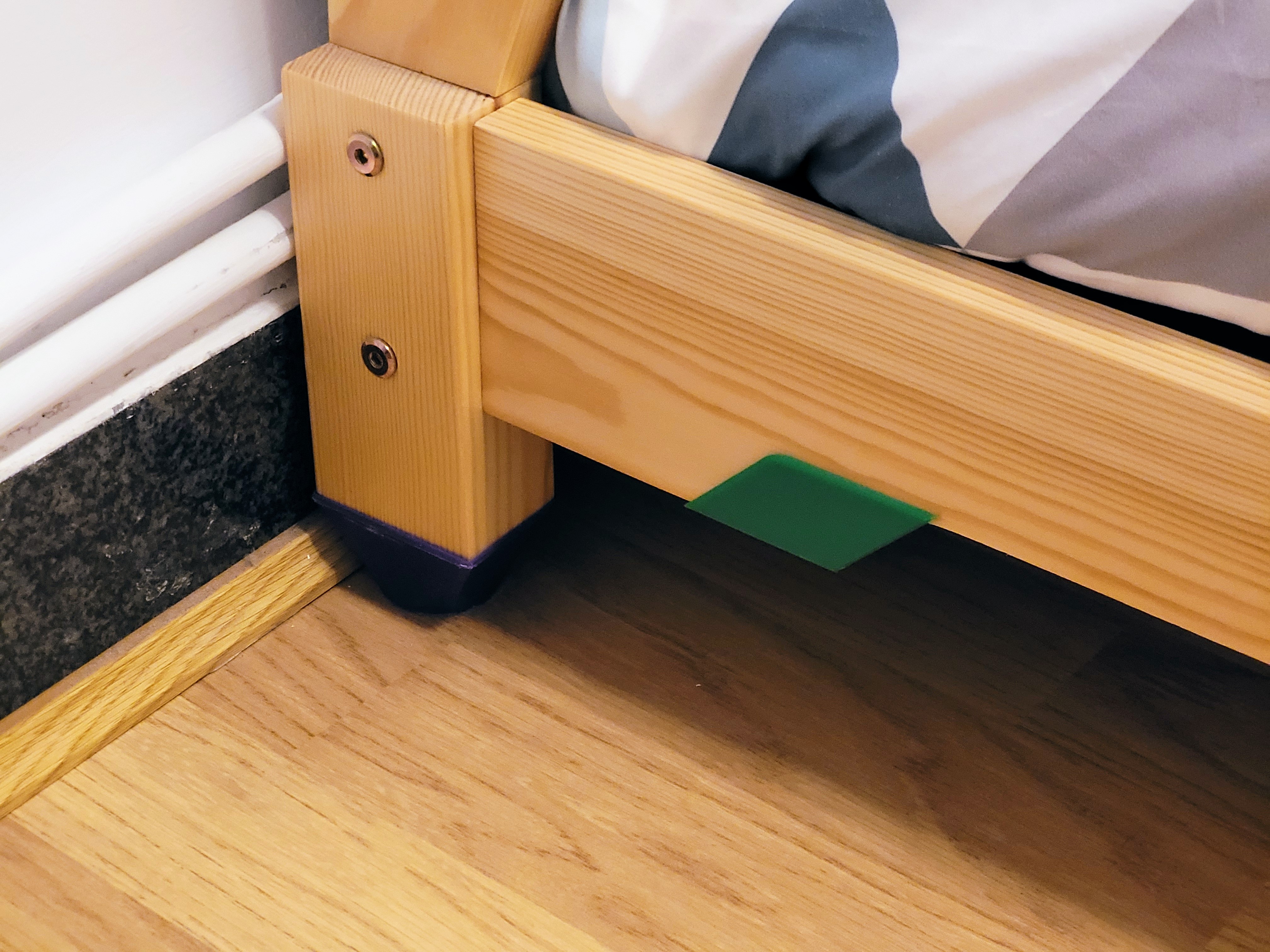

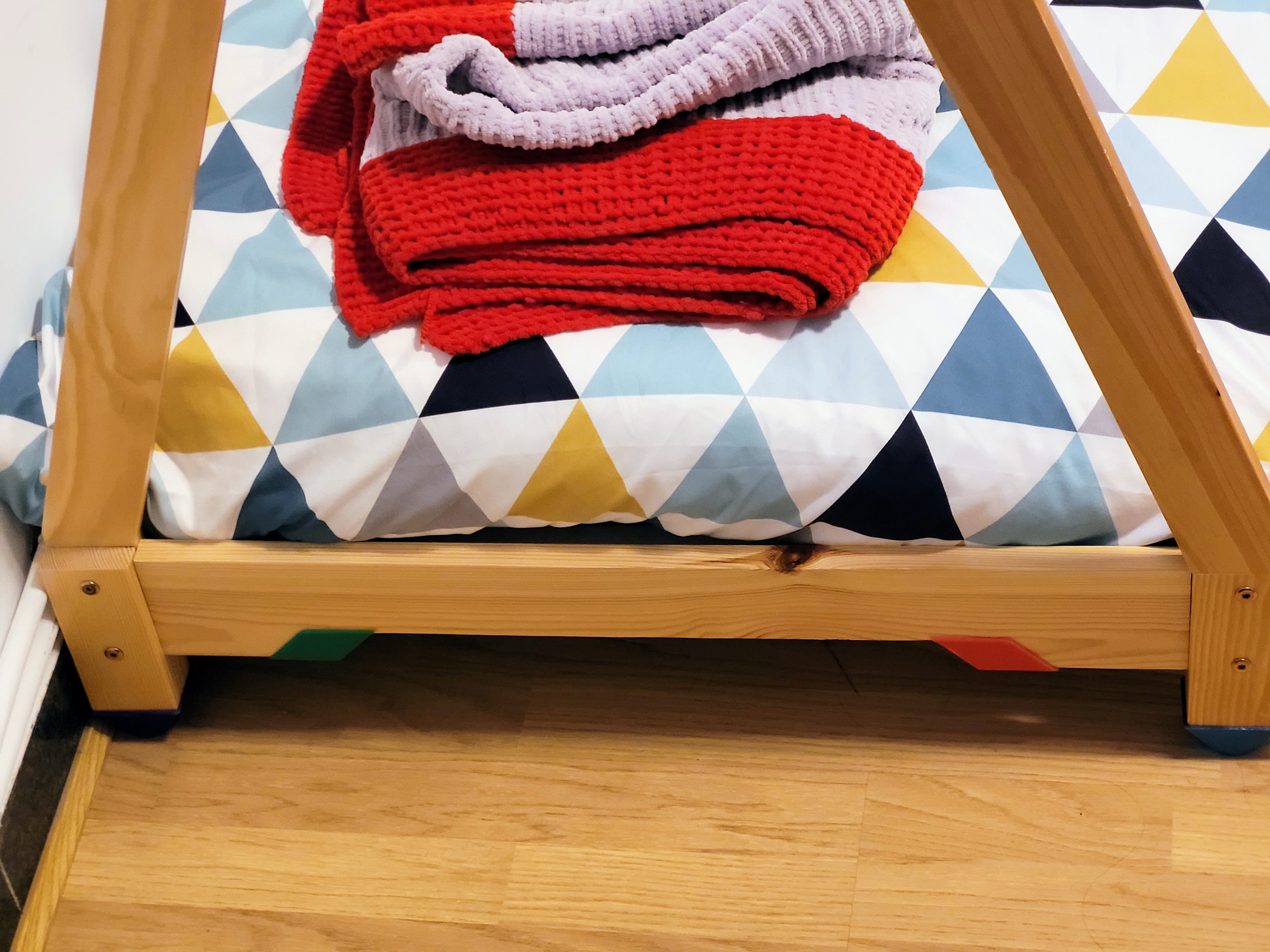

• Cutting about 25mm of wood on one of the side of the bed with a jigsaw and then hiding my crime with a custom piece.

That give an additional ~5 cm to the robot to go below the bed, given that the original feet where about 5cm too.

Most robot are about 10cm high. I have a roborock (see picture)

Print:

• Advice: Make the feet strong !

Assemble:

• Screw the feet in place with a wood screw (length 30mm or more - Diam 5mm or below)

• Stick the felt below the feet (D35mm felt of below)

Seems a bit specific but I hope it helps someone !
