Descrição

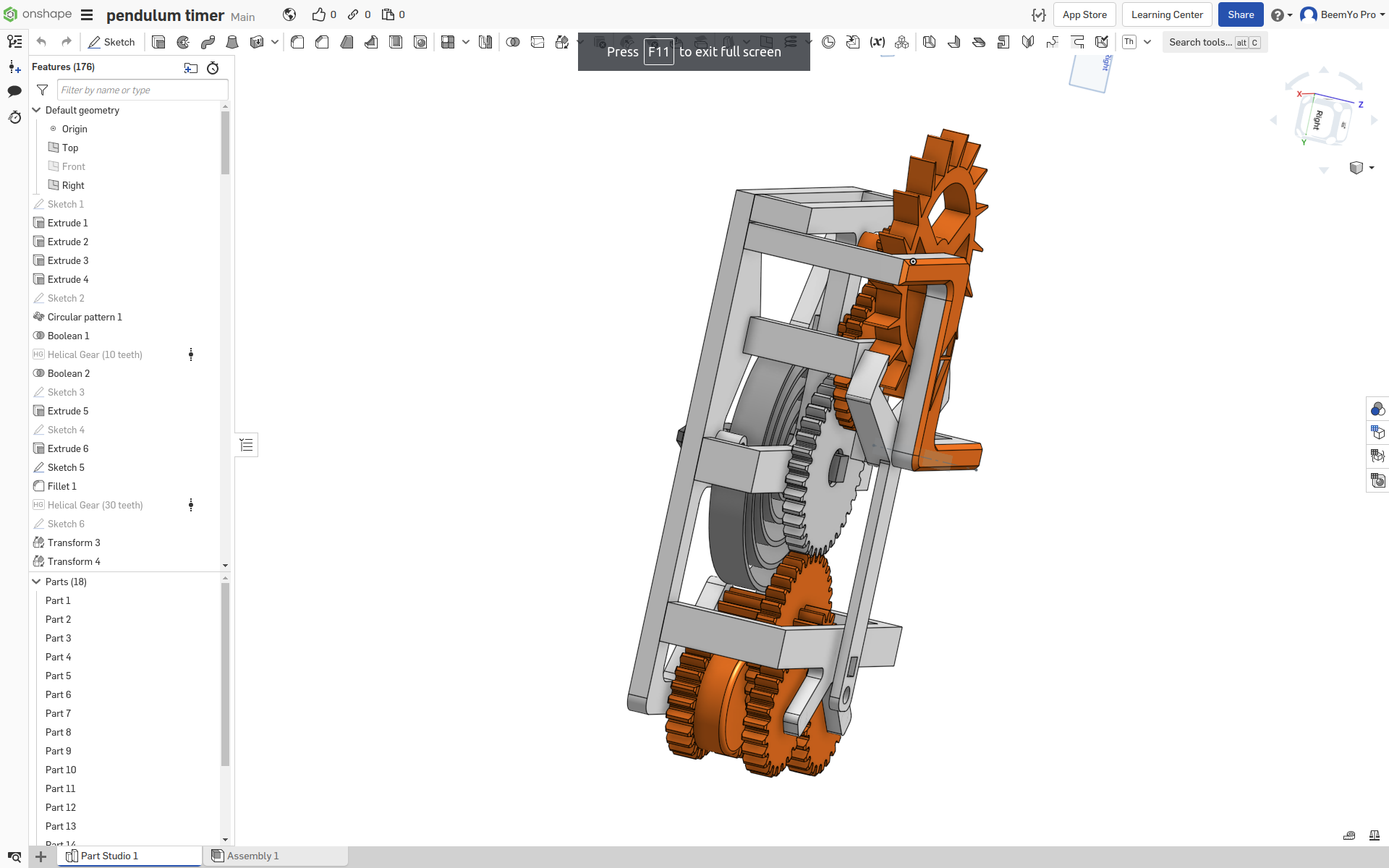

This is a pendulum clock that uses a graham escapement together with a winding mechanism and a moving mechanism. To print this print all the parts and put them together from bach to front. For assembly you will need 5*2 disc magnets or glue. and ether printed or metal dowel pins and a few M3 self threading countersunk screws (>10mm and <20mm). Add a weight in the basket. If you have trouble with tolerances I will make a new version for you with looser tolerances. This is about a 12H print job. This is an actual working model that has a consistent bpm
Print Settings
Printer Brand:
Creality
Printer:
Ender 5
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
200
Infill:
20
Filament: real filament PLA and PETG Orange and white
Notes:
Use petg for the spring and ratchet. You will only need support for file "part 10"
Category: Mechanical Toys
