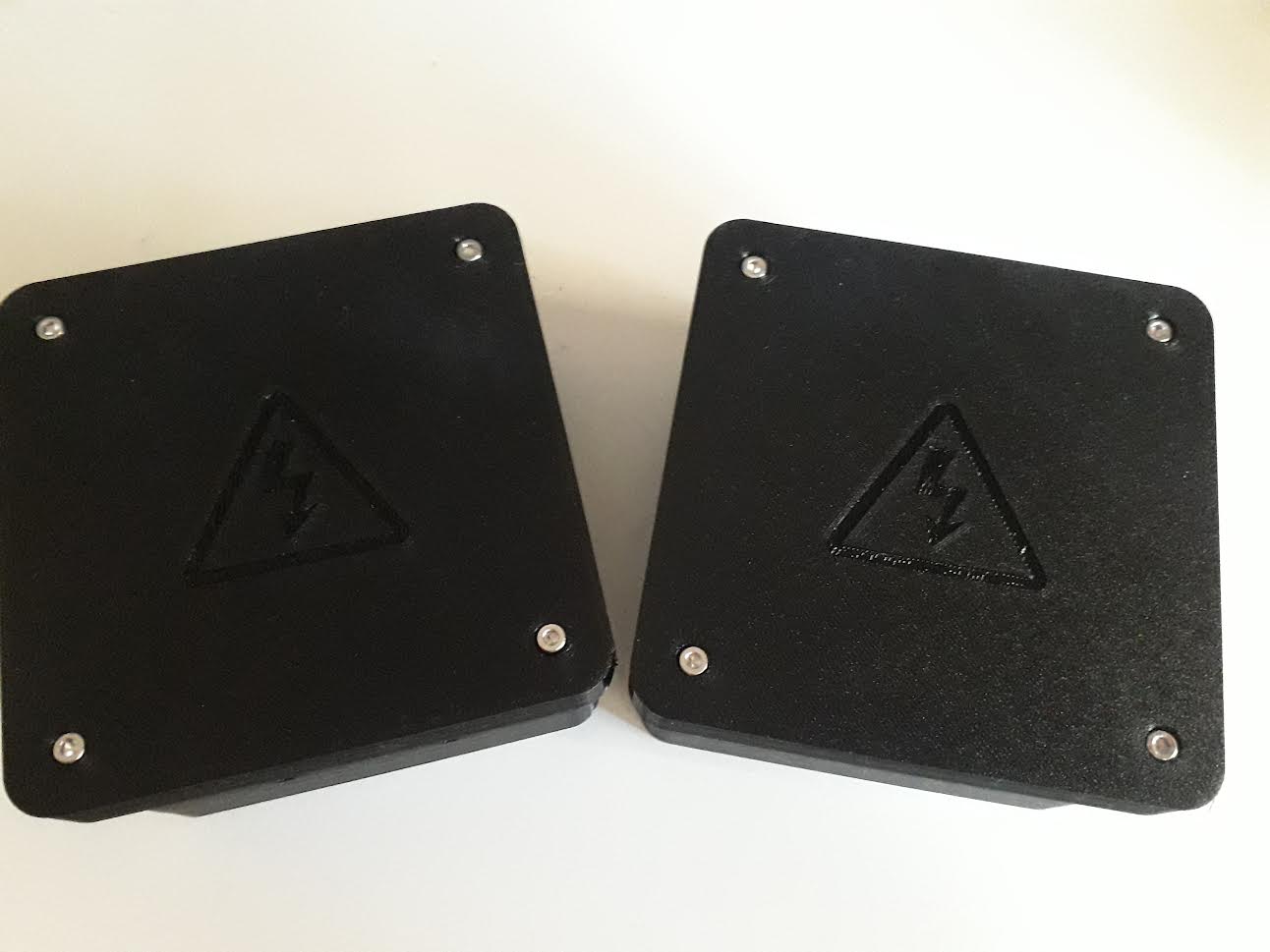

Modelo 3D Electric Junction Box por Heine Sørensen no Printables

Descrição

Se below for update (V5)

For this model you will also need 4x M3 heat brass inserts and 4x M3x12 hex screw

I print mine in PETG 0.4 nozzle 0.3 hight 3 layers and 25% cubic infill

Drill the holes with a step drill as needed on work sight, all are pre marked for easy drilling

Pro tip : Mount ziptie in anchor before you work with the wires , easy to complete job and fasten the ziptie in the end of the work to tough down the wires , and makes easy to fit the lid.

UPDATE: Also added a other model my version 5 hence V5 , faster print time, big cut out in the rear, and sligtly lower casing and a lid with chamfer on all edges for a better feel, lid will fit the older casing also.

Enjoy !

Printables

Electric Junction Box

Publicado em 21 de abr de 2024

142
Curtidas
1,152
Downloads
8
Impressões
Categoria Other House Equipment
Tags
box cable wire cableorganizer junctionbox junction harness eletrical eletric junctions
Licença GNU General Public License v3.0
Arquivos (4)
Junctionbox Lid V1.stl 313.9 KB
Junctionbox V1.stl 475.5 KB
Junction box lid V5.stl 327.8 KB
Junction box V5.stl 444.8 KB
