Modelo 3D Sonoff mini case with mx switch button por ProtoxiDe22 no Printables

Descrição

A simple 2 parts snap case for a sonoff mini r3 (which should also work for r2 and original mini), which includes a mounting hole for a cherry mx switch to control the relay

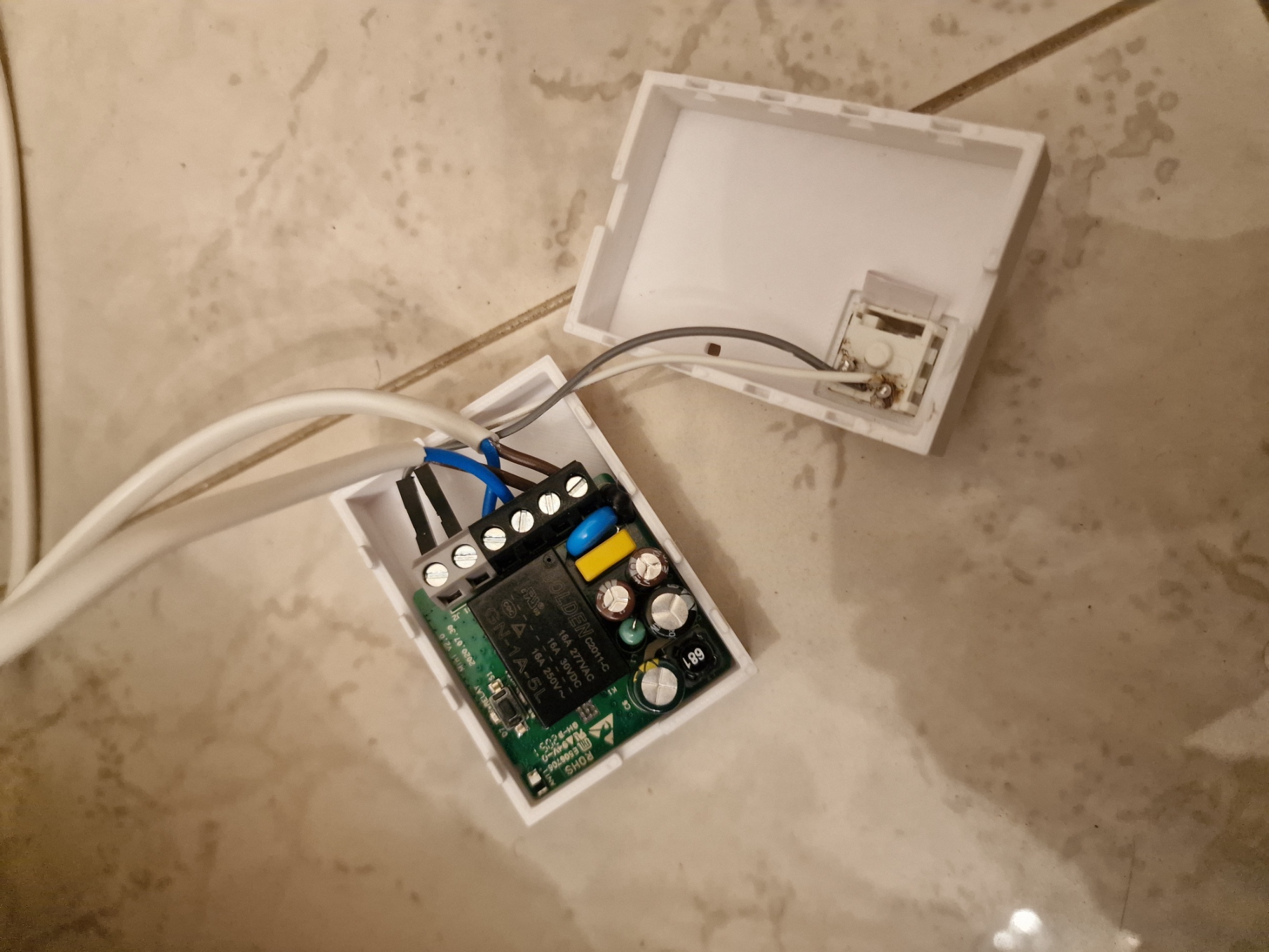

The case is designed to completely isolate the smart relay without leaving terminals exposed, so that you can use it inline with an appliance power cord safely. Just remove the relay's original case and put the pcb in the 3d printed case, pop in a cherry mx switch, wire the relay and close everything up.

When printing from the step file you'll need to separate the model in objects and orient the 2 parts independently.

Printables

Sonoff mini case with mx switch button

Publicado em 16 de nov de 2022

5
Curtidas
27
Downloads
Categoria Electronics
Tags
mx cherry sonoff cherrymx
Licença Creative Commons — Public Domain
Arquivos (1)
sonoff mini 3.STEP 355.1 KB
