A keystone jack to hide the hole in your patch panel if you're passing a SFP+ module (or other cable) through one of the keystone slots.

The center hole is 4.75mm in diameter, but there are .f3d and .step files available if you have a thicker cable or need a larger hole for another kind of cable.

Usage

1. There is an overhang in the hook slot on the left and right printed parts. Clean up with a knife if required. This is not visible when installed, you just need the hook to fit.
2. Pass the SFP+ module through the keystone hole of your patch panel

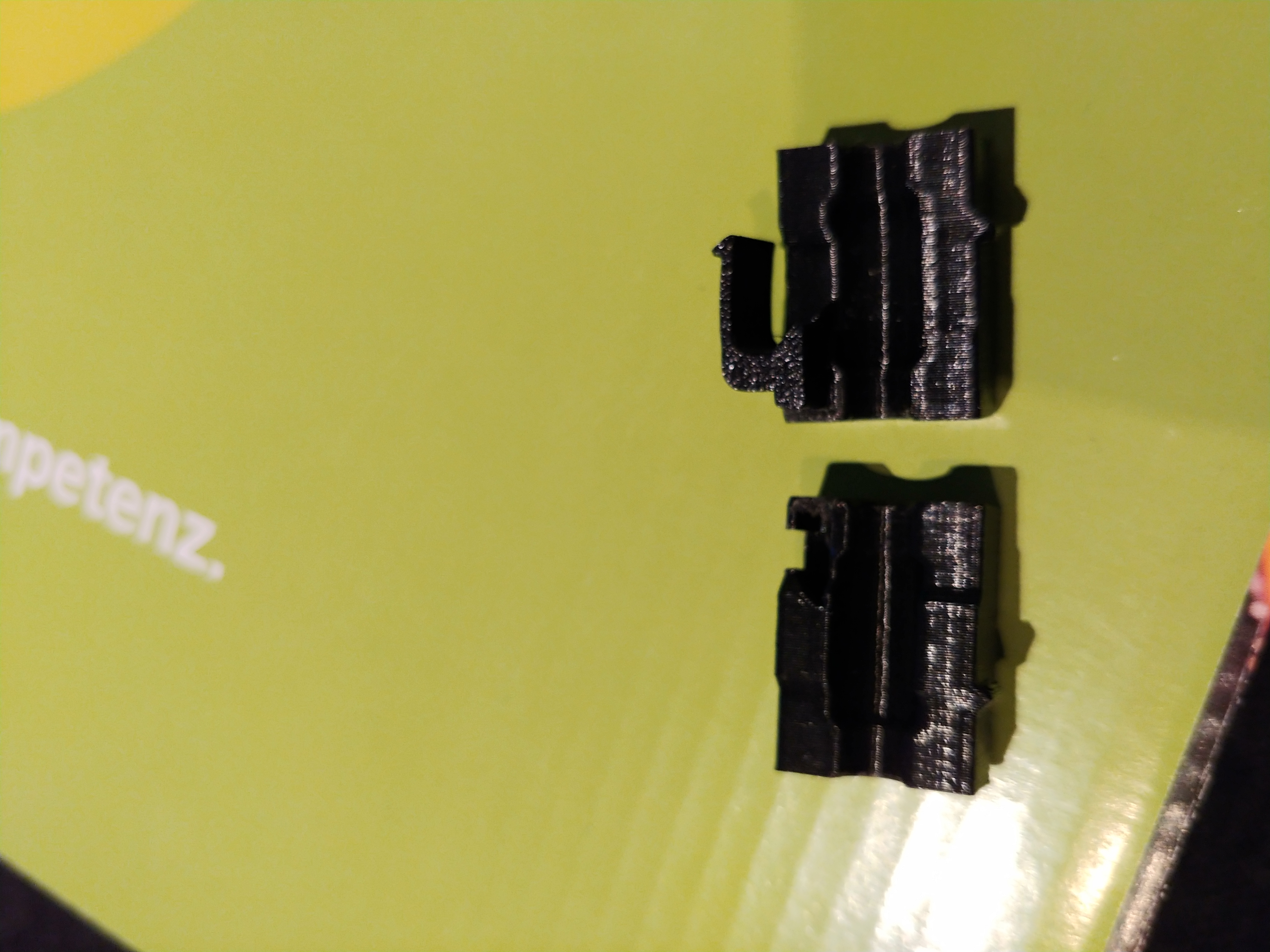

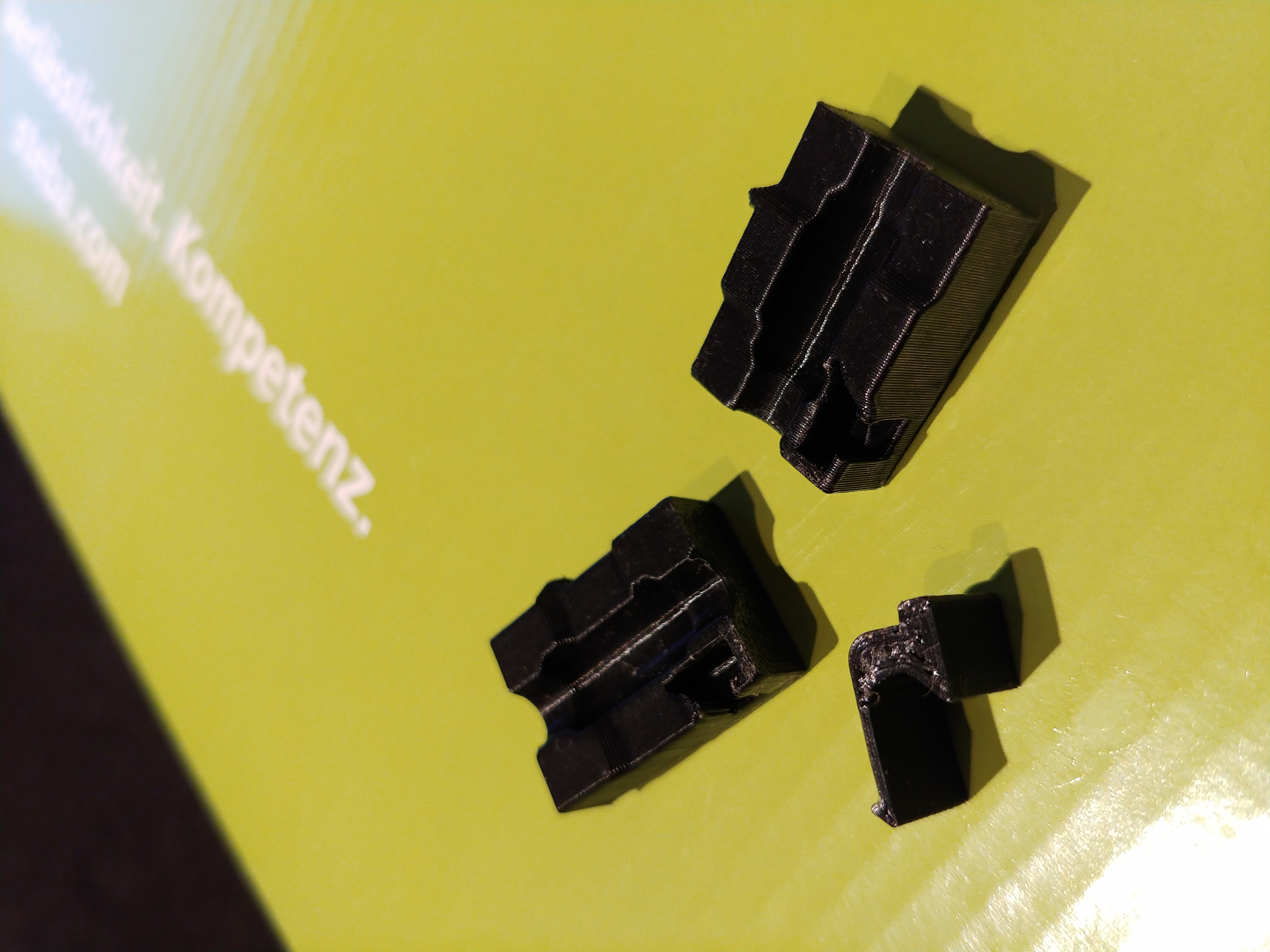

3. Insert the printed hook in the left or right printed part
4. Connect the left and right printed parts with the cable going through the slot in the middle

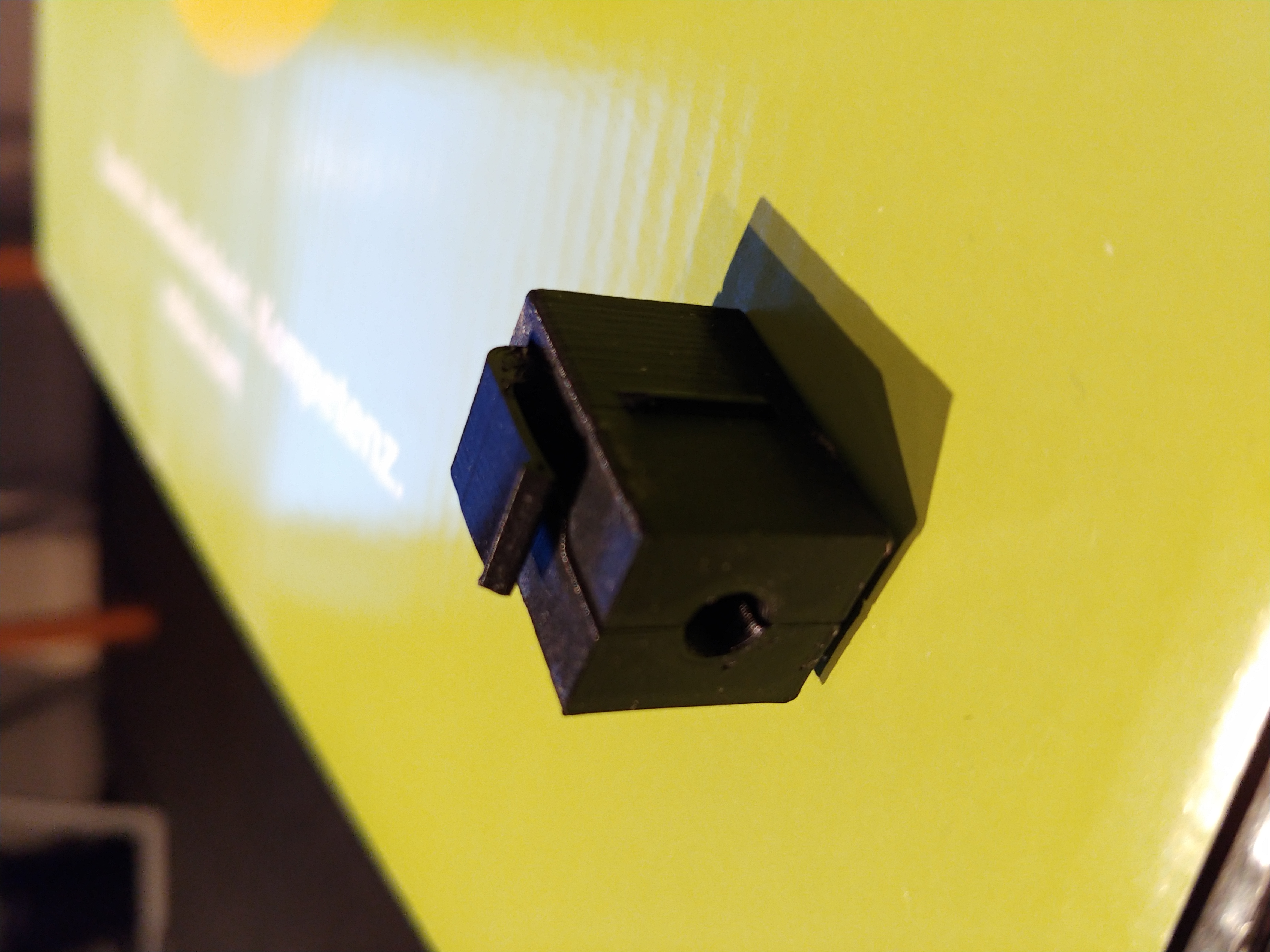

5. Click the keystone jack into your patch panel

Printing Tips

• Do not rotate the parts
• No support required
• Use low infill to save plastic
• The sides are not visible, so use big layers to save time
• Try ironing for a smooth look on the visible surface
