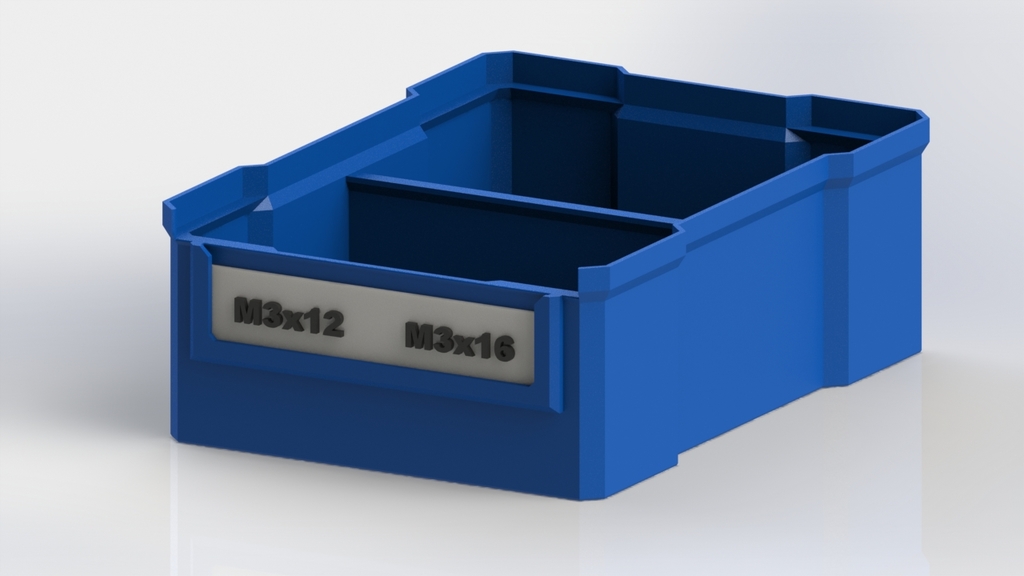

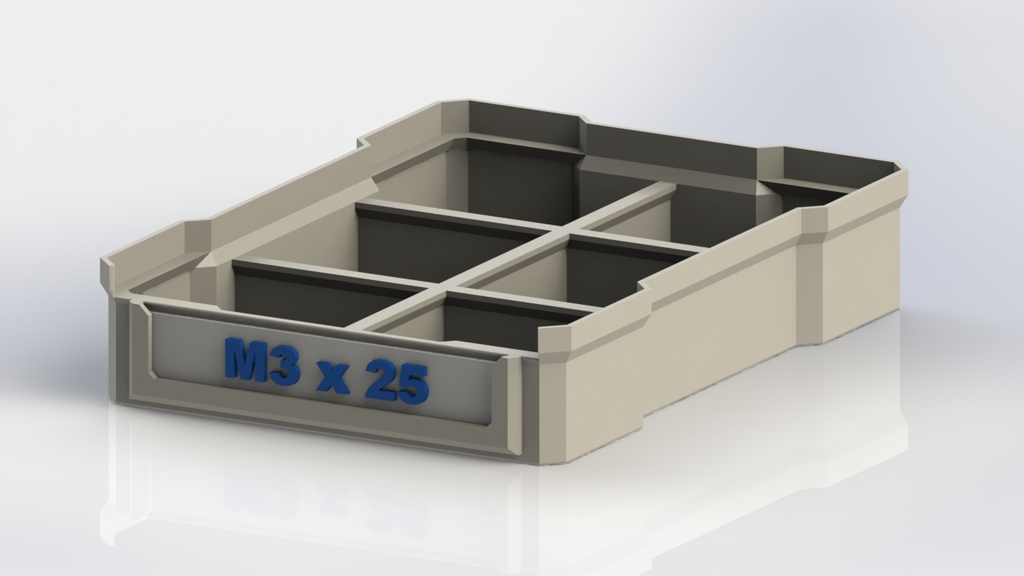

Stackable Boxes with Front Labels Set

This set was designed in principle to give utility to recycled PET filament from bottles and at the same time, organize screws, nuts, washers and accessories in the workshop.

Was inspired in a mix of "Stackable boxes with labels (some labels included)" by SiriusFog ([https://www.thingiverse.com/thing:4407580](https://www.thingiverse.com/thing:4407580)) and "Full set of stackable boxes (three heights, tops and trays)" by stenokit ([https://www.thingiverse.com/thing:4741908](https://www.thingiverse.com/thing:4741908)).

Some used labels and a base STL were included, to which you can simply add the text that you need to customize.

All suggestions or changes required based on each need are welcome. Just contact me and I can send or upload the files.

DIVISIONS

Single: No divisions

2L: 2 full-length divisions

2W: 2 full-width divisions

3W: 3 full-width divisions

2L-3W: 2 divisions in length by 3 in width

DEPTH:

MINI: 16mm

SMALL: 24mm

MID: 32mm

BIG: 50mm

BIG MAX: 66mm

Print Settings

Printer Brand:

Creality

Printer:

Ender 3 Pro

Rafts:

Supports:

Resolution:

200

Infill:

Filament:DIY Recycled PET

Notes:

Update 21/09/21: Slopping part of the rim reinforced and make it thicker. Thanks to user hihidavid ([https://www.thingiverse.com/hihidavid](https://www.thingiverse.com/hihidavid)).

Category: Tool Holders & Boxes
